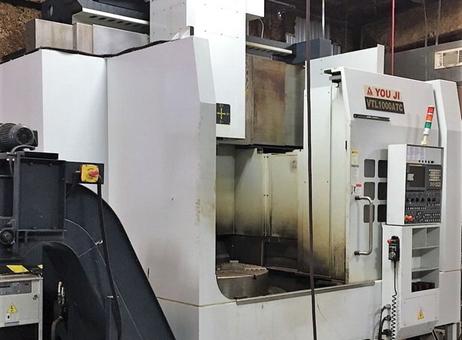

You Ji Model 1000-ATC CNC Vertical Boring Mill featuring a 53-inch maximum swing and a 39.37-inch diameter rotary table. This vertical turret lathe is equipped with a FANUC 18IMB CNC control system and a ram fitted with a 12-position automatic tool changer (ATC), allowing for efficient machining operations. The machine includes a high-precision 39-inch 4-jaw self-centering hydraulic chuck with independent jaw adjustment, designed to securely hold workpieces during machining.
Key specifications include a maximum cutting diameter of 43.30 inches and a maximum cutting height of 35.43 inches, with the potential for slight extension as the machine has been modified with a safety limit switch to control vertical travel. The table supports a weight capacity of up to 8,800 lbs and rotates at speeds ranging from 1 to 600 RPM across two ranges. The ram offers a vertical travel (Z-axis) of 31.49 inches, and the cutting feed rate ranges from 0.39 to 78.7 inches per minute. Power is provided by a 60 HP table drive motor and a main table motor rated between 49 HP and 60 HP, operating at 220 volts.
Additional features include a chip conveyor system to manage machining debris and an emergency stop button for safety, located near the chip conveyor. The machine shows signs of use with some dirt and wear marks on the enclosure but remains a robust vertical turning center suitable for heavy-duty machining tasks. It is currently set up and can be inspected under power at the Houston, Texas plant. Approximate machine weight is 68,200 lbs. Usage data indicates 6,547 power-on hours and 1,437 cutting hours.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Seller's description
53" YOU JI Model 1000-ATC CNC Vertical Boring Mill with ATC. New in 2012
ITEM: 1901SLUBJJ/UBFG ESCO UPDATE: 02/06/2019 53 YOU-JI (TAIWAN) MODEL 1000 ATC CNC VERTICAL TURNING CENTER WITH ATC. NEW 2012 SPECIFICATIONS FANUC 18ITB CNC CONTROL RAM WITH 12-POSITION ATC TABLE DIAMETER: 39.37" Unique features of this chuck: High precision 39 4-jaw self-centering hydraulic power chuck with independent adjustment per jaw. MAXIMUM SWING: 53.14" MAXIMUM CUTTING DIAMETER: 43.30" MAXIMUM CUTTING HEIGHT: 35.43" (RECENTLY WE RAISED THE RAIL TO DETERMINE IF THE WORK-PIECE HEIGHT COULD BE EXTENDED, 38 WAS OBTAINED WITH APPROX 10 ADDITIONAL TO GO, THE MACHINE IS NOW SETUP WITH A SAFETY LIMIT SWITCH TO PREVENT IT FROM RAISING HIGHER. IF LARGER CAPACITY UNDER THE RAIL IS REQUIRED, IT COULD POSSIBLY BE OBTAINED, BUT WE DID NOT ATTEMPT IT). TABLE WEIGHT CAPACITY : 8,800 LBS VERTICAL TRAVEL OF RAM, Z-AXIS : 31.49" TABLE SPEED, 2-RANGES : 1-600 RPM CUTTING FEED RATE : 0.39-78.7 IPM AUTOMATIC TOOL CHANGER : 12 ATC TOOL SHANK : BT-50 7/24 MAIN TABLE MOTOR (220 VOLT) : 49 HP/60 HP APPROX MACHINE WEIGHT : 68,200 LBS
EQUIPPED WITH: FANUC 18IMB CNC CONTROL 39.37" 4-JAW HYDRAULIC CHUCK RAM W/ 12-POSITION AUTOMATIC TOOL CHANGER CHIP CONVEYOR 60 HP TABLE DRIVE MOTOR TOOLING USAGE: POWER ON: 6,547 CUTTING HOURS: 1,437 INSPECT IN PLANT UNDER POWER IN HOUSTON, TEXAS.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Client type
Machinery dealer
Active since
2018
Offers online
34
Last activity
Oct. 20, 2026
Seller's description
53" YOU JI Model 1000-ATC CNC Vertical Boring Mill with ATC. New in 2012
ITEM: 1901SLUBJJ/UBFG ESCO UPDATE: 02/06/2019 53 YOU-JI (TAIWAN) MODEL 1000 ATC CNC VERTICAL TURNING CENTER WITH ATC. NEW 2012 SPECIFICATIONS FANUC 18ITB CNC CONTROL RAM WITH 12-POSITION ATC TABLE DIAMETER: 39.37" Unique features of this chuck: High precision 39 4-jaw self-centering hydraulic power chuck with independent adjustment per jaw. MAXIMUM SWING: 53.14" MAXIMUM CUTTING DIAMETER: 43.30" MAXIMUM CUTTING HEIGHT: 35.43" (RECENTLY WE RAISED THE RAIL TO DETERMINE IF THE WORK-PIECE HEIGHT COULD BE EXTENDED, 38 WAS OBTAINED WITH APPROX 10 ADDITIONAL TO GO, THE MACHINE IS NOW SETUP WITH A SAFETY LIMIT SWITCH TO PREVENT IT FROM RAISING HIGHER. IF LARGER CAPACITY UNDER THE RAIL IS REQUIRED, IT COULD POSSIBLY BE OBTAINED, BUT WE DID NOT ATTEMPT IT). TABLE WEIGHT CAPACITY : 8,800 LBS VERTICAL TRAVEL OF RAM, Z-AXIS : 31.49" TABLE SPEED, 2-RANGES : 1-600 RPM CUTTING FEED RATE : 0.39-78.7 IPM AUTOMATIC TOOL CHANGER : 12 ATC TOOL SHANK : BT-50 7/24 MAIN TABLE MOTOR (220 VOLT) : 49 HP/60 HP APPROX MACHINE WEIGHT : 68,200 LBS
EQUIPPED WITH: FANUC 18IMB CNC CONTROL 39.37" 4-JAW HYDRAULIC CHUCK RAM W/ 12-POSITION AUTOMATIC TOOL CHANGER CHIP CONVEYOR 60 HP TABLE DRIVE MOTOR TOOLING USAGE: POWER ON: 6,547 CUTTING HOURS: 1,437 INSPECT IN PLANT UNDER POWER IN HOUSTON, TEXAS.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
You Ji Model 1000-ATC CNC Vertical Boring Mill featuring a 53-inch maximum swing and a 39.37-inch diameter rotary table. This vertical turret lathe is equipped with a FANUC 18IMB CNC control system and a ram fitted with a 12-position automatic tool changer (ATC), allowing for efficient machining operations. The machine includes a high-precision 39-inch 4-jaw self-centering hydraulic chuck with independent jaw adjustment, designed to securely hold workpieces during machining.
Key specifications include a maximum cutting diameter of 43.30 inches and a maximum cutting height of 35.43 inches, with the potential for slight extension as the machine has been modified with a safety limit switch to control vertical travel. The table supports a weight capacity of up to 8,800 lbs and rotates at speeds ranging from 1 to 600 RPM across two ranges. The ram offers a vertical travel (Z-axis) of 31.49 inches, and the cutting feed rate ranges from 0.39 to 78.7 inches per minute. Power is provided by a 60 HP table drive motor and a main table motor rated between 49 HP and 60 HP, operating at 220 volts.
Additional features include a chip conveyor system to manage machining debris and an emergency stop button for safety, located near the chip conveyor. The machine shows signs of use with some dirt and wear marks on the enclosure but remains a robust vertical turning center suitable for heavy-duty machining tasks. It is currently set up and can be inspected under power at the Houston, Texas plant. Approximate machine weight is 68,200 lbs. Usage data indicates 6,547 power-on hours and 1,437 cutting hours.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
