| Manufacturer | Fellows |
|---|---|
| Model | 70-15 |
| Year | 1989 |
| Location | USA
|

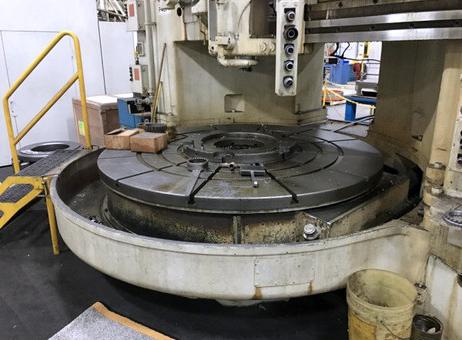

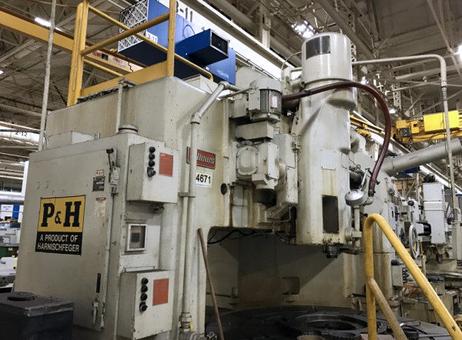

This listing features a used Fellows vertical turret lathe, model 70-15, manufactured in 1989. The machine is a large industrial lathe designed for heavy-duty gear cutting and machining tasks. It includes a circular worktable with segmented clamping slots, allowing for secure and adjustable workpiece mounting. The overhead turret is equipped with various mechanical components and attached hoses, facilitating versatile tool changes and operations.

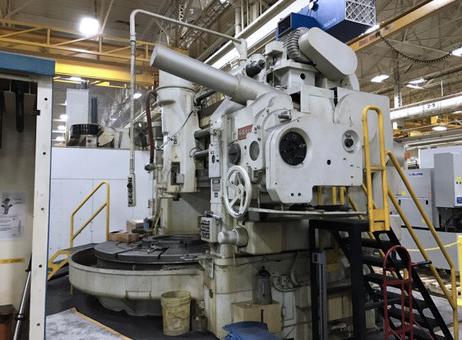

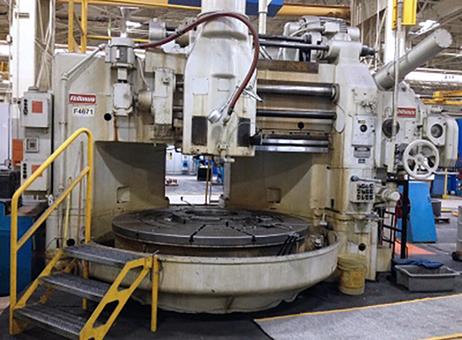

The lathe is supported by a yellow safety railing and stairs, providing safe operator access to the machine's working areas. The machine shows signs of use, including some dirt and wear, but it appears structurally intact and robust.
Key technical specifications include a maximum table diameter of 84 inches and a maximum table weight capacity of 30,000 lbs. It can accommodate workpieces with a maximum diameter of 104 inches and a maximum permissible weight of 36,000 lbs including fixtures. The machine supports internal and external gear cutting with maximum pitch diameters up to 70 inches externally and 88 inches internally. It is capable of cutting spur gears with up to 3 diametral pitch and has a maximum face-width capacity of 15 inches.
Additional features include a cutter spindle diameter of 6.25 inches, a maximum stroke length of 19.12 inches, and infinitely variable stroking speeds ranging from 5 to 122 strokes per minute. The cutter ram's infeed rates vary between 0.0005 and 0.0020 inches per minute, with rotary feed rates per stroke adjustable according to cutter diameter.
The machine weighs approximately 13.6 kg as per provided data, though this figure may refer to a component or is inconsistent with typical lathe weights. Overall, this Fellows 70-15 vertical turret lathe is a substantial piece of equipment suitable for heavy machining tasks requiring precision and versatility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Machine Title: Used 1989 Fellows 70-15
Manufacturer: Fellows
Model: 70-15
Year of Manufacture: 1989
Technical Condition: Good
Weight: 30,000 lbs
Table Diameter: 84"
Maximum Table Weight: 30,000 lbs
Maximum Pitch Diameter: 70"
Internal Maximum DP Spur: 3
Maximum Face-Width (Nominal): 15"
Maximum Diameter External Gear Cut (Nominal): 70"
Maximum Diameter Internal Gear Cut (Nominal): 88"
Maximum Diameter Workpiece Accommodated: 104"
Max Permissible Weight of Workpiece & Fixture: 36,000 lbs
Work Spindle Centerline to Centerline of Cutter Spindle: 35"
Fixture Clearance Height w/Cutter Spindle in Upper Position: 28"
Maximum Diametric Pitch (Full Length Teeth): 2 DP
Maximum Diametric Pitch (Stub Teeth): 0.75 DP
Maximum Diameter Pitch (30° P.A. Splines): 2-5/5 DP
Diameter of Cutter Spindle: 6.25"
Maximum Stroke Length: 19.12"
Stroking Speeds (Infinitely Variable): 5 to 122 S.P.M.
Maximum Infeed of Cutter Ram: 0.0020"/min
Minimum Infeed of Cutter Ram: 0.0005"/min
Max Rotary Feed per Stroke (per 1" of Cutter Diameter): 0.0068"/min
Min Rotary Feed per Stroke (per 1" of Cutter Diameter): 0.0006"/min
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2023 |
| Offers online | 37 |
| Last activity | Oct. 15, 2026 |
Machine Title: Used 1989 Fellows 70-15
Manufacturer: Fellows
Model: 70-15
Year of Manufacture: 1989
Technical Condition: Good
Weight: 30,000 lbs
Table Diameter: 84"
Maximum Table Weight: 30,000 lbs
Maximum Pitch Diameter: 70"
Internal Maximum DP Spur: 3
Maximum Face-Width (Nominal): 15"
Maximum Diameter External Gear Cut (Nominal): 70"
Maximum Diameter Internal Gear Cut (Nominal): 88"
Maximum Diameter Workpiece Accommodated: 104"
Max Permissible Weight of Workpiece & Fixture: 36,000 lbs
Work Spindle Centerline to Centerline of Cutter Spindle: 35"
Fixture Clearance Height w/Cutter Spindle in Upper Position: 28"
Maximum Diametric Pitch (Full Length Teeth): 2 DP
Maximum Diametric Pitch (Stub Teeth): 0.75 DP
Maximum Diameter Pitch (30° P.A. Splines): 2-5/5 DP
Diameter of Cutter Spindle: 6.25"
Maximum Stroke Length: 19.12"
Stroking Speeds (Infinitely Variable): 5 to 122 S.P.M.
Maximum Infeed of Cutter Ram: 0.0020"/min
Minimum Infeed of Cutter Ram: 0.0005"/min
Max Rotary Feed per Stroke (per 1" of Cutter Diameter): 0.0068"/min
Min Rotary Feed per Stroke (per 1" of Cutter Diameter): 0.0006"/min
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a used Fellows vertical turret lathe, model 70-15, manufactured in 1989. The machine is a large industrial lathe designed for heavy-duty gear cutting and machining tasks. It includes a circular worktable with segmented clamping slots, allowing for secure and adjustable workpiece mounting. The overhead turret is equipped with various mechanical components and attached hoses, facilitating versatile tool changes and operations.
The lathe is supported by a yellow safety railing and stairs, providing safe operator access to the machine's working areas. The machine shows signs of use, including some dirt and wear, but it appears structurally intact and robust.
Key technical specifications include a maximum table diameter of 84 inches and a maximum table weight capacity of 30,000 lbs. It can accommodate workpieces with a maximum diameter of 104 inches and a maximum permissible weight of 36,000 lbs including fixtures. The machine supports internal and external gear cutting with maximum pitch diameters up to 70 inches externally and 88 inches internally. It is capable of cutting spur gears with up to 3 diametral pitch and has a maximum face-width capacity of 15 inches.
Additional features include a cutter spindle diameter of 6.25 inches, a maximum stroke length of 19.12 inches, and infinitely variable stroking speeds ranging from 5 to 122 strokes per minute. The cutter ram's infeed rates vary between 0.0005 and 0.0020 inches per minute, with rotary feed rates per stroke adjustable according to cutter diameter.
The machine weighs approximately 13.6 kg as per provided data, though this figure may refer to a component or is inconsistent with typical lathe weights. Overall, this Fellows 70-15 vertical turret lathe is a substantial piece of equipment suitable for heavy machining tasks requiring precision and versatility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
