| Manufacturer | D-F |
|---|---|
| Model | CK5280 |
| Year | 2022 |
| Location | USA
|
The D-F CK5280 is a large capacity CNC Double Column Vertical Turning Lathe designed for heavy-duty machining tasks. Manufactured in 2022, this model features a powerful 110 kW main motor and is equipped with a Siemens 828D CNC control system, ensuring precise and automated operation. The machine is capable of handling workpieces with a maximum vertical turret cutting diameter of 8000 mm (315 inches) and a worktable diameter of 6000 mm, which is divided into two or three parts for transportation convenience. It supports workpieces up to 4000 mm in height and weighing as much as 100 tons.
The worktable offers a maximum torque of 150 KN·m and operates at variable speeds ranging from 0.2 to 20 rpm with two speed steps. The machine includes two rams: one CNC-controlled and one manual, with respective machining capacities of 50 KN and 40 KN. The ram section measures 280 x 280 mm, with horizontal travel along the X-axis of 4100 mm and vertical travel along the Z-axis of 2000 mm. Rapid travel speeds are 4100 mm/min for the ram and 350 mm/min for the crossbeam, which itself has a travel length of 3400 mm.
The vertical turret lathe features a robust overhead gantry supported by two red vertical columns and a circular worktable with multiple clamping points and radial slots for secure mounting of workpieces. The worktable is equipped with a large gear ring and multiple holes to facilitate various machining operations. An electric motor is mounted on top of the crossbeam to drive the tool movements. The spindle head is positioned above the workpiece, allowing for efficient vertical machining.

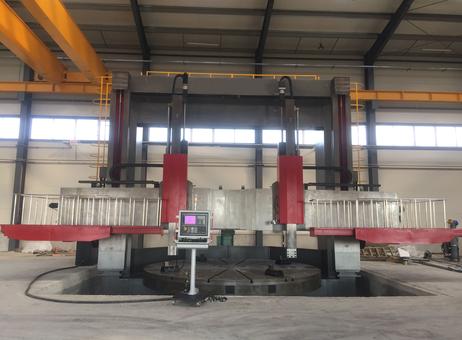

The machine is installed in a spacious industrial workshop environment and is accompanied by a CNC control panel mounted on a stand for operator convenience. Additional accessories observed include a small stool and table near the machine base. The interior and overall condition of the machine appear well-maintained and clean, suitable for precision machining tasks. This vertical turning lathe is designed for use with a 400-380V/50Hz/3-phase local power supply, with other voltages available upon request.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
D-F 8,000mm (315”) Model CK5280 CNC Double Column Vertical Turning Lathe
Table Dia 240"
Swing 315"
Work Ht-U/R 160"
Control CNC (Siemens)
D-F 8,000mm (315”) Model CK5280 CNC Double Column Vertical Turning Lathe
. Machine Specifications
Main Specifications unit Model
CK5280(100)
Max.vertical turret cutting diameter mm 8000
Diameter of worktable(2/3 parts for transportation) mm 6000
Max. height of workpiece mm 4000
Max.weight of workpiece ton 100
Main motor power kw 110
CNC system Siemens 828D
Worktable
Max.Torque of table turning KN.m 150
Speed steps of worktable step 2 steps
Speed of worktable rpm 0.2-20
Ram and crossbeam
Ram- Two rams One is CNC and One is manual.
Ram section size mm 280x280
Right ram machining capacity KN 50
Left ram machining capacity KN 40
Horizontal travel of Ram-X axis mm 4100
Vertical travel of Ram-Z axis mm 2000
Rapid travel speed of Ram mm/min 4100
Rapid travel speed of crossbeam mm/min 350
Travel of crossbeam mm 3400
3. Main features
★ Suitable for 400-380V/50HZ/3Ph local power supply, other voltage should be indicated.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
