| Manufacturer | Bullard |
|---|---|
| Model | 74 |
| Year | |
| Location | USA
|

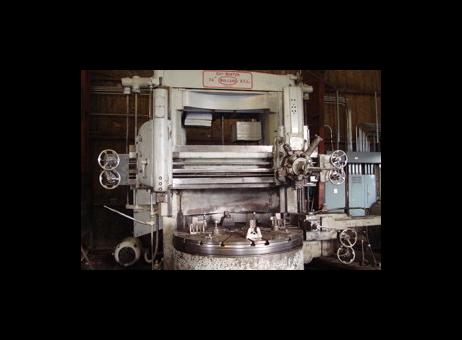

This listing is for a Bullard model 74 Vertical Turret Lathe, also known as the "Cutmaster," featuring three heads. The machine is substantial, with an approximate weight of 70,440 lbs and overall dimensions around 176 inches wide, 136 inches deep, and 146 inches in height. It includes a large 74-inch diameter table equipped with four boring mill jaws and a chuck for securing workpieces during machining operations.
The lathe offers significant versatility with a maximum swing of 78 inches above the table top and 82 inches below it. The table-to-rail distance measures up to 60 inches, and the cross rail has a vertical travel capability of 48 inches. The turret head can move vertically up to 30 3/8 inches, featuring tool post holes sized at 2 3/4 inches. Additionally, the side head has vertical travel of 34 inches and horizontal travel of 27 inches, with a maximum distance from the table to the underside of the side head slide of 20 inches.
Speed options include 20 settings, with four change gears providing a range from 2.45 RPM to 90.0 RPM. Feed rates number 16, with geometric ratios ranging from 0.03 to 0.5 inches per revolution. The machine incorporates a 5-sided swiveling turret head and a ram head mounted on the cross rail. The side head includes a 5 1/2-inch square turret designed for tools sized 1 1/4 by 1 1/2 inches. A boring ram of type H is also part of the setup.
Power is supplied by a 40 HP motor operating at 3-phase, 60 Hz, with voltage options between 220 and 440 volts.
The machine shows signs of use, including some wear and dust accumulation, consistent with its industrial application. A control panel or electrical box is located on the right side of the machine for operation control. This robust vertical turret lathe is suitable for heavy-duty machining tasks requiring precision and flexibility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
74" Bullard Cutmaster 3-heads Vertical Turret Lathe
Dimensions 176" x 136" x 146"
Weight 70,440 Lbs
74" Bullard "CUTMASTER" Vertical Turret Lathe 3-heads
Specifications:
Max Swing - Side Head Above Table Top 78"
Max Swing - Side Head Below Table Top 82"
Max Distance Table to Rail 60"
Cross Rail Vertical Travel 48"
Max Distance Table to Face of Turret 60"
Turret Head Vertical Travel 30 3/8"
Turret Head Tool Post Holes 2 3/4"
Max Distance Table to Underside of Side Head Slide 20"
Side Head Vertical Travel 34"
Side Head Horizontal Travel 27"
74 diameter table with 4 boring mill jaws
Speeds: 20
4-Change gears: 2.45 RPM to 90.0 RPM
Feeds: 16
In Geometric Ratio: 003 IPR to .500 IPR
5-Sided Swiveling turret head, and Ram Head on Cross Rail
Side Head With 5 1/2" Square Turret for 1 1/4" x 1 1/2" Tools
Boring Ram H TYPE
Approx. Weight 70,400 Lbs
Approx. Dimensions 176" W x 136" D
Approx. Shipping Height 146"
40 HP Motor 3/60/220-440
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
