| Manufacturer | You Ji |
|---|---|
| Model | 1000-ATC |
| Year | |
| Location | USA
|
You Ji Model 1000-ATC is a CNC Vertical Turning Center designed for precision machining. This machine features a Fanuc 18IMB CNC control system, providing reliable and advanced control capabilities. It is equipped with a 39.37-inch diameter 4-jaw hydraulic chuck, which is self-centering and allows independent adjustment for each jaw to enhance gripping precision. The machine includes a rotary table within the machining area, capable of supporting a maximum weight capacity of 8,800 lbs.
The vertical turning center has a maximum swing of 53.14 inches and a maximum cutting diameter of 43.30 inches. The maximum cutting height is 35.43 inches, with a vertical travel of the ram (Z-axis) of 31.49 inches. The table speed offers two ranges, from 1 to 600 RPM, and the cutting feed rate ranges from 0.39 to 78.7 inches per minute. The main table motor operates at 220 volts with a power rating between 49 HP and 60 HP.
This machine includes a 12-position automatic tool changer (ATC) with BT-50 tool shanks, enhancing productivity by enabling quick tool changes. A chip conveyor is attached to the left side of the machine to facilitate chip removal during operation. An emergency stop button is mounted near the chip conveyor for safety.

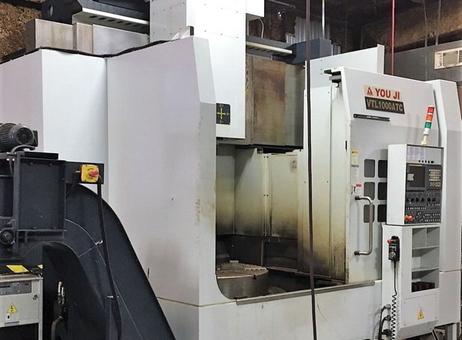

The machine shows signs of use, including some dirt and discoloration on surfaces, consistent with typical industrial use. The CNC control panel is located on the right side of the machine for operator convenience. Overall, this You Ji vertical turning center is a robust and capable machine suitable for various turning applications requiring high precision and automation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
YOU-JI Model 1000 ATC 39" CNC Vertical Turning Center. S/N 1VTL100TX02686. New 2012
Weight 68,200 Lbs
ITEM: 1901SLUBJJ/UBFG ESCO UPDATE: 02/06/2019
53 YOU-JI (TAIWAN) MODEL 1000 ATC CNC VERTICAL TURNING CENTER WITH ATC. NEW 2012
SPECIFICATIONS
FANUC 18ITB CNC CONTROL
RAM WITH 12-POSITION ATC
TABLE DIAMETER: 39.37" Unique features of this chuck: High precision 39 4-jaw self-centering hydraulic power chuck with independent adjustment per jaw.
MAXIMUM SWING: 53.14"
MAXIMUM CUTTING DIAMETER: 43.30"
MAXIMUM CUTTING HEIGHT: 35.43"
(RECENTLY WE RAISED THE RAIL TO DETERMINE IF THE WORK-PIECE HEIGHT COULD BE EXTENDED, 38 WAS OBTAINED WITH APPROX 10 ADDITIONAL TO GO, THE MACHINE IS NOW SETUP WITH A SAFETY LIMIT SWITCH TO PREVENT IT FROM RAISING HIGHER. IF LARGER CAPACITY UNDER THE RAIL IS REQUIRED, IT COULD POSSIBLY BE OBTAINED, BUT WE DID NOT ATTEMPT IT).
TABLE WEIGHT CAPACITY : 8,800 LBS
VERTICAL TRAVEL OF RAM, Z-AXIS : 31.49"
TABLE SPEED, 2-RANGES : 1-600 RPM
CUTTING FEED RATE : 0.39-78.7 IPM
AUTOMATIC TOOL CHANGER : 12 ATC
TOOL SHANK : BT-50 7/24
MAIN TABLE MOTOR (220 VOLT) : 49 HP/60 HP
APPROX MACHINE WEIGHT : 68,200 LBS
EQUIPPED WITH:
FANUC 18IMB CNC CONTROL
39.37" 4-JAW HYDRAULIC CHUCK
RAM W/ 12-POSITION AUTOMATIC TOOL CHANGER
CHIP CONVEYOR
60 HP TABLE DRIVE MOTOR
TOOLING
USAGE:
POWER ON: 6,547
CUTTING HOURS: 1,437
INSPECT IN PLANT UNDER POWER IN HOUSTON, TEXAS.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
