This Hankook VTB125E vertical turret lathe is designed for precision machining with a robust configuration suitable for heavy-duty applications. It features a large 1,250 mm diameter table capable of handling workpieces up to 8,000 kg in weight. The machine supports a maximum turning diameter of 1,600 mm and a maximum turning height of 1,400 mm, making it versatile for various large-scale components.
Powered by a main spindle motor with a rated power of up to 45 kW, the lathe offers a maximum table rotation speed of 360 rpm, providing the necessary torque and speed for efficient metal cutting operations. The machine's axis travels include 1,060 mm in the X-axis and 900 mm ram travel in the Z-axis, with a ram cross-section of 220 x 220 mm. Additionally, the vertical crossrail travel measures 700 mm, allowing for flexible tool positioning.
Equipped with a 12-station automatic tool changer (ATC), this CNC vertical turning center enhances productivity by enabling quick tool changes during machining cycles. The CNC control panel is mounted on the right side of the machine, facilitating operator access and control.

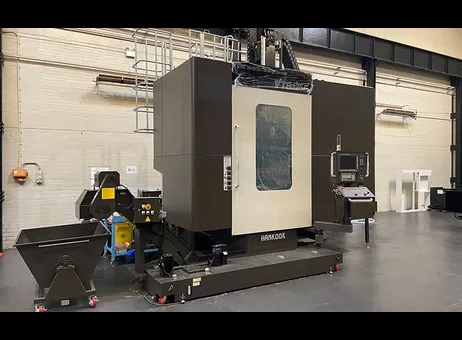

The machine enclosure includes a large sliding door with a window, providing easy access to the machining area while allowing operators to monitor the process safely. On the left side, there is a chip conveyor or chip collection bin to manage metal shavings and maintain a clean work environment.
The machine is presented in an as-is, where-is condition. The brand name "HANKOOK" is prominently displayed on the base, and the top of the machine bears the label "CNC Vertical Turning Center." This lathe is suitable for manufacturers requiring a reliable and powerful vertical turret lathe for heavy and precise turning operations.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: Hankook
Model: VTB125E
Table Diameter: 1,250 MM
Max. Turning Diameter: 1,600 MM
Max. Turning Height: 1,400 MM
Max. Weight on Table: 8,000 KGS
Max. Table Speeds: 360 RPM
Main Spindle Power: 37.0 / 45.0 KW
Axis Travels - X: 1,060 MM
Ram Travel - Z: 900 MM
Ram Dimensions: 220 x 220 MM
Vertical Crossrail Travel: 700 MM
Number of ATC Stations: 12
Technical Condition: As-is, where-is
