DESCRIPTION: Blister packs are commonly used as unit-dose packaging for pharmaceutical tablets, capsules or lozenges. Blister packs can provide barrier protection for shelf life requirements, and a degree of tamper resistance, they are created by means of a form-fill-seal process at the pharmaceutical company or designated contract packer. A form-fill-seal process means that the blister pack is created from rolls of flat sheet or film, filled with the pharmaceutical product and closed (sealed) on the same equipment. Partena S.p.A. has many years experience in the packaging of the blister, primarily in the pharmaceutical sector. SECTORS OF USE: Suitable for the use in food industries, specifically for the dairy farming. MAIN FEATURES: Designed and built in perfect harmony with the most demanding needs, provides users with a solution to all problems of packaging (maximum output, minimum packaging material waste, large range of packaging materials including also polypropylene, aluminum) environment (minimum noise, smoke extraction, simplified lubrication system), management (rational design of controls, maximum simplicity in the format changes, reduced scheduled maintenance, preparation design for connection with any tipe of machine). Workstations: preheating, forming, loading, closing and cutting station. The machine is pneumatically operated, the working cycle is obtained by means of a …
Blister packing machine Manufacturer IMA Model TR130 Dimensions 3000mm long 1100mm deep 1800 high Speed forming pvc 85 per min x number blister in a form half speed in alu/alu Minimum and maximum size of blisters , output up to 210 blisters per minute. Blister dimensions: Width 30 - 85mm Length 60 - 130mm Depth 12mm The TR130 is a versatile, extremely compact and economical blister packaging machine there are three machines available
Noack N920 Year of manufacture: 1999 • Suitable for packaging tablets or capsules in PVC/aluminum blister packs • Variable speed • Maximum capacity of 80 forming cycles per minute • Brush-fed tablet feeders • Vision system • Vacuum system • Blister sorting system for feeding the packaging machine • Maximum extraction depth: 12 mm • Maximum film width: 160 mm Uhlmann C130 Year of manufacture: 2008 PEWO PACK 250 Year of manufacture 2008 PEWO PACK automatic wrapping machine Min/max bundle dimensions: - 60 x 30 x 60 mm [L x W x H] 360 x 180 x 250 mm [L x W x H]. CT2000 Year of manufacture: 2002 The CT2000 collection table is a fully automatic collection table for intermediate storage of products.
intermittent motion cartoner for the packaging of small and medium-sized blister batches – with a high standard of process reliability and a long service life.
Blister machine for vials Manufacturer: Uhlmann Model: UPS4 Year of manufacture: 2000 Bottle carton packaging 2 bottle feed dispenser PACCONTROL PCL Production capacity: - 15 to 50 cycles/min up to a punching depth of 12 mm - 15 to 40 cycles/min up to a punching depth of 28 mm Maximum feed length: 222 mm

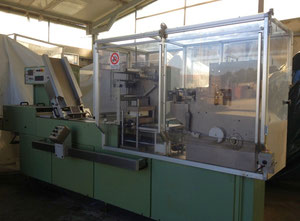

Automatic blister packaging machine designed for blister packaging pharmaceutical products such as dragees, tablets, capsules, etc. 50 strokes / minute Film width: 254 mm / max Pitch 180 mm / max Packaging cycle: Heating - Stamping - Loading - Sealing with coding - Cutting - Pre-cutting this extra information is standard for this model. Please always double-check the details during a visit The Partena M82-X Blister Machine, originating in 1988, represents a pioneering milestone in packaging technology. Engineered by Partena, a respected industry figure, this model showcases advanced features and enduring reliability. The M82-X Blister Machine is purpose-built to create secure and tamper-evident blister packaging for various products. Its cutting-edge design includes precision thermoforming and sealing mechanisms, ensuring consistent packaging quality. Despite its vintage, this model's innovative principles remain relevant, as it paved the way for modern blister packaging practices. The machine's mechanical accuracy and user-friendly interface allow operators to efficiently monitor and adjust packaging parameters in real-time. Its adaptability to different product sizes and blister formats underscores its versatility, addressing diverse packaging needs. The M82-X's robust construction and durable components reflect Partena's commitment to longevity and performance. Despite its age, this model's adherence to stringent manufacturing standards ensures its …
Producer: Shiongi Type Hicapseal S100 Year of construction 1997 Dimension ca. [in mm] 4000 x 700 x 2000 Weight ca. [in kg] 2000 Country of origin Japan Link to the producer www.qualicaps.com Fully automatic capsule sealing machine. Incl. PLC: Siemens-S5, type: 954, Operating control: Lauer PCS 095. Format part for capsule size. 3. Output: up to 100'000 capsules/h. Furthermore incl. Visco system TRAWID VM, Sensor O.B.D, Control H, No. 04712479. The controll device is self made (Comp. Wetzel). Gelatin-vessel is A2/ double jacket, heatable with IKA stirrer RW 16- basic incl. agitator OPTI- Color, pump Watson - Marlow 505 S, two forward- and two backward pipe.
