Contact us to receive an offer.
| Manufacturer | Shiongi |
|---|---|
| Model | Hicapseal S100 |
| Year | 1997 |
| Location | Switzerland
|
This is a Shiongi Hicapseal S100 fully automatic capsule sealing machine, manufactured in 1997 in Japan. The machine measures approximately 4000 mm in length, 700 mm in width, and 2000 mm in height, with a weight of around 2000 kg. It is designed for high-speed capsule sealing operations, capable of processing up to 100,000 capsules per hour.

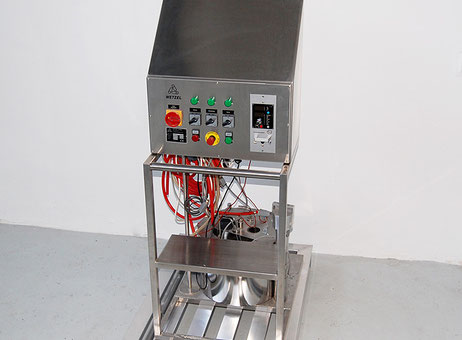

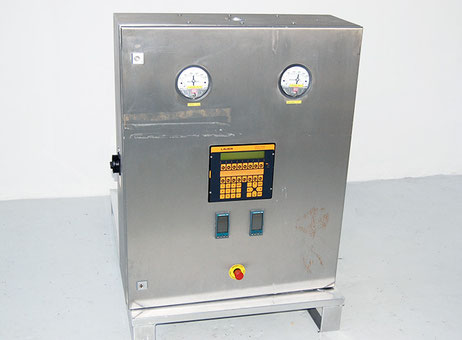

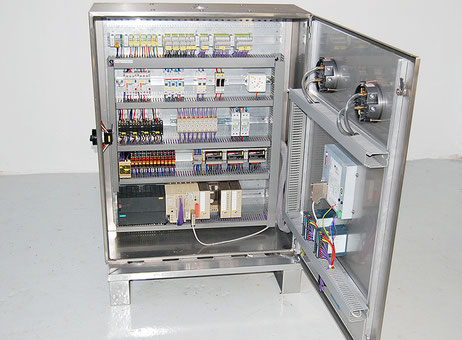

The machine is equipped with a Siemens-S5 PLC (type 954) and operates using a Lauer PCS 095 control system. It includes a format part suitable for the capsule size being processed. Additional integrated systems include the Visco system TRAWID VM, Sensor O.B.D, and Control H (serial number 04712479). The control device is custom-made by Comp. Wetzel.
The gelatin vessel is made of A2 stainless steel with a double jacket design, allowing it to be heated. It also features an IKA stirrer RW 16-basic with an OPTI-Color agitator for efficient mixing. The machine includes a Watson-Marlow 505 S pump, along with two forward and two backward pipes for fluid handling.

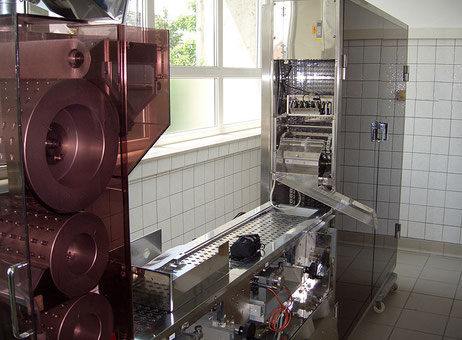

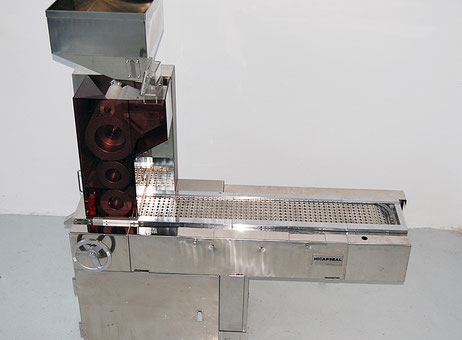

Constructed primarily of stainless steel, the machine features a conveyor belt with perforated metal for transporting blister packs. A hopper is positioned on top for feeding materials into the machine. For manual adjustments, a hand wheel is located on the side. The machine also has a transparent brown protective cover that reveals internal rollers or wheels, and a red transparent protective door on one side that can be opened.

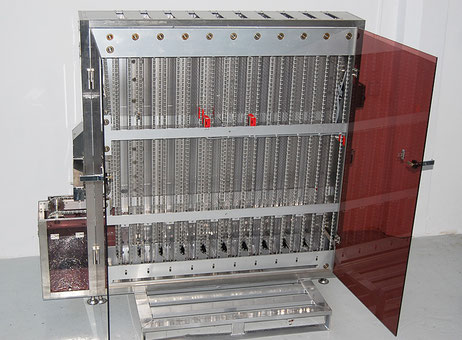

The machine stands on four small feet for stability. Its frame includes multiple vertical guides or channels, likely used for blister packaging, and a large vertical metal component with vertical slots and red locking mechanisms, which appears to be part of the loading or sorting section.
This equipment is suitable for pharmaceutical or related industries requiring efficient and automated capsule sealing processes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Producer: Shiongi
Type Hicapseal S100
Year of construction 1997
Dimension ca. [in mm] 4000 x 700 x 2000
Weight ca. [in kg] 2000
Country of origin Japan
Link to the producer www.qualicaps.com
Fully automatic capsule sealing machine. Incl. PLC: Siemens-S5, type: 954, Operating control: Lauer PCS 095. Format part for capsule size. 3. Output: up to 100'000 capsules/h. Furthermore incl. Visco system TRAWID VM, Sensor O.B.D, Control H, No. 04712479. The controll device is self made (Comp. Wetzel). Gelatin-vessel is A2/ double jacket, heatable with IKA stirrer RW 16- basic incl. agitator OPTI- Color, pump Watson - Marlow 505 S, two forward- and two backward pipe.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2018 |
| Offers online | 202 |
| Last activity | Oct. 27, 2026 |
Producer: Shiongi
Type Hicapseal S100
Year of construction 1997
Dimension ca. [in mm] 4000 x 700 x 2000
Weight ca. [in kg] 2000
Country of origin Japan
Link to the producer www.qualicaps.com
Fully automatic capsule sealing machine. Incl. PLC: Siemens-S5, type: 954, Operating control: Lauer PCS 095. Format part for capsule size. 3. Output: up to 100'000 capsules/h. Furthermore incl. Visco system TRAWID VM, Sensor O.B.D, Control H, No. 04712479. The controll device is self made (Comp. Wetzel). Gelatin-vessel is A2/ double jacket, heatable with IKA stirrer RW 16- basic incl. agitator OPTI- Color, pump Watson - Marlow 505 S, two forward- and two backward pipe.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This is a Shiongi Hicapseal S100 fully automatic capsule sealing machine, manufactured in 1997 in Japan. The machine measures approximately 4000 mm in length, 700 mm in width, and 2000 mm in height, with a weight of around 2000 kg. It is designed for high-speed capsule sealing operations, capable of processing up to 100,000 capsules per hour.
The machine is equipped with a Siemens-S5 PLC (type 954) and operates using a Lauer PCS 095 control system. It includes a format part suitable for the capsule size being processed. Additional integrated systems include the Visco system TRAWID VM, Sensor O.B.D, and Control H (serial number 04712479). The control device is custom-made by Comp. Wetzel.
The gelatin vessel is made of A2 stainless steel with a double jacket design, allowing it to be heated. It also features an IKA stirrer RW 16-basic with an OPTI-Color agitator for efficient mixing. The machine includes a Watson-Marlow 505 S pump, along with two forward and two backward pipes for fluid handling.
Constructed primarily of stainless steel, the machine features a conveyor belt with perforated metal for transporting blister packs. A hopper is positioned on top for feeding materials into the machine. For manual adjustments, a hand wheel is located on the side. The machine also has a transparent brown protective cover that reveals internal rollers or wheels, and a red transparent protective door on one side that can be opened.
The machine stands on four small feet for stability. Its frame includes multiple vertical guides or channels, likely used for blister packaging, and a large vertical metal component with vertical slots and red locking mechanisms, which appears to be part of the loading or sorting section.
This equipment is suitable for pharmaceutical or related industries requiring efficient and automated capsule sealing processes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2018 |
| Offers online | 202 |
| Last activity | Oct. 27, 2026 |
