Contact us to receive an offer.
| Manufacturer | MARCHESINI GROUP |
|---|---|
| Model | FC420 |
| Year | |
| Location | Italy
|
| Category | Blister machines |
| Moulding length | 320 mm |
| Moulding width | 254 mm |
| Forming depth | 42 mm |
| Cycle/min | 50 |
| Engine Power | 36 kW |
| Weight | 7000 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 31/03/2026 |
| Product id | P220308022 |
| Language |
MARCHESINI GROUP FC420
Blistrovací stroj MARCHESINI GROUP FC420
MARCHESINI GROUP FC420
MARCHESINI GROUP FC420 Blistermaschine
MARCHESINI GROUP FC420
MARCHESINI GROUP FC420 Blister machine
Máquina blister MARCHESINI GROUP FC420
Blistéreuse MARCHESINI GROUP FC420
MARCHESINI GROUP FC420
MARCHESINI GROUP FC420
Blisteratrice MARCHESINI GROUP FC420
MARCHESINI GROUP FC420
MARCHESINI GROUP FC420
Blistrownica MARCHESINI GROUP FC420
MARCHESINI GROUP FC420
MARCHESINI GROUP FC420
MARCHESINI GROUP FC420 Блистерная машина
MARCHESINI GROUP FC420
MARCHESINI GROUP FC420
Blister ambalaj makinesi MARCHESINI GROUP FC420
|
The MARCHESINI GROUP FC420 is a high-speed, fully automatic thermoforming blister packaging machine designed primarily for pharmaceutical applications such as packaging pre-filled syringes, vials, ampoules, and similar products. This machine operates with a mechanical intermittent motion and features a balcony structure with independent servo-driven stations, allowing precise and efficient packaging processes.
It is capable of thermoforming trays from various thermoformable films including PVC, PET, Polystyrene (PS), PP, PLA, and multilayer laminates. The machine accommodates a maximum film width of 254 mm and a moulding length of 320 mm, with a forming depth of 42 mm. It achieves a cycle rate of up to 50 cycles per minute, supporting high-volume production needs.
The FC420 is equipped with a stainless steel finish suitable for pharmaceutical production environments, ensuring compliance with hygiene standards. It includes a PC-controlled interface for easy operation and monitoring. The machine's installed power is 36 kW, and it weighs approximately 7000 kg.

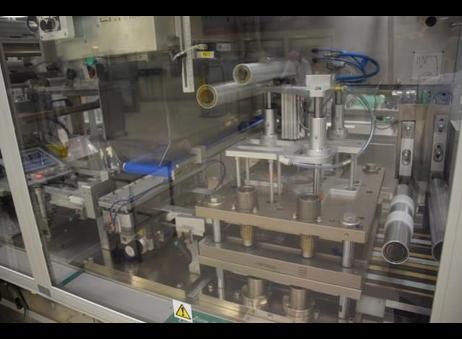

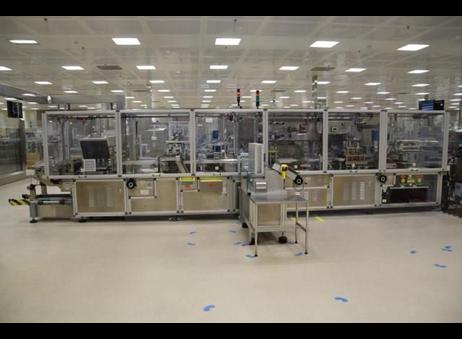

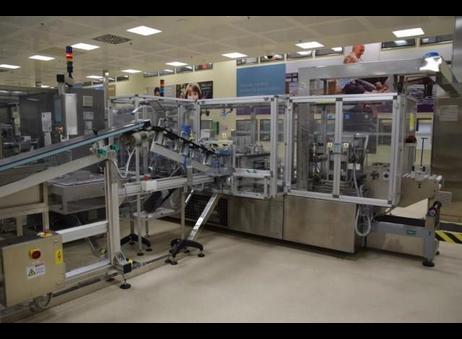

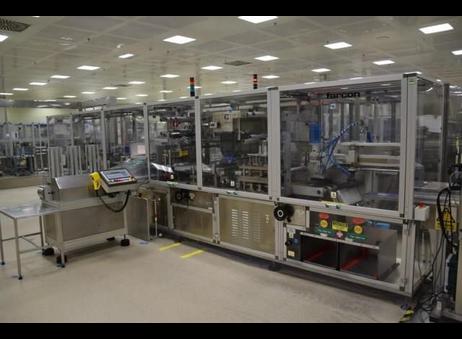

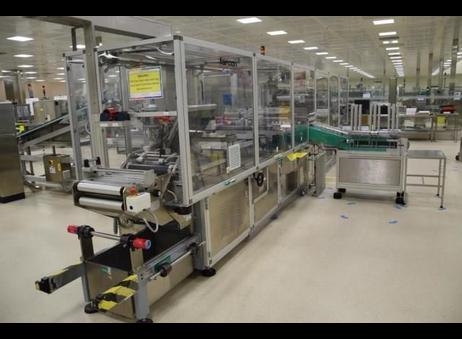

From the images, the machine features transparent protective panels enclosing the working area, allowing visibility of internal mechanisms while providing safety. A control panel with screen and buttons is located on the left side, complemented by multiple indicator lights on top to display operational status. The machine includes a conveyor system with guard rails and safety barriers for product movement and handling.
The metal frame incorporates ventilation panels along the lower sections, and pneumatic tubes and wiring are visible inside, indicating integrated automation components. The machine appears clean, well-maintained, and situated in a spacious, well-lit industrial facility. Warning labels and electrical control boxes are present, supporting safe operation.
Overall, the MARCHESINI GROUP FC420 is a reliable, precise blister packaging solution tailored for pharmaceutical production, combining advanced features with robust construction and user-friendly controls.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Marchesini FC420 thermoforming machine for pre-filled syringes with feeding system.
High speed mechanical intermittent motion fully automatic packaging machine, balcony structure, independent servo-driven stations, stainless steel finish, PC-controlled.
Designed to fit pharmaceutical-production environments, it thermoforms trays for vials, ampoules, syringes and similar products out of thermoformable films such as PVC, PET, Polystyrene (PS), PP, PLA, multilayer laminates etc.
Film width (A): max 254 mm
Film index (B): 320 mm
Max die-cutting area:
Film width (A): 248 mm
Film index (B): 310 mm
Output: max 48.000/h
Outfeed height: 800-860 mm
Installed power: with sealing station: 36 Kw; without sealing station: 30 Kw
Compressed air consumption (6-8 bar): with sealing station: 1150 Nl/min; without sealing station: 1000 Nl/min
Cooling water consumption: with sealing station: approx. 370 L/h; without sealing station: approx. 300 L/h
this extra information is standard for this model. Please always double-check the details during a visit
The MARCHESINI GROUP FC420 Blister Machine is a remarkable packaging solution renowned for its precision and efficiency in the pharmaceutical and healthcare industries. Manufactured by MARCHESINI GROUP, a globally recognized leader in pharmaceutical packaging technology, this model represents the forefront of innovation in blister packaging.
The FC420 Blister Machine is meticulously engineered to optimize the packaging of pharmaceutical products within blister packs. Its high-speed operation, coupled with advanced blister forming and sealing technology, ensures precise and secure packaging, enhancing product protection and presentation. This model's technological sophistication underscores MARCHESINI GROUP's commitment to innovation.
One of its standout features is its adaptability, accommodating various blister formats, sizes, and materials. The machine incorporates a user-friendly interface that empowers operators to configure packaging parameters and monitor the entire process in real-time, streamlining production workflows.
Built for reliability and compliance with stringent pharmaceutical regulations, the FC420 Blister Machine underscores MARCHESINI GROUP's dedication to precision and quality. Its robust construction and high-quality components ensure consistent performance over time, minimizing maintenance needs and downtime. This machine plays a pivotal role in enhancing packaging efficiency and quality, making it a central asset in the pharmaceutical packaging machinery landscape.
In summary, the MARCHESINI GROUP FC420 Blister Machine redefines blister packaging technology. With advanced features, a user-centric interface, adaptability, and a commitment to efficiency, this model continues to shape pharmaceutical packaging processes, reflecting MARCHESINI GROUP's ongoing dedication to innovation and excellence in the pharmaceutical machinery domain.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
