Price on request
Make an offer| ------------------- | |
| Length x width x height | 3470.0 × 500.0 × 1400.0 |
| Weight | 1800 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 06/03/2026 |
The Partena-Cam M 82/BF is an automatic blister packaging machine manufactured in 1990, designed primarily for pharmaceutical applications such as packaging tablets, capsules, or lozenges in blister packs. These packs provide barrier protection to meet shelf life requirements and offer a degree of tamper resistance. The machine operates on a form-fill-seal process, forming the blister pack from flat sheets or film, filling it with the pharmaceutical product, and sealing it in one integrated operation.
This machine is suitable for use in the food industry as well, including dairy farming applications. It is engineered to maximize output while minimizing packaging material waste and is compatible with a wide range of packaging materials, including polypropylene and aluminum. Environmental considerations include reduced noise levels, smoke extraction, and a simplified lubrication system.
The machine features several workstations: preheating, forming, loading, closing, and cutting. It is pneumatically operated and controlled by a programmer with two motors to select different speeds. The design emphasizes easy access to all stations and full visibility of movements, facilitating straightforward cleaning. Safety is addressed with various devices to protect the operator.

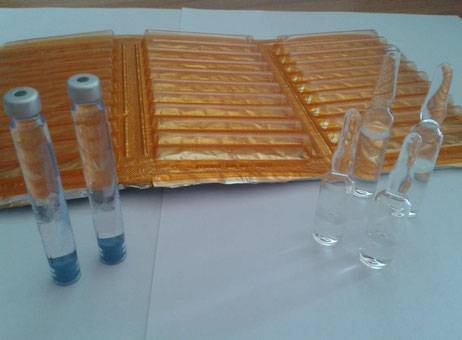

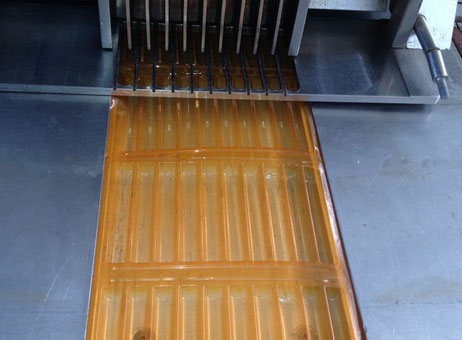

Current format capabilities include blister packages designed to accommodate 10 ampoules of types 1 ml, 2 ml, and tubular injection ampoules. The machine's cutting device employs a quick shear, and it uses a CM 120 P08 closing screening type with aluminum stretching for print contraction. Product presence is controlled by a CF 45 system, and it is equipped to handle ampoule loaders. The machine can operate at up to 50 beats per minute, with a maximum belt width of 225 mm and a step up to 156 mm.
Technical specifications include dimensions of 3470 mm in length, 500 mm in width, and 1400 mm in height, with a net weight of 1800 kg. It requires water consumption of 350 liters per hour and air consumption of 550 Nl/min, operating at 50 Hz and 380 volts, with a maximum installed power of 4.5 KVA.

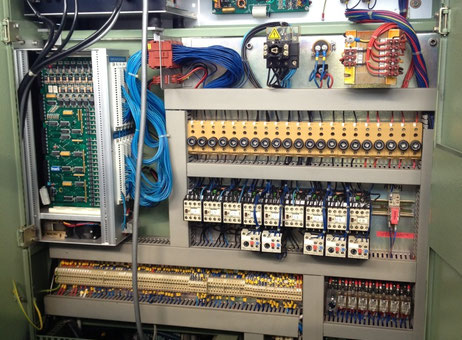

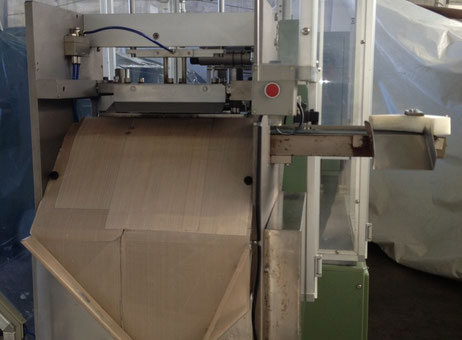

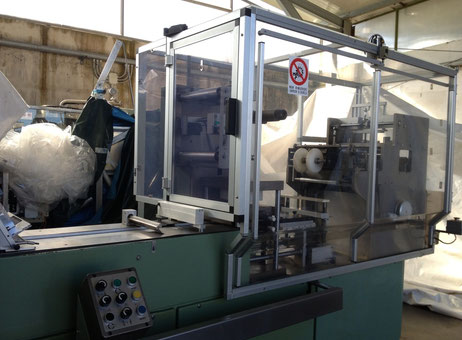

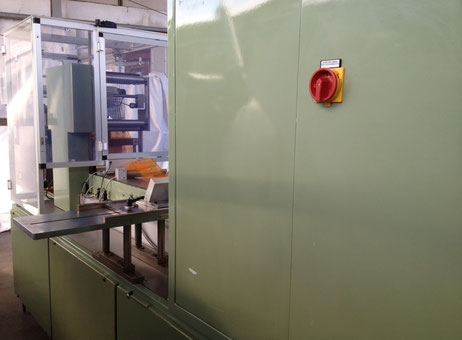

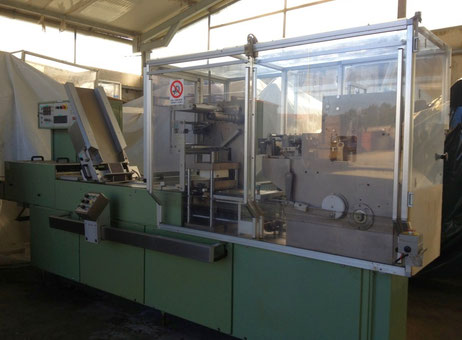

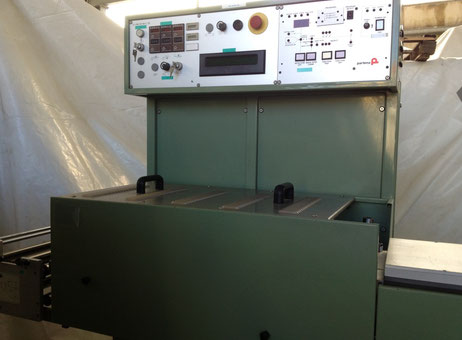

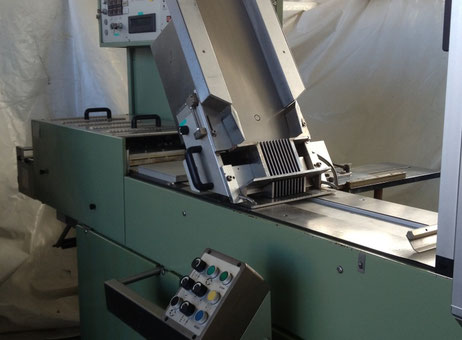

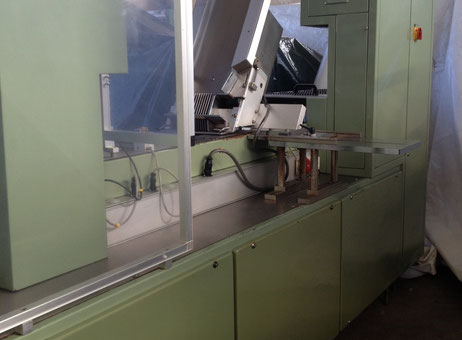

Visually, the machine features a large green metal frame with transparent protective panels and an inclined metal feeder tray for product input. A conveyor belt section is visible on the left side, along with a control panel equipped with various buttons, switches, and a display screen. The machine is enclosed with clear protective panels around the working parts and includes warning signs indicating restricted hand access for safety. Overall, the machine appears to be in good physical condition, clean, and well-maintained.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
DESCRIPTION:

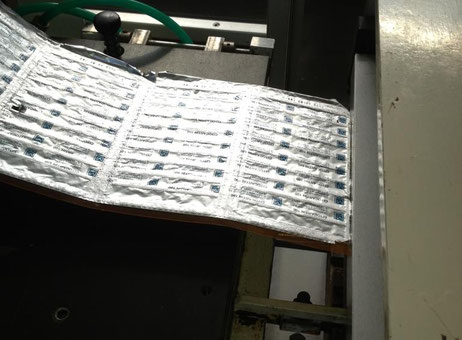

Blister packs are commonly used as unit-dose packaging for pharmaceutical tablets, capsules or lozenges. Blister packs can provide barrier protection for shelf life requirements, and a degree of tamper resistance, they are created by means of a form-fill-seal process at the pharmaceutical company or designated contract packer. A form-fill-seal process means that the blister pack is created from rolls of flat sheet or film, filled with the pharmaceutical product and closed (sealed) on the same equipment. Partena S.p.A. has many years experience in the packaging of the blister, primarily in the pharmaceutical sector.
SECTORS OF USE:
Suitable for the use in food industries, specifically for the dairy farming.
MAIN FEATURES:
Designed and built in perfect harmony with the most demanding needs, provides users with a solution to all problems of packaging (maximum output, minimum packaging material waste, large range of packaging materials including also polypropylene, aluminum) environment (minimum noise, smoke extraction, simplified lubrication system), management (rational design of controls, maximum simplicity in the format changes, reduced scheduled maintenance, preparation design for connection with any tipe of machine).
Workstations: preheating, forming, loading, closing and cutting station. The machine is pneumatically operated, the working cycle is obtained by means of a programmer operated by two motors for the choice of the two speeds of the packaging machine. All the stations are remarkably easy to access and all the movements are fully visible so that the line is very straightforward to clean. This machine is equipped with various safety devices to protect the operator. Current format: blister package which accommodates 10 ampoules type 1 ml, 2 ml and tubular injection ampoules.
Year of construction: 1990
TECHNICAL DATA
Length mm 3470
Width mm 500
Height mm 1400
Net weight Kg 1800
Water consumption l/h 350
Air consumption Nl/min 550
Frequency Hz 50
Voltage Volt 380
Potenza max. installata KVA 4,5
PRODUCTION CHARACTERISTICS
Cutting device quick shear
Closing screening type CM 120 P08
Contratura print stretching aluminum
Control product presence CF 45
loaders ampoules
Beats per min (format dependent) 50
Format PF 1067/1
Step up to 156 mm
Belt width max 225 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
What is the capacity of this PARTENA-CAM Mod. M 82/BF?
This PARTENA-CAM Mod. M 82/BF blistering machine has a capacity of 50 cycles per minute, depending on the format.
Is a manual included with the machine?
This equipment includes a manual as part of the included documentation.
Is this PARTENA-CAM Mod. M 82/BF in working condition?
This PARTENA-CAM Mod. M 82/BF is in good working condition.
What blister sizes can this machine process?
This machine is designed for processing 79 x 97.5 mm blisters with 15, 20, 25, and 30 tablets.
What capsule sizes can this PARTENA-CAM Mod. M 82/BF handle?
This PARTENA-CAM Mod. M 82/BF can also handle 79 x 97.5 mm blisters with 10 and 15 capsules in sizes 1, 0, 00, and 000.
Where is this machine located?
This machine is located in Italy.
Is this PARTENA-CAM Mod. M 82/BF available for immediate sale?
This PARTENA-CAM Mod. M 82/BF is available for immediate sale, subject to prior sale.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| partena-cam-m-82bf-p40730111_17.pdf | Download |
| Client type | Machinery dealer |
| Active since | 2009 |
| Offers online | 1222 |
| Last activity | March 7, 2026 |
