| Manufacturer | EUMACH |
|---|---|
| Model | DM3000 |
| Year | 2004 |
| Location | Italy
|
| Category | Milling - Gantry milling machines |
| X axis | 3200 mm |
| Y axis | 900 mm |
| Z axis | 1800 mm |
| CNC | Yes |
| Table length | 3000 mm |
| Table width | 1700 mm |
| Max load on table | 8000 kg |
| Type of CNC | SELCA 3045 |
| Spindle taper | ISO50 |
| Max. spindle speed | 6000 rpm |
| Spindle motor power | 25 kW |
| Length x width x height | 3000.0 × 1800.0 × 900.0 |
| Weight | 25000 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | yes |
| status | visible |
| Last availability date | 26/10/2026 |
| Product id | P211005051 |
| Language |
EUMACH DM3000
Portálová frézka EUMACH DM3000
EUMACH DM3000
EUMACH DM3000 Portalfräsmaschine
EUMACH DM3000
EUMACH DM3000 Portal milling machine
Fresadora de pórtico EUMACH DM3000
Fraiseuse à portique EUMACH DM3000
EUMACH DM3000
EUMACH DM3000
Fresatrice a portale EUMACH DM3000
EUMACH DM3000
EUMACH DM3000
Frezarka bramowa EUMACH DM3000
EUMACH DM3000
EUMACH DM3000
EUMACH DM3000 Портальный фрезерный станок
EUMACH DM3000
EUMACH DM3000
Portal freze tezgahı EUMACH DM3000
|
The EUMACH DM3000 is a portal milling machine designed for precision metalworking with substantial working dimensions and capacity. It features a longitudinal X-axis travel of 3200 mm, a vertical Y-axis ram travel of 900 mm, and a transverse Z-axis ram travel of 1800 mm. The machine's table measures 3000 mm in length and 1700 mm in width, capable of supporting loads up to 8000 kg, suitable for handling large and heavy workpieces.

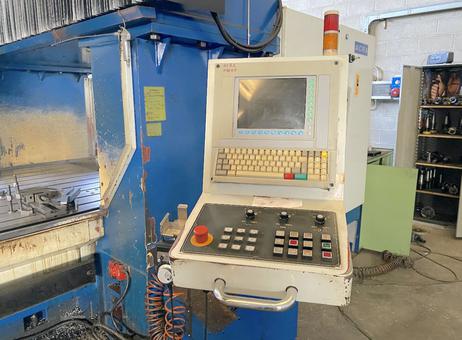

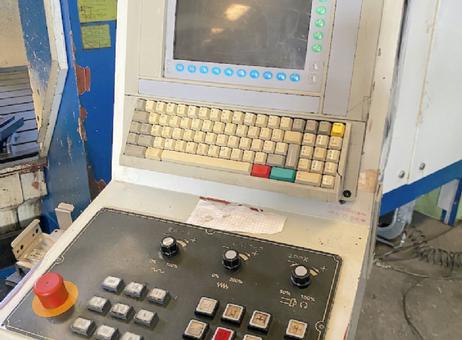

This model is equipped with a CNC system, identified as SELCA 3045, and Siemens drives, enabling precise and automated machining operations. The spindle is powered by a 25 kW motor and can reach speeds up to 6000 rpm, using an ISO50 cone for tool attachment. The machine includes an automatic tool changer (ATC) with 40 positions, supporting tools with a maximum diameter of 130 mm, or up to 200 mm with free adjacent spaces, tool lengths up to 350 mm, and tool weights up to 20 kg.
The machine's rapid traverse speeds are 15 m/min on both the X and Y axes, and 10 m/min on the Z axis, facilitating efficient positioning during operations. The overall weight of the machine is approximately 25,000 kg.

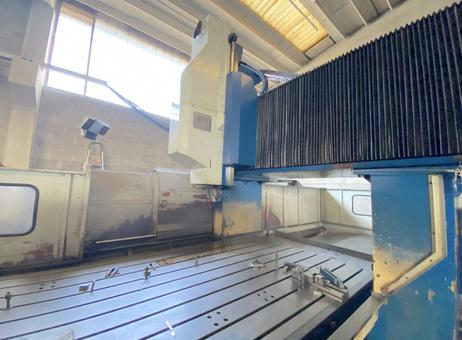

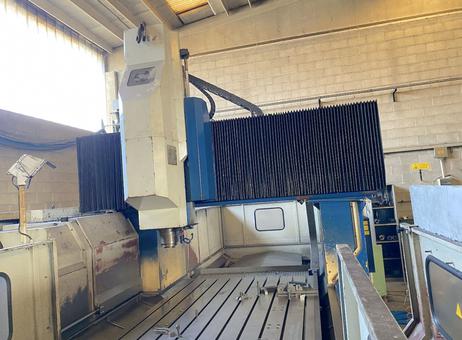

Visible components include a large work table fitted with fixtures and clamps, and a control panel featuring a screen, keyboard, multiple buttons, knobs, and a handle for maneuvering. An emergency stop button is also present on the control panel. The machine's blue-painted body shows some chipped paint and surface rust in areas, and the control panel exhibits signs of wear and discoloration on some buttons, indicating typical usage.
This machine is suitable for heavy-duty milling tasks requiring high precision and stability. Potential buyers are advised to verify all specifications and conditions during a personal inspection.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Longitudinal (x): 3200 mm
Vertical ram (y): 900 mm
Transverse ram (z): 1800 mm
Distance between columns: 2000 mm
Distance spindle nose / table top: 270-1170 mm
Table size: 3000x1700 mm
Table capacity: 8000 Kg
CNC
Cnc: SELCA 3045
Drives: Siemens
SPINDLE
Spindle power: 25 Kw
Rotation speed: 6000 Rpm
Cone: ISO50
ADVANCES
Rapid x: 15 m / min
Rapid y: 15 m / min
Rapid z: 10 m / min

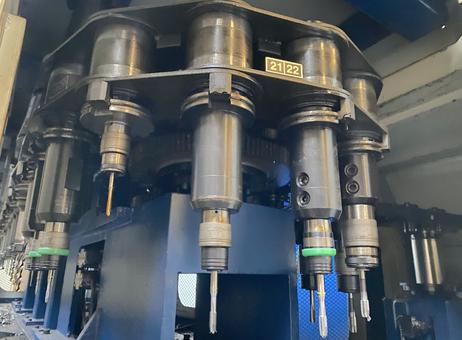

ATC
Positions: 40
Max tool diam .: 130 mm
Max diam with free adjacent places: 200 mm
Max tool length: 350 mm
Max tool weight: 20 Kg
Tool attachment: ISO50
Total machine weight: 25000 Kg
this extra information is standard for this model. Please always double-check the details during a visit
The EUMACH DM3000 Portal Milling Machine, introduced in 2004, stands as a pinnacle of precision and efficiency in metal machining. Renowned for its advanced features, this model has garnered acclaim for its exceptional performance across diverse industrial applications.
Engineered with meticulous precision, the DM3000 showcases a robust portal structure that ensures stability during high-precision milling operations. Its advanced CNC controls empower operators to program intricate machining sequences effortlessly, reducing setup time and material waste. The machine's multi-axis capability facilitates complex tasks with unmatched accuracy.
Equipped with a high-speed spindle and precision mechanics, the DM3000 delivers tight tolerances and impeccable surface finishes. Its versatile tool changing system enhances efficiency, making it suitable for industries such as aerospace, automotive, and mold making.
The EUMACH DM3000 Portal Milling Machine, with its advanced technology and durable construction, epitomizes the forefront of metal machining capabilities. Its ability to deliver intricate cuts, adapt to varying material requirements, and enhance productivity through user-friendly controls solidifies its reputation as a trusted solution for precision milling tasks across a multitude of industries.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
