Contact us to receive an offer.
| Manufacturer | MECOF |
|---|---|
| Model | DYNAMILL 2000 |
| Year | 1993 |
| Location | Italy
|

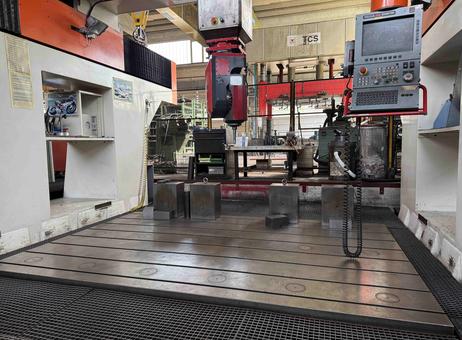

The MECOF Dynamill 2000 is a large gantry milling machine designed for heavy-duty machining tasks. It features a substantial worktable measuring 3000 mm in length and 2000 mm in width, equipped with T-slots for secure workpiece mounting. The machine's maximum load capacity on the table is 20 kg, suitable for a variety of industrial milling applications.

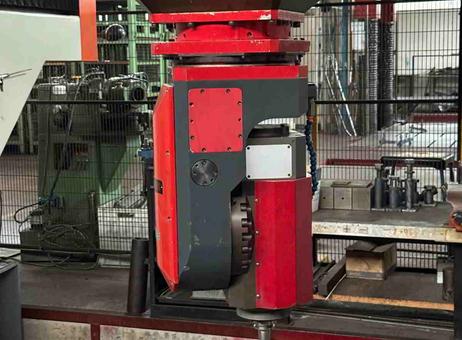

This model is equipped with a continuous bi-rotary head, known as the Spazio 11, which offers versatile axis rotation capabilities: the C-axis can rotate ±185°, and the A-axis ±100°. The spindle motor delivers a power output of 11 kW, with a spindle speed range from 2,000 to 15,000 rpm. The spindle uses an ISO 30 taper, accommodating various tooling options.
The machine's dimensions include a clearance between uprights of 3600 mm, a portal stroke of 2200 mm, head transverse travel of 2800 mm, and head vertical travel of 1500 mm, providing ample working space and flexibility for large and complex parts.

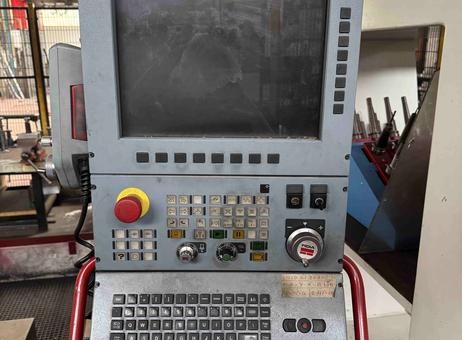

The Dynamill 2000 is controlled via a CNC system, specifically the FIDIA CXR 10, which includes a control panel with a keyboard and display screen for programming and operation.

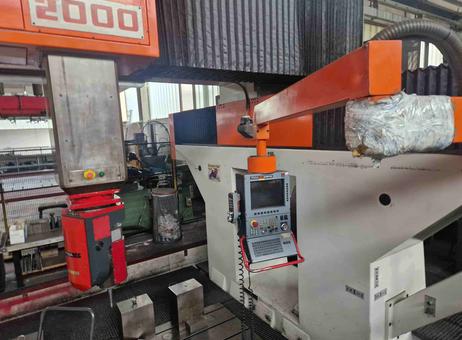

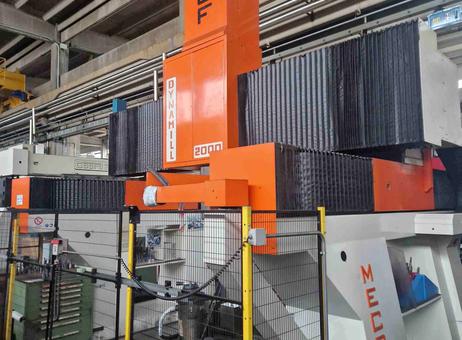

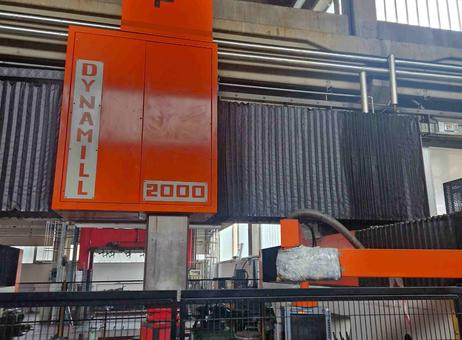

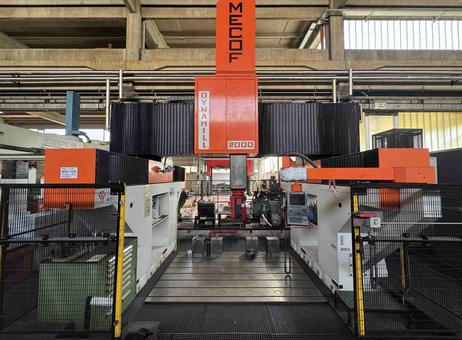

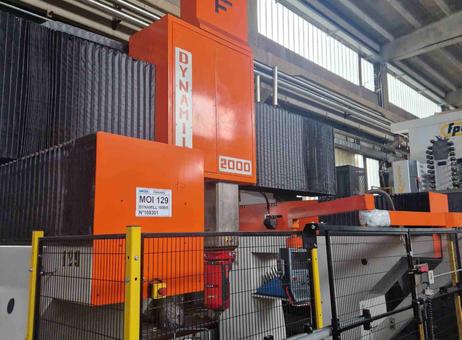

From the images, the machine is painted in an orange and white color scheme and appears clean and well-maintained with no visible damage or rust. Safety fencing surrounds the machine perimeter, enhancing operator safety. Protective bellows cover moving parts to prevent contamination and wear. The spindle head shows some wear marks but no visible damage and includes an emergency stop button for safety. Overall, the machine's surfaces and housing are intact and well-preserved, indicating careful maintenance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Complete with:
- no. 1 continuous bi-rotary head mod. "Spazio 11": C-axis rotation +/- 185°; A-axis rotation +/- 100°; spindle motor power 11 kw.; spindle rotation speed 2,000 ÷ 15,000 rpm; ISO 30 spindle taper
Table: 3,000 x 2,000 mm.
Clearance Between Uprights: 3,600 mm.
Portal Stroke: 2,200 mm.
Head Transverse Travel: 2,800 mm.
Head Vertical Travel: 1,500 mm.
Table Capacity: 20 Tons.
CNC: CNC FIDIA CXR 10
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What type of machine is this MECOF DYNAMILL 2000?
This MECOF DYNAMILL 2000 is a portal milling machine.
When was this MECOF DYNAMILL 2000 manufactured?
This MECOF DYNAMILL 2000 was manufactured in 1993.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
