| Manufacturer | FPT |
|---|---|
| Model | DINOMAX |
| Year | 2010 |
| Location | Italy
|

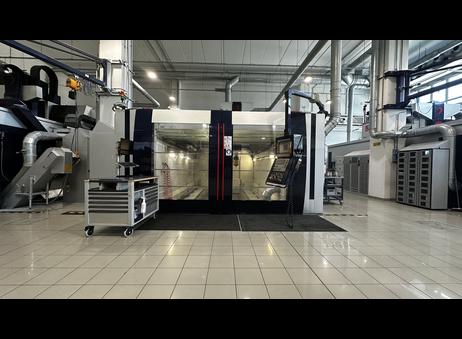

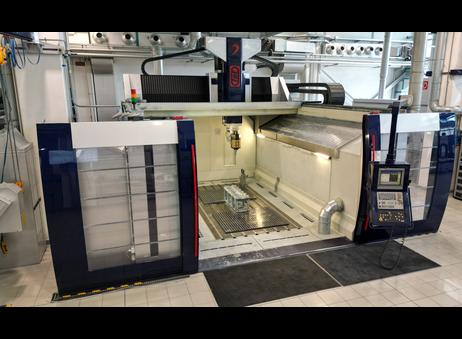

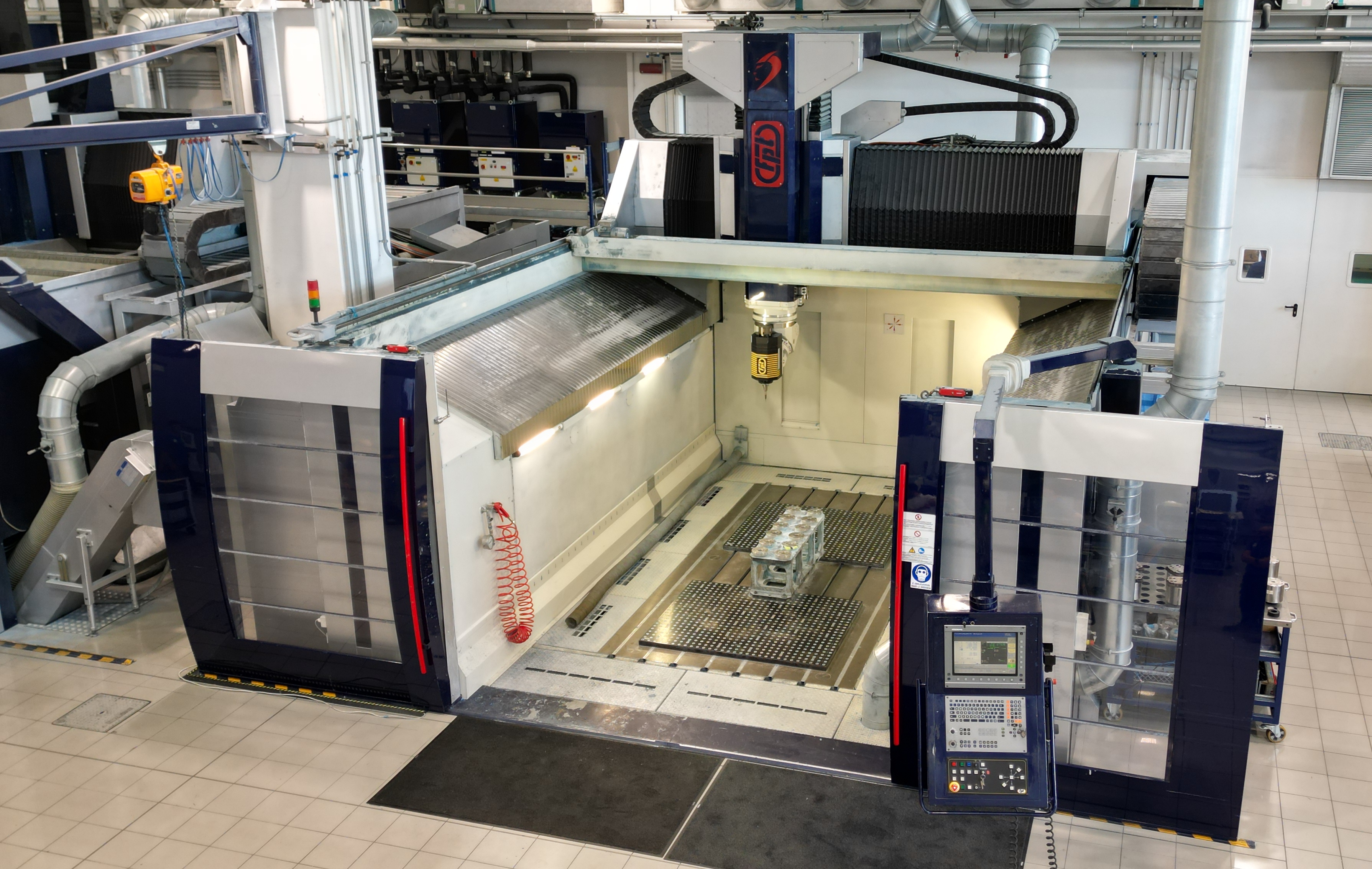

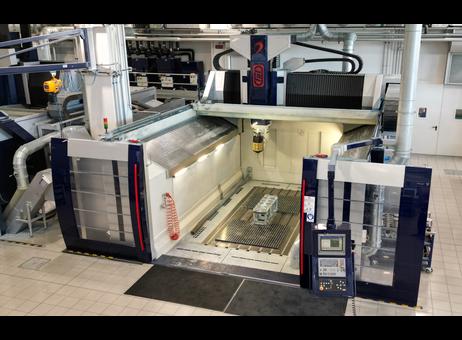

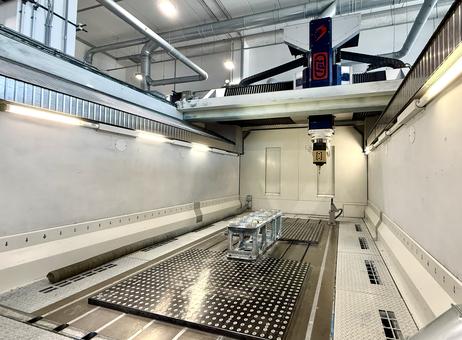

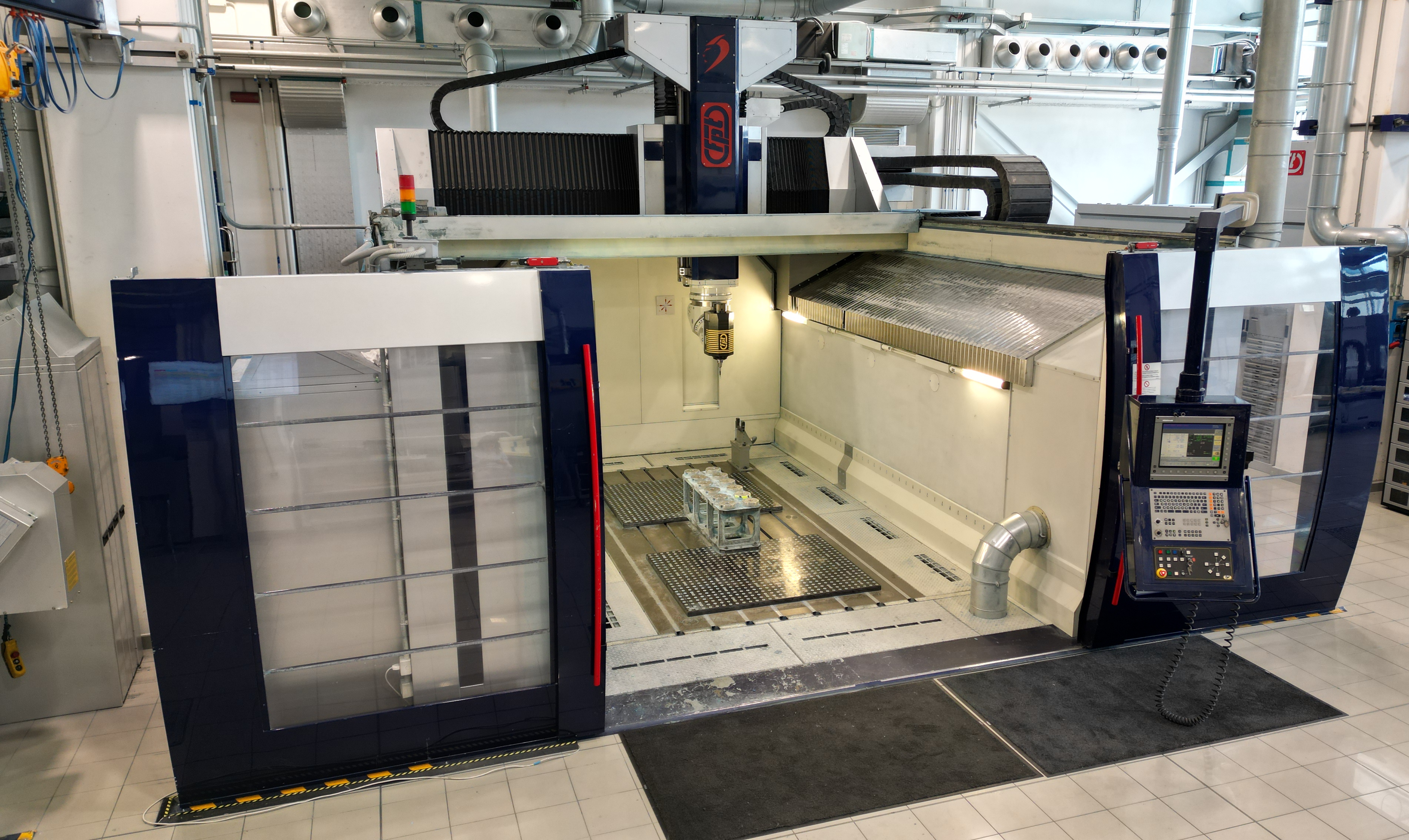

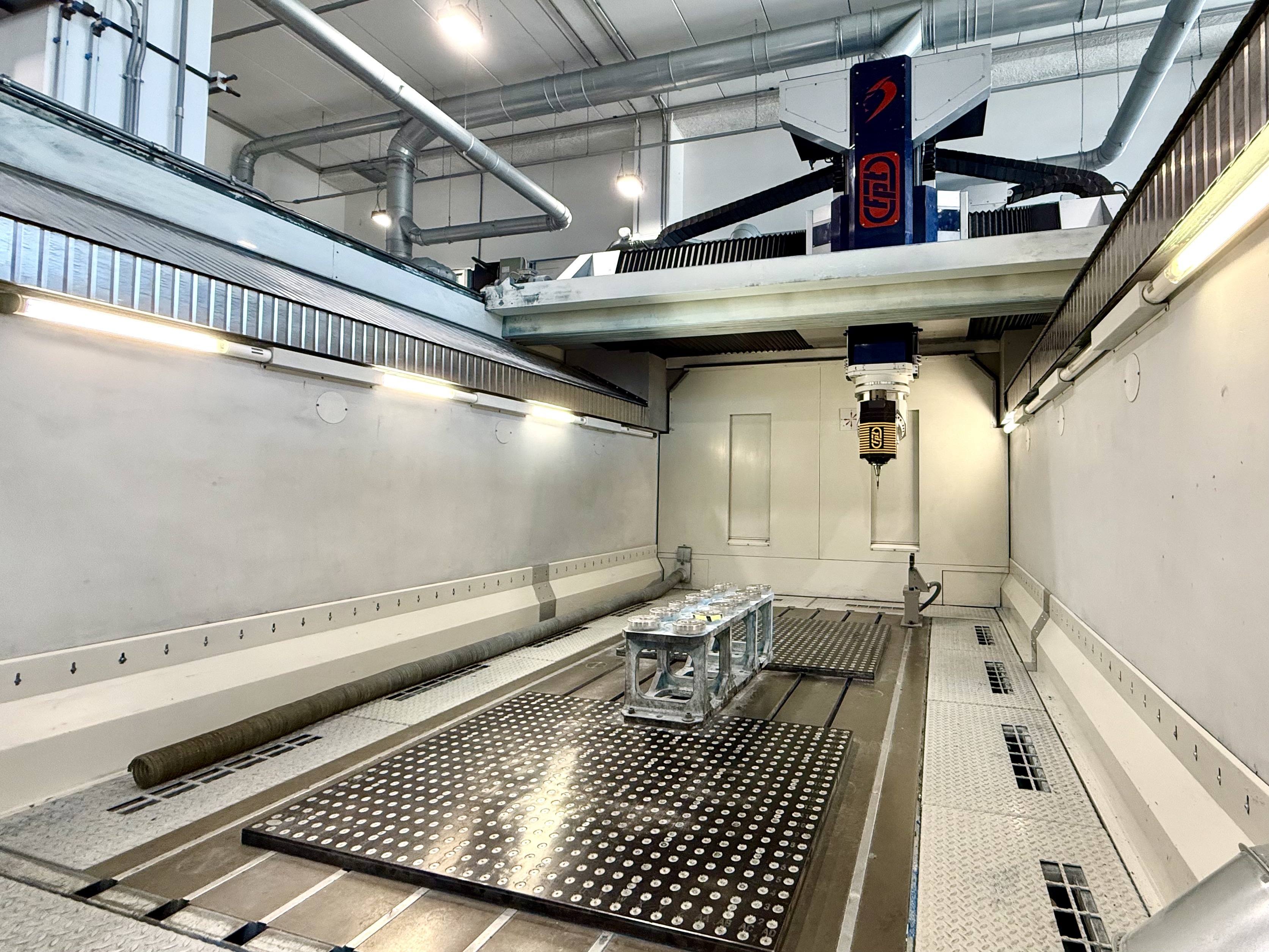

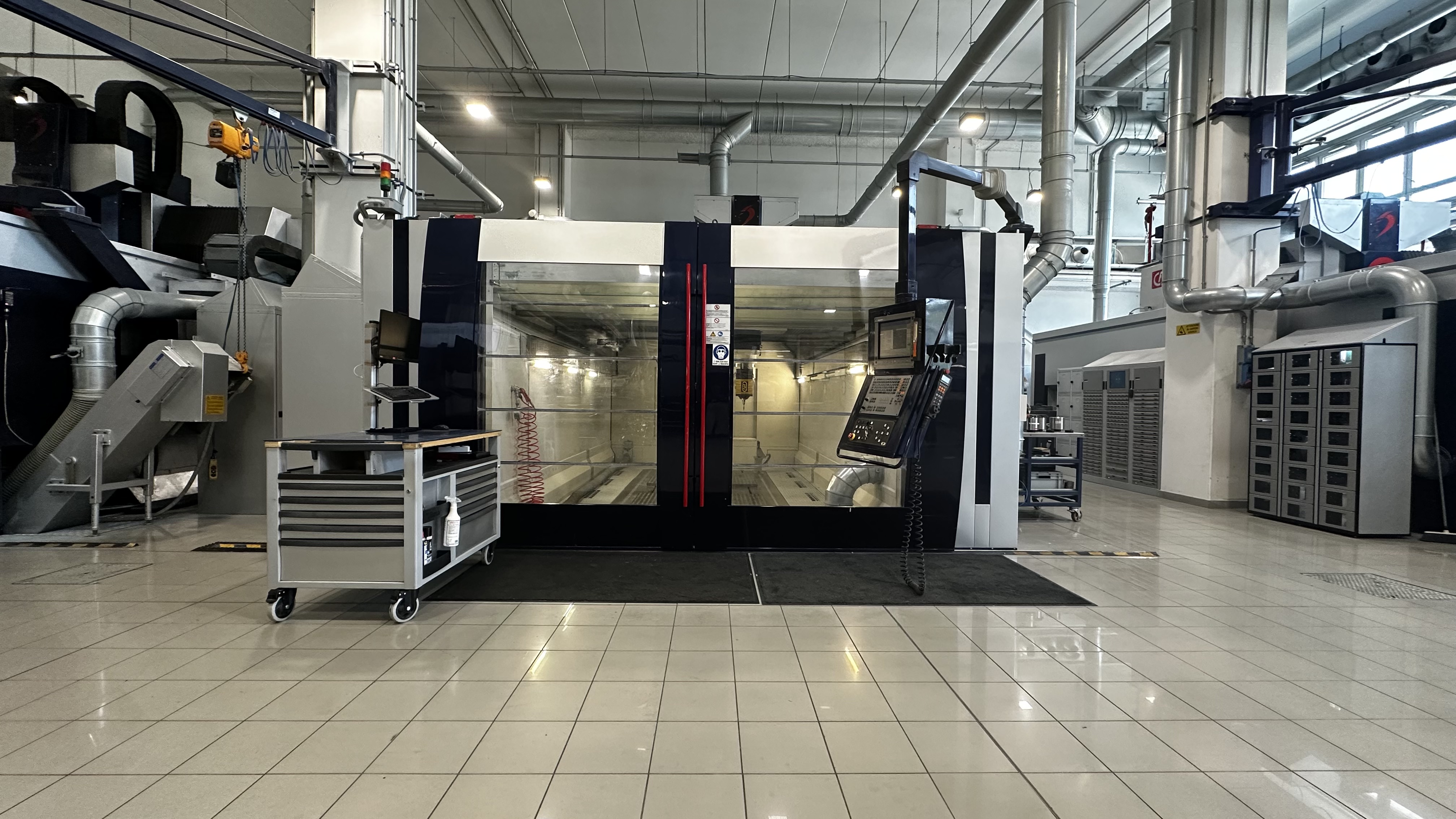

This listing is for an FPT DINOMAX Gantry Milling Machine, manufactured in 2010. It features a large working capacity with a longitudinal (X) travel of 4000 mm (157.48 in), a transverse crossbeam (Z) travel of 2200 mm (86.61 in), and a vertical ram (Y) travel of 1100 mm (43.31 in). The distance between the columns is 3200 mm (125.98 in), and the distance from the spindle nose to the table surface is 1926 mm (75.83 in), allowing for machining of sizable workpieces.
The machine is equipped with advanced motion transmission systems: high-performance linear motors for the X-axis, and hardened, ground high-helix ball screws with double preloaded nuts and rotating nut systems for the Y and Z axes. These systems are designed to provide precise positioning and smooth motion.

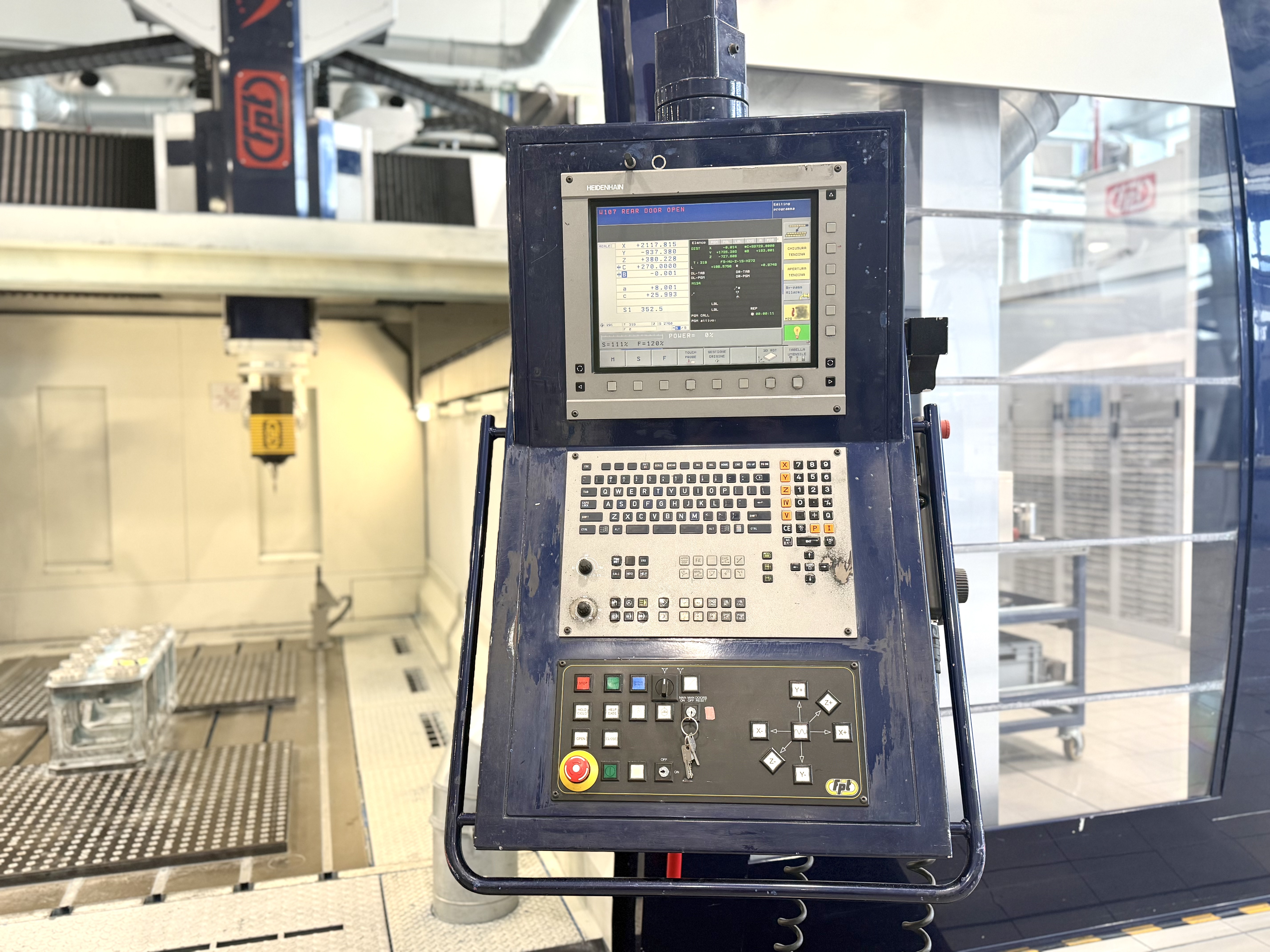

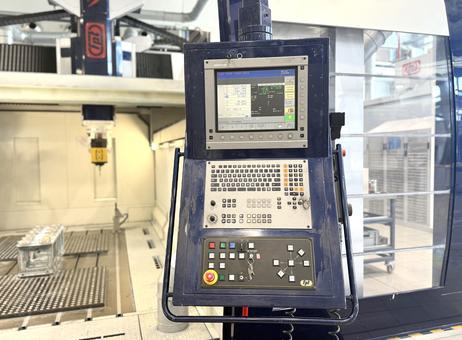

Control is handled by a Heidenhain TNC530i SP CNC system. The machine offers rapid feed rates of up to 50 m/min (1968.50 ipm) on all three axes, powered by a digital servo system and linear and brushless AC motors.

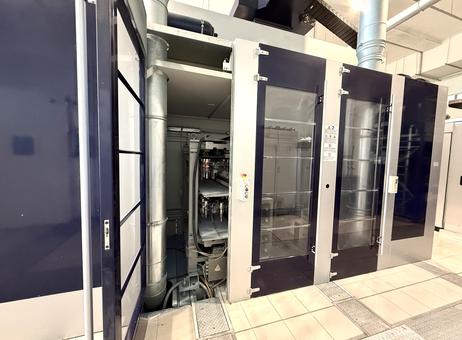

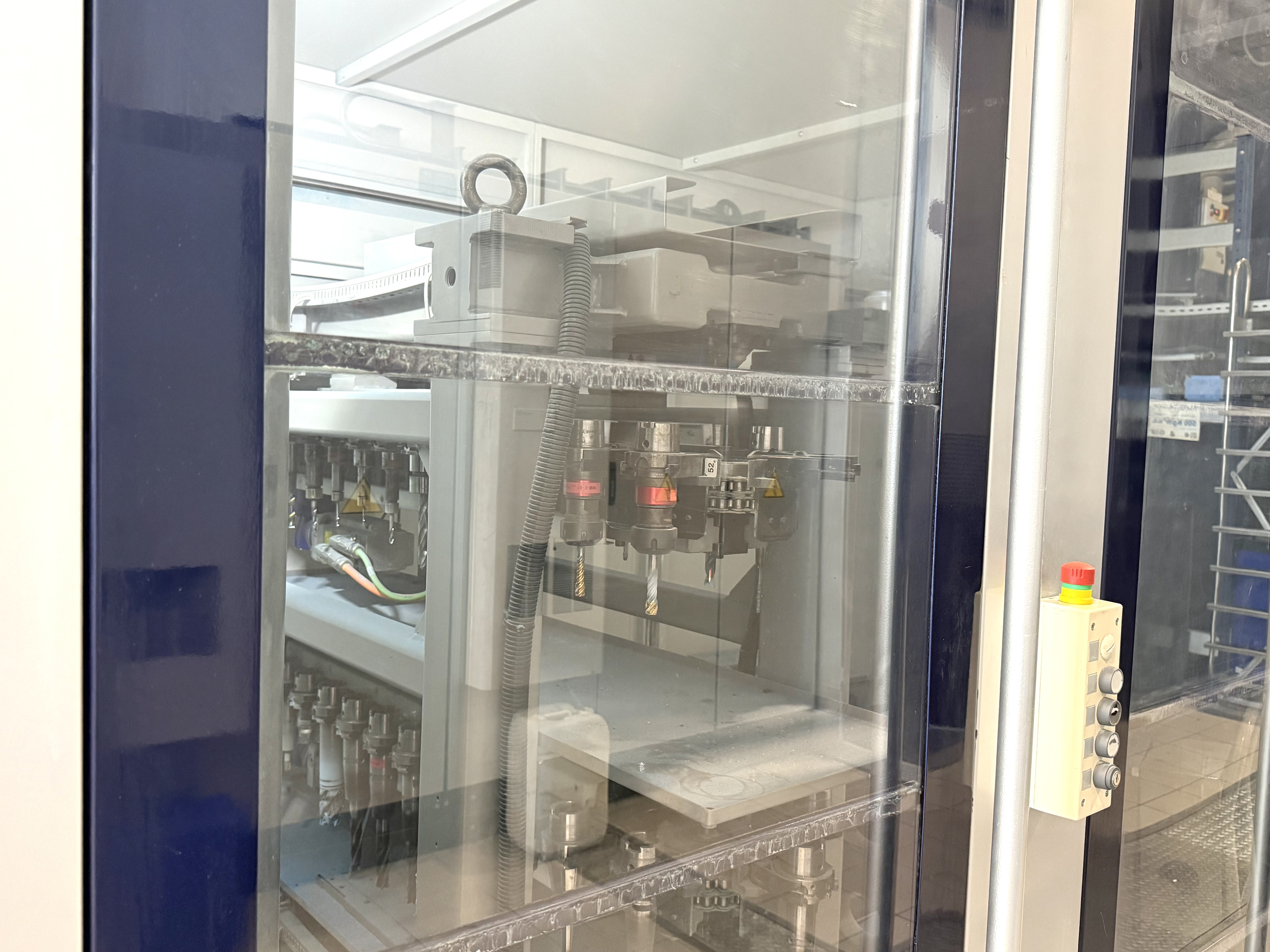

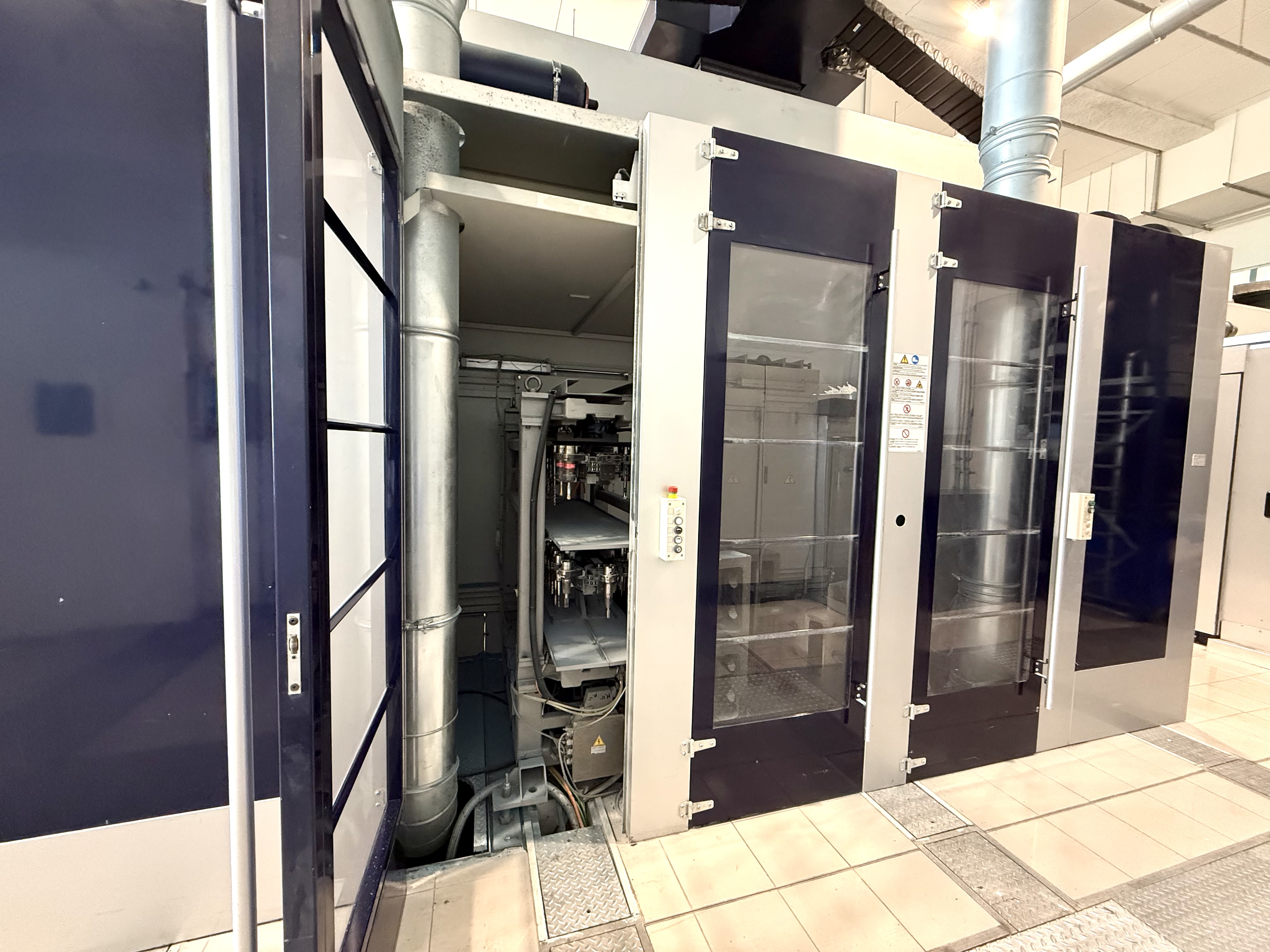

Tool management includes a 60-station automatic tool changer (ATC), supporting tools up to 90 mm (3.54 in) in diameter, 330 mm (12.99 in) in length, and weighing up to 10 kg, with HSK63 tool holders.

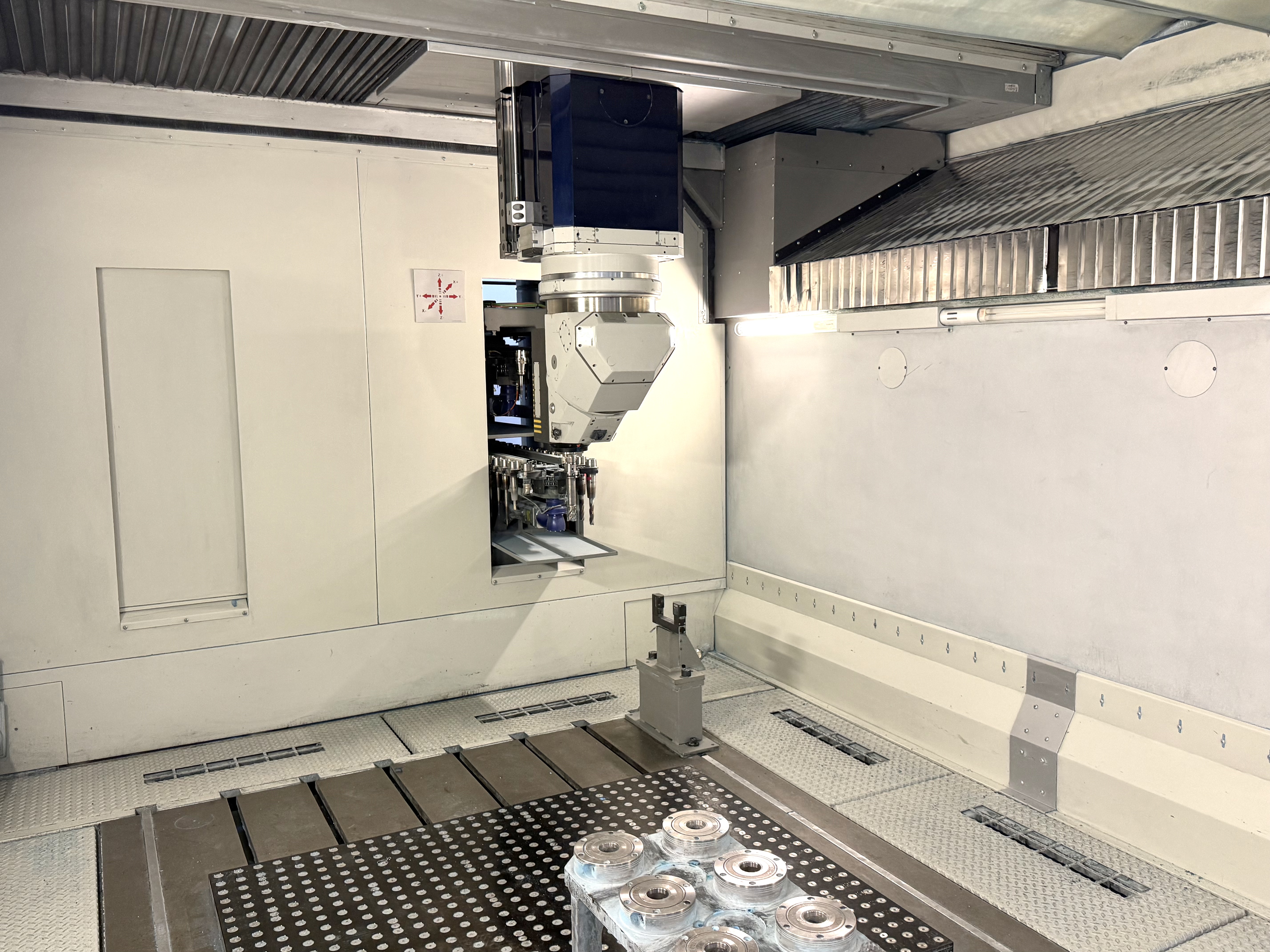

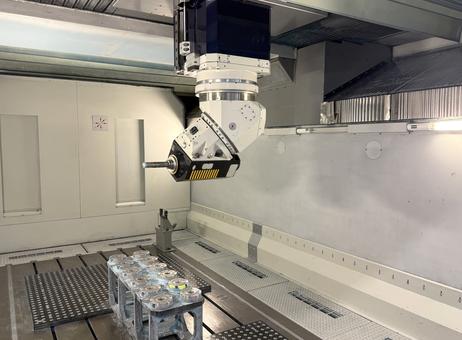

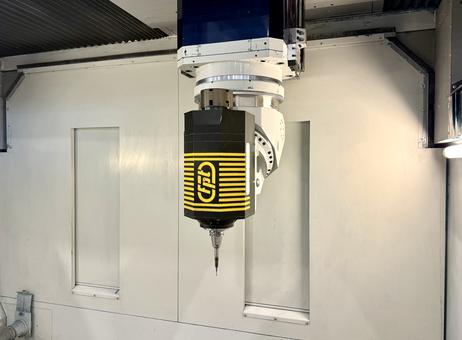

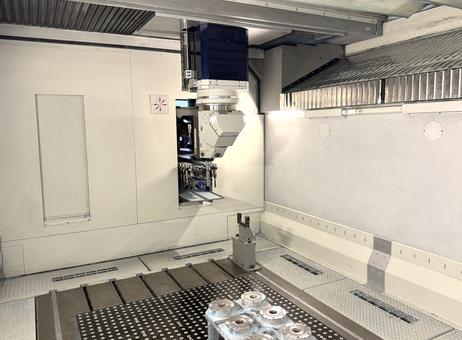

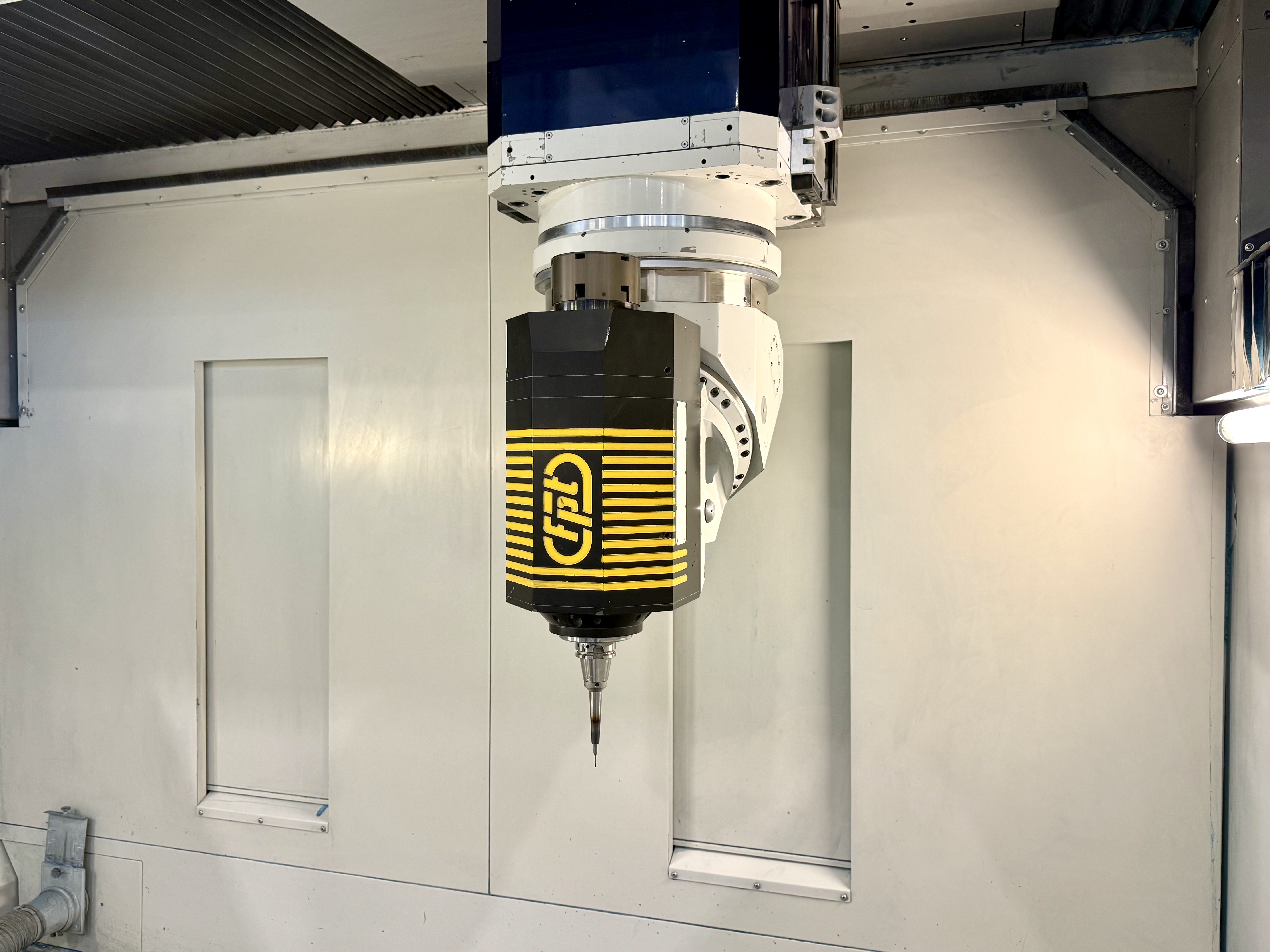

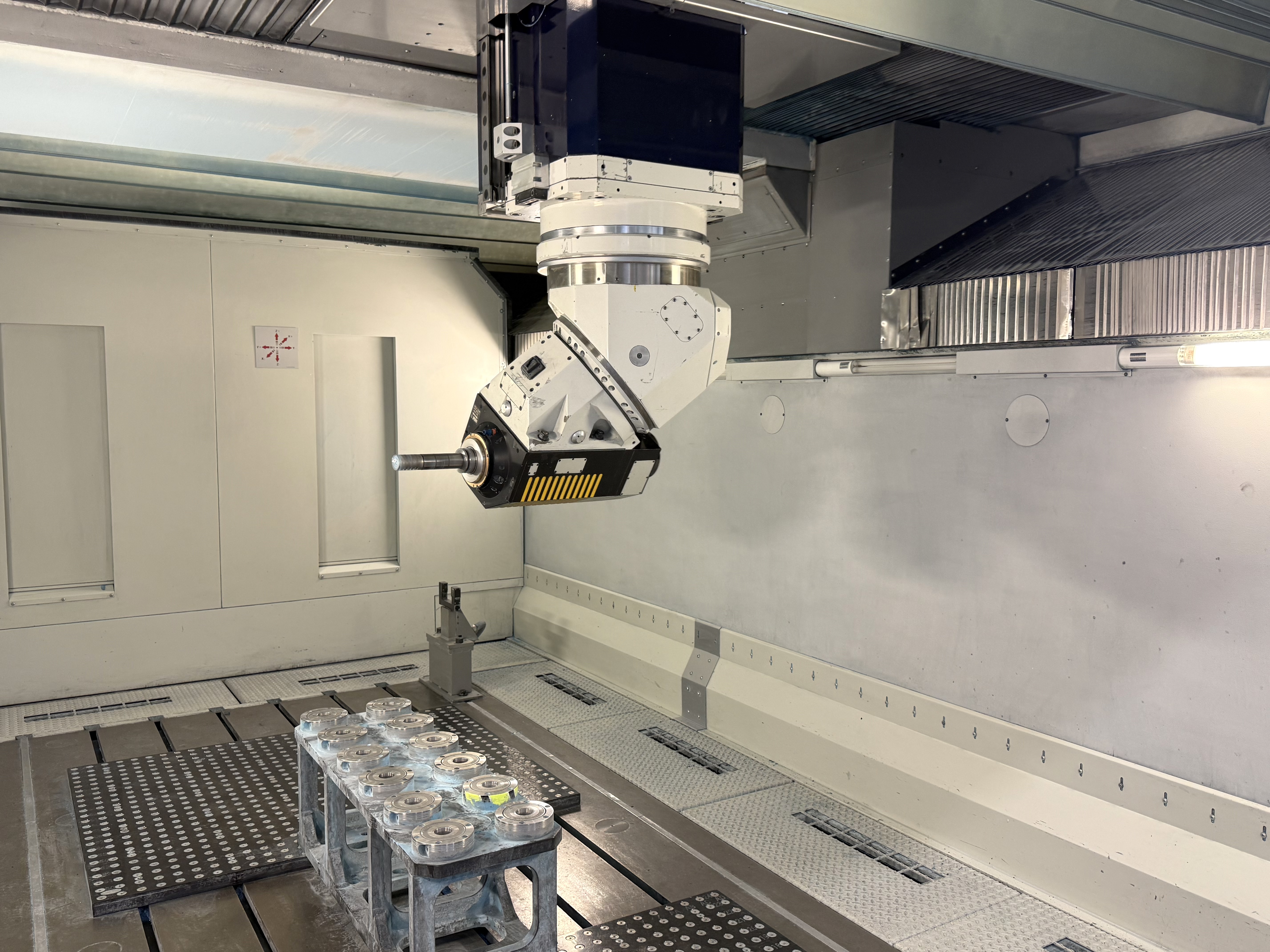

The milling head is a TULCE22 type with an HSK63 spindle taper. It supports continuous 5-axis machining with precise A-axis and C-axis control at 0.001° increments. The spindle delivers a maximum torque of 128 Nm, a top speed of 22,000 rpm, and maximum power of 33 kW. The head's two half-bodies move continuously via direct drive motors controlled by the CNC for interpolation.

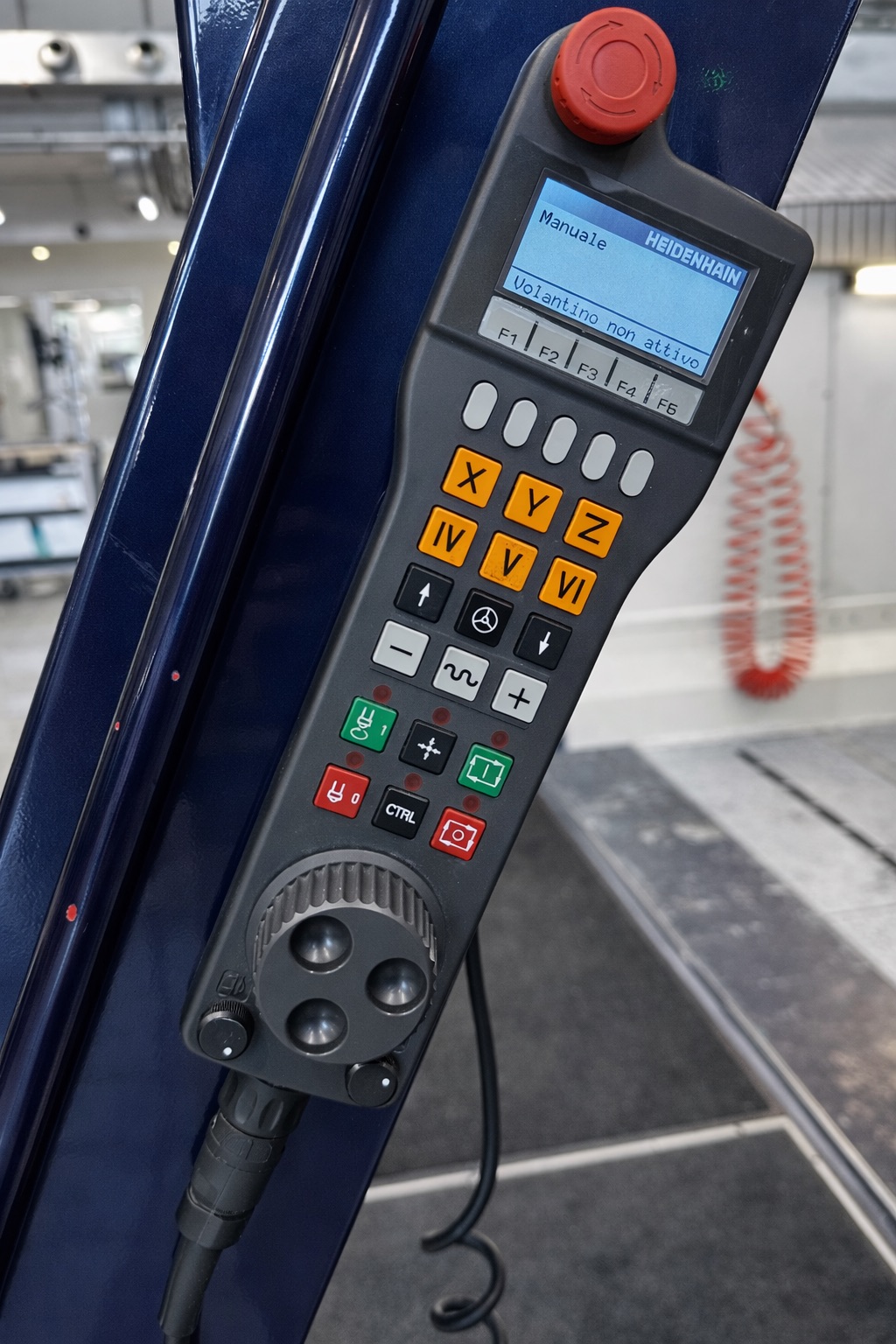

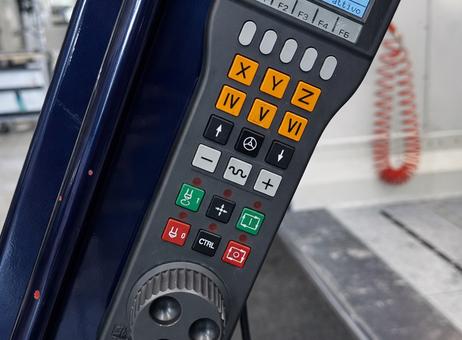

The machine weighs approximately 60,000 kg and measures 7500 x 6475 x 4980 mm (295.28 x 254.92 x 196.06 in). Included accessories enhance operation and maintenance: upper enclosure protection, HR 420 handwheel with display, dust extraction system, measuring scale pressurization, work area lighting, laser probe with tool integrity check, tool length and radius measurement software, electrospindle balancing control, dynamic RTCP, AUTOCAL automatic calibration software, workpiece measurement and alignment probe, Ethernet communication interface compatible with Heidenhain, rigid tapping for electrospindles, and a work area video surveillance system.
This comprehensive configuration makes the FPT DINOMAX an advanced gantry milling solution suitable for complex and precise machining tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Category
Milling Machine
Type
Gantry
Brand
FPT
Model
DINOMAX
Capacity
4000 x 2200 x 1100 mm 157.48 x 86.61 x 43.31 in
Year of Manufacture
2010
Technical Specifications
Convert to Metric Imperial
WORKING RANGE
Longitudinal (X)
4000 mm 157.48 in
Vertical Ram (Y)
1100 mm 43.31 in
Transverse Crossbeam (Z)
2200 mm 86.61 in
Distance between Columns
3200 mm 125.98 in
Distance from Spindle Nose to Table Surface
1926 mm 75.83 in
Axis Support
Motion transmission along the X axis is via high-performance linear motors. Motion transmission along the Y-axis is via a hardened and ground high-helix ball screw with a double preloaded nut and a rotating nut system. Motion transmission along the Z-axis is via hardened and ground high-helix ball screws with a double preloaded nut and a rotating nut system. These types of transmissions are designed and sized to allow for precise positioning of the axes.
CNC
CNC
Heidenhain TNC530i SP
FEED RATES
Rapid X
50 m/min 1,968.50 ipm
Rapid Y
50 m/min 1,968.50 ipm
Rapid Z
50 m/min 1,968.50 ipm
Notes
The axes are fed by a digital servo system and linear and brushless AC motors.
ATC
Stations
60
Maximum tool diameter
90 mm 3.54 in
Maximum tool length
330 mm 12.99 in
Maximum tool weight
10 kg
Tool holder
HSK63
HEAD
Type
TULCE22
Spindle taper
HSK63
A-axis
0.001°
C-axis
0.001°
Maximum torque
128 Nm
Maximum speed
22,000 rpm
Maximum power
33 kW
Notes
Universal head with continuous movement of the two half-bodies (for continuous 5-axis machining). The rotational movement is controlled by direct drive motors and the CNC as an interpolation axis.
EXTRAS
Total machine weight
≈60,000 kg
Machine dimensions
7500 x 6475 x 4980 mm 295.28 x 254.92 x 196.06 in
Supplied accessories

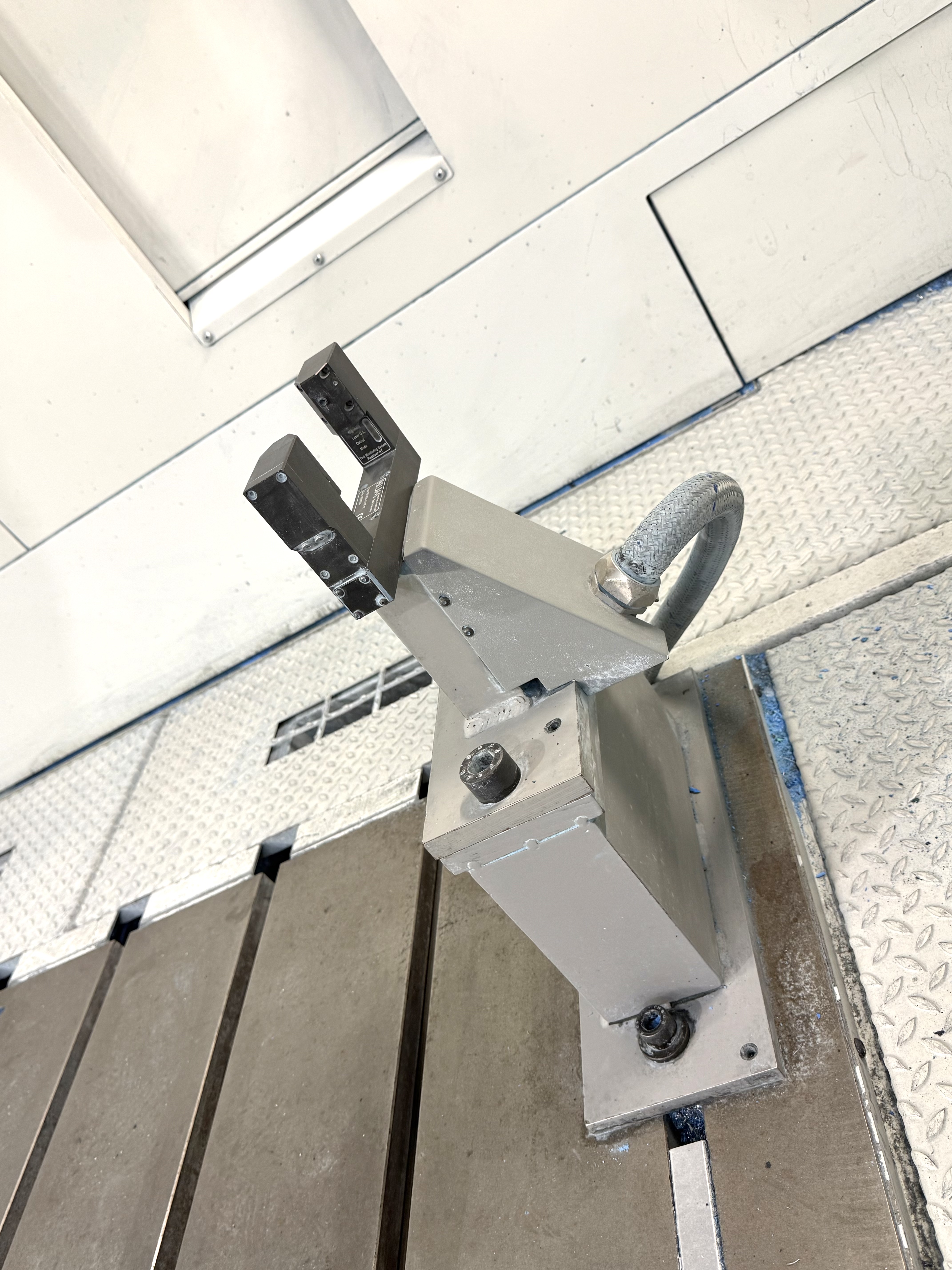

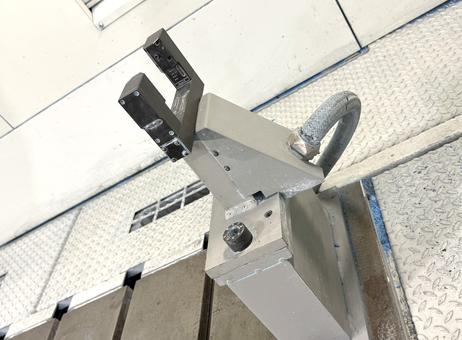

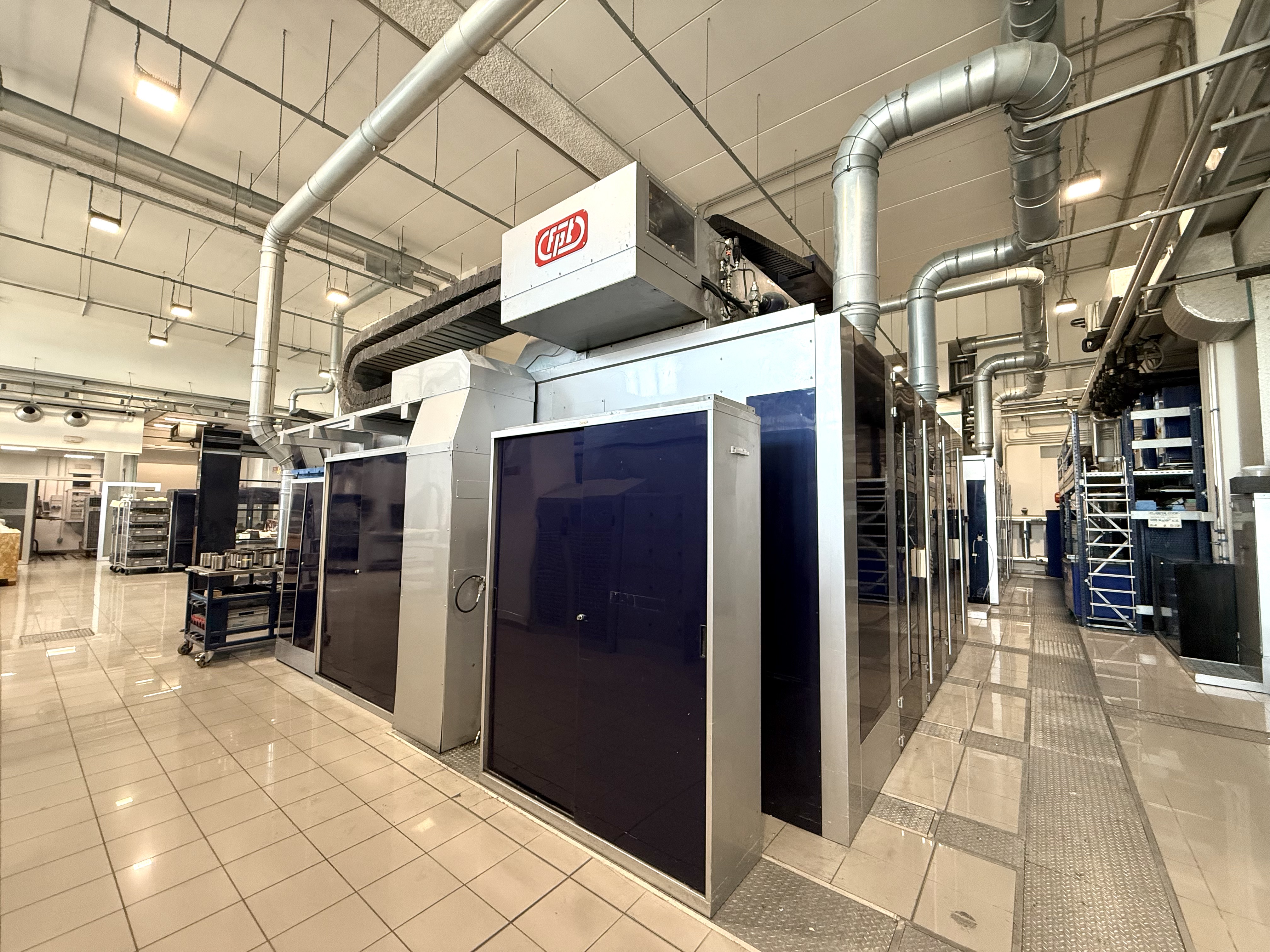

Upper enclosure protection, HR 420 handwheel with display, Dust extraction system, Measuring scale pressurization, Work area lighting, Laser probe and tool integrity check and tool length and radius measurement software, Electrospindle balancing control, Dynamic RTCP, AUTOCAL software for automatic calibration, Workpiece measurement and alignment probe, Ethernet communication interface for Heidenhain, Rigid tapping for electrospindles, Work area video surveillance system
The data reported is based on the information in our possession, obtained where possible from the manufacturers. Therefore, despite good faith, due to the nature and complexity of the information, of the goods, such data may be incomplete and/or inaccurate, and under no circumstances can their accuracy be guaranteed and therefore constitute any contractual obligation. We always recommend viewing the goods and requesting confirmation of the data.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
