| Manufacturer | JOBS SACHMAN |
|---|---|
| Model | TRT314 |
| Year | 2015 |
| Location | Italy
|
Overview

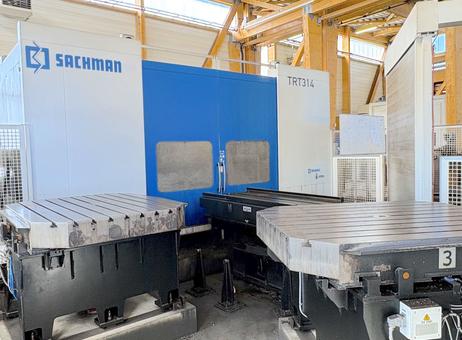

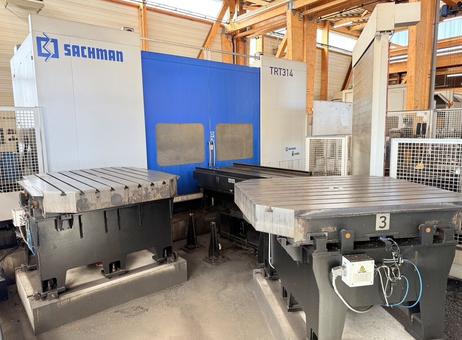

This listing describes a JOBS SACHMAN TRT314 T-ram gantry milling machine with a large working envelope of 3000 x 1600 x 1500 mm (X x Z x Y). The machine is shown in the provided technical data as manufactured in 2015 (installed 2016) and is specified with a Heidenhain iTNC530 HSCI CNC with HR410 remote handwheel and Ethernet capability.
Working envelope and axes
- Longitudinal (X): 3000 mm
- Transversal ram (Z): 1600 mm
- Vertical (Y): 1500 mm
- Axis support: roller recirculating linear guides

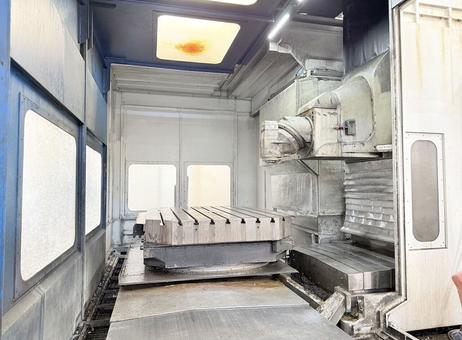

Spindle and head
- Head type: KOSMO 3
- Spindle taper: ISO50
- Maximum spindle speed: 5000 rpm
- Spindle power (head): 35 kW
- Gear range change: mechanical, 2 ranges
- Coolant: high-pressure (CTS 40 bar) plus external low-pressure system noted; oil recirculation lubrication for head
Feeds and toolchanger
- Rapid feeds X/Y/Z: 20 m/min each
- Automatic tool changer: 120 stations
- Max tool diameter: 125 mm (240 mm with adjacent stations free)
- Max tool length: 500 mm
- Max tool weight: 35 kg
Tables, pallets and handling
- Main table surface: 2000 x 1600 mm with 8 T-slots (22 H7), pitch 160 mm
- B-axis resolution: 0.001°; rotation speed 3 rpm

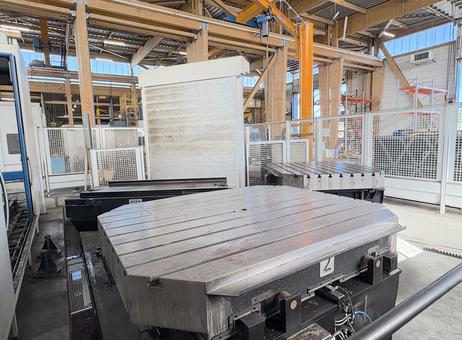

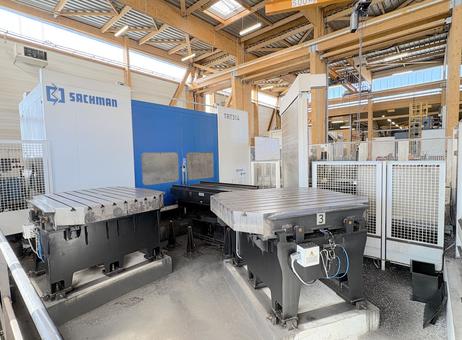

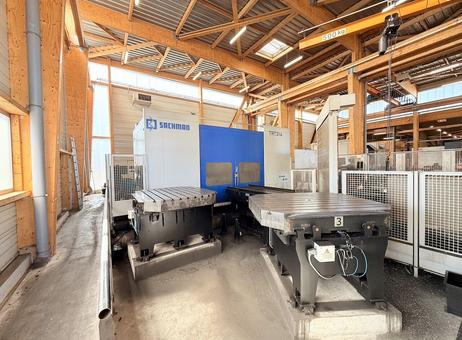

- Pallet changer (APC) pallet surface: 2000 x 1600 mm; pallet load capacity 8000 kg
- APC configuration notes: one exchanger and three pallet tables 1600x1200 mm; one front exchanger; two buffer stations; one loading/unloading station; three pallet tables 1600x2000 mm also referenced; T-slots 22 mm; protections
Auxiliary systems and accessories
- High-pressure coolant through spindle with tank and cartridge filtration (shared with low pressure)

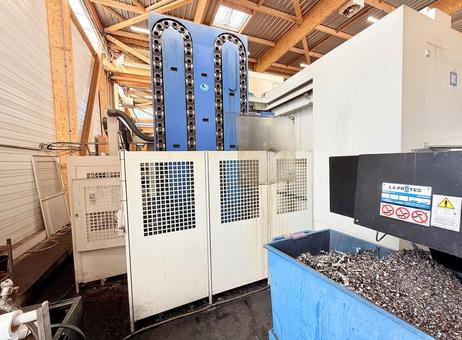

- Chip evacuation: two belt conveyors front and rear parallel to X and one side conveyor parallel to Y, with tank and coolant pump
- Included accessories listed: hydropneumatic counterweight; oil cooling and lubrication system for gear change and head; electronic device for head thermal deformation compensation; air conditioner in electrical cabinet (400 Vac, 50 Hz); work area lamp
Weights, enclosure and notes
- Total machine weight: ≈65,000 Kg

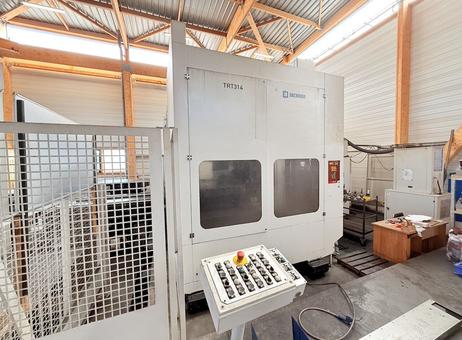

- Full enclosure on all four sides with sliding front doors (safety electromagnets), removable side doors and sliding rear doors on operator side; full top enclosure
Important
The specification text above reproduces the information provided with this listing. Inspect the machine and request confirmation of operational condition, measurements and suitability for your application prior to purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Category
Milling Machine
Type
T-ram
Brand
JOBS SACHMAN
Model
TRT314
Capacity
3000x1600x1500 mm118.11x62.99x59.06 in
Year of Manufacture
2015 (installed 2016)
Technical Specifications
Convert toMetricImperial
WORKING FIELD
Longitudinal (X)
3000 mm118.11 in
Vertical (Y)
1500 mm59.06 in
Transversal Ram (Z)
1600 mm62.99 in
Axis Support
Roller recirculating linear guides
CNC
Notes

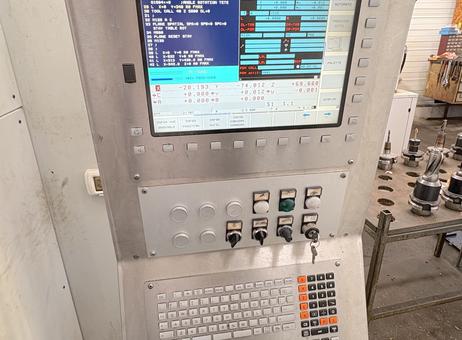

Remote HR410 handwheel + Ethernet
CNC
Heidenhain iTNC530 HSCI + HR410
SPINDLE
Spindle Power
35 kW
Gear Range Change
Mechanical 2 ranges
Rotation Speed
5000 rpm
Taper Morse Sleeve
ISO50
FEEDS
Rapid X
20 m/min787.40 ipm
Rapid Y
20 m/min787.40 ipm
Rapid Z
20 m/min787.40 ipm
ATC
Stations
120
Max Tool Diameter
125 mm4.92 in
Max Diameter with Adjacent Stations Free
240 mm9.45 in
Max Tool Length
500 mm19.69 in
Max Tool Weight
35 Kg
TABLE 1
Surface
2000x1600 mm78.74x62.99 in
Resolution (B axis)
0.001 °
Rotation Speed
3 rpm
Notes
No. 8 T-slots 22 H7, pitch 160 mm
PALLET CHANGER SYSTEM (APC)
Pallet Surface
2000x1600 mm78.74x62.99 in
Load Capacity
8000 Kg
Notes
Including one exchanger and 3 pallet tables 1600x1200mm - 1 front exchanger - 2 buffer stations - 1 loading/unloading station - 3 pallet tables 1600x2000 mm load capacity 8t T-slots 22 mm - Protections
HEAD 1
Type
KOSMO 3
Spindle Taper
ISO50
Axis A
0.02 °
Axis C
0.02 °
Max Speed
5000 rpm
Max Power
35 kW
Coolant
CTS40Bar + external low pressure
Notes
Oil recirculation lubrication
EXTRA
Total Machine Weight
≈65,000 Kg
Included Accessories
Hydropneumatic counterweight, oil cooling and lubrication system for gear change and head, electronic device for head thermal deformation compensation, air conditioner in electrical cabinet - Voltage 400 Vac - Frequency 50 Hz, work area lamp
Filtering System
High-pressure coolant (40 bar) through spindle with tank and cartridge filtration system (shared with low pressure)
Enclosure
Full enclosure on all four machine sides with sliding front doors equipped with safety electromagnets, removable side doors, sliding rear doors on operator side. Full enclosure on the top.
Chip Evacuator
2 belt chip conveyors on front and rear sides of table, parallel to X, and 1 side chip conveyor parallel to Y, with tank and pump for coolant
The data provided comes from the information available to us, where possible obtained from manufacturers; therefore, despite good faith, due to the nature and complexity of the equipment, such data may be incomplete and/or inaccurate and under no circumstances can their accuracy be guaranteed or constitute any contractual obligation. Always inspect the equipment and request data confirmation.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
