Contact us to receive an offer.
| Manufacturer | JOBS |
|---|---|
| Model | LINX COMPACT |
| Year | 2010 |
| Location | Italy
|
Overview
Manufacturer: JOBS
Model: LINX COMPACT
Year manufactured: 2010
CNC: Yes
Note: seller states the machine is disassembled and describes it as in working condition; this statement is attributed to the seller and should be verified by a prospective buyer.
Key technical data (as listed):
- Table / footprint dimensions: 8,000 mm × 8,000 mm
- Table load capacity: 10 ton/m²
- Travels: X 4,200 mm, Y 3,200 mm, Z 1,250 mm
- Rotary axes: A ±90°, C ±270° (continuous 5-axis configuration noted by seller)
- Linear axis repeatability: ±0.005 mm / 1,000 mm
- Linear axis positioning accuracy: ±0.007 mm / 1,000 mm
- Rotary axis repeatability: ±0.0025°; positioning accuracy: ±0.0035°
- Max spindle rotation speed: 18,000 rpm
- Continuous spindle power (S1): 40 kW
- Max spindle torque: 80 Nm
- Spindle taper: HSK-63A
- Max tool diameters / lengths / weights: consecutive tools Ø up to 90 mm; alternating tools Ø up to 140 mm; max tool length 300 mm; max tool weight 12 kg
- Feed / rapid traverse ranges as listed in technical data
- Supplied with sliding tool magazine (24 positions wheel)
Additional motor rating present in known fields: spindle motor power 140 kW (provided in the listing metadata). Both the continuous spindle power (40 kW) and the spindle motor power (140 kW) are included in the available information and are reported here as listed; please verify which rating applies for your application.
Visible components, accessories and condition notes

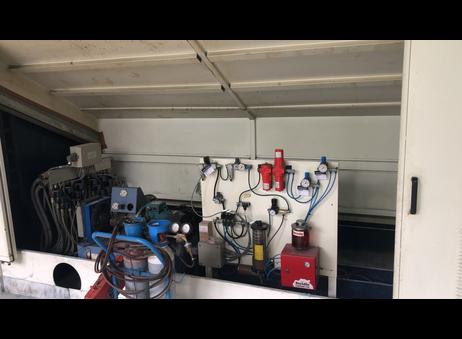

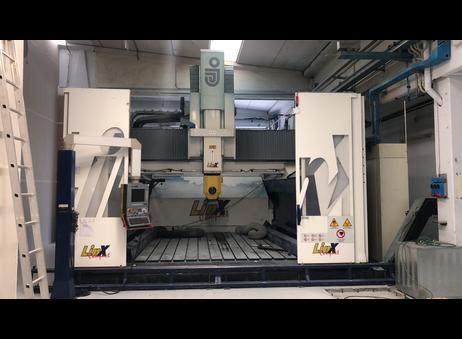

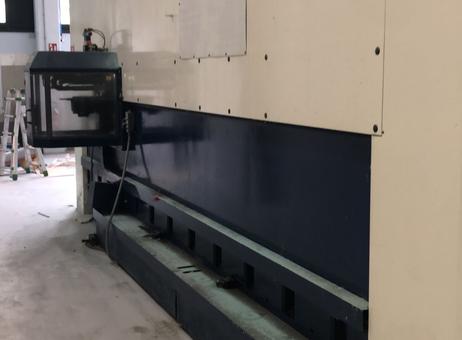

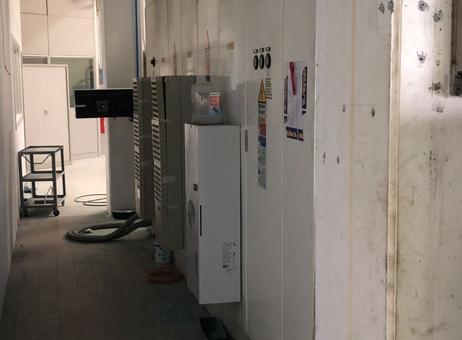

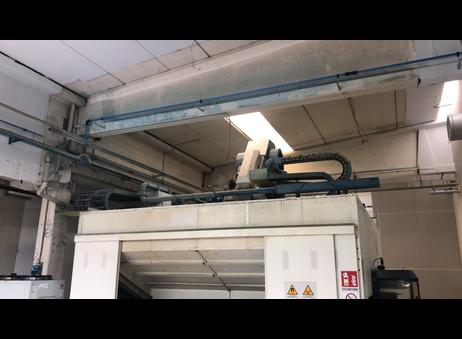

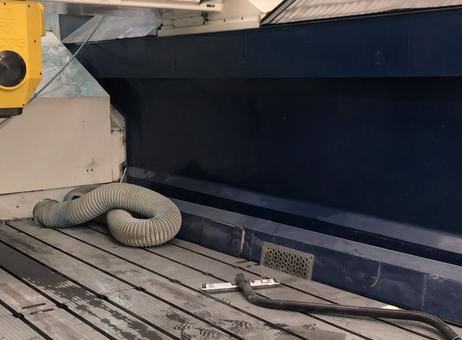

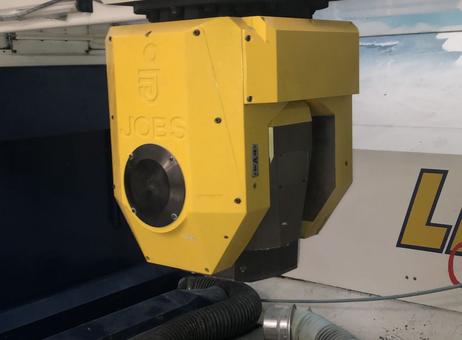

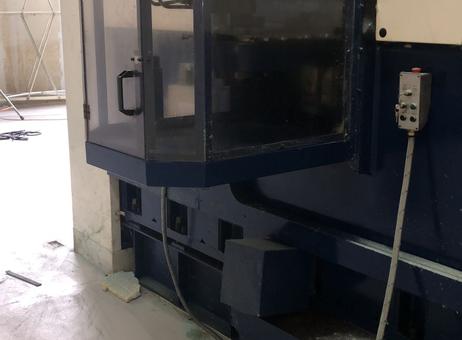

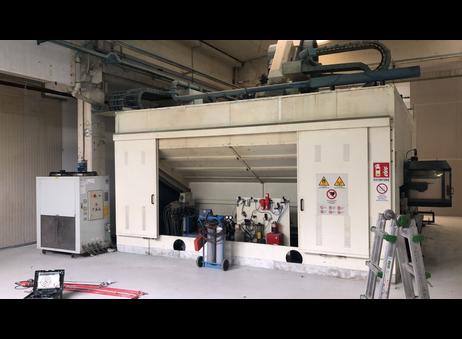

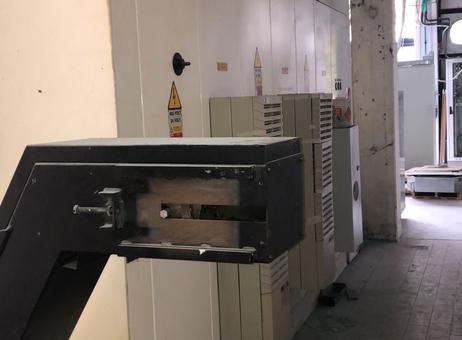

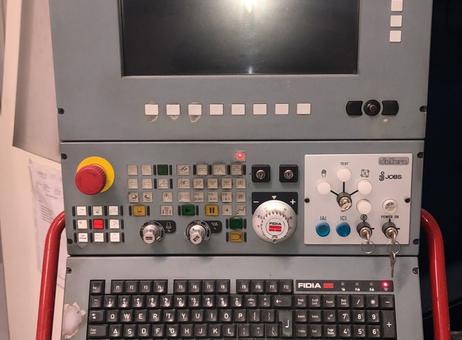

The listing includes the following components/accessories and observable condition aspects: transparent safety enclosure with hinged door and black handle; wall-mounted control pendant / pushbutton box; operator control panel with display and keyboard; gantry with cable carrier (energy chain); central vertical column and spindle head (yellow spindle housing with JOBS branding); accordion-style protective bellows over an axis; large T-slot work table/bed; flexible extraction/vacuum hose routed to the bed; sliding doors; row of electrical/control cabinets and conduit routing. The table and enclosure panels show signs of use—surface dust, coolant/chip residue, wear marks and some loose hoses and a handheld tool on the table.
Use history and suitability
Seller indicates prior use in race car/motorsport component manufacturing and suggests suitability for carbon processing. This is provided as seller information and should be confirmed during inspection.
Important buyer notes
- The machine is described as disassembled by the seller; verify what is included and the extent of disassembly prior to purchase.
- Condition notes above are based on provided information and listing observations; arrange an on-site inspection or request additional documentation (maintenance records, test reports, complete list of included accessories) to confirm operational status and completeness.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Disassembled machine in working condition, in excellent condition, formerly a race car machine builder, perfect for carbon processing, continuous 5-axis
Technical data:
table dimensions - length 8,000 mm
- width 8,000 mm
table load capacity 10 ton/m²
X-axis travel 4200 mm
Y-axis travel 3200 mm
Z-axis travel 1250 mm
"A" axis swivel range ± 90°
"C" axis swivel range ±270°
linear axis repeatability ± 0.005 mm/1,000 mm
linear axis positioning accuracy ± 0.007 mm/1,000 mm
rotary axis repeatability ± 0.0025°
rotary axis positioning accuracy ± 0.0035°
max. spindle rotation speed 18,000 rpm
continuous spindle power (S1) 40 kW
max. spindle torque 80 Nm
spindle taper HSK-63A
fast feed speed X-axis 0÷40 m/min
fast feed speed Y-axis 0÷40 m/min
fast feed speed Z-axis 0÷20 m/min
rapid traverse speed A-axis 0÷12 rpm
rapid traverse speed C-axis 0÷22 rpm
max. diameter for consecutive tools 90 mm
max. diameter for alternating tools 140 mm
max. tool length 300 mm
max. tool weight 12 Kg
footprint dimensions - length 8000 mm
- width 8000 mm
The machine is supplied complete with:
Sliding tool magazine with 24 positions wheel
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
