Contact us to receive an offer.
| Manufacturer | PO LY GIM MACHINERY CO.LTD |
|---|---|
| Model | DIAMOND 32 CSL |
| Year | 2015 |
| Location | Czech Republic
|
This listing features a PO LY GIM MACHINERY CO.LTD CNC lathe machine, model DIAMOND 32 CSL, manufactured in 2015. The machine weighs approximately 3988 kg and operates on 220 V AC with a power capacity of 15 kVA, suitable for industrial machining environments.
The DIAMOND 32 CSL is a long-stroke CNC lathe designed for precision turning and drilling operations. It has a maximum turned diameter capacity of 32 mm and can handle workpieces up to 250 mm in length. The machine supports a maximum drilling diameter of 10 mm and threading up to M8. It is equipped with six external machining tools, each sized for 10 mm ER16 tool holders, allowing for versatile tooling options.
The spindle features a 32 mm bore diameter and offers a speed range from 200 to 10,000 rpm, enabling high-speed machining applications. The X1 and Z1 axes provide rapid movements at speeds up to 18 meters per minute, contributing to efficient production cycles.

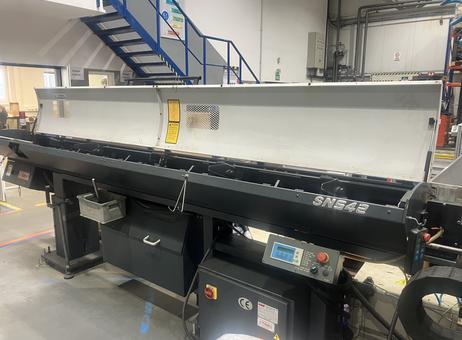

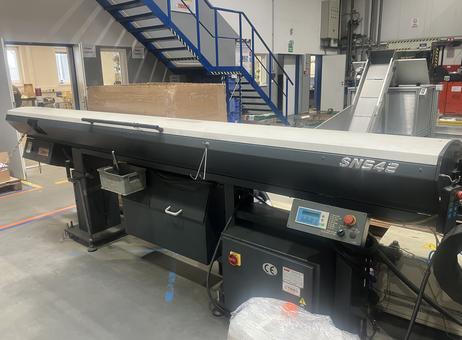

Included with the CNC lathe is a Fedek SNS 542 hydrodynamic long bar feeder, labeled SNS42, which is equipped with its own control panel and two metal bins attached underneath. Both the lathe and bar feeder appear clean and well-maintained, with no visible surface damage. A metal chip container is attached to the rear end of the lathe for chip management.
Documentation provided includes maintenance and electric manuals in English, operating and instruction manuals for the POLYGIM 32 series, and an operating logbook. Manuals for the bar feeder are also included in English.

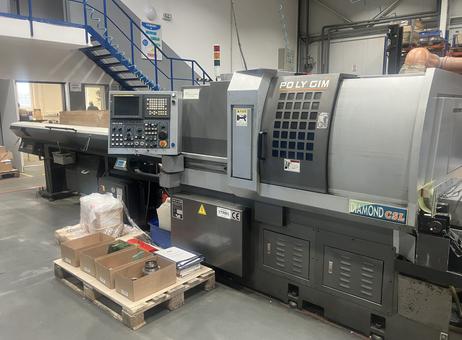

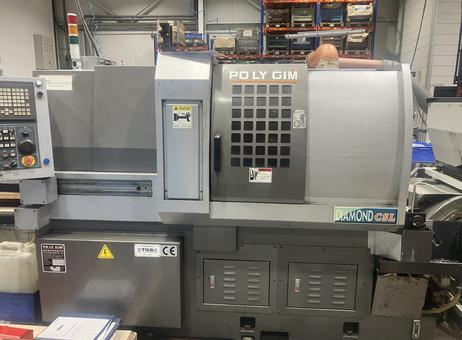

Accessories visible include boxes with parts or additional components placed on a wooden pallet beside the machine, which may be useful for setup or maintenance. The enclosed working area and control panel are clearly visible, enhancing operator safety and ease of use.
This CNC lathe setup is suited for precision machining tasks requiring a compact turning diameter and automated feeding capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC long-running automatic machine PO LY GIM Diamond 32CSL
Hydrodynamic bar feeder Fedek SNS 542
Documentation for CNC automatic machine:
PO LY GIM MAINTENANCE MANUAL in English
PO LY GIM ELECTRIC MANUAL in English
Operating and Instruction Manual for the POLYGIM 32/32B/32CS/32CSB series Diamond CNC long-stroke machine Original translation
Machine operating logbook
Documentation for the feeder:
Operation manual in English
Instructions for use of the feeder in English
Attachments:
photo1 CNC machine with feeder
photo2 CNC automatic feeder
Technical data
Working range:
Max. turned diameter 32mm
Max. turned length 250mm
Max. drilling diameter 10
Max. thread diameter M8
Tools for external machining
Number of tools 6
Dimensions 10mm ER16
Spindle:
32 spindle bore diameter
Spindle speed 200-10000rpm
High speed:
X1, Z1 axes 18M
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – large company |
| Active since | 2025 |
| Offers online | 2 |
| Last activity | July 14, 2026 |
CNC long-running automatic machine PO LY GIM Diamond 32CSL
Hydrodynamic bar feeder Fedek SNS 542
Documentation for CNC automatic machine:
PO LY GIM MAINTENANCE MANUAL in English
PO LY GIM ELECTRIC MANUAL in English
Operating and Instruction Manual for the POLYGIM 32/32B/32CS/32CSB series Diamond CNC long-stroke machine Original translation
Machine operating logbook
Documentation for the feeder:
Operation manual in English
Instructions for use of the feeder in English
Attachments:
photo1 CNC machine with feeder
photo2 CNC automatic feeder
Technical data
Working range:
Max. turned diameter 32mm
Max. turned length 250mm
Max. drilling diameter 10
Max. thread diameter M8
Tools for external machining
Number of tools 6
Dimensions 10mm ER16
Spindle:
32 spindle bore diameter
Spindle speed 200-10000rpm
High speed:
X1, Z1 axes 18M
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features a PO LY GIM MACHINERY CO.LTD CNC lathe machine, model DIAMOND 32 CSL, manufactured in 2015. The machine weighs approximately 3988 kg and operates on 220 V AC with a power capacity of 15 kVA, suitable for industrial machining environments.
The DIAMOND 32 CSL is a long-stroke CNC lathe designed for precision turning and drilling operations. It has a maximum turned diameter capacity of 32 mm and can handle workpieces up to 250 mm in length. The machine supports a maximum drilling diameter of 10 mm and threading up to M8. It is equipped with six external machining tools, each sized for 10 mm ER16 tool holders, allowing for versatile tooling options.
The spindle features a 32 mm bore diameter and offers a speed range from 200 to 10,000 rpm, enabling high-speed machining applications. The X1 and Z1 axes provide rapid movements at speeds up to 18 meters per minute, contributing to efficient production cycles.
Included with the CNC lathe is a Fedek SNS 542 hydrodynamic long bar feeder, labeled SNS42, which is equipped with its own control panel and two metal bins attached underneath. Both the lathe and bar feeder appear clean and well-maintained, with no visible surface damage. A metal chip container is attached to the rear end of the lathe for chip management.
Documentation provided includes maintenance and electric manuals in English, operating and instruction manuals for the POLYGIM 32 series, and an operating logbook. Manuals for the bar feeder are also included in English.
Accessories visible include boxes with parts or additional components placed on a wooden pallet beside the machine, which may be useful for setup or maintenance. The enclosed working area and control panel are clearly visible, enhancing operator safety and ease of use.
This CNC lathe setup is suited for precision machining tasks requiring a compact turning diameter and automated feeding capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Factory – large company |
| Active since | 2025 |
| Offers online | 2 |
| Last activity | July 14, 2026 |
