| Manufacturer | Chevalier |
|---|---|
| Model | FCL 1840 - Ø 460 x 1000 mm CNC |
| Year | |
| Location | Belgium
|

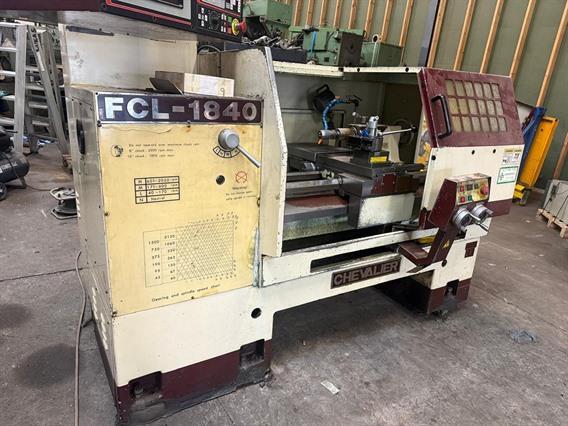

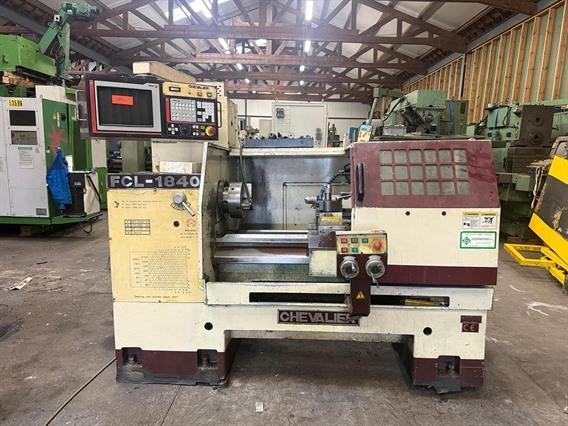

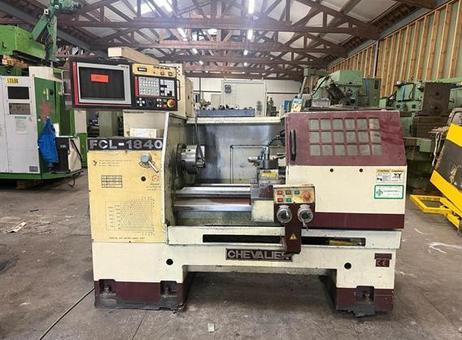

Chevalier FCL 1840 CNC Lathe — clear, detailed listing
Overview
This listing is for a Chevalier FCL 1840 CNC lathe intended for turning work. It is classified as a CNC lathe and is offered in its current technical condition: as-is, where-is. The year of manufacture is not specified.
Key machine details
- Model: FCL 1840 (Ø 460 x 1000 mm CNC)
- Main category: Lathes; Subcategory: CNC lathes
- Control system: Fagor
- Technical condition: offered as-is, where-is (no claims of testing, refurbishment, or warranty)
Capacities and travel
- Swing over bed and swing over cross-slide are specified for this model, along with the distance between centres and axis travel values as listed in the original specification. A spindle bore diameter and spindle power figure are also provided for this machine. Speed range and the number of spindle speeds are included in the specification.
Power, dimensions and weight
- Total electrical power requirement, overall machine footprint (length, width, height) and the machine weight are provided in the current specification.
Additional notes
- The machine is described using the supplied model designation and technical details. No claims are made about operational status beyond the stated as-is, where-is condition. The listing does not include the year of manufacture.
- Accessories, tooling, or additional components are not specified in this description and are not included unless explicitly listed by the seller.
If you require the full list of numeric specifications (swing, travels, spindle bore, spindle power, speeds, total power, dimensions and weight) as published in the original product specification, refer to the provided model details in the current listing.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Brand: Chevalier
Type/Model: FCL 1840 - Ø 460 x 1000 mm CNC
Main category: Lathes
Sub category: CNC lathes
Year of manufacture: Not specified
Technical condition: as-is, where-is
Swing over bed: 460 mm
Swing over cross-slide: 230 mm
Distance between centres: 1000 mm
Max longitudinal travel (Z-axis): 900 mm
Max cross travel (X-axis): 250 mm
Diameter of spindle bore: 58 mm
Power on the spindle: 7.5 HP
Number of speeds: 40 > 2000 rpm
Command: Fagor
Total power needed: 5.5 kW
Length: 2200 mm
Width: 1400 mm
Height: 2000 mm
Weight: 2300 kg
Additional information: Type/Model: FCL 1840 - Ø 460 x 1000 mm CNC
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2015 |
| Offers online | 317 |
| Last activity | Oct. 23, 2026 |
APT International, based in Deinze, Belgium, is a leading name in the global market for second-hand and refurbished industrial machinery. With over 25 years of experience, APT specializes in buying, selling, and trading used metalworking machinery, offering one of the largest stocks in Europe. Their expansive 30,000 m² facility houses around 3,000 machines, including lathes, milling machines, presses, saws, grinders, and even complete production lines.
What sets APT International apart is not just the scale of their inventory, but their comprehensive service approach. From initial consultation to dismantling, transport, installation, and commissioning, APT ensures every project runs smoothly, regardless of complexity or location. Their in-house engineering background, rooted in over five decades of mechanical expertise, allows them to provide tailored solutions and modifications to meet specific customer requirements.
Serving clients across Europe and beyond, APT International is recognized for reliability, technical knowledge, and responsive customer support. Whether you're upgrading your production capacity or sourcing specific equipment, APT offers a professional, cost-effective solution backed by deep industry insight.
For quality used machinery and end-to-end support, APT International is a trusted partner in industrial production equipment.
Brand: Chevalier
Type/Model: FCL 1840 - Ø 460 x 1000 mm CNC
Main category: Lathes
Sub category: CNC lathes
Year of manufacture: Not specified
Technical condition: as-is, where-is
Swing over bed: 460 mm
Swing over cross-slide: 230 mm
Distance between centres: 1000 mm
Max longitudinal travel (Z-axis): 900 mm
Max cross travel (X-axis): 250 mm
Diameter of spindle bore: 58 mm
Power on the spindle: 7.5 HP
Number of speeds: 40 > 2000 rpm
Command: Fagor
Total power needed: 5.5 kW
Length: 2200 mm
Width: 1400 mm
Height: 2000 mm
Weight: 2300 kg
Additional information: Type/Model: FCL 1840 - Ø 460 x 1000 mm CNC
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Chevalier FCL 1840 CNC Lathe — clear, detailed listing
Overview
This listing is for a Chevalier FCL 1840 CNC lathe intended for turning work. It is classified as a CNC lathe and is offered in its current technical condition: as-is, where-is. The year of manufacture is not specified.
Key machine details
- Model: FCL 1840 (Ø 460 x 1000 mm CNC)
- Main category: Lathes; Subcategory: CNC lathes
- Control system: Fagor
- Technical condition: offered as-is, where-is (no claims of testing, refurbishment, or warranty)
Capacities and travel
- Swing over bed and swing over cross-slide are specified for this model, along with the distance between centres and axis travel values as listed in the original specification. A spindle bore diameter and spindle power figure are also provided for this machine. Speed range and the number of spindle speeds are included in the specification.
Power, dimensions and weight
- Total electrical power requirement, overall machine footprint (length, width, height) and the machine weight are provided in the current specification.
Additional notes
- The machine is described using the supplied model designation and technical details. No claims are made about operational status beyond the stated as-is, where-is condition. The listing does not include the year of manufacture.
- Accessories, tooling, or additional components are not specified in this description and are not included unless explicitly listed by the seller.
If you require the full list of numeric specifications (swing, travels, spindle bore, spindle power, speeds, total power, dimensions and weight) as published in the original product specification, refer to the provided model details in the current listing.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2015 |
| Offers online | 317 |
| Last activity | Oct. 23, 2026 |
APT International, based in Deinze, Belgium, is a leading name in the global market for second-hand and refurbished industrial machinery. With over 25 years of experience, APT specializes in buying, selling, and trading used metalworking machinery, offering one of the largest stocks in Europe. Their expansive 30,000 m² facility houses around 3,000 machines, including lathes, milling machines, presses, saws, grinders, and even complete production lines.
What sets APT International apart is not just the scale of their inventory, but their comprehensive service approach. From initial consultation to dismantling, transport, installation, and commissioning, APT ensures every project runs smoothly, regardless of complexity or location. Their in-house engineering background, rooted in over five decades of mechanical expertise, allows them to provide tailored solutions and modifications to meet specific customer requirements.
Serving clients across Europe and beyond, APT International is recognized for reliability, technical knowledge, and responsive customer support. Whether you're upgrading your production capacity or sourcing specific equipment, APT offers a professional, cost-effective solution backed by deep industry insight.
For quality used machinery and end-to-end support, APT International is a trusted partner in industrial production equipment.
