| Manufacturer | Mazak |
|---|---|
| Model | Integrex 400-IV ST |
| Year | |
| Location | Belgium
|

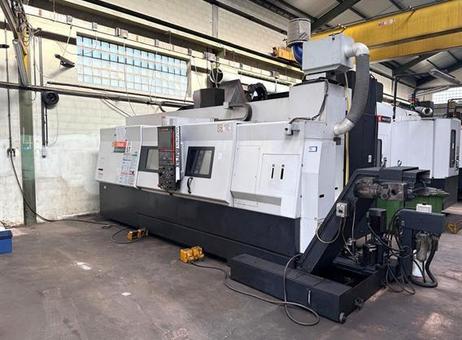

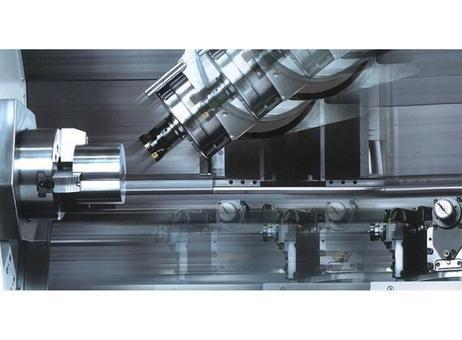

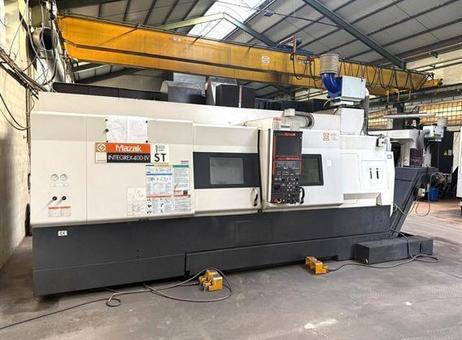

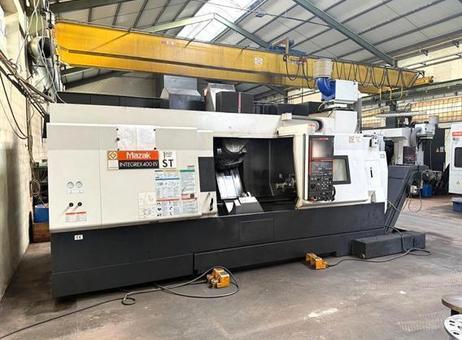

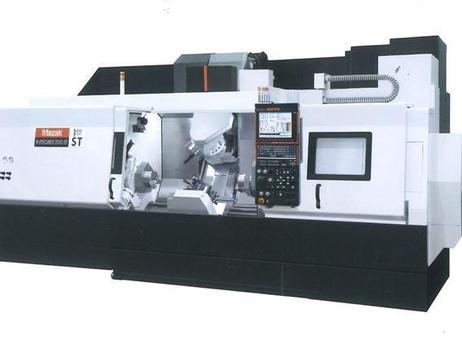

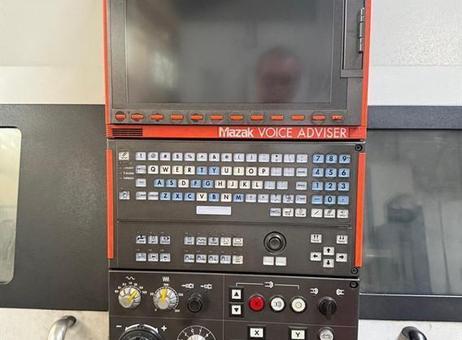

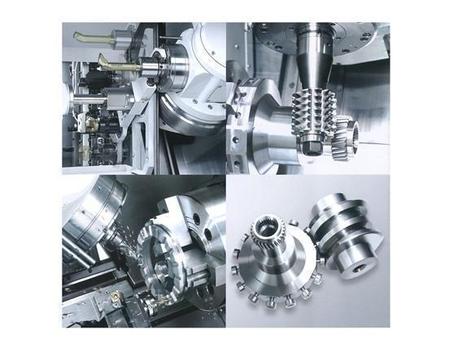

Mazak Integrex 400-IV ST CNC lathe, equipped for simultaneous five-axis machining of complex workpieces. The listed control is Mazatrol Matrix. The machine has a 760 mm swing over the bed, a 1,519 mm distance between centres, and listed travels of 1,585 mm on the Z axis and 615 mm on the X axis. Additional listed travels are 250 mm on the Y axis, 230 mm on the lower turret’s X2 axis, and 1,388 mm on its Z2 axis. The B-axis travel is specified as -30° to 210°.

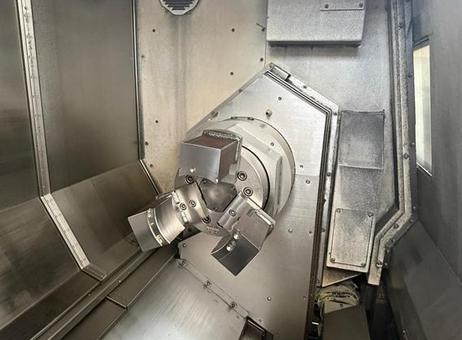

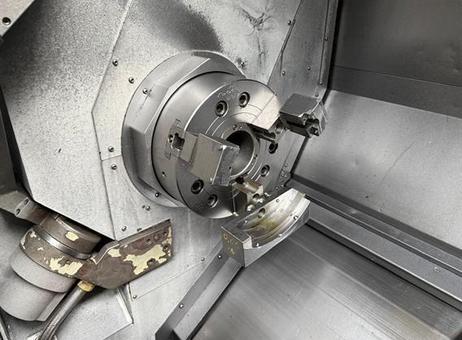

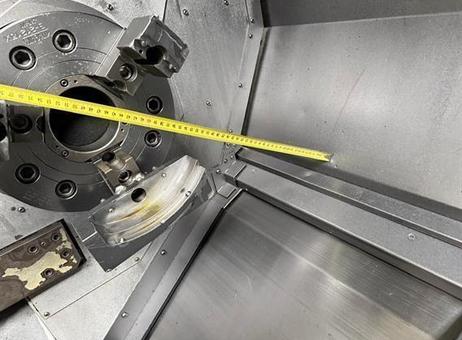

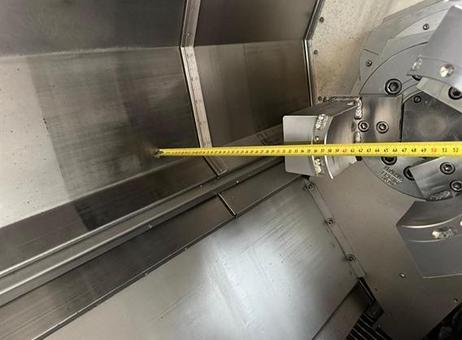

The main spindle has an A2-8 spindle nose, a 112 mm bore and listed power of 30/22 kW. The spindle speed is given as 3,300 rpm. The machine also has a second spindle with a 300 mm chuck, a 91 mm bore, listed power of 26/22 kW, a speed of 4,000 rpm and travel of 1,574 mm.

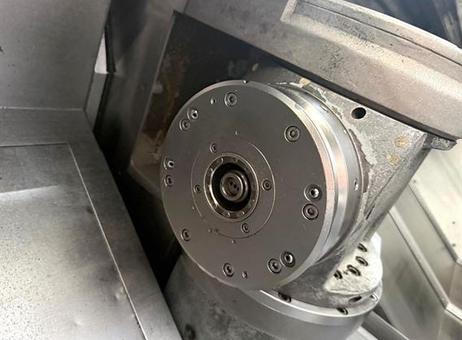

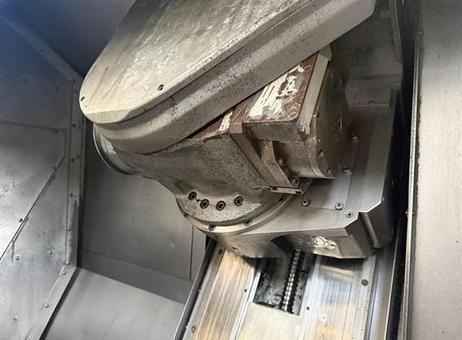

The milling spindle is described as a single-spindle turret with an automatic tool changer. Its listed maximum speed is 12,000 rpm and maximum torque is 120 Nm. The lower turret is a nine-position drum turret. The machine is also listed with a 40-position tool capacity.
Overall dimensions are listed as 5,200 mm long, 2,800 mm wide and 2,720 mm high, with a weight of 17 tonnes. Listed total power requirement is 91 kVA. The supplied information does not state the machine’s condition.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
» Request a personalised quote
Print
Download
Favorites
Back
Technical information
Swing over bed760 mm
Distance centre tot centre1519 mm
Max longitudinal travel Z-axis1585 mm
Max cross travel X-axis615 mm
Spindle coneA2-8
Dia of spindle bore112 mm
Power on the spindle30/22 kW
Number of speeds3300 rpm
CommandMazatrol Matrix
Total power needed91 kVa
Length5200 mm
Width2800 mm
Height2720 mm
Weight17 ton
Toolchangeryes
Number of tools40 positions
Additional info
5 axis simultaneous machining for complex workpieces
- X-axis travel: 615 mm
- Z-axis travel: 1585 mm
- Y-axis travel: 250 mm
- X2 axis travel (lower turret): 230 mm
- Z2 axis travel (lower turret): 1388 mm
- B axis travel: -30° > 210°
Second spindle:
Chuck size: 300 mm
second spindle speed: 4000 rpm
second spindle travel: 1574 mm
second spindle bore: dia 91 mm
power on second spindle: 26/22 kW
Milling spindle:
single spindle turret with auto toolchanger
max spindle speed: 12,000 rpm
max spindle torque: 120 Nm
Lower turret:
9-position drum turret
Type/Model: Integrex 400-IV ST
Main category: [A] Lathes
Sub category: [A.07] CNC lathes
Brand: Mazak
» Request a personalised quote
5 axis simultaneous machining for complex workpieces
- X-axis travel: 615 mm
- Z-axis travel: 1585 mm
- Y-axis travel: 250 mm
- X2 axis travel (lower turret): 230 mm
- Z2 axis travel (lower turret): 1388 mm
- B axis travel: -30° > 210°
Second spindle:
Chuck size: 300 mm
second spindle speed: 4000 rpm
second spindle travel: 1574 mm
second spindle bore: dia 91 mm
power on second spindle: 26/22 kW
Milling spindle:
single spindle turret with auto toolchanger
max spindle speed: 12,000 rpm
max spindle torque: 120 Nm
Lower turret:
9-position drum turret
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Is this Mazak Integrex 400-IV ST CNC lathe?
This Mazak Integrex 400-IV ST CNC lathe.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2015 |
| Offers online | 317 |
| Last activity | Oct. 29, 2026 |
APT International, based in Deinze, Belgium, is a leading name in the global market for second-hand and refurbished industrial machinery. With over 25 years of experience, APT specializes in buying, selling, and trading used metalworking machinery, offering one of the largest stocks in Europe. Their expansive 30,000 m² facility houses around 3,000 machines, including lathes, milling machines, presses, saws, grinders, and even complete production lines.
What sets APT International apart is not just the scale of their inventory, but their comprehensive service approach. From initial consultation to dismantling, transport, installation, and commissioning, APT ensures every project runs smoothly, regardless of complexity or location. Their in-house engineering background, rooted in over five decades of mechanical expertise, allows them to provide tailored solutions and modifications to meet specific customer requirements.
Serving clients across Europe and beyond, APT International is recognized for reliability, technical knowledge, and responsive customer support. Whether you're upgrading your production capacity or sourcing specific equipment, APT offers a professional, cost-effective solution backed by deep industry insight.
For quality used machinery and end-to-end support, APT International is a trusted partner in industrial production equipment.
