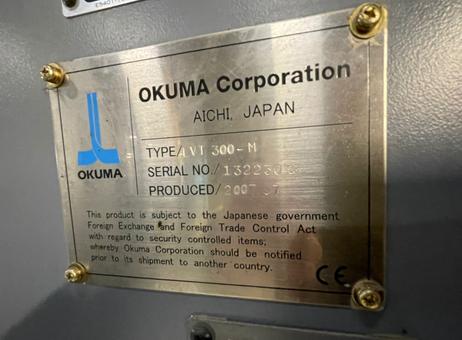

| Manufacturer | OKUMA |
|---|---|
| Model | LVT 300-M |
| Year | 2007 |
| Location | Denmark
|

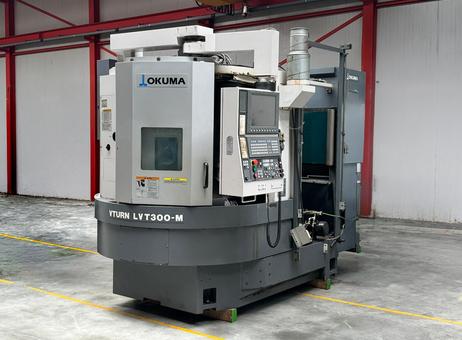

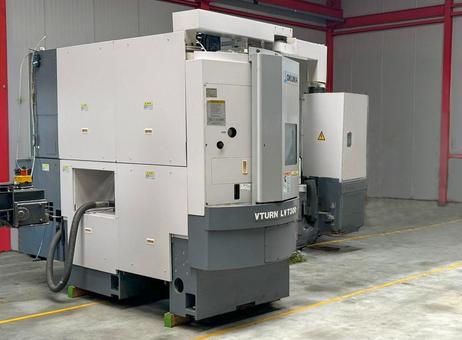

This listing offers an OKUMA LVT 300-M CNC lathe machine, manufactured in 2007. The machine has a maximum turning diameter of 280 mm and a turning length capacity of 200 mm. It is powered by a spindle motor with a power rating of 22 kW and operates at spindle speeds ranging from 40 to 4000 rpm. The lathe features a single turret equipped with 12 tool stations, allowing for versatile tooling options. The control system is the OSP 200 manufactured by OKUMA.
The machine's physical dimensions are 2800 mm in length, 1500 mm in width, and 2500 mm in height, with a total weight of approximately 5600 kg. Included accessories are a load and unload device, a tool setter, a chip conveyor, and a coolant system, all contributing to enhanced operational efficiency.

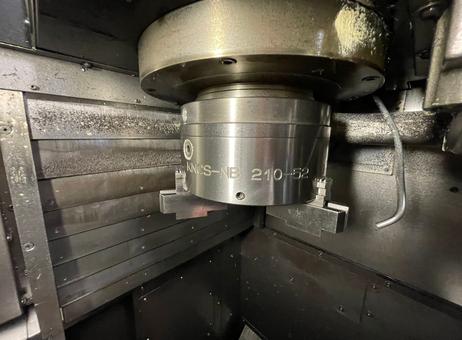

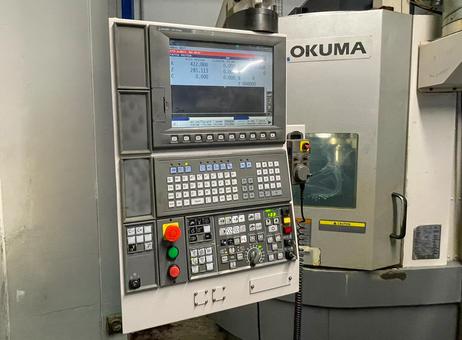

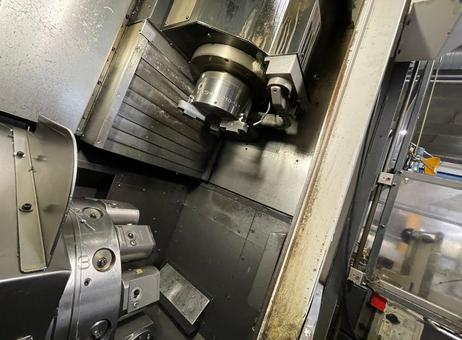

The lathe is equipped with a control panel located on the left side, which includes multiple buttons, a screen, and a keyboard for programming. A rotary table or parts feeder system is attached at the front of the machine, facilitating material handling. The machining chamber contains a tool turret with multiple tool holders, and chucks labeled "KNCS-NB 210-52" and "SMW-AUTOBLOK" are installed. Metal chips and debris are present inside the machining chamber, indicating prior use.
Ventilation ducts and an exhaust system are installed above the machine to manage airflow and maintain a suitable working environment. The machine and surrounding area appear orderly and well maintained. Overall, this OKUMA LVT 300-M CNC lathe is a robust machine suitable for precision turning applications in industrial settings.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Specifications:
Max. Turning diameter 280 mm dia.
Turning Length 200 mm
Main motor power 22/15 kw
Main Spindle speed Range 40-4000 rpm
C Axis - Mainspindle Stroke 0.001 degree
Tool Turret capacity 12 stations
Live Tooling Spindle speeds 40-4500 rpm
Control system OSP 200 manuf.
Working hours Spindle 11485 Hours
Accessories:
Load and Unload device
Tool setter
Chip conveyor.
Coolant.
Length: 2800 mm, Height: 2500 mm, Width: 1500 mm , Weight: 5600 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 89 |
| Last activity | Oct. 30, 2026 |
Specifications:
Max. Turning diameter 280 mm dia.
Turning Length 200 mm
Main motor power 22/15 kw
Main Spindle speed Range 40-4000 rpm
C Axis - Mainspindle Stroke 0.001 degree
Tool Turret capacity 12 stations
Live Tooling Spindle speeds 40-4500 rpm
Control system OSP 200 manuf.
Working hours Spindle 11485 Hours
Accessories:
Load and Unload device
Tool setter
Chip conveyor.
Coolant.
Length: 2800 mm, Height: 2500 mm, Width: 1500 mm , Weight: 5600 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing offers an OKUMA LVT 300-M CNC lathe machine, manufactured in 2007. The machine has a maximum turning diameter of 280 mm and a turning length capacity of 200 mm. It is powered by a spindle motor with a power rating of 22 kW and operates at spindle speeds ranging from 40 to 4000 rpm. The lathe features a single turret equipped with 12 tool stations, allowing for versatile tooling options. The control system is the OSP 200 manufactured by OKUMA.
The machine's physical dimensions are 2800 mm in length, 1500 mm in width, and 2500 mm in height, with a total weight of approximately 5600 kg. Included accessories are a load and unload device, a tool setter, a chip conveyor, and a coolant system, all contributing to enhanced operational efficiency.
The lathe is equipped with a control panel located on the left side, which includes multiple buttons, a screen, and a keyboard for programming. A rotary table or parts feeder system is attached at the front of the machine, facilitating material handling. The machining chamber contains a tool turret with multiple tool holders, and chucks labeled "KNCS-NB 210-52" and "SMW-AUTOBLOK" are installed. Metal chips and debris are present inside the machining chamber, indicating prior use.
Ventilation ducts and an exhaust system are installed above the machine to manage airflow and maintain a suitable working environment. The machine and surrounding area appear orderly and well maintained. Overall, this OKUMA LVT 300-M CNC lathe is a robust machine suitable for precision turning applications in industrial settings.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
