Kloeckner Desma D 969.250 Z (S3) vertical injection moulding machine, manufactured in 2021. The machine has a clamping force of 270 T, a shot volume of 500 cm³, and a press opening of 1,480 mm. Its stated weight is 10,700 kg.

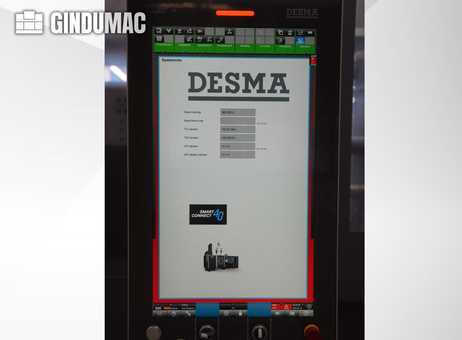

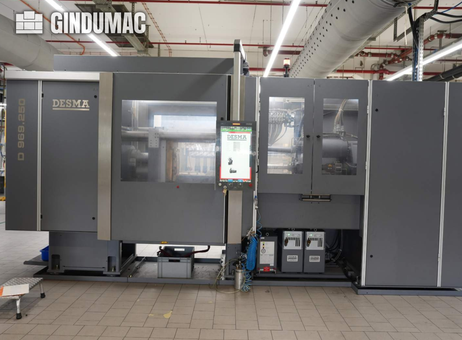

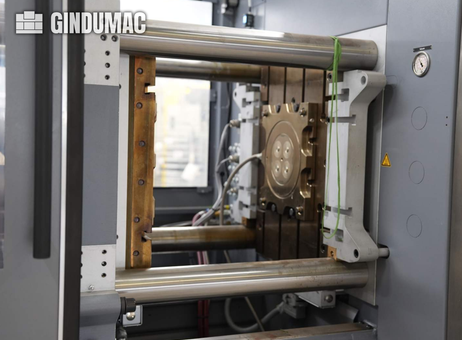

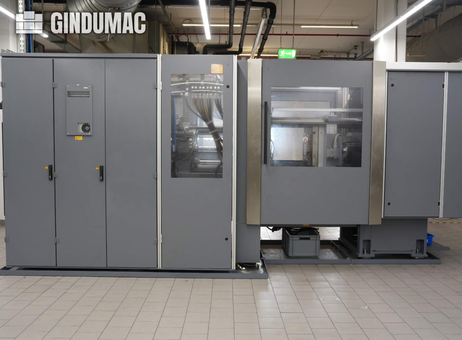

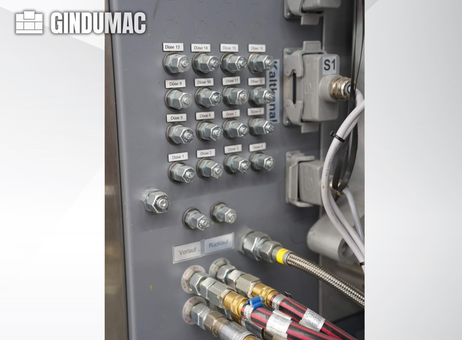

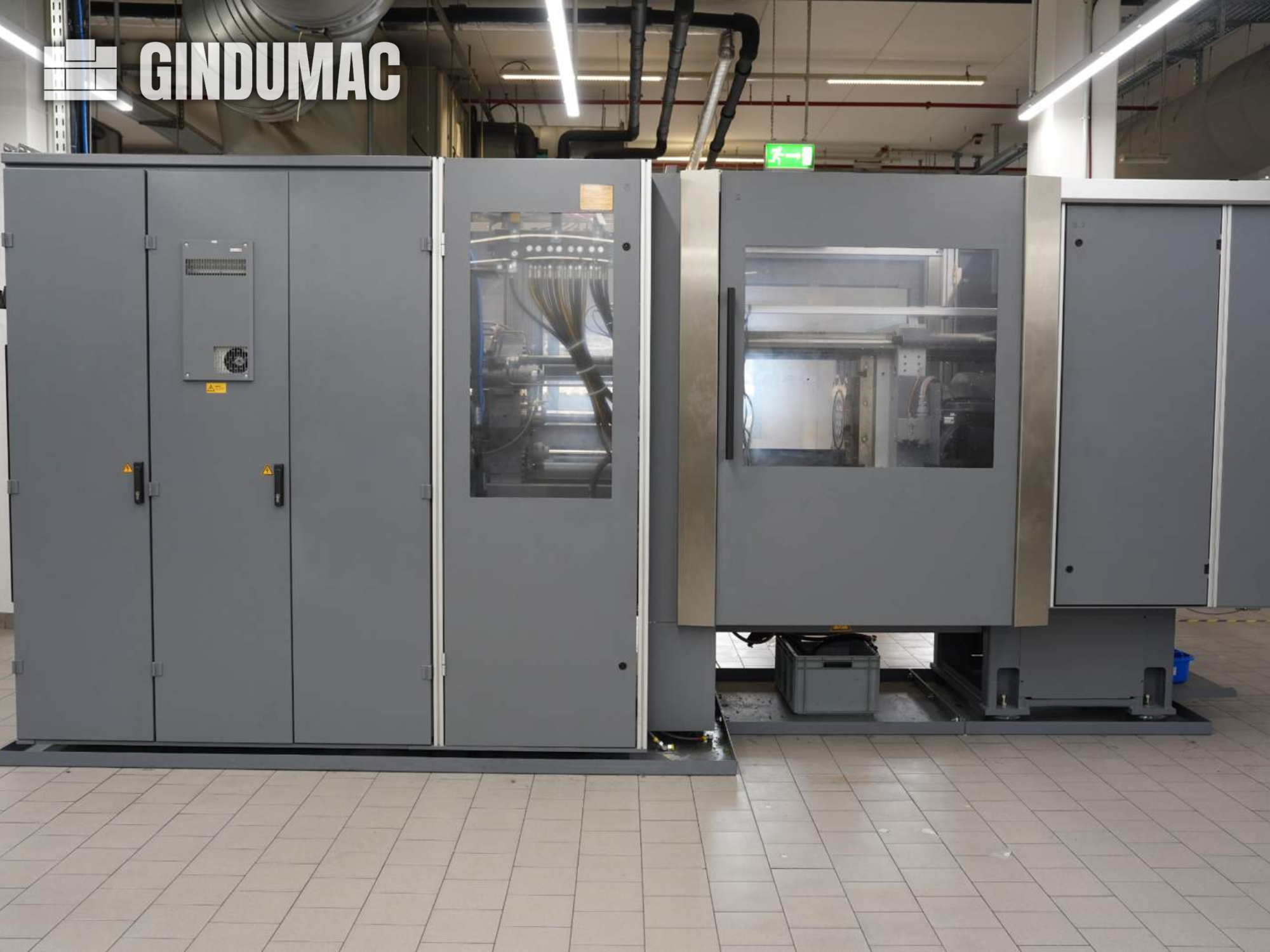

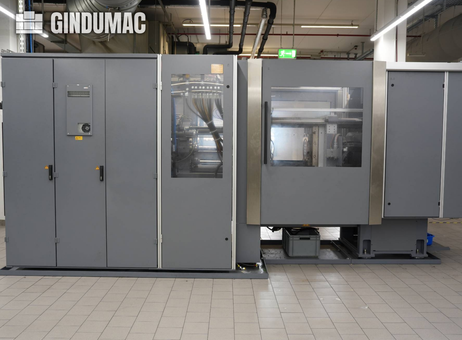

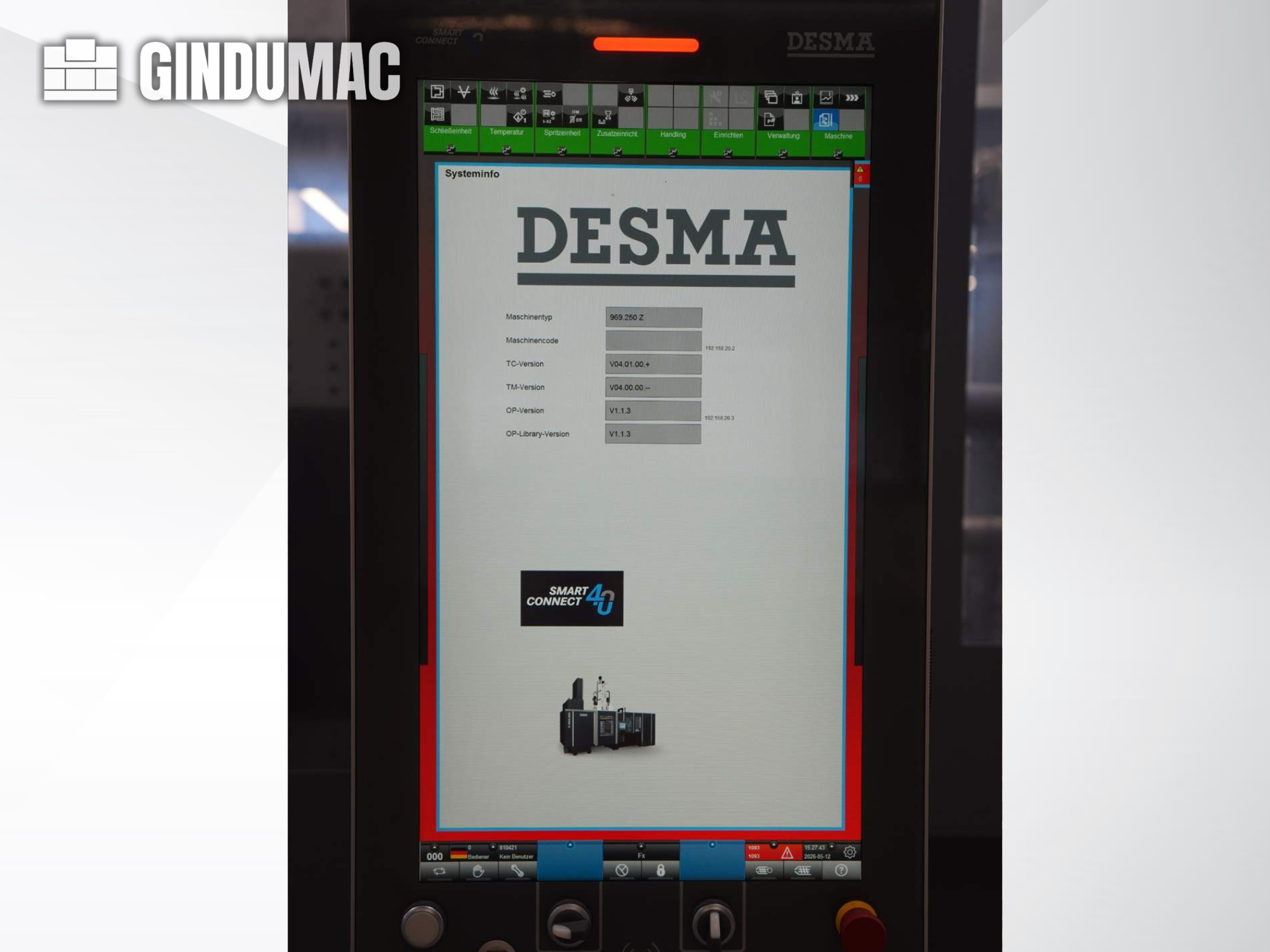

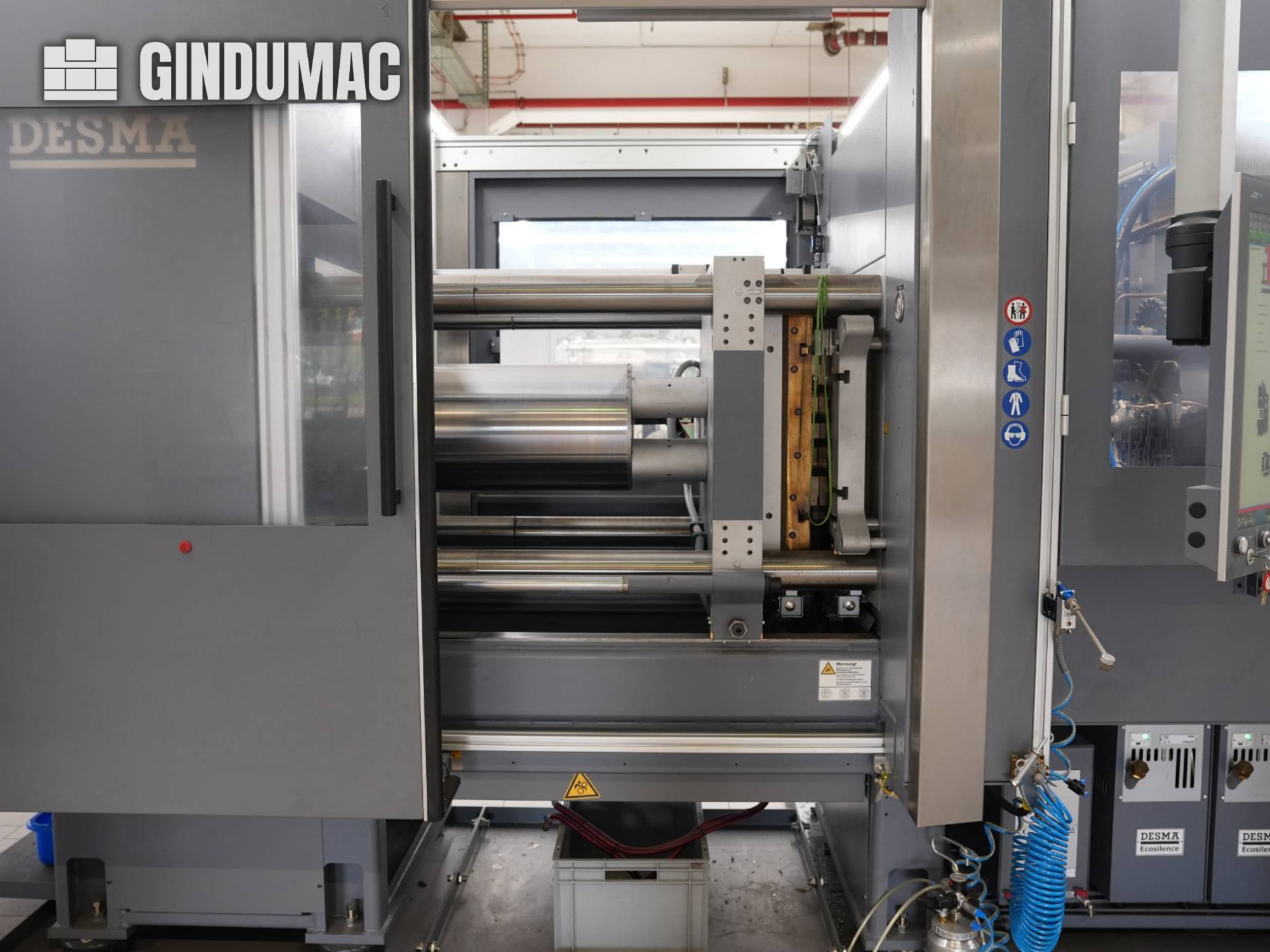

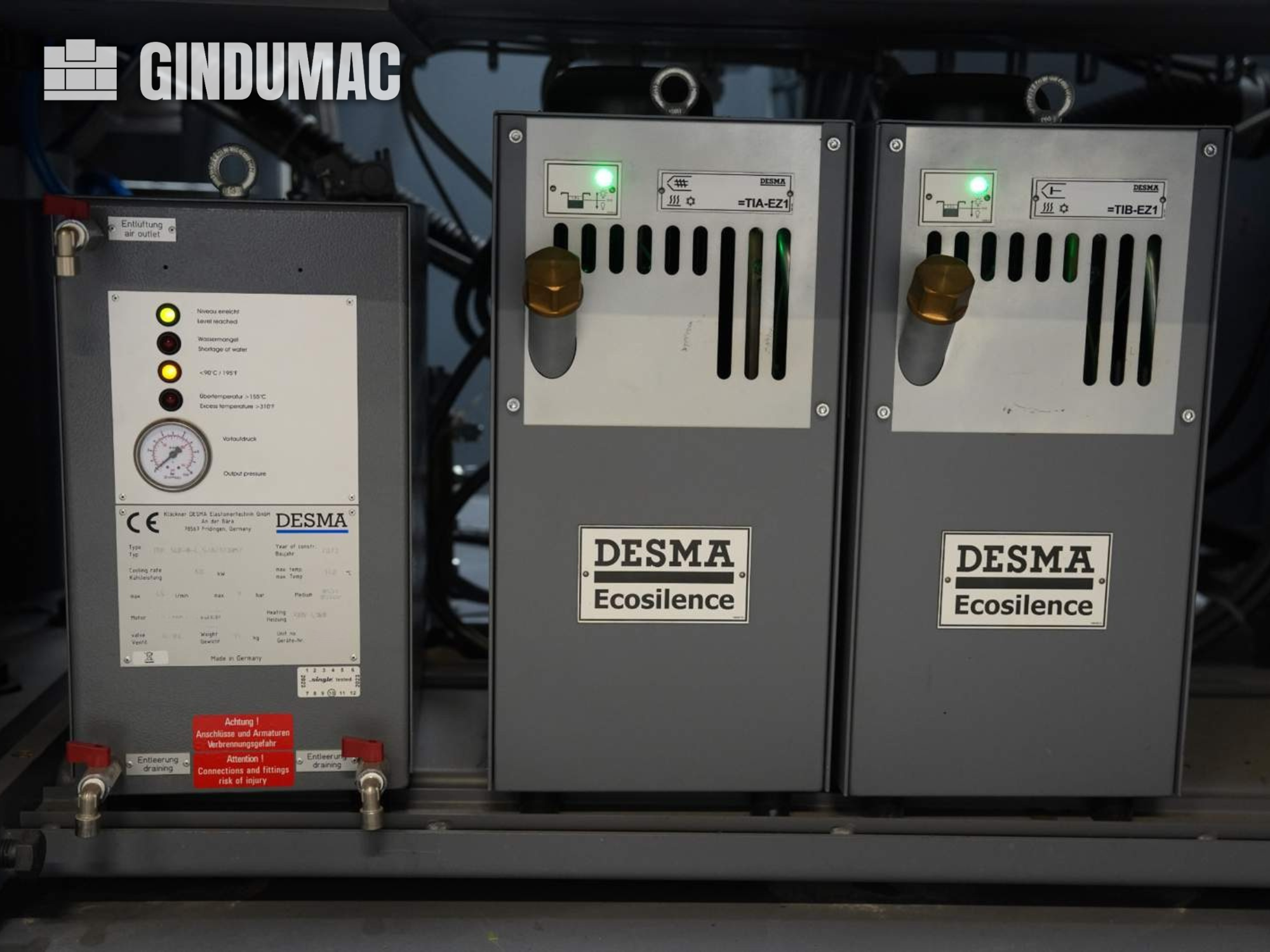

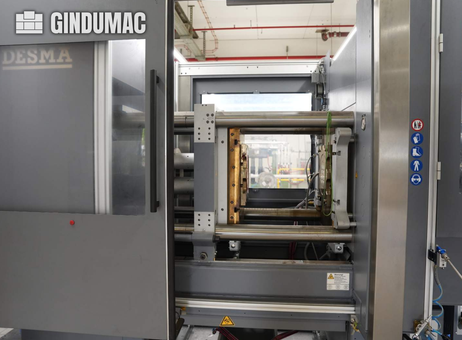

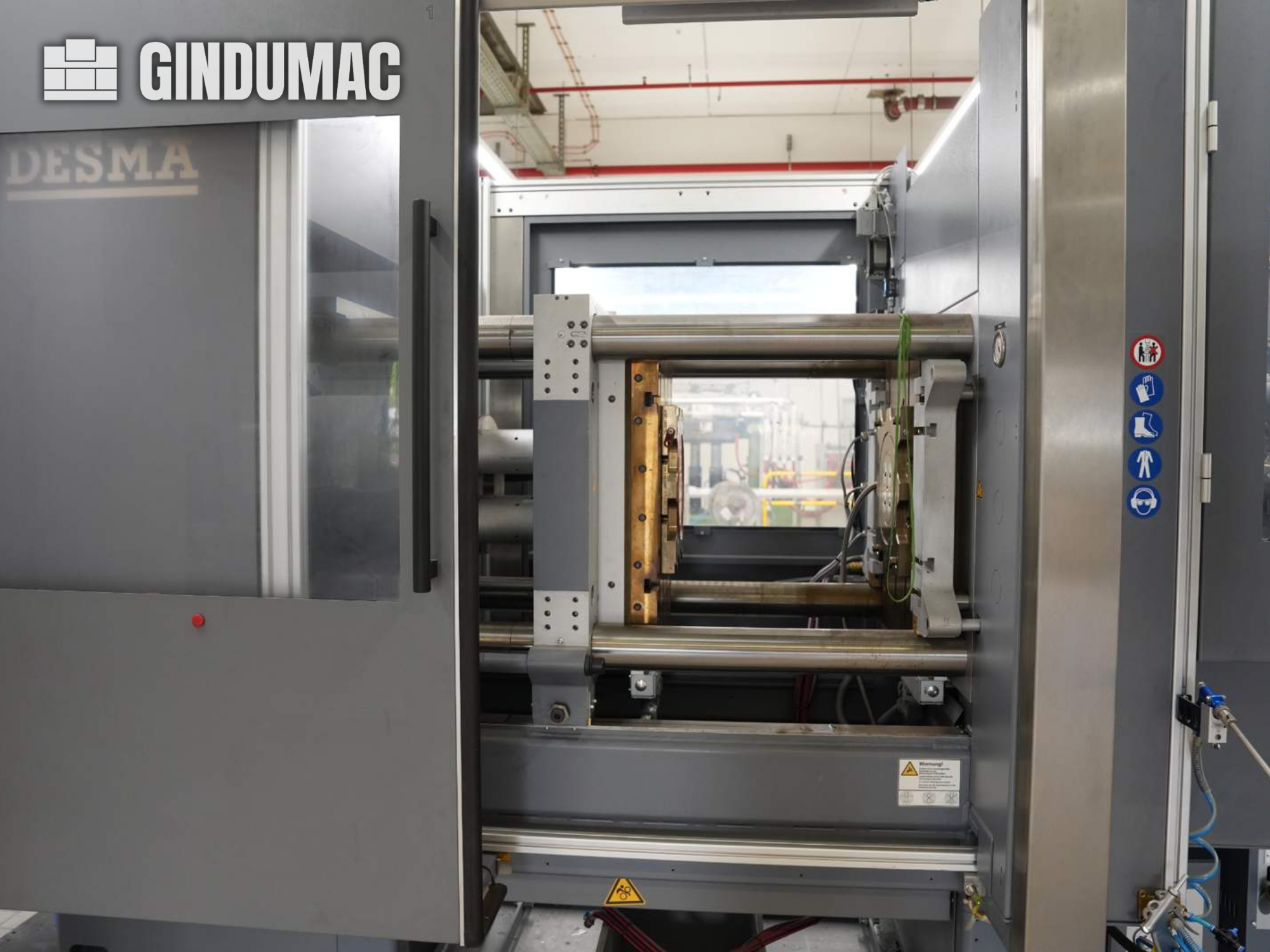

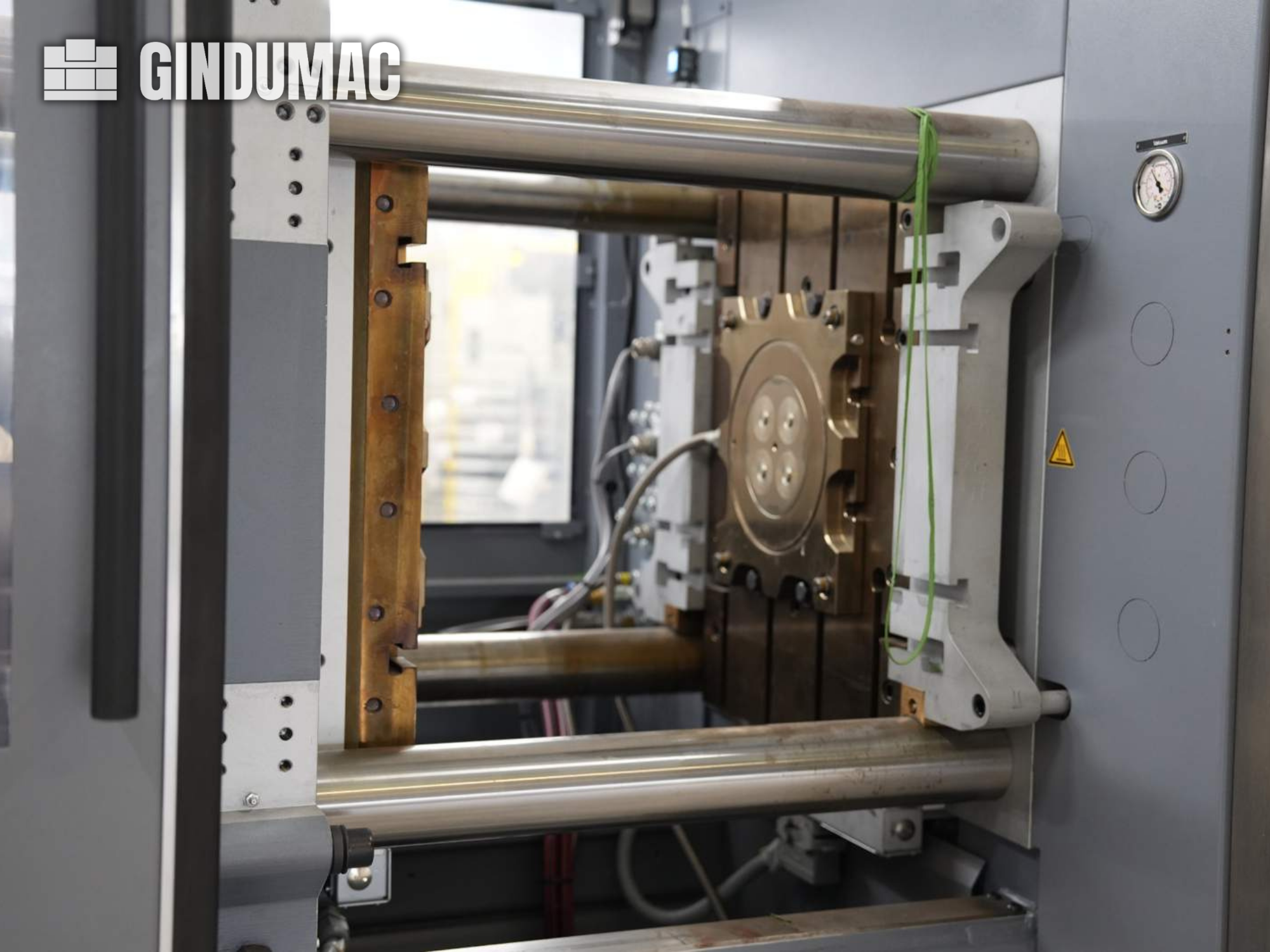

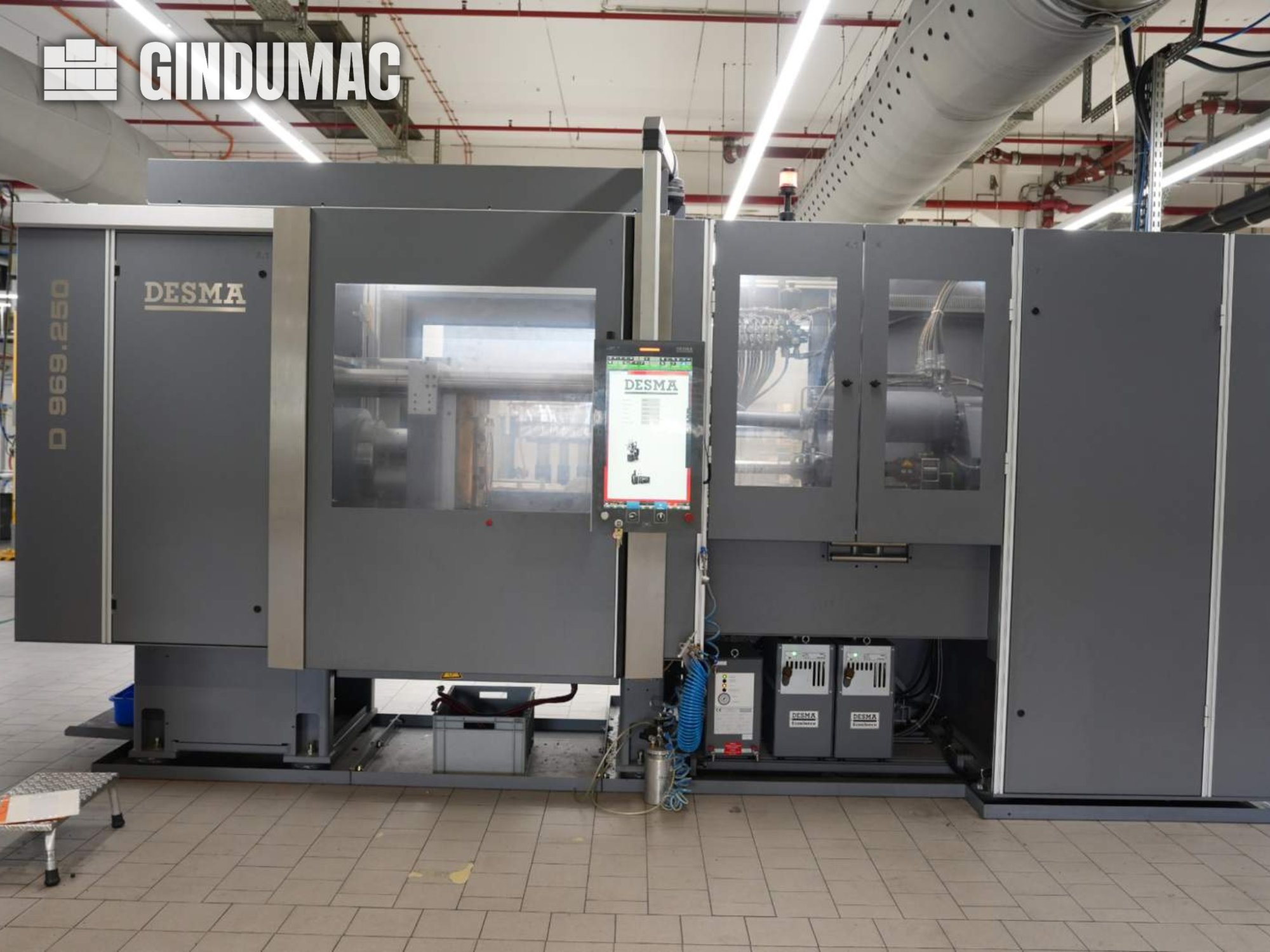

The machine has a large enclosed gray safety housing with viewing windows, a front-mounted control panel with display and push buttons, and electrical cabinets. Bundled hoses and auxiliary equipment are visible beneath and beside the enclosure. The guarded clamping area includes tie bars and a platen/mold assembly; a pressure gauge is mounted on a side panel. DESMA-branded auxiliary units are also visible. The machine’s control system is described as a 2030 TBM touch-operated system for process monitoring.

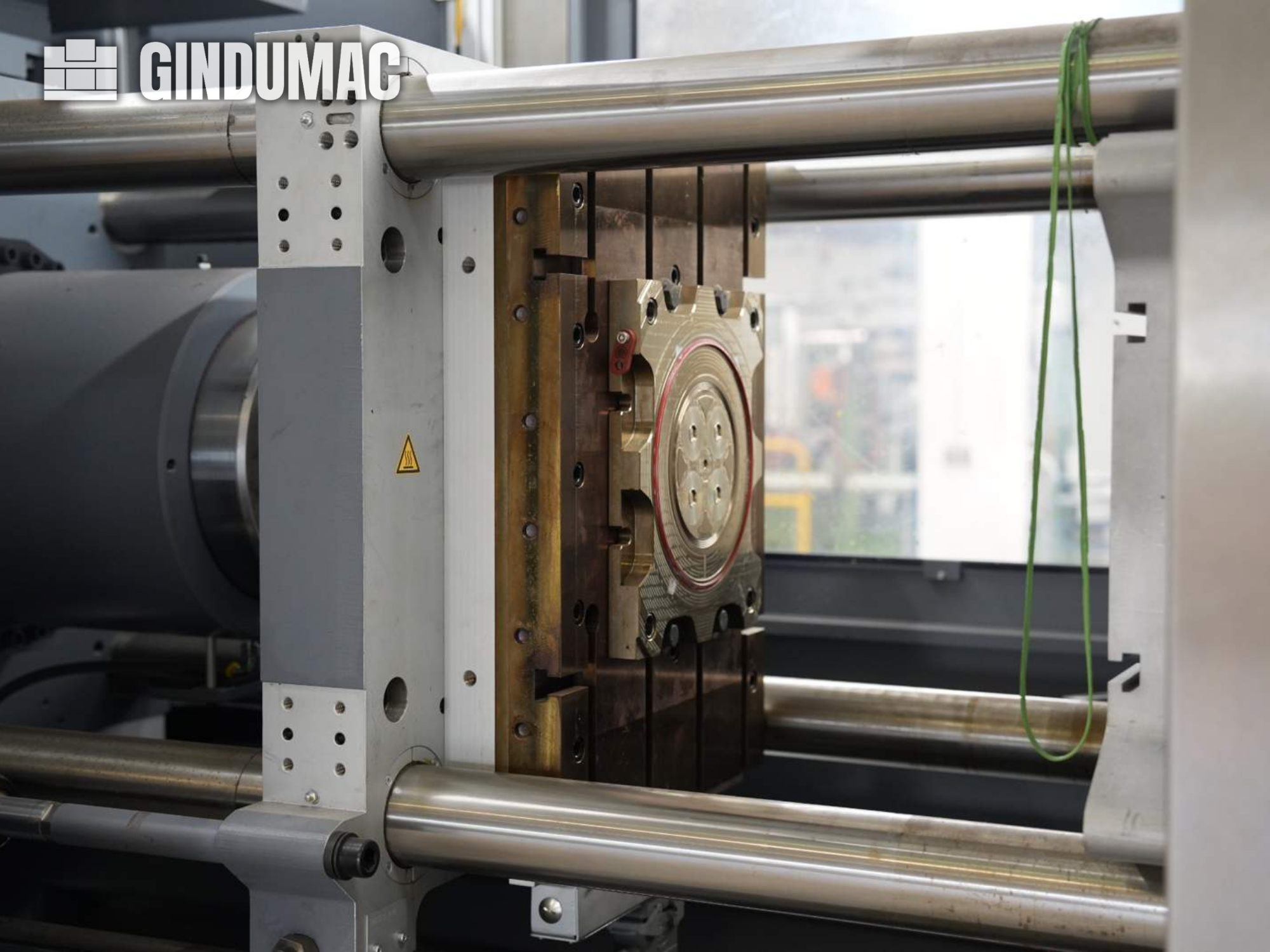

Visible metal surfaces, including parts of the tie bars and mold area, show discoloration and surface marks. The guarded working area is open in some views, and warning labels and PPE pictograms are present on the guards and cabinets. These observations describe the visible condition only and do not establish the machine’s operating status.
This machine may suit production settings requiring vertical injection moulding. Please verify configuration and suitability for your process before purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Seller's description
Vertical injection moulding machine manufactured in 2021. This Kloeckner Desma D 969.250 Z (S3) features a clamping force of 2700 kN and an injection volume of 500 cm³. The machine is equipped with a high-pressure injection unit and a touch-operated control system for process monitoring. If you are looking to get high-quality injection moulding capabilities, consider the Kloeckner Desma D 969.250 Z (S3) machine we have for sale. Contact us for further details.- Clamping Force: 2700 kN (300 US tons) - Injection Volume: 500 cm³ - Injection Unit Type: B500HP (High Pressure) - Injection Pressure: 3500 bar - Nozzle Contact Force: 58 kN - Control System: 2030 TBM (Touch operation / process monitoring) - Operating System Status: Active 3,360 hours - Operating Hours (Hydraulic Motor): approx. 730 hours - Operating Hours (Hydraulic Pump - Clamping Force): 65 hours - Total Current: 138 A - Recommended Backup Fuse: 160 A - Supply Cable Cross-Section: 70 mm² Cu - Voltage: 3~400 V +N +PE - Frequency: 50 Hz - Max. Short-Circuit Current: 10 kA - Total Machine Weight: approx. 10.7 t (10,700 kg) (Clamping Unit + Hydraulic Unit: 9,700 kg; Injection Unit: 1,000 kg) - Footprint: 10 m² - Total Floor Load / Ceiling Load: 1,070 kg/m² - Foot Area / Floor Contact Area: 2,010 cm² - Specific Ceiling Load: 5.3 kg/cm² - Hydraulic Oil Tank Volume: 450/130 l - Temperature Control Medium Tank Volume: 2x7 l - Compressed Air Pressure: 6 bar - Compressed Air Flow: 0.5 m³/h - Cooling Water Flow: 1.6 m³/h - Cooling Water Inlet Temperature: max. 20 °C at 2.5 bar - Cooling Water Connection: 22-L - Pump Power / Rated Power: 22 kW (28.6 hp) - Pump Current Consumption: 32.0 A - Pump Pressure: 265 bar - Pump Flow Rate: 72/39 l/min - Maximum Mold Width: 560 mm - Maximum Mold Length: 780 mm - Platen / Stroke Dimensions: 600 mm stroke, platen distance 1480 mm, clamping stroke details 710 mm - Heating Plate Center Bore / Ring Size: Ø80 H9 - Enclosure Type (UL): 1 Clamping Force: 2700 kN Machine Weight: 10700 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
Seller's description
Vertical injection moulding machine manufactured in 2021. This Kloeckner Desma D 969.250 Z (S3) features a clamping force of 2700 kN and an injection volume of 500 cm³. The machine is equipped with a high-pressure injection unit and a touch-operated control system for process monitoring. If you are looking to get high-quality injection moulding capabilities, consider the Kloeckner Desma D 969.250 Z (S3) machine we have for sale. Contact us for further details.- Clamping Force: 2700 kN (300 US tons) - Injection Volume: 500 cm³ - Injection Unit Type: B500HP (High Pressure) - Injection Pressure: 3500 bar - Nozzle Contact Force: 58 kN - Control System: 2030 TBM (Touch operation / process monitoring) - Operating System Status: Active 3,360 hours - Operating Hours (Hydraulic Motor): approx. 730 hours - Operating Hours (Hydraulic Pump - Clamping Force): 65 hours - Total Current: 138 A - Recommended Backup Fuse: 160 A - Supply Cable Cross-Section: 70 mm² Cu - Voltage: 3~400 V +N +PE - Frequency: 50 Hz - Max. Short-Circuit Current: 10 kA - Total Machine Weight: approx. 10.7 t (10,700 kg) (Clamping Unit + Hydraulic Unit: 9,700 kg; Injection Unit: 1,000 kg) - Footprint: 10 m² - Total Floor Load / Ceiling Load: 1,070 kg/m² - Foot Area / Floor Contact Area: 2,010 cm² - Specific Ceiling Load: 5.3 kg/cm² - Hydraulic Oil Tank Volume: 450/130 l - Temperature Control Medium Tank Volume: 2x7 l - Compressed Air Pressure: 6 bar - Compressed Air Flow: 0.5 m³/h - Cooling Water Flow: 1.6 m³/h - Cooling Water Inlet Temperature: max. 20 °C at 2.5 bar - Cooling Water Connection: 22-L - Pump Power / Rated Power: 22 kW (28.6 hp) - Pump Current Consumption: 32.0 A - Pump Pressure: 265 bar - Pump Flow Rate: 72/39 l/min - Maximum Mold Width: 560 mm - Maximum Mold Length: 780 mm - Platen / Stroke Dimensions: 600 mm stroke, platen distance 1480 mm, clamping stroke details 710 mm - Heating Plate Center Bore / Ring Size: Ø80 H9 - Enclosure Type (UL): 1 Clamping Force: 2700 kN Machine Weight: 10700 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Kloeckner Desma D 969.250 Z (S3) vertical injection moulding machine, manufactured in 2021. The machine has a clamping force of 270 T, a shot volume of 500 cm³, and a press opening of 1,480 mm. Its stated weight is 10,700 kg.

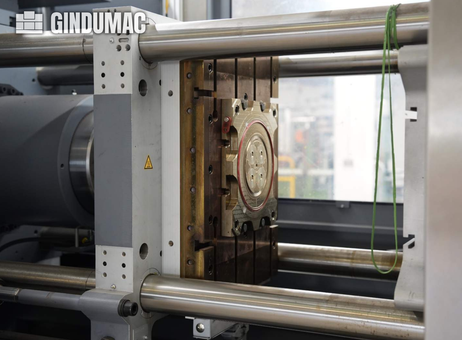

The machine has a large enclosed gray safety housing with viewing windows, a front-mounted control panel with display and push buttons, and electrical cabinets. Bundled hoses and auxiliary equipment are visible beneath and beside the enclosure. The guarded clamping area includes tie bars and a platen/mold assembly; a pressure gauge is mounted on a side panel. DESMA-branded auxiliary units are also visible. The machine’s control system is described as a 2030 TBM touch-operated system for process monitoring.
Visible metal surfaces, including parts of the tie bars and mold area, show discoloration and surface marks. The guarded working area is open in some views, and warning labels and PPE pictograms are present on the guards and cabinets. These observations describe the visible condition only and do not establish the machine’s operating status.
This machine may suit production settings requiring vertical injection moulding. Please verify configuration and suitability for your process before purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
