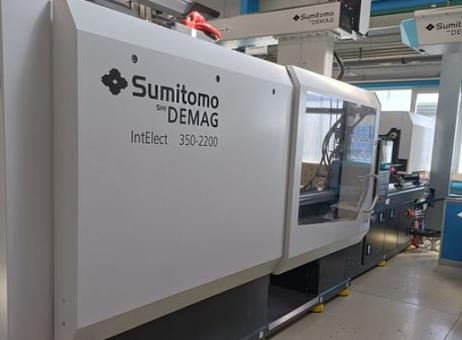

| Manufacturer | Sumitomo DEMAG |
|---|---|
| Model | IntElect2 350/850-2200 mit Robotersystem |
| Year | 2023 |
| Location | Germany
|
Overview
Manufacturer: Sumitomo DEMAG, Model: IntElect2 350/850-2200 mit Robotersystem, Year of manufacture: 2023. Condition: Like-new. Operating hours (drive): 5290 hrs.

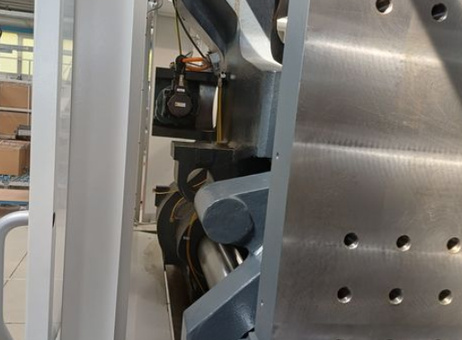

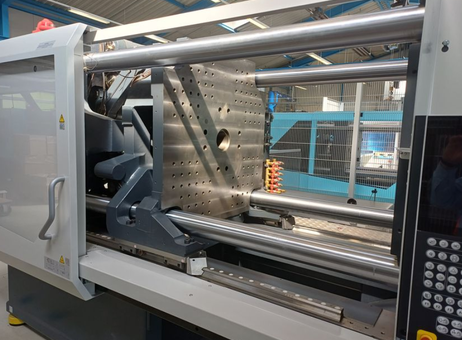

Clamping unit
Max. clamping force: 3500 kN. Max. holding force: 3850 kN. Opening stroke / press opening: 725.0 mm. Min tool installation height: 400.0 mm; Max tool installation height: 900.0 mm (tool installation height range: 400–900 mm). Mounting plate (H x W): 1168.0 x 1144.0 mm. Platen width: 1144.0 mm. Clear tie bar spacing (horizontal x vertical): 830.0 x 830.0 mm. Max. tool weight: 6600 kg. Max. weight load on fixed tool mounting plate: 5100 kg; on movable tool mounting plate: 3800 kg.

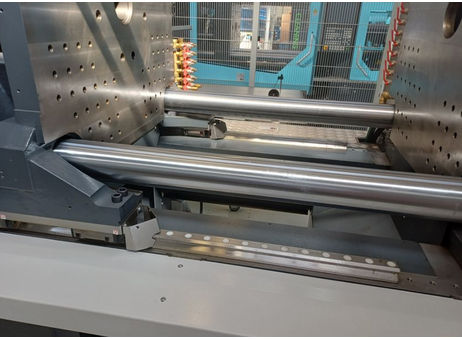

Ejector and tie bar
Ejector stroke: 250.0 mm. Enhanced ejector force: 100.0 kN. Max. ejector speed: 270.0 mm/s.

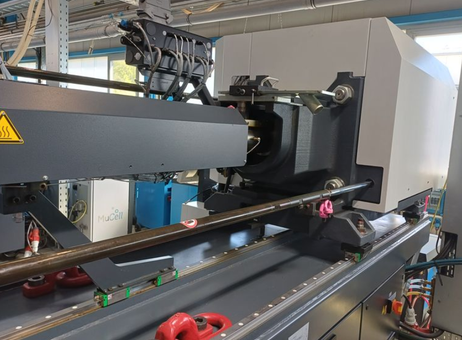

Injection unit and screw
Screw diameter: 60.0 mm. Injection pressure: 2426 bar. Max. injection volume: 891 cm3. Max. injection speed: 160.0 mm/s. Max. dosing stroke: 315.0 mm. Max. nozzle stroke: 520.0 mm. Nozzle immersion depth: 20.0 mm. Back pressure: programmable. Over-dosing stroke: programmable. Installed cylinder heater: 23.1 kW. Material hopper capacity: 110 L.
Additional equipment and accessories

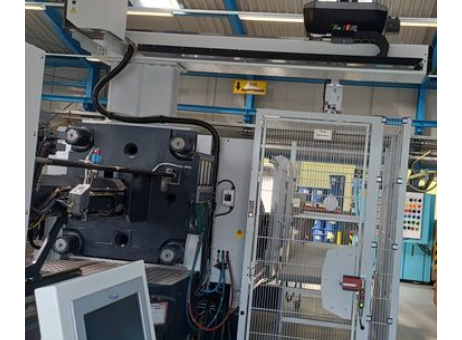

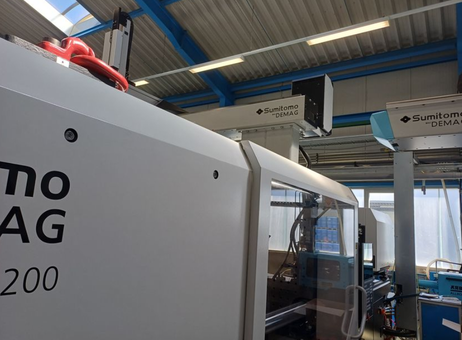

Robot (included): SEPRO ROBOTIQUE (France), Type: 5T35 2000/900/TE-1800, Year: 2023. Robot stroke: 2000 mm. Robot speed: 3.5 m/s. Horizontal demolding stroke (Y-axis): 900 mm. Vertical demolding stroke (X-axis): 1800 mm. Robot console on fixed mounting plate: yes. Gripper function: R1 (C-) axis pneumatic 0°–90°, including quick-change plate. Robot weight: 583 kg.

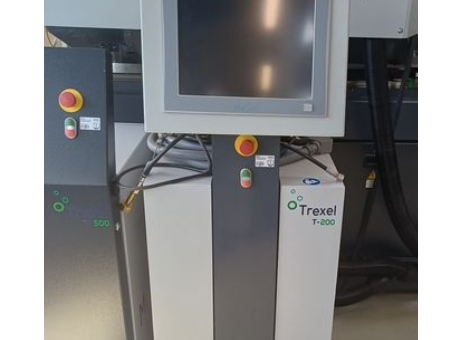

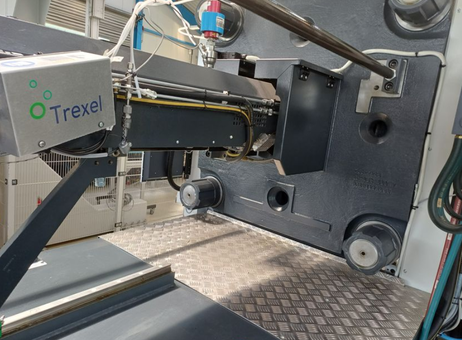

MuCell integration (special option included)

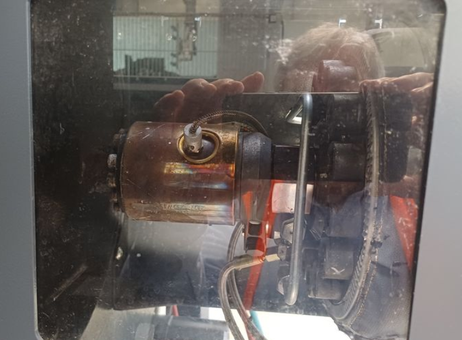

Components listed: plasticizing cylinder with pneumatic shut-off nozzle (without mixing element and without check valve); communication and emergency-stop interface; software with function diagram pages for MuCell control; customized nozzle space guard; position-controlled high-speed screw (similar to ZE388).

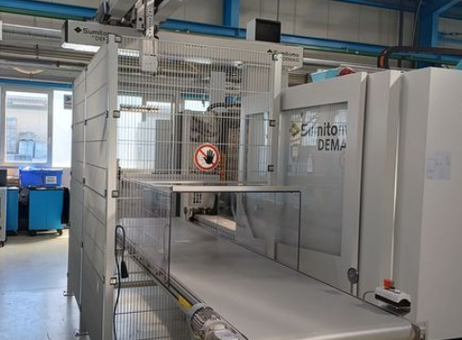

Conveyor belt
Belt width: 870 mm; usable width: 800 mm.
Weight
Machine weight: approx. 21 tons.
Notes
All specifications above are taken from the provided product information. No additional condition claims (e.g., tested, refurbished, warranty) are made beyond the stated "Like-new" condition and the listed operating hours.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: Sumitomo DEMAG
Model: IntElect2 350/850-2200 mit Robotersystem
Year of manufacture: 2023
Condition: Like-new
Screw diameter: 60.0 mm
Tie bar spacing (Horizontal): 830.0 mm
Tie bar spacing (Vertical): 830.0 mm
Platen width: 1144.0 mm
Opening of the press: 725.0 mm
Max clamping force: 3500 kN
Max holding force: 3850 kN
Opening stroke: 725.0 mm
Min tool installation height: 400.0 mm
Max tool installation height: 900.0 mm
Tool installation height range: 400-900 mm
Mounting plate size (H x W): 1168.0 x 1144.0 mm
Weight load on fixed tool mounting plate: 5100 kg
Weight load on movable tool mounting plate: 3800 kg
Max tool weight: 6600 kg
Ejector stroke: 250.0 mm
Enhanced ejector force: 100.0 kN
Ejector speed: 270.0 mm/s
Injection pressure: 2426 bar
Injection volume: 891 cm3
Injection speed: 160.0 mm/s
Dosing stroke: 315.0 mm
Nozzle stroke: 520.0 mm
Nozzle immersion depth: 20.0 mm
Back pressure: Programmable
Over-dosing stroke: Programmable
Installed cylinder heater: 23.1 kW
Material hopper capacity: 110 L
Weight of machine: approx. 21 tons
Operating hours: 5290 hrs
Accessories: Robot
Robot manufacturer: SEPRO ROBOTIQUE (France)
Robot type: 5T35 2000/900/TE-1800
Robot year: 2023
Robot stroke: 2000 mm
Robot speed: 3.5 m/s
Horizontal demolding stroke (Y-axis): 900 mm
Vertical demolding stroke (X-axis): 1800 mm
Robot console on fixed mounting plate: Yes
Gripper function: R1 (C-) axis pneumatic 0°-90°, including quick-change plate
Robot weight: 583 kg
MuCell Integration: Included in the special option
MuCell components: Plasticizing cylinder with pneumatic shut-off nozzle without mixing element and without check valve; Interface (communication, emergency stop interface); Software with function diagram pages for MuCell control; Customized nozzle space guard; Position-controlled high-speed screw (similar to ZE388)
Conveyor Belt width: 870 mm
Conveyor Belt usable width: 800 mm
