Contact us to receive an offer.
| Manufacturer | Hapa AG |
|---|---|
| Model | H-230-T-IC-LR-H |
| Year | 2010 |
| Location | Italy
|
The Hapa AG H-230-T-IC-LR-H is a hybrid UV flexo printing machine designed for high-quality and flexible printing applications. Manufactured in 2010, this model combines the cost efficiency of flexographic printing with the versatility of fully digital Drop On Demand (DOD) printing technology. It is suitable for printing on a wide range of roll-fed substrates including aluminum foil, paper, PVC, medical paper, and Tyvek®. The machine supports web widths up to 310 mm and a maximum printing width of 300 mm for flexo printing.
This system integrates UV flexo and UV DOD printing technologies, enabling it to print product-branding quality text and artwork economically with UV flexo, while also allowing for market-specific information, language variations, barcodes, matrix codes, serialized, and randomized data using the digital DOD print heads. The UV ink is solvent-free and cured instantly by an integrated UV dryer module, ensuring reliable and high-quality prints.
The machine features a user-friendly color touch-screen control panel (noted as CP-2) for simple operation and adjustments. It includes pin-fastened print mats which allow quick and precise changes without the need for adhesive tape. The flexographic inks are available in any PMS shade, and color changes can be made in under a minute. The maximum print resolution for flexo printing is up to 2400 dpi, while the DOD print head resolution is 360 dpi.
This model operates with a supply voltage of 380-480 V 3PNE and requires compressed air input pressure between 6 and 10 bar. It can reach a maximum printing speed of 21.6 meters per minute and a maximum cycle rate of 120 cycles per minute. The machine weighs approximately 400 kg.

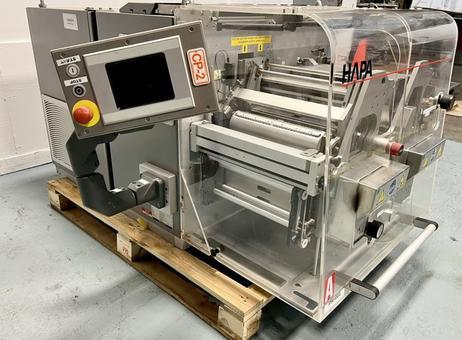

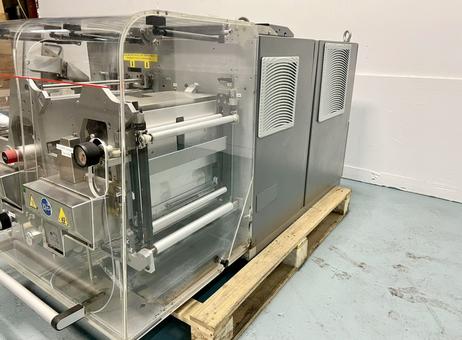

The unit is equipped with a transparent protective cover and visible rollers, and it appears clean and well-maintained with no visible damage. It includes an emergency stop button and is currently mounted on a wooden pallet for transport or storage. There is a visible warning label advising not to make adjustments without approval. This Hapa H-230-T-IC-LR-H is designed for easy integration into continuous or intermittent motion packaging machines, making it suitable for various industrial printing needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The Hapa 230 Hybrid is a modular UV printing system combining the economic features of flexo technology with fully-digital Drop On Demand printing flexibility. It prints on a variety of blank or pre-printed roll-fed substrates including aluminum foil, paper, PVC, medical paper and Tyvek®. It is easily integrated into continuous or intermittent motion packaging machines.
UV Flexo
prints text and artwork in product-branding quality
economical use of ink, large runs
UV DOD
prints market-specific info, language variations, bar, matrix and serialized, randomized data
Customize semi-finished products, use for promotional or individualized products
Key Features
• Reliable, proven, high quality solvent-free UV ink printing
• Simple, user-friendly operation and adjustments with color touch-screen control panel
• UV dryer module provides reliable and instant curing of the UV ink
UV Flexo
• Pin-fastened print mats take less than a minute to change
o no adhesive tape necessary
o precise repositioning job-to-job guaranteed
• UV flexographic inks available in any PMS shade
• Color changes take less than a minute
• Highest quality print (up to 2400 dpi)
UV DOD
• Drop on Demand technology
• Fully digital data transfer
Technical Data:
Web width min. – max. in mm 64 - 310
Advance length min. – max. in mm 30 - 180
Printing length min. – max. in mm 30 - 180
Printing width Flexo max. in mm 300
Printing width DOD max. in mm 288
Print head resolution in dpi 360
Number of cycles max. in cycles/min 120
Printing speed max. in m/min 21,6
Weight approx. in kg 400
Power supply
Supply voltage in V 380 - 480 3PNE
Compressed air
Input pressure in bar 6 – 10
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 384 |
| Last activity | Oct. 26, 2026 |
The Hapa 230 Hybrid is a modular UV printing system combining the economic features of flexo technology with fully-digital Drop On Demand printing flexibility. It prints on a variety of blank or pre-printed roll-fed substrates including aluminum foil, paper, PVC, medical paper and Tyvek®. It is easily integrated into continuous or intermittent motion packaging machines.
UV Flexo
prints text and artwork in product-branding quality
economical use of ink, large runs
UV DOD
prints market-specific info, language variations, bar, matrix and serialized, randomized data
Customize semi-finished products, use for promotional or individualized products
Key Features
• Reliable, proven, high quality solvent-free UV ink printing
• Simple, user-friendly operation and adjustments with color touch-screen control panel
• UV dryer module provides reliable and instant curing of the UV ink
UV Flexo
• Pin-fastened print mats take less than a minute to change
o no adhesive tape necessary
o precise repositioning job-to-job guaranteed
• UV flexographic inks available in any PMS shade
• Color changes take less than a minute
• Highest quality print (up to 2400 dpi)
UV DOD
• Drop on Demand technology
• Fully digital data transfer
Technical Data:
Web width min. – max. in mm 64 - 310
Advance length min. – max. in mm 30 - 180
Printing length min. – max. in mm 30 - 180
Printing width Flexo max. in mm 300
Printing width DOD max. in mm 288
Print head resolution in dpi 360
Number of cycles max. in cycles/min 120
Printing speed max. in m/min 21,6
Weight approx. in kg 400
Power supply
Supply voltage in V 380 - 480 3PNE
Compressed air
Input pressure in bar 6 – 10
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Hapa AG H-230-T-IC-LR-H is a hybrid UV flexo printing machine designed for high-quality and flexible printing applications. Manufactured in 2010, this model combines the cost efficiency of flexographic printing with the versatility of fully digital Drop On Demand (DOD) printing technology. It is suitable for printing on a wide range of roll-fed substrates including aluminum foil, paper, PVC, medical paper, and Tyvek®. The machine supports web widths up to 310 mm and a maximum printing width of 300 mm for flexo printing.
This system integrates UV flexo and UV DOD printing technologies, enabling it to print product-branding quality text and artwork economically with UV flexo, while also allowing for market-specific information, language variations, barcodes, matrix codes, serialized, and randomized data using the digital DOD print heads. The UV ink is solvent-free and cured instantly by an integrated UV dryer module, ensuring reliable and high-quality prints.
The machine features a user-friendly color touch-screen control panel (noted as CP-2) for simple operation and adjustments. It includes pin-fastened print mats which allow quick and precise changes without the need for adhesive tape. The flexographic inks are available in any PMS shade, and color changes can be made in under a minute. The maximum print resolution for flexo printing is up to 2400 dpi, while the DOD print head resolution is 360 dpi.
This model operates with a supply voltage of 380-480 V 3PNE and requires compressed air input pressure between 6 and 10 bar. It can reach a maximum printing speed of 21.6 meters per minute and a maximum cycle rate of 120 cycles per minute. The machine weighs approximately 400 kg.
The unit is equipped with a transparent protective cover and visible rollers, and it appears clean and well-maintained with no visible damage. It includes an emergency stop button and is currently mounted on a wooden pallet for transport or storage. There is a visible warning label advising not to make adjustments without approval. This Hapa H-230-T-IC-LR-H is designed for easy integration into continuous or intermittent motion packaging machines, making it suitable for various industrial printing needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
