Contact us to receive an offer.
| Manufacturer | REMAK |
|---|---|
| Model | Central Drum Printing Press |
| Year | 2006 |
| Location | Italy
|
The REMAK Central Drum Printing Press is a flexographic CI (central impression drum) reel-to-reel printing machine manufactured in 2006. This model is designed for high-quality flexo printing with a capacity of 6 colors, suitable for various printing applications.
The machine accommodates materials with a maximum web width of 1500 mm and offers a maximum printing width of 1350 mm. It supports both solvent-based and water-based inks, providing versatility for different printing needs.
Key features include a 2-position unwinder equipped with pneumatic shafts designed for 76 mm diameter cores. The rewinder system uses a single unwinding roller with pneumatic rollers for the same core size and includes a "ballerina" system for automatic tension adjustment, ensuring consistent material handling and print quality.
Tension control is integrated throughout the system, complemented by a Fife web guide positioned before the central drum to maintain accurate web alignment. Additionally, a Fife camera is incorporated for print quality monitoring.
The machine is equipped with a manual anilox sleeve system, 7 ink pumps, 12 sets of cliché sleeves, and 11 anilox rollers with various line volumes to accommodate different print requirements. Drying is achieved through electric resistors and hot air flow.

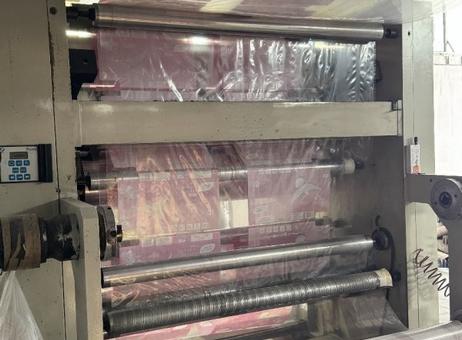

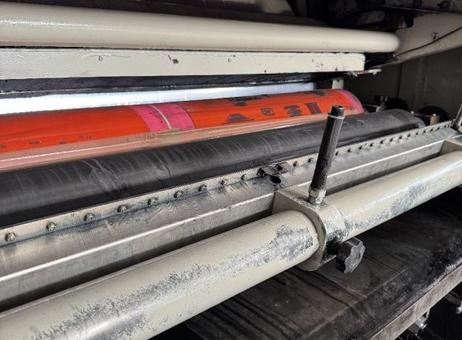

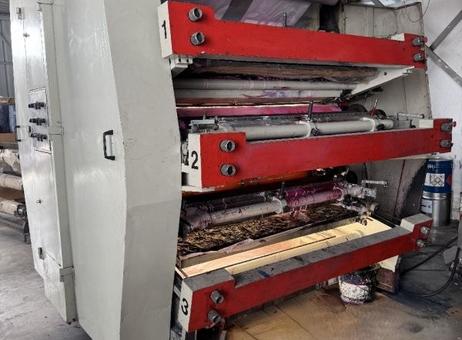

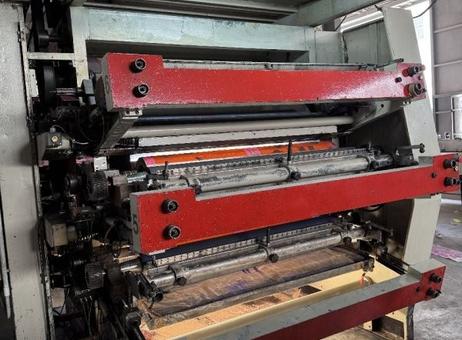

From the images, the machine shows signs of use with some wear and paint chipping on the red components and some dirt on metal parts, which is typical for industrial equipment in operational environments. It features a side panel with handles and a control panel including buttons, switches, emergency stop, and knobs for operational control. Various cables and wiring are present on the top and sides, indicating a complex electrical setup.

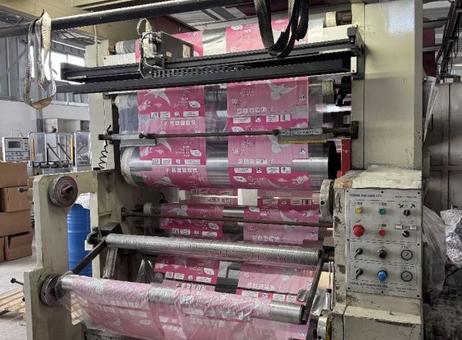

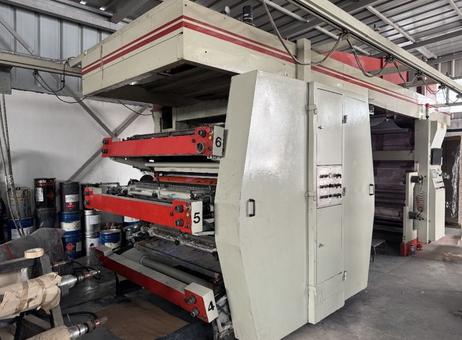

The machine is installed indoors on a concrete floor within a warehouse or factory setting, surrounded by other equipment and materials. Printed material in pink can be seen running through the rollers during operation, demonstrating its functional setup.
This REMAK Central Drum Printing Press offers a robust solution for flexographic printing needs, combining versatility with precise control systems suitable for industrial production environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Flexo CI (central impression drum) - reel to reel printing machines
REMAK central drum flexographic printing press from 2006, equipped with 6 colors.
This versatile machine handles materials up to 1500 mm wide, using either solvent-based or water-based inks.
It features a 2-position unwinder, manual anilox sleeve system, 7 ink pumps, 12 sets of cliché sleeves, and 11 anilox rollers. The system includes hot air and resistor drying, FIFE web guide and camera, and a separate electrical control panel.
Visible in operation.
Number Of Colors: 6
Maximum Material Width: 1500 mm
Maximum Print Area Width: 1350 mm
Ink Types: Compatible with solvent-based and water-based inks
Unwinder: 2-position with pneumatic shafts for 76 mm diameter core
Rewinder: Single unwinding roller with pneumatic rollers for 76 mm core, includes “ballerina” system for automatic tension adjustment
Tension Control: Yes
Fife Web Guide: Positioned before the central drum
Fife Camera: For print quality monitoring
Sleeve Cylinders: 35, 40, 42, 45, 46.5, 50, 53, 57, 61, 65, 68, 71 cm
Anilox Rollers Lines Volume: 80/18, 80/14 (x2), 120/9, 120/14, 140/9, 180/7.5, 220/7, 280/5.2, 280/7 (x2)
Drying System: lectric resistors and hot air flow
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Consultant / Intermediary |
| Active since | 2018 |
| Offers online | 98 |
| Last activity | Oct. 26, 2026 |
Flexo CI (central impression drum) - reel to reel printing machines
REMAK central drum flexographic printing press from 2006, equipped with 6 colors.
This versatile machine handles materials up to 1500 mm wide, using either solvent-based or water-based inks.
It features a 2-position unwinder, manual anilox sleeve system, 7 ink pumps, 12 sets of cliché sleeves, and 11 anilox rollers. The system includes hot air and resistor drying, FIFE web guide and camera, and a separate electrical control panel.
Visible in operation.
Number Of Colors: 6
Maximum Material Width: 1500 mm
Maximum Print Area Width: 1350 mm
Ink Types: Compatible with solvent-based and water-based inks
Unwinder: 2-position with pneumatic shafts for 76 mm diameter core
Rewinder: Single unwinding roller with pneumatic rollers for 76 mm core, includes “ballerina” system for automatic tension adjustment
Tension Control: Yes
Fife Web Guide: Positioned before the central drum
Fife Camera: For print quality monitoring
Sleeve Cylinders: 35, 40, 42, 45, 46.5, 50, 53, 57, 61, 65, 68, 71 cm
Anilox Rollers Lines Volume: 80/18, 80/14 (x2), 120/9, 120/14, 140/9, 180/7.5, 220/7, 280/5.2, 280/7 (x2)
Drying System: lectric resistors and hot air flow
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The REMAK Central Drum Printing Press is a flexographic CI (central impression drum) reel-to-reel printing machine manufactured in 2006. This model is designed for high-quality flexo printing with a capacity of 6 colors, suitable for various printing applications.
The machine accommodates materials with a maximum web width of 1500 mm and offers a maximum printing width of 1350 mm. It supports both solvent-based and water-based inks, providing versatility for different printing needs.
Key features include a 2-position unwinder equipped with pneumatic shafts designed for 76 mm diameter cores. The rewinder system uses a single unwinding roller with pneumatic rollers for the same core size and includes a "ballerina" system for automatic tension adjustment, ensuring consistent material handling and print quality.
Tension control is integrated throughout the system, complemented by a Fife web guide positioned before the central drum to maintain accurate web alignment. Additionally, a Fife camera is incorporated for print quality monitoring.
The machine is equipped with a manual anilox sleeve system, 7 ink pumps, 12 sets of cliché sleeves, and 11 anilox rollers with various line volumes to accommodate different print requirements. Drying is achieved through electric resistors and hot air flow.
From the images, the machine shows signs of use with some wear and paint chipping on the red components and some dirt on metal parts, which is typical for industrial equipment in operational environments. It features a side panel with handles and a control panel including buttons, switches, emergency stop, and knobs for operational control. Various cables and wiring are present on the top and sides, indicating a complex electrical setup.
The machine is installed indoors on a concrete floor within a warehouse or factory setting, surrounded by other equipment and materials. Printed material in pink can be seen running through the rollers during operation, demonstrating its functional setup.
This REMAK Central Drum Printing Press offers a robust solution for flexographic printing needs, combining versatility with precise control systems suitable for industrial production environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
