Contact us to receive an offer.
| Manufacturer | BIEFFEBI |
|---|---|
| Model | UNICA 343–165 |
| Year | 2017 |
| Location | Italy
|

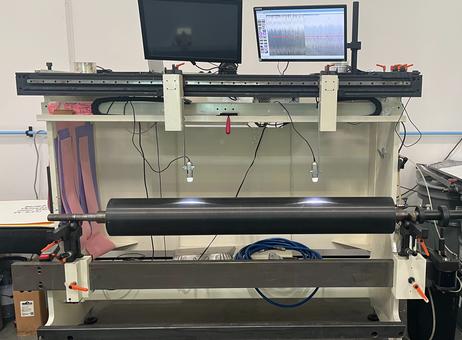

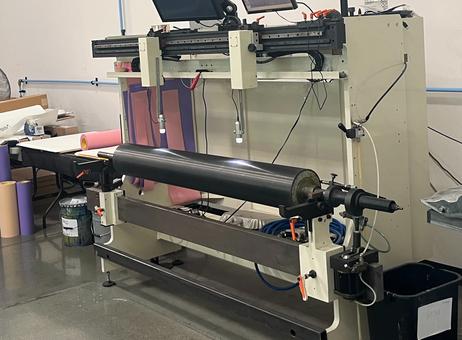

This listing is for a pre-owned BIEFFEBI plate mounting machine, model UNICA 343–165, manufactured in 2017. It is designed for flexo printing applications with a maximum printing width of 1650 mm, suitable for various plate mounting tasks. The machine has a robust frame featuring a large horizontally mounted cylindrical roller, which supports plate mounting operations efficiently.
The machine's plate cylinder accommodates a repeat range with two settings: Range 1 allows a minimum repeat of 240 mm up to a maximum of 1050 mm, while Range 2 supports a minimum repeat of 300 mm and a maximum repeat of 1250 mm. It can handle plates with a maximum weight of 600 kg. The overall dimensions of the machine are approximately 245 cm in width, 100 cm in depth, and 200 cm in height.
The power supply requirement is single-phase 220 V, and it operates with compressed air at a minimum pressure between 8 to 10 bar, with variable consumption. Noise levels during operation are below 70 dB(A), ensuring a relatively quiet working environment.

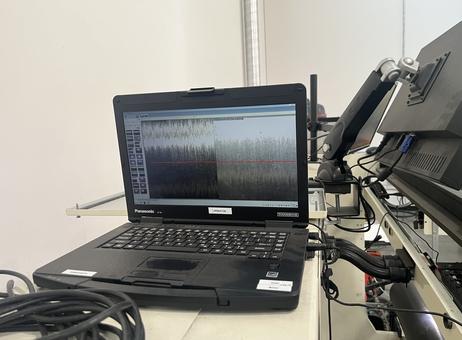

The machine is equipped with a 22-inch color LCD touchscreen monitor for control and operation. Two cameras are installed for alignment and monitoring; note that the original cameras are nonfunctional, but they have been replaced with spare cameras that are currently operational.
Additional features include multiple clamps and adjustment handles on the frame for precise plate positioning. Two monitors are mounted above the machine on adjustable arms, with one monitor displaying a graphical interface. There are also two hanging lights positioned above the roller to illuminate the working area. A blue coiled cable is stored beneath the machine frame for connectivity or power needs.
The machine and its surrounding area appear clean and well-maintained, indicating good upkeep. This BIEFFEBI UNICA 343–165 is a solid choice for businesses looking to enhance their flexo printing plate mounting capabilities with a reliable and feature-rich machine.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Plate mounting machines
Pre-owned plate mounter BIEFFEBI model UNICA 343–165 (width 1650 mm).
Note: the original cameras do not turn on and are currently nonfunctional. However, are now mounted spare camaras and are working properly.
Visible in operation.
Max Print Clearance: 1650 mm
Plate Cylinder: Range 1: Min. repeat 240 mm - Max. repeat cm 1050 mm | Range 2 Min. repeat 300 mm - Max. repeat 1250 mm | Maximum weight Kg 600
Dimensions Of The Machine Approx: Width x depth X Height cm 245x100 x 200
Power Supply: Single phase voltage with voltage of V 220
Compressed Air: minimum pressure bar 8÷10 | consumption Variable
Noise: <70 dB.A
Additional Information: 22" touch screen LCD color monitor | 2 cameras (replaced)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Consultant / Intermediary |
| Active since | 2018 |
| Offers online | 98 |
| Last activity | Oct. 26, 2026 |
