Contact us to receive an offer.
| Manufacturer | Gildemeister |
|---|---|
| Model | MF Sprint 65 |
| Year | 1999 |
| Location | Poland
|
This listing is for a Gildemeister MF Sprint 65 CNC lathe, manufactured in 1999. The machine features a Siemens Sinumerik 840C control system, known for its precision and reliability in CNC machining. It is equipped with two turret heads, each fitted with 8 VDI 30 tool sockets, allowing for versatile tooling options.
The working space accommodates a maximum bar diameter of 65 mm. The main spindle includes a HAINBUCH handle sized for 65 mm bars, with slide turning lengths of up to 120 mm on slide 1 and 95 mm on slide 2. The main drive offers a power range of 28/21 kW, a speed range from 25 to 5000 rpm, and maximum torque values of 320/240 Nm. The C-axis operates at a speed of 120 rpm with a torque of 180 Nm.
A counter-spindle is included, featuring a three-jaw chuck with a diameter of 110 mm and a spindle head diameter of 120h5 mm. It provides a drilling depth of 70 mm and a maximum power of 7.6/4.6 kW with torque values of 24/14.7 Nm.
The machine's total dimensions are 7600 mm in length (including the feeder), 2500 mm in width, and 1800 mm in height. It weighs approximately 5000 kg, with the integrated bar feeder adding an additional 900 kg. The feeder model is a Gildemeister SIMAG 65.1-3200, capable of handling rods up to 320 cm in length. The feeder is equipped with a set of channels and pushers for bar diameters of 32, 42, 47, 52, 62, and 67 mm.
The CNC lathe is housed in a pink and white casing and includes a control panel with display and keypad mounted on the right side. The control panel is powered on and displays the interface, featuring an emergency stop button and various function keys. The machine appears clean and well-maintained with no visible damage. Adjacent to the machine, there is a blue cart containing metal cylindrical parts, and various tooling accessories, including clamps and discs, are available.

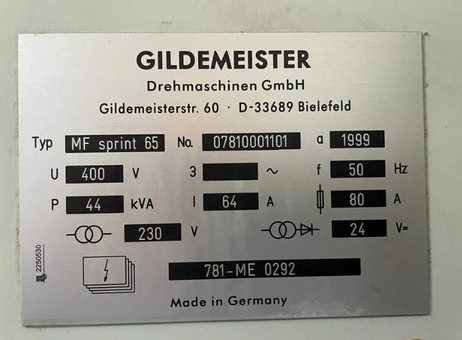

The electrical specifications include 400 V, 3-phase, 50 Hz power supply with ratings of 44 kVA, 64 A, 80 A, 230 V, and 24 V DC. The machine also features a coolant or lubrication system with pumps and tanks located at the rear or side. Electrical cabinets and wiring connections are present on the machine's side, with high voltage warning signs clearly visible. Cables and hoses appear well connected and in good condition.
This Gildemeister MF Sprint 65 CNC lathe is a comprehensive machining solution suitable for precision turning tasks with its robust build and versatile tooling capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Year of production: 1999
Control: SIEMENS SINUMERIC 840C
Number of turret heads: 2
Working space:
-Max. Bar: Φ65mm
Main spindle:
-HAINBUCH handle Φ65 mm
-turning length of slide 1: max 120 mm
-turning length of slide 2: max 95 mm
Main drive:
-maximum drive power: 28/21kW
-speed range: 25-5000 r.p.m.
-max. torque: 320/240 Nm
-C axis speed: 120 r.p.m
-C axis torque: 180 Nm
Top revolver + bottom revolver
8 VDI 30 sockets
Counter-spindle:
-drilling depth: 70 mm
-three-jaw chuck: Φ 110 mm
-spindle head: Φ 120h5 mm
-max power: 7,6/4,6 kW
-max torque: 24/14,7 Nm
Total length (including feeder): 7600 mm
Total width: 2500 mm
Total height: 1800 mm
Weight of machine including control cabinet: 5000 kg
Weight of integrated bar feeder: 900 kg
Feeder: Gildemeister SIMAG 65.1-3200

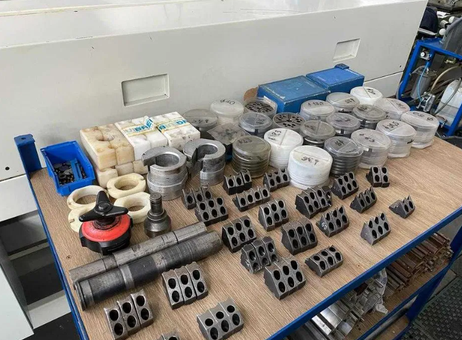

Feeder equipment set of channels and pushers: Φ32, Φ42, Φ 47, Φ52, Φ62, Φ67
Max. rod length: 320 cm
DTR
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What year was this Gildemeister MF Sprint 65 manufactured?
This Gildemeister MF Sprint 65 CNC lathe was manufactured in 1999.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
