| Manufacturer | Takang |
|---|---|
| Model | FB100N |
| Year | 2014 |
| Location | Romania
|
| Category | Lathes - CNC lathes |
| Ø above the bed | 2500 mm |
| Ø above transversing slide | 2100 mm |
| Length between centers | 7600 mm |
| Type of CNC | Fanuc 0i |
| Max workpiece weight | 20000 kg |
| Spindle taper | ISO50 |
| Number of turrets | 1 |
| Number of tools on turret | 12 |
| Turning speed | 150 rpm |
| Spindle motor power | 60 kW |
| Tailstock | no |
| Bar feeder | no |
| worked hours | 2000 hours |
| hours under power | |
| state | excellent |
| At local norms | yes |
| status | under power |
| Last availability date | 10/09/2026 |
| Product id | P230420070 |
| Language |
Takang FB100N
Soustruh cnc Takang FB100N
Takang FB100N
Takang FB100N Drehmaschine CNC
Takang FB100N
CNC Horizontal Lathe with Milling FB100Nx7600
Torno cnc Takang FB100N
Tour cnc Takang FB100N
Takang FB100N
Takang FB100N
Tornio cnc Takang FB100N
Takang FB100N
Takang FB100N
Tokarka CNC Takang FB100N
Takang FB100N
Takang FB100N
Takang FB100N Токарный станок с ЧПУ
Takang FB100N
Takang FB100N
Cnc torna Takang FB100N
|
This Takang FB100N CNC lathe, manufactured in 2014, is designed for heavy-duty machining with substantial capacity. It features a maximum swing diameter above the guide ways of 2500 mm and a maximum swing diameter above the saddle of 2100 mm, allowing it to handle large workpieces. The distance between centers is 7600 mm, accommodating long components, and it supports a maximum workpiece weight of up to 20,000 kg. The lathe is equipped with a single turret that holds 12 tools, suitable for various milling operations. It operates at a turning speed of up to 150 rpm, powered by a spindle motor rated at 60 kW.
The machine includes a faceplate with a diameter of 2200 mm, enhancing its versatility for different machining tasks. The C-axis capability allows continuous 360° rotation, supported by a milling spindle motor with power options of 11 or 15 kW. Standard accessories include a FANUC 0i CNC control system and Heidenhain linear scales, which contribute to precise machining operations. Additional features are a partial enclosure with a chip conveyor, centralized hydraulic and lubrication units, and electrical devices configured for 380V, 3-phase, 50 Hz power supply.

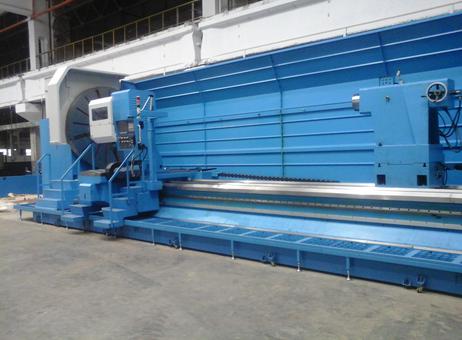

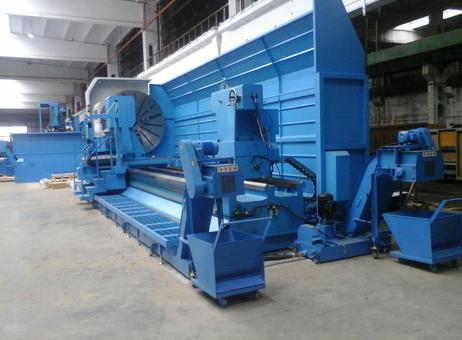

Visually, the machine appears well-maintained and clean, with no visible signs of damage or rust. It has a large blue body with a long bed and guide rails extending horizontally. The chuck is positioned on the left side, accompanied by a control panel and operator seat, facilitating ease of use and operation. Protective shielding is installed along the back of the machine bed, enhancing operator safety and cleanliness during machining processes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Machining capacity
-Maximum swing diameter above the guide ways: 2500 mm (98.42 in);
-Maximum swing diameter above the saddle: 2100 mm (82.67 in);
-Distance between centers: 7600 mm (299.21 in);
-Maximum weight between centers: 20 tons.
Faceplate
-Faceplate diameter: Ø2200 mm (86.61 in);
-Turning speed range: 150 rpm ;
-Main motor power: 60/75 kW ( 80/100 HP);
C axis
-C axis: continue 360°;
-Milling spindle motor power: 11/15 kW (14/20 HP);
Standard Accessories:
-FANUC 0i CNC;
-Heidenhain linear scales;
-Faceplate, 1 piece;
-Tool turret with 12 posts for milling tools, 1 piece;
-Partial enclosure with chip conveyor;
-Centralized hydraulic and lubrication unit;
-Electrical devices: 380V, 3 phases, 50 Hz.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the model of this CNC horizontal lathe with milling?
This FB100Nx7600 CNC horizontal lathe with milling.
What is this lathe?
This lathe.
Are photos attached?
This lathe has attached photos.
Are videos attached?
This lathe has attached videos.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
