Contact us to receive an offer.
| Manufacturer | STAR |
|---|---|
| Model | SA-16 R |
| Year | 2002 |
| Location | Switzerland
|
| Category | Lathes - CNC lathes |
| Turning Ø | 16 mm |
| Type of CNC | |
| Spindle taper | |
| Number of tools on turret | 4 |
| Spindle motor power | 5 kW |
| Tailstock | no |
| Bar feeder | no |
| Weight | 1700 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 02/05/2026 |
| Product id | P230828033 |
| Language |
STAR SA-16 R
Soustruh cnc STAR SA-16 R
STAR SA-16 R
Gebrauchte STAR SA-16 R Drehmaschine CNC
STAR SA-16 R
Used STAR SA-16 R cnc lathe
Torno cnc STAR SA-16 R
Tour cnc STAR SA-16 R
STAR SA-16 R
STAR SA-16 R
Tornio cnc STAR SA-16 R
STAR SA-16 R
STAR SA-16 R
Tokarka CNC STAR SA-16 R
STAR SA-16 R
STAR SA-16 R
STAR SA-16 R Токарный станок с ЧПУ
STAR SA-16 R
STAR SA-16 R
Cnc torna STAR SA-16 R
|
This listing features a STAR SA-16 R CNC lathe, manufactured in 2002, designed for precision turning operations with a maximum turning diameter of 16 mm. The machine is equipped with a spindle motor delivering 5.0 kW of power, supporting a range of spindle speeds up to 12,000 rpm with progressive adjustment. It includes a turret with four tool positions, suitable for various turning and drilling tasks.
The lathe operates with a total of five axes and two spindles, facilitating complex machining processes. The main spindle and counter spindle have respective power ratings of 2.2/3.7 kW and 0.5 kW. The machine supports drilling diameters up to 7 mm and threading capabilities up to metric M6 on the main spindle and M3 on the counter spindle. Fast feed rates reach up to 18 m/min, with cutting speeds up to 10,000 mm/min.
The machine is connected to a 3-phase 400 Volt 50 Hz power supply and requires compressed air at 5 bar. The total installed power is approximately 6 kVA. The lathe weighs around 1700 kg and has a footprint measuring approximately 2090 mm in length, 770 mm in width, and 1660 mm in height.

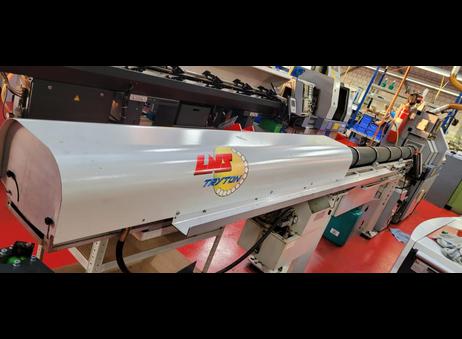

Included accessories enhance operational efficiency: a bar loader manufactured by LNS, Tryton type, is attached, featuring a curved protective cover over the bar stock. A parts collector and conveyor belt for parts handling are also part of the setup. The machine is fitted with an irrigation system holding 80 liters and a Siemens fire safety system.

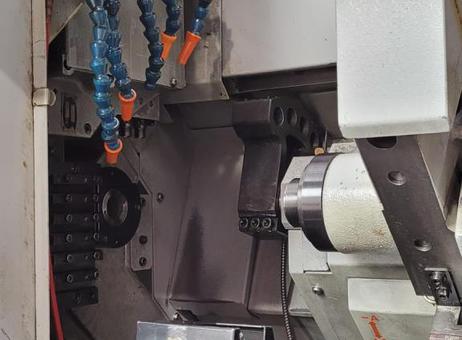

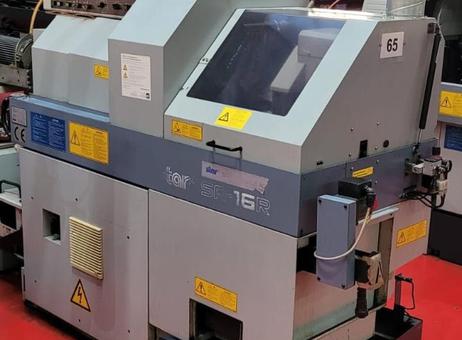

The lathe features a control panel positioned on the left side and a transparent window for viewing the working area, contributing to operational safety and monitoring. Multiple yellow safety warning labels are present. The machine and its accessories appear clean and well-maintained, with no visible rust or damage. The interior shows coolant nozzles with orange tips, metal fittings, and a tool turret inside the enclosure. Overall, this STAR SA-16 R CNC lathe offers a comprehensive package suitable for precise and efficient turning operations in an industrial workshop environment.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Technical data
Total number of axes 5
Number of pins 2
Turning diameter max. 16 mm
Drilling diameter max. 7 mm
Max. thread diameter 6 M (metric)
Spindle speeds:
Dimmer (progressive adjustment)
500 t/min
at 12000 t/min
Power of pin 2.2 kW
Counter pin:
Number of rounds:
500 t/min
at 8000 t/min
Tarraudage diameter 3 M (metric)
Tool holders:
Turning tools 6 pce.
Drilling tools 2 pce.
Cross-cutting tools 3 pce
Number of driven tool lathes 7500 t/min
Counter-operation:
Number of tools 4
Fast feed: 18 m/min
C-axis (pin, resolution) 15°
Cutting speed 10000 mm/min
Connection 50 Hz 3x 400 Volt
Spindle motor 2.2/ 3.7 kW
Counter-spindle power 0.5 kW
Connection to compressed air 5 bar
Total installed power 6 kVA
Machine weight approx. 1700 kg
Machine footprint:
Length 2090 mm
Width 770 mm
Height 1660 mm
Miscellaneous accessories:
Bar loader
LNS Manufacturer
Tryton type
Parts collector
Conveyor belt parts
Lamp
Irrigation system 80 l
SIEMENS fire system
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
