Contact us to receive an offer.
| Manufacturer | Spinner |
|---|---|
| Model | TC800-110mc |
| Year | 2009 |
| Location | Poland
|

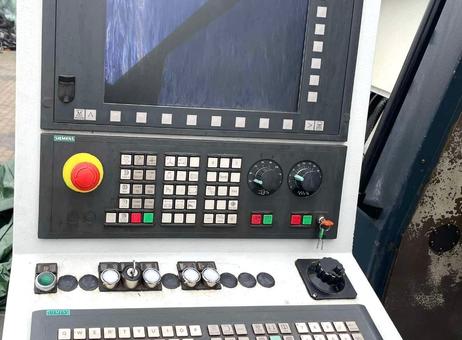

This listing is for a Spinner TC800-110mc CNC lathe, manufactured in 2009. The machine features a Siemens 840sl control system with Shopturn, and the control panel includes a screen labeled 'SINUMERIK' along with a keyboard and multiple buttons and knobs. A prominently positioned red emergency stop button is present on the control panel for safety.
The lathe offers a maximum turning diameter of 500 mm and a turning length of up to 900 mm, with a spindle bore of 110 mm. It operates at a maximum spindle speed of 2600 rpm and is powered by a spindle motor rated at 22 kW. The tool turret accommodates 12 tool positions, compatible with VDI50 tooling.

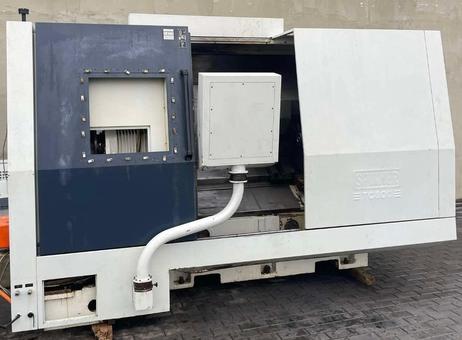

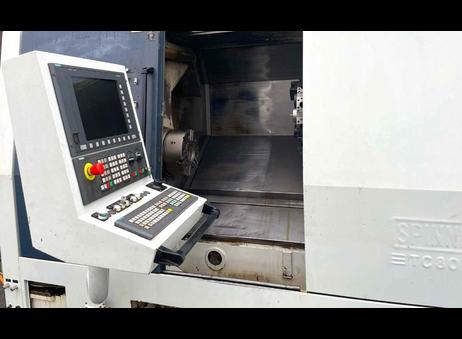

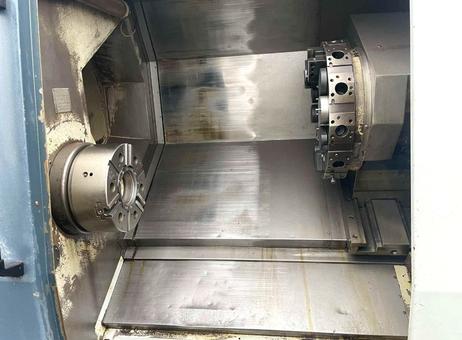

The machine body is primarily white with a dark blue panel on the left side, and it is currently positioned on wooden blocks on a paved surface. The front sliding doors are partially open, revealing the working area, which includes the lathe bed, chuck, and tool turret. The chuck size is 315 mm. The interior surfaces of the working area show signs of use, including some discoloration and residue, but the lathe bed and walls appear intact with no visible major damage. The interior is illuminated for clear visibility during operation.
A white pipe connected to a box is mounted on the front of the machine. The control panel shows some dirt and wear marks but appears functional. No windows are currently installed on the machine.
This Spinner TC800-110mc lathe is suitable for precise turning operations requiring moderate size capacity and a reliable Siemens control system.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC Lathe Spinner TC800-110mc
Year: 2009
Control: Siemens 840sl with Shopturn
Maximum turning diameter 500mm
Maximum turning length 900mm
Spindle bore 110mm
Maximum rotational speed 2600 rpm
Chuck size 315mm
Spindle power (100%/40%) 22/33kW
Maximum torque 1 (100%/40%) 175/263Nm
Tailstock MK4
Tool turret Baruffaldi
Number of tool slots 12 positions (VDI50)
The machine is in good working order, no windows - they will be installed.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the model of this Spinner CNC lathe?
This Spinner TC800-110mc CNC lathe.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
