Contact us to receive an offer.
| Manufacturer | SIP |
|---|---|
| Model | 600 |
| Year | |
| Location | Switzerland
|
Manufacturer: SIP
Model: 600
Type: Jig Boring Machine
Control System: FANUC 21i-M CNC
Description:

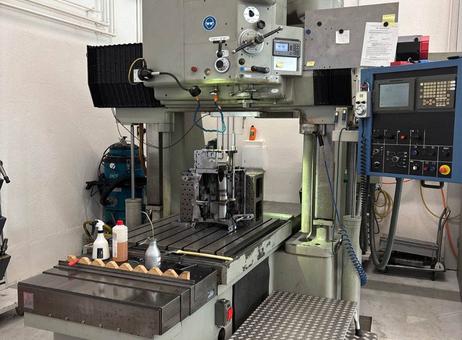

The SIP 600 is a precision jig boring machine designed for highly accurate machining tasks, suitable for industries such as automotive, aerospace, watchmaking, machine tools, and medical device manufacturing. It features a robust build with a total weight of approximately 10,000 kg and overall dimensions of 2930 mm in length, 3480 mm in width, and 3235 mm in height.
Machine Specifications:
- Table dimensions measure 1100 mm by 842 mm, supporting a maximum workpiece weight of 1500 kg.
- Travel ranges include 1000 mm along the X-axis, 700 mm along the Y-axis, and 300 mm in the Z-axis.
- The spindle has a maximum speed of 2000 rpm, powered by a 5.9 kW motor.
- The spindle taper is MT4, with a spindle diameter of 135 mm and a column span of 1100 mm.
- Feed rates range from 1 to 6000 mm/min, with drill spindle slide settings between 0.04 and 0.35 mm/t.
- Electrical requirements include 3-phase 380V at 50Hz, with a total power consumption of 12 kVA.
Control and Operation:

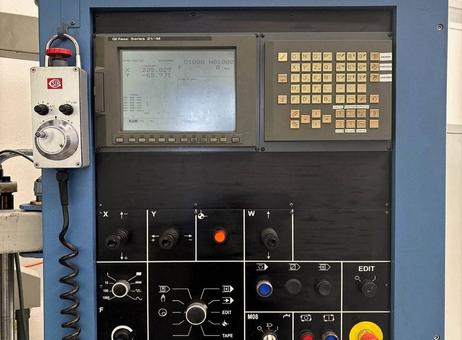

The machine is equipped with a FANUC 21i-M CNC control panel featuring a screen and manual dials, providing precise coordinate readouts and operational control. A handheld remote control unit branded SIP is also included for ease of use. Control buttons and switches are intact and clean, indicating careful maintenance.
Condition and Accessories:
The machine appears clean and well-maintained with no visible signs of rust or damage. A set of toolholders is included. Additionally, a step platform is positioned in front of the machine to facilitate operator access.
Technical Condition:
Offered as-is, where-is.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: SIP
Model: 600
Type: Jig Boring Machine
Control: FANUC 21i-M
Description:
The SIP 600 is a high-precision jig boring machine known for its accuracy and reliability. It is designed to meet tight tolerances in various industries, including automotive, watchmaking, machine tools, aerospace, and medical applications.
Specifications:
Table Dimensions: 1100 mm x 842 mm
Table Load Capacity: 1500 kg
Longitudinal Travel (X-axis): 1000 mm
Transversal Travel (Y-axis): 700 mm
Vertical Travel (Z-axis): 300 mm
Spindle Diameter: Ø135 mm
Column Span: 1100 mm
Distance from Spindle to Table: 1000 mm
Taper in Spindle: MT4
Spindle Speeds: 40 - 2000 t/min
Feeds: 1 - 6000 mm/min
Drill Spindle Slide: 0.04 - 0.35 mm/t
Voltage: 3x 380V, 50Hz
Spindle Motor Power: 8 CV (5.9 kW)
Total Power Required: 12 kVA
Weight: Approximately 10000 kg
Overall Dimensions: 2930 mm (Length) x 3480 mm (Width) x 3235 mm (Height)
Accessories:
Set of toolholders
Technical Condition:
As-is, where-is
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
