Contact us to receive an offer.
| Manufacturer | SIP |
|---|---|
| Model | MP 53 |
| Year | 1986 |
| Location | Germany
|

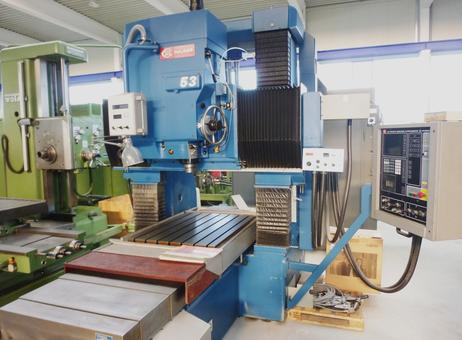

This listing is for a SIP MP 53 vertical CNC precision coordinate boring and milling machine, manufactured in 1986. The machine features a robust blue frame with a large horizontal table measuring approximately 1020 x 860 mm, equipped with T-slots for secure mounting of workpieces. It supports a maximum workpiece weight of 800 kg, making it suitable for heavy-duty machining tasks.
The machine offers substantial travel capacities with a longitudinal table travel (X-axis) of 900 mm, a cross boring head travel (Y-axis) of 600 mm, and a boring spindle stroke (Z-axis) of 200 mm. Additionally, the vertical travel of the cross beam is 635 mm, and the vertical distance between the table and boring spindle ranges from 15 to 850 mm. The distance between the columns is 950 mm.
The spindle has a diameter of 110 mm and uses an ISO 40 taper, with 18 spindle speeds ranging from 10 to 2,500 rpm. The spindle motor power is rated at 6.2 kW. The machine weighs approximately 9,000 kg.

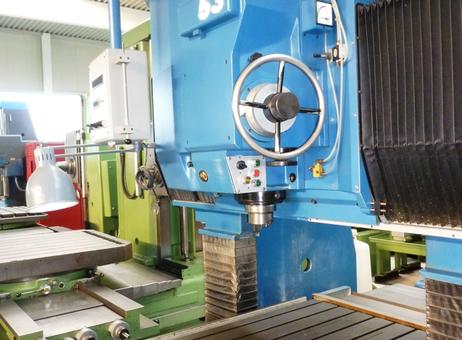

The machine is equipped with a control panel mounted on the right side, featuring buttons and a display screen for CNC operation. The spindle head includes a handwheel for manual adjustments and is protected by accordion covers on the vertical guideways to prevent debris ingress.

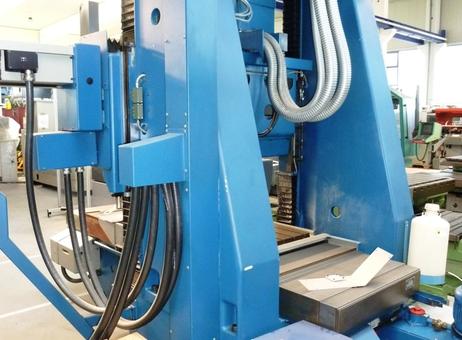

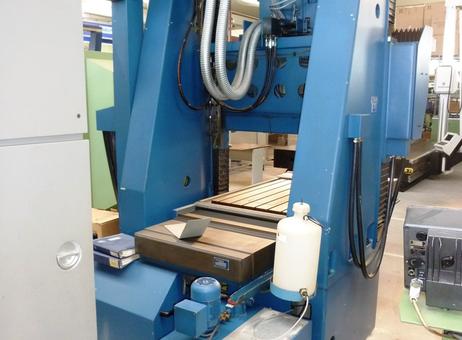

A white cylindrical tank mounted on a blue wheeled cart is positioned next to the machine, likely serving as a coolant or lubrication system, accompanied by a metal tray for fluid collection or circulation. Electrical cables and flexible conduit tubes are connected to the machine, indicating integrated electrical and hydraulic systems.
The machine's surface shows minor paint wear and scratches consistent with regular use but remains structurally intact and well-maintained. Documentation and manuals are available, stored in blue binders labeled 'BEDIENING SIP' with a 'Fokker' logo, placed on the machine base and table.
Overall, this SIP MP 53 CNC boring machine offers substantial machining capacity with comprehensive travel ranges and spindle specifications, complemented by accessories that support operational functionality and maintenance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Vertical CNC Precision Coordinate Boring and Milling Machine
Model MP 53
Year 1986, but machine is
still in very good condition as it was
regularly reconditioned and well cared for
Table size, approx. 1,020 x 860 mm
Max. weight of workpiece 800 kg
Table travel, longitudinal, max. (X) 900 mm
Boring head travel, cross, max. (Y) 600 mm
Boring spindle stroke (Z) 200 mm
Vertical travel of cross beam (W) 635 mm
Vertical distance between table and boring spindle 15 - 850 mm
Distance between columns 950 mm
Spindle Ø 110 mm
Spindle taper internal/external ISO
40
18 spindle speeds 10
– 2,500 rpm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 165 |
| Last activity | Oct. 26, 2026 |
Vertical CNC Precision Coordinate Boring and Milling Machine
Model MP 53
Year 1986, but machine is
still in very good condition as it was
regularly reconditioned and well cared for
Table size, approx. 1,020 x 860 mm
Max. weight of workpiece 800 kg
Table travel, longitudinal, max. (X) 900 mm
Boring head travel, cross, max. (Y) 600 mm
Boring spindle stroke (Z) 200 mm
Vertical travel of cross beam (W) 635 mm
Vertical distance between table and boring spindle 15 - 850 mm
Distance between columns 950 mm
Spindle Ø 110 mm
Spindle taper internal/external ISO
40
18 spindle speeds 10
– 2,500 rpm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing is for a SIP MP 53 vertical CNC precision coordinate boring and milling machine, manufactured in 1986. The machine features a robust blue frame with a large horizontal table measuring approximately 1020 x 860 mm, equipped with T-slots for secure mounting of workpieces. It supports a maximum workpiece weight of 800 kg, making it suitable for heavy-duty machining tasks.
The machine offers substantial travel capacities with a longitudinal table travel (X-axis) of 900 mm, a cross boring head travel (Y-axis) of 600 mm, and a boring spindle stroke (Z-axis) of 200 mm. Additionally, the vertical travel of the cross beam is 635 mm, and the vertical distance between the table and boring spindle ranges from 15 to 850 mm. The distance between the columns is 950 mm.
The spindle has a diameter of 110 mm and uses an ISO 40 taper, with 18 spindle speeds ranging from 10 to 2,500 rpm. The spindle motor power is rated at 6.2 kW. The machine weighs approximately 9,000 kg.
The machine is equipped with a control panel mounted on the right side, featuring buttons and a display screen for CNC operation. The spindle head includes a handwheel for manual adjustments and is protected by accordion covers on the vertical guideways to prevent debris ingress.
A white cylindrical tank mounted on a blue wheeled cart is positioned next to the machine, likely serving as a coolant or lubrication system, accompanied by a metal tray for fluid collection or circulation. Electrical cables and flexible conduit tubes are connected to the machine, indicating integrated electrical and hydraulic systems.
The machine's surface shows minor paint wear and scratches consistent with regular use but remains structurally intact and well-maintained. Documentation and manuals are available, stored in blue binders labeled 'BEDIENING SIP' with a 'Fokker' logo, placed on the machine base and table.
Overall, this SIP MP 53 CNC boring machine offers substantial machining capacity with comprehensive travel ranges and spindle specifications, complemented by accessories that support operational functionality and maintenance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
