Contact us to receive an offer.
| Manufacturer | BRAGONZI |
|---|---|
| Model | CREUSAMATIC 4" |
| Year | |
| Location | Italy
|
This BRAGONZI CREUSAMATIC 4" CNC boring machine is equipped with a Siemens 840D control system featuring ShopTurn software, providing advanced CNC capabilities suitable for precision machining tasks. The machine offers a working area with a maximum vaulting diameter on the bench of 505 mm, and a vaulting diameter on the X slide of 375 mm, supporting a self-centering diameter of 210 mm. It accommodates a bar capacity of 51 mm, with transverse (X) and longitudinal (Z) strokes measuring 213 mm and 450 mm respectively.
The spindle system includes a spindle nose with a flat flange of 140 h5 mm, a front bearing inner diameter of 100 mm, and a spindle bore of 51 mm. The spindle motor delivers 16 kW at 40% duty cycle and 12 kW at 100% duty cycle, with torque values of 153 Nm and 115 Nm respectively. The spindle speed ranges from 25 to 6000 rpm, allowing for versatile machining operations.
The machine features a 12-station tool turret, all motorized, with tool shank diameters conforming to DIN 69880 standards (30 mm). The turret motor has a power rating of 9 kW at 40% duty cycle, with a maximum torque of 20 Nm and a maximum speed of 4500 min-1. The automatic tailstock has a travel of 450 mm, uses a CM 4 attachment, and provides a maximum thrust of 400 daN.
Additional equipment includes a chip conveyor and predisposition for a fume extractor. The machine is equipped with two axial motorized spindles and four radial motorized spindles, along with various fixed tool holders.

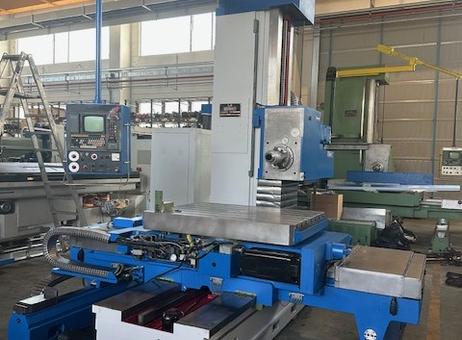

Visually, the machine is presented in blue and white and includes a large horizontal worktable with T-slots for securing workpieces. The vertical spindle housing is mounted on a column behind the worktable. The control panel, located on the left side, features a screen and multiple buttons for operation. The machine appears clean and well-maintained, with no visible damage or rust, indicating good overall condition.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC: Siemens 840D with ShopTurn
Working area
Max vaulting diameter on bench: 505 mm
Vaulting diameter on X slide: 375 mm
Self-centering diameter: 210 mm
Bar capacity: 51 mm
Transverse stroke (X): 213 mm
Longitudinal stroke (Z): 450 mm
Feeds
Rapid X/Z axis: 24/30 m/min
Main spindle
Spindle nose (flat flange): 140 h5 mm
Front bearing inner diameter: 100 mm
Spindle bore: 51 mm
Spindle motor power (40/100% ED): 16/12 kW
Torque (40/100% ED): 153/115 Nm
Spindle speed: 25 - 6000 rpm
Tool turret
Number of tool stations: 12
Of which motorized: 12
Shank diameter (to DIN 69880 standards): 30 mm
Motor power (40% ED): 9 kW
Max. torque (40% ED): 20 Nm
Max. speed: 4500 min-1
Tailstock
Tailstock travel, automatic: 450 mm
Tailstock attachment: CM 4
Tailstock thrust, max: 400 daN
Year of construction: 2005
Machine equipment:
- Chip conveyor
- Predisposition for fume extractor
- No. 02 axial motorized spindles
- No. 04 radial motorized spindles
- Various fixed tool holders
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
