Showing 1 - 20 out of 22
| Axis X | 700 mm |
|---|---|
| Axis Z | 700 mm |
| CNC | HEIDENHAIN iTNC 530 |
| Table width | 500 mm |
| Number of tool pockets | 180 |
| Max. spindle speed | 18000 rpm |
| Axis Y | 700 mm |
|---|---|
| Rotary table (4th axis) | no |
| Table length | 500 mm |
| Max. part weight | 600 kg |
| Spindle taper | SK 40 |
| Spindle motor power | 34 kW |
Germany
2000
| Turning length | 3000 mm |
|---|---|
| Ø above the bed | 1600 mm |
| Type of CNC | Heidenhain CNC Pilot 3190 Turnplus |
| Z-axis | 3020 mm |
| Spindle bore | 112 mm |
| Turning speed | 800 rpm |
| Tailstock | no |
| Turning Ø | 1600 mm |
|---|---|
| Ø above transversing slide | 1400 mm |
| X-axis | 850 mm |
| Spindle taper | VDI 60 |
| Number of tools on turret | 8 |
| Spindle motor power | 9 kW |
| Bar feeder | no |
Germany
2002
| CNC | No |
|---|---|
| Max piece weight | 2380 kg |
| Wheel width | 100 mm |
| Spindle Power | 18 kW |
| CNC type | conventional |
|---|---|
| Wheel diameter | 500 mm |
| Wheel bore | 203 mm |
Germany
1995
| X Axis | 600 mm |
|---|---|
| Z Axis | 450 mm |
| Max. spindle speed | 5000 rpm |
| Table width | 530 mm |
| Spindle taper | |
| Overhauled | no |
| Y Axis | 500 mm |
|---|---|
| CNC type | Heidenhain TNC 407 |
| Table length | 900 mm |
| Max load on table | 400 kg |
| Spindle motor power | 6 kW |
Germany
2011
| Axis X | 850 mm |
|---|---|
| Axis Z | 610 mm |
| Type | Continuous |
| Table length | 400 mm |
| Spindle taper | SK 40 |
| Spindle motor power | 28.5 kW |
| Axis Y | 500 mm |
|---|---|
| Type | Vertical |
| CNC | HEIDENHAIN iTNC 530 |
| Number of tool pockets | 40 |
| Max. spindle speed | 12000 rpm |
| Axis X | 1270 mm |
|---|---|
| Axis Z | 610 mm |
| Type of CNC | ULTIMAX 4 |
| Table width | 660 mm |
| Number of tool pockets | 24 |
| Max. spindle speed | 10000 rpm |
| Axis Y | 660 mm |
|---|---|
| Rotary table (4th axis) | no |
| Table length | 1500 mm |
| Max. part weight | 1300 kg |
| Spindle taper | SK 40 |
| Spindle motor power | 15 kW |
Germany
2008
| Working pressure | 4000 bar |
|---|---|
| Type of CNC | Easycut |
| CNC | Yes |
|---|---|
| Power | 37 W |
| Plate diameter | mm |
|---|---|
| CNC type | 840 D SIEMENS |
| Rotation speed | 5000 rpm |
| Overhauled | no |
| Working height | mm |
|---|---|
| Max piece weight | kg |
| Engine Power | 27 kW |
| Year of overhauling |
Germany
2006
| Axis X | 800 mm |
|---|---|
| Axis Z | 800 mm |
| CNC | SIEMENS 840D shopmill |
| Table width | 630 mm |
| Max. spindle speed | 12000 rpm |
| Axis Y | 800 mm |
|---|---|
| Rotary table (4th axis) | no |
| Table length | 630 mm |
| Spindle taper | SK 50 |
Germany
1999
| Axis X | 1250 mm |
|---|---|
| Axis Z | 800 mm |
| Table length | 1000 mm |
| Number of tool pockets | 60 |
| Max. spindle speed | 8000 rpm |
| Axis Y | 880 mm |
|---|---|
| CNC | Heidenhain TNC 430 |
| Table width | 800 mm |
| Spindle taper | SK 50 |
| Axis X | 410 mm |
|---|---|
| Axis Z | 500 mm |
| Type of CNC | HEIDENHAIN iTNC 530 smart NC |
| Table width | 320 mm |
| Number of tool pockets | 48 |
| Max. spindle speed | 15000 rpm |
| Axis Y | 610 mm |
|---|---|
| Rotary table (4th axis) | no |
| Table length | 320 mm |
| Max. part weight | 100 kg |
| Spindle taper | SK 40 |
Germany
2018
| Axis X | 670 mm |
|---|---|
| Axis Z | 600 mm |
| Max. part weight | 1200 kg |
| Spindle taper | HSK 63 |
| Axis Y | 820 mm |
|---|---|
| CNC | Heidenhain iTNC 530 |
| Number of tool pockets | 96 |
| Max. spindle speed | 18000 rpm |
| Axis X | 800 mm |
|---|---|
| Axis Z | 800 mm |
| CNC | MAZATROL 640M Nexus |
| Table width | 500 mm |
| Number of tool pockets | 160 |
| Max. spindle speed | 10000 rpm |
| Axis Y | 800 mm |
|---|---|
| Rotary table (4th axis) | no |
| Table length | 500 mm |
| Max. part weight | 1000 kg |
| Spindle taper | BT 50 |
| Spindle motor power | 37 kW |
Germany
1997

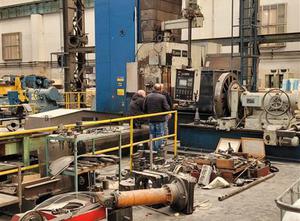

| X Axis | 2900 mm |
|---|---|
| Z Axis | 1250 mm |
| Table length | 3000 mm |
| Piece weight | 40000 kg |
| Max. spindle speed | 1600 rpm |
| Y Axis | 2900 mm |
|---|---|
| Jig type | no |
| Table width | 3500 mm |
| Spindle diameter | 180 mm |
| Overhauled | no |
Germany
~ 2005
| Axis X | 800 mm |
|---|---|
| Axis Z | 800 mm |
| CNC | MAZATROL 640M Nexus |
| Number of tool pockets | 160 |
| Max. spindle speed | 10000 rpm |
| Axis Y | 800 mm |
|---|---|
| Rotary table (4th axis) | no |
| Max. part weight | 1000 kg |
| Spindle taper | BT 50 |
| Spindle motor power | 37 kW |
Germany
2008
| Turning length | 810 mm |
|---|---|
| Ø above the bed | 460 mm |
| Type of CNC | cyclecontrolled |
| Spindle taper | |
| Number of tools on turret | 8 |
| Spindle motor power | 18 kW |
| Bar feeder | no |
| Turning Ø | 230 mm |
|---|---|
| Length between centers | 1000 mm |
| Max workpiece weight | 570 kg |
| Spindle bore | 56 mm |
| Turning speed | 3100 rpm |
| Tailstock | no |
Germany
2010
| Turning length | 3000 mm |
|---|---|
| Ø above transversing slide | 700 mm |
| Max workpiece weight | 25 kg |
| Spindle bore | 132 mm |
| Bar feeder | no |
| Turning Ø | 1000 mm |
|---|---|
| Type of CNC | |
| Spindle taper | |
| Tailstock | no |
Germany

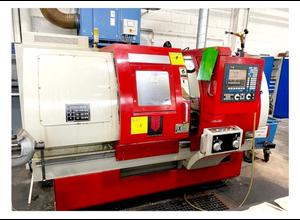

| Turning length | 810 mm |
|---|---|
| Ø above the bed | 460 mm |
| Type of CNC | Fagor 8055T |
| Spindle taper | VDI 30 |
| Number of tools on turret | 8 |
| Spindle motor power | 18 kW |
| Bar feeder | no |
| Turning Ø | 230 mm |
|---|---|
| Length between centers | 1000 mm |
| Max workpiece weight | 570 kg |
| Spindle bore | 56 mm |
| Turning speed | 3100 rpm |
| Tailstock | no |
Germany
2010
| Strength | T |
|---|---|
| Distance between uprights | 2125 mm |
| Throat | 420 mm |
| Working speed | 10 mm/s |
| Engine Power | 9 kW |
| Folding length | 2500 mm |
|---|---|
| CNC | |
| Vertical stroke | 200 mm |
| Axis number | |
| Hole |
Germany
2010
| Type of CNC | |
|---|---|
| Z-axis | 400 mm |
| Tailstock | no |
| X-axis | 900 mm |
|---|---|
| Spindle taper | |
| Bar feeder | no |
