| Manufacturer | GILDEMEISTER |
|---|---|
| Model | CTV 250 V3 |
| Year | 2005 |
| Location | Germany
|
This GILDEMEISTER CTV 250 V3 is a CNC vertical turret lathe manufactured in 2005, designed for precision machining tasks. It features a swing diameter of 320 mm and a chucking diameter of 250 mm, suitable for handling a variety of workpieces. The machine is equipped with a Siemens 840D control system, providing reliable and advanced CNC control capabilities.

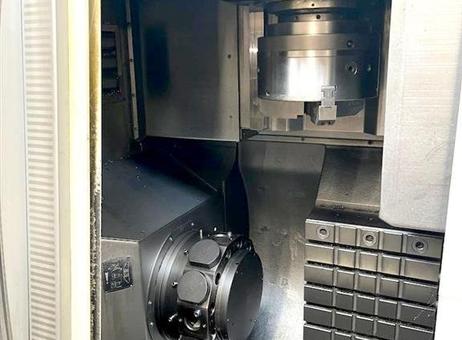

The lathe offers a spindle drive power of 20/27 kW and a maximum spindle speed of 5000 rpm, allowing efficient turning operations. The tool turret has 12 positions and uses VDI 40 tool holders, supporting multiple tooling options for versatile machining. The X-axis travel is 650 mm and the Z-axis travel is 300 mm, giving adequate machining range.
Additional features include live tooling and C-axis functionality, enhancing the machine's capability for complex machining processes. A high-pressure pump operating at 20 bar with a 500-liter capacity and integrated filter is included, supporting coolant delivery and chip removal. The machine also comes with a flush gun for cleaning purposes.

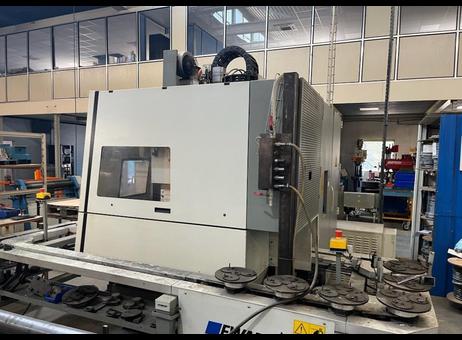

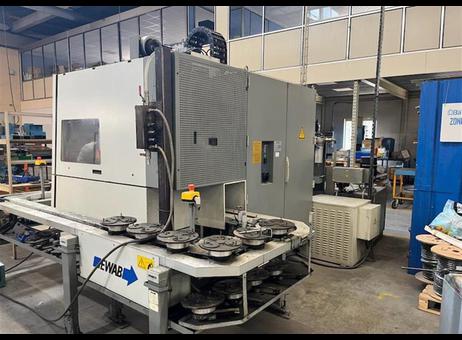

The lathe is equipped with a 3-jaw chuck and an EWAB loading station positioned on the right side, facilitating easier loading and unloading of parts. A chip conveyor is installed to maintain cleanliness during operations.

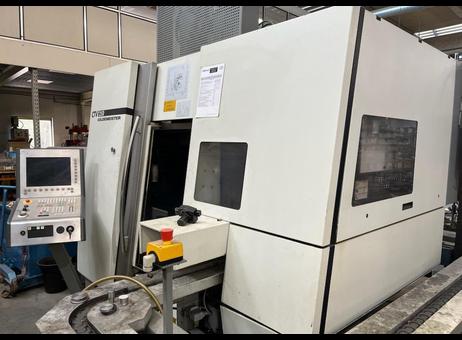

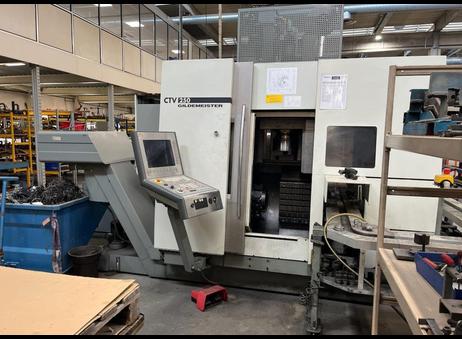

The machine weighs approximately 8 tons and has recorded around 23,500 hours of machine operation and about 8,000 hours of spindle operation. Visual inspection shows the machine to be clean and well-maintained, with no visible damage. The enclosure includes viewing windows on the front and side, and the CNC control panel is mounted on an adjustable arm on the left side, featuring a screen, buttons, and an emergency stop button both on the panel and mounted on a stand in front of the machine for safety.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
swing diameter:320 mm
control:840 D SIEMENS
turning speeds:5000 1/min
spindle drive:20 / 27 kW
chucking diameter:250 mm
travel -x axis:650 mm
travel -z axis:300 mm
turret head:12 Pos.
tool holder:VDI 40
toolpiece turning speed range:4000 1/min
work piece power:max. 11,7 kW
weight of the machine ca.:8 t
CNC vertical lathe,
live tools,
C-axis,
high pressure pump 20 bar, 500l, filter,
flush gun,
3-jaw chuc,
EWAB loading station right,
chipconveyor,
approx. 23.500h "machine on", approx. 8.000h "spindle on"
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2008 |
| Offers online | 22 |
| Last activity | Oct. 28, 2026 |
swing diameter:320 mm
control:840 D SIEMENS
turning speeds:5000 1/min
spindle drive:20 / 27 kW
chucking diameter:250 mm
travel -x axis:650 mm
travel -z axis:300 mm
turret head:12 Pos.
tool holder:VDI 40
toolpiece turning speed range:4000 1/min
work piece power:max. 11,7 kW
weight of the machine ca.:8 t
CNC vertical lathe,
live tools,
C-axis,
high pressure pump 20 bar, 500l, filter,
flush gun,
3-jaw chuc,
EWAB loading station right,
chipconveyor,
approx. 23.500h "machine on", approx. 8.000h "spindle on"
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This GILDEMEISTER CTV 250 V3 is a CNC vertical turret lathe manufactured in 2005, designed for precision machining tasks. It features a swing diameter of 320 mm and a chucking diameter of 250 mm, suitable for handling a variety of workpieces. The machine is equipped with a Siemens 840D control system, providing reliable and advanced CNC control capabilities.
The lathe offers a spindle drive power of 20/27 kW and a maximum spindle speed of 5000 rpm, allowing efficient turning operations. The tool turret has 12 positions and uses VDI 40 tool holders, supporting multiple tooling options for versatile machining. The X-axis travel is 650 mm and the Z-axis travel is 300 mm, giving adequate machining range.
Additional features include live tooling and C-axis functionality, enhancing the machine's capability for complex machining processes. A high-pressure pump operating at 20 bar with a 500-liter capacity and integrated filter is included, supporting coolant delivery and chip removal. The machine also comes with a flush gun for cleaning purposes.
The lathe is equipped with a 3-jaw chuck and an EWAB loading station positioned on the right side, facilitating easier loading and unloading of parts. A chip conveyor is installed to maintain cleanliness during operations.
The machine weighs approximately 8 tons and has recorded around 23,500 hours of machine operation and about 8,000 hours of spindle operation. Visual inspection shows the machine to be clean and well-maintained, with no visible damage. The enclosure includes viewing windows on the front and side, and the CNC control panel is mounted on an adjustable arm on the left side, featuring a screen, buttons, and an emergency stop button both on the panel and mounted on a stand in front of the machine for safety.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2008 |
| Offers online | 22 |
| Last activity | Oct. 28, 2026 |
