| Manufacturer | Mocrocut |
|---|---|
| Model | RIC-TC 1840 |
| Year | |
| Location | Germany
|
The Mocrocut RIC-TC 1840 is a CNC lathe designed for precision machining with robust construction and versatile capabilities. It features a turning length of 810 mm and a maximum turning diameter of 230 mm, with an extended turning diameter over the bed of 460 mm. The machine accommodates workpieces up to 570 kg in weight and offers a spindle bore diameter of 56 mm, allowing for a variety of machining operations. The lathe is equipped with an 8-position VDI 30 turret for tool holding, supporting up to eight tools for efficient and flexible machining processes.
Powered by an 18 kW spindle motor, the lathe achieves a maximum spindle speed of 3100 rpm, suitable for various metalworking tasks. The distance between centers is 1000 mm, providing ample space for medium-sized workpieces. The machine's overall dimensions are approximately 3700 mm in length, 1900 mm in width, and 1800 mm in height, with a weight of around 2900 kg.
The CNC control system is a Fagor 8055T, offering precise and user-friendly operation. The lathe includes a hand-operated collet chuck and a 3-jaw chuck, along with four toolholders, enhancing its adaptability for different machining requirements.

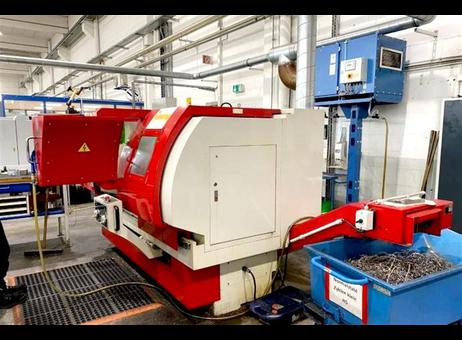

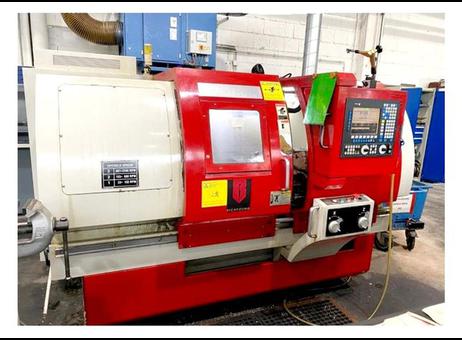

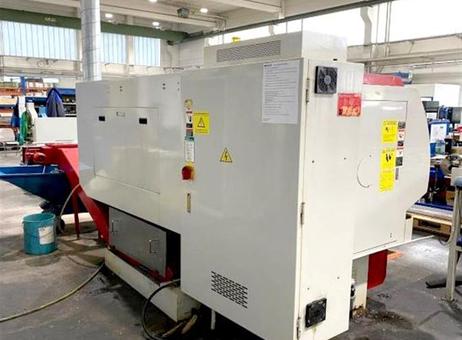

The machine's exterior features a red and white housing and includes a control panel with a screen and multiple buttons located on the right side for operator convenience. A chuck is visible on the left side, and a chip conveyor is attached at the rear, facilitating efficient removal of metal shavings during operation. Electrical cables and power connections are located at the bottom rear side. The machine appears clean and well-maintained externally, with several safety warning labels visible on its housing and enclosure.
This lathe is suitable for a range of metalworking applications, combining precision, power, and versatility in a well-engineered package. Prospective buyers are advised to verify all specifications and conditions during an in-person inspection.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
teach-in lathe, PARAT tooling-system, hand operated collet chuck, 3 jaw chuck, 4 toolholders
turning diameter 230 mm
turning length 810 mm
control Fagor 8055T
centre distance 1.000 mm
turning diameter over bed 460 mm
spindle passage 56 mm
chucking diameter 200 mm
tailstock quill taper MT

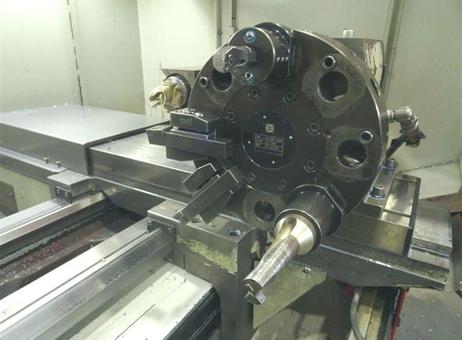

turret head 8 x VDI 30 Pos.
turning speeds 3.100 1/min
max. workpiece weight 570 kg
spindle motor 18 kW
dimensions of the machine ca. 3,7 x 1,9 x 1,8 m
weight of the machine ca. 2,9 t
this extra information is standard for this model. Please always double-check the details during a visit
The Mocrocut RIC-TC 1840 CNC Lathe is a versatile and precision-focused machine designed to excel in various metalworking applications. Manufactured with advanced engineering and technology, this CNC lathe offers exceptional performance and reliability.
At its core, the RIC-TC 1840 features a robust bed structure and a precision spindle assembly, ensuring stability and accuracy during machining operations. Its CNC control system allows for precise toolpath programming, making it suitable for intricate and complex parts production.
One of the standout features of this CNC lathe is its high-speed spindle, capable of delivering impressive cutting speeds and efficient material removal. This makes it ideal for tasks that demand both precision and productivity.
The machine's automatic tool changer and programmable tailstock further enhance its versatility, enabling operators to perform a wide range of turning, threading, and milling operations with ease.
The RIC-TC 1840's user-friendly interface and intuitive controls make it accessible to both experienced machinists and those new to CNC machining. Its adaptability to various workpiece sizes and materials ensures it can meet the needs of diverse manufacturing environments.
In summary, the Mocrocut RIC-TC 1840 CNC Lathe is a well-rounded machining solution that combines precision, speed, and versatility, making it an excellent choice for industries requiring high-quality metal components.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
