Contact us to receive an offer.
| Manufacturer | OKUMA |
|---|---|
| Model | LB3000 EXII MY C450 |
| Year | 2018 |
| Location | Poland
|
The OKUMA LB3000 EXII MY C450 is a horizontal CNC turning center manufactured in 2018. It features the OSP P300L control system, providing precise and programmable machining capabilities. The machine has a passage over the bed diameter of 580 mm and a passage over the slide diameter of 470 mm, allowing for substantial workpiece sizes. It supports a maximum turning diameter of 340 mm and a maximum turning length of 404 mm measured from the face of the chuck jaws.
The machine's axes travel includes 260 mm in the X-axis and 510 mm in the Z-axis, with an additional 120 mm in the Y-axis and full 360° indexing in the C-axis with a pitch of 0.001°. A tailstock with a travel of 515 mm is also included.
The spindle is electro-spindle driven with a speed range of 45 to 5000 rpm, adjustable steplessly in two ranges. The spindle end conforms to JIS A2-6 standards, and it has a spindle passage diameter of 80 mm. The spindle power ratings are 22.8 kW for 10 minutes, 18.5 kW for 20 minutes, and 15 kW fixed, with a maximum torque of 427 Nm.
The turret is a BMT type with 12 driven tool positions, each capable of independent drive. The tool shaft height is 25 mm with a 40 mm diameter shank. The turret indexing time is 0.1 seconds. The driven tool spindle can reach up to 6000 rpm, powered at 7.1 kW for 25 minutes and 4.1 kW fixed, delivering a maximum torque of 40.4 Nm.
Accessory equipment includes a hydraulic 10" three-jaw chuck with through cylinder and Ø70 mm soft and hard jaws, a 0.8 kW pump to increase coolant pressure, and a belt chip conveyor with side ejection.

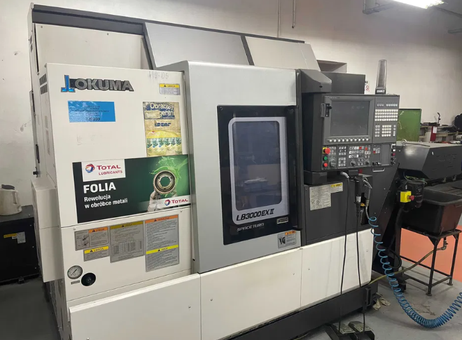

The machine is equipped with a control panel featuring a screen and keypad located on the right side. A blue coiled air hose is attached on the right side as well. The machine appears in good physical condition with no visible damage. Manufacturer and model details, including serial number and production date (June 2018), are present on the identification plates. The machine is branded with Okuma and clearly marked as model LB3000EX II.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
OKUMA LB3000 EXII MY C450 horizontal turning center with OSP P300L control.
Additional tools and tooling.
Spindle life to date - +/- only 1500 hours.
- passage over the bed - Ø580 mm
- passage over the slide - Ø470 mm
- maximum diameter of turning - Ø340 mm
- max. turning length counting from the face of the chuck jaws - 404 mm
- in X axis - 260 mm
- in Z axis - 510 mm
- in Y axis - 120 mm
- in C axis (turning spindle) -360o, pitch -0.001o
- tailstock - 515 mm
- drive type - electro-spindle
- spindle revolutions - 45÷5000 rpm
- spindle speed adjustment - stepless, in 2 ranges
- spindle end - JIS A2-6
- spindle passage - Ø80 mm
- power - 22,8/18,5/15 KW (10min/ 20min/ fixed)
- max torque - 427Nm
- type - electric, programmable NC
- fang - MT5 rotary
- head type - BMT
- number of tools - 12 (each position driven)
- height of tool shaft - 25 mm
- diameter of the shank - 40 mm
- head indexing time - 0.1s
- driven tool spindle - 6000 rpm (electro-spindle)
- power- 7.1/4.1 KW (25 min/ fixed)
- max torque - 40,4 Nm
Accessory equipment:
- hydraulic three-jaw chuck through 10", through cylinder. Ø70 mm, soft and hard jaws
- 0.8 KW pump for increasing the coolant pressure
- belt chip conveyor with side ejection
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – large company |
| Active since | 2015 |
| Offers online | 1 |
| Last activity | Sept. 18, 2026 |
OKUMA LB3000 EXII MY C450 horizontal turning center with OSP P300L control.
Additional tools and tooling.
Spindle life to date - +/- only 1500 hours.
- passage over the bed - Ø580 mm
- passage over the slide - Ø470 mm
- maximum diameter of turning - Ø340 mm
- max. turning length counting from the face of the chuck jaws - 404 mm
- in X axis - 260 mm
- in Z axis - 510 mm
- in Y axis - 120 mm
- in C axis (turning spindle) -360o, pitch -0.001o
- tailstock - 515 mm
- drive type - electro-spindle
- spindle revolutions - 45÷5000 rpm
- spindle speed adjustment - stepless, in 2 ranges
- spindle end - JIS A2-6
- spindle passage - Ø80 mm
- power - 22,8/18,5/15 KW (10min/ 20min/ fixed)
- max torque - 427Nm
- type - electric, programmable NC
- fang - MT5 rotary
- head type - BMT
- number of tools - 12 (each position driven)
- height of tool shaft - 25 mm
- diameter of the shank - 40 mm
- head indexing time - 0.1s
- driven tool spindle - 6000 rpm (electro-spindle)
- power- 7.1/4.1 KW (25 min/ fixed)
- max torque - 40,4 Nm
Accessory equipment:
- hydraulic three-jaw chuck through 10", through cylinder. Ø70 mm, soft and hard jaws
- 0.8 KW pump for increasing the coolant pressure
- belt chip conveyor with side ejection
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The OKUMA LB3000 EXII MY C450 is a horizontal CNC turning center manufactured in 2018. It features the OSP P300L control system, providing precise and programmable machining capabilities. The machine has a passage over the bed diameter of 580 mm and a passage over the slide diameter of 470 mm, allowing for substantial workpiece sizes. It supports a maximum turning diameter of 340 mm and a maximum turning length of 404 mm measured from the face of the chuck jaws.
The machine's axes travel includes 260 mm in the X-axis and 510 mm in the Z-axis, with an additional 120 mm in the Y-axis and full 360° indexing in the C-axis with a pitch of 0.001°. A tailstock with a travel of 515 mm is also included.
The spindle is electro-spindle driven with a speed range of 45 to 5000 rpm, adjustable steplessly in two ranges. The spindle end conforms to JIS A2-6 standards, and it has a spindle passage diameter of 80 mm. The spindle power ratings are 22.8 kW for 10 minutes, 18.5 kW for 20 minutes, and 15 kW fixed, with a maximum torque of 427 Nm.
The turret is a BMT type with 12 driven tool positions, each capable of independent drive. The tool shaft height is 25 mm with a 40 mm diameter shank. The turret indexing time is 0.1 seconds. The driven tool spindle can reach up to 6000 rpm, powered at 7.1 kW for 25 minutes and 4.1 kW fixed, delivering a maximum torque of 40.4 Nm.
Accessory equipment includes a hydraulic 10" three-jaw chuck with through cylinder and Ø70 mm soft and hard jaws, a 0.8 kW pump to increase coolant pressure, and a belt chip conveyor with side ejection.
The machine is equipped with a control panel featuring a screen and keypad located on the right side. A blue coiled air hose is attached on the right side as well. The machine appears in good physical condition with no visible damage. Manufacturer and model details, including serial number and production date (June 2018), are present on the identification plates. The machine is branded with Okuma and clearly marked as model LB3000EX II.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
