| Manufacturer | MORI SEIKI |
|---|---|
| Model | NL3000/3000 |
| Year | 2008 |
| Location | Germany
|

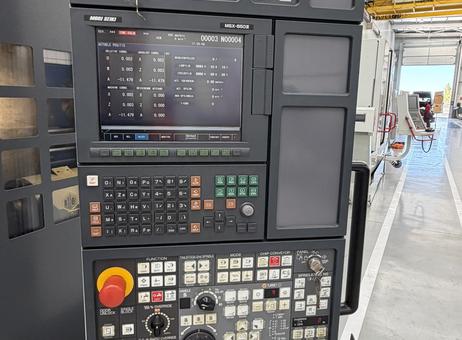

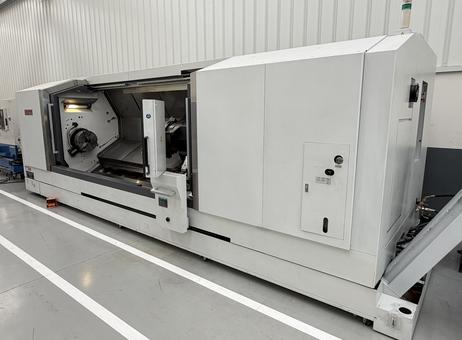

MORI SEIKI NL3000/3000 CNC Engine Lathe (2008) — MORI SEIKI MSX-850III control. This listing provides the machine’s key specifications and included equipment as stated in the provided description. Condition: as-is, where-is.
Capacities and travels
- Max. swing diameter over bed: 995 mm
- Max. swing diameter over face slide: 825 mm
- Max. turning diameter: 420 mm
- Max. turning length: 3,123 mm
- Center distance: 3,200 mm
- X-axis travel: 280 mm
- Z-axis travel: 3,170 mm
- Rapid traverse (X-, Z-axes): 30,000 mm/min
Main spindle / headstock
- Spindle nose: JIS A2-8
- Max. spindle speed: 3,000 rpm
- Spindle bore: 105 mm
- Spindle diameter at front bearing: 160 mm
- Main motor power: 28 kW
- Max. torque: 3,365 Nm

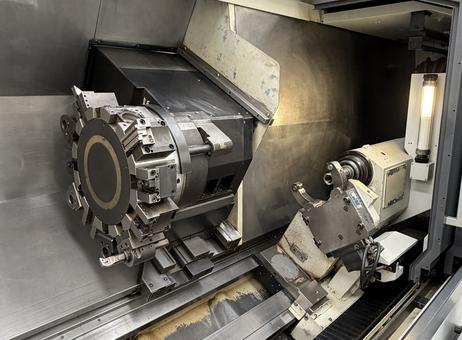

Turret and tooling
- Turret stations: 12
- Max. tool cross section: 25 mm
- Bar drilling capacity: 50 mm
- Turret indexing time: 0.3 s
Tailstock
- Tailstock travel: 3,164 mm
- Quill diameter: 150 mm
- Quill stroke: 150 mm
- Tailstock mount: MK5
Included equipment and accessories (as listed)

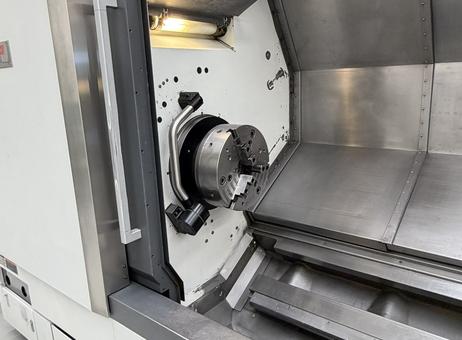

- Hydraulic 3-jaw chuck Ø 400 mm (SCHUNK THW 400-120)
- Quick-change jaw system
- Hydraulic steady rest SHW Type SLU-3.2-ZS (clamping range 50–200 mm)
- CNC-controlled longitudinally movable steady rest (A-axis)
- Automatic tool measuring system

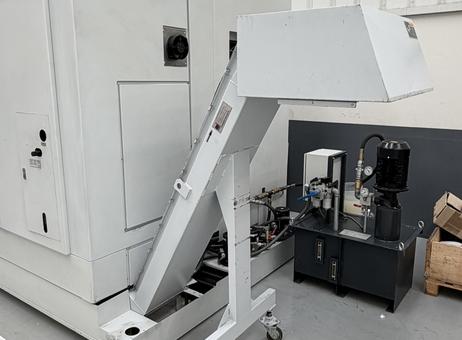

- Longitudinal chip conveyor
- Portable handwheel

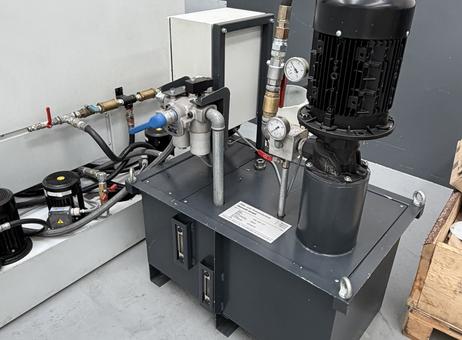

- 30-bar high-pressure pump + external tank
- Coolant tank capacity: 540 l
Other technical data
- Dimensions (L × W × H): 8,147 × 2,580 × 2,390 mm
- Machine weight: 13,500 kg
- Total connected load: 54 kVA
The information above is presented from the provided specification. No additional testing, operating status, or modifications are claimed beyond what is stated (condition: as-is, where-is).
