| Manufacturer | MORI SEIKI |
|---|---|
| Model | NL2500SY/700 |
| Year | 2007 |
| Location | Italy
|

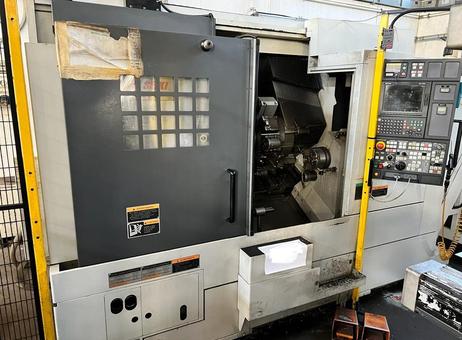

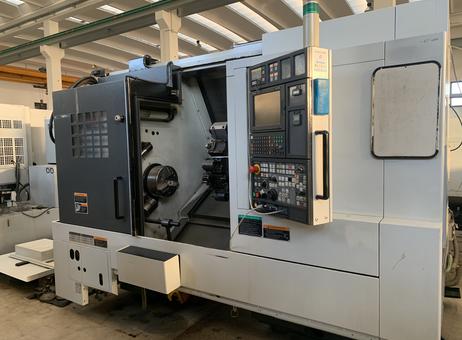

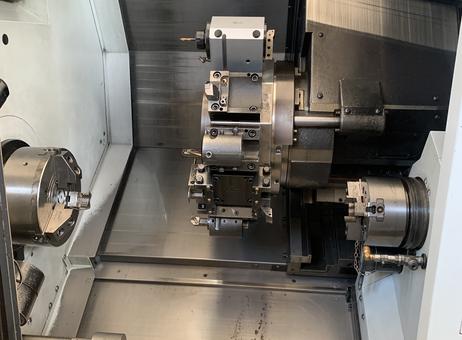

This listing features a MORI SEIKI CNC lathe, model NL2500SY/700, manufactured in 2007. The machine is designed for precision turning with a maximum turning diameter of 356 mm and a turning length of up to 705 mm. It offers a rotating diameter above the bed of 923.8 mm and above the cross slide of 755 mm, making it suitable for a variety of machining tasks. The lathe includes an X-axis travel of 260 mm and a Z-axis travel of 795 mm, with an additional Y-axis capability of ±50 mm and a tailstock stroke (B axis) of 734 mm. The spindle features a bore diameter of 91 mm and can reach speeds up to 4000 rpm, powered by an 18.5 kW spindle motor. The machine is equipped with a 12-station motorized turret, all of which are rotating tools, allowing for versatile tool changes during operation.
The machine weighs approximately 6200 kg and requires a power supply of 39.2 kVA. It includes a counter spindle with a maximum speed of 6000 rpm and a spindle bore of 43 mm, powered by an 11 kW motor. The spindle noses are ASA 8 for the main spindle and ASA 5 for the counter spindle.

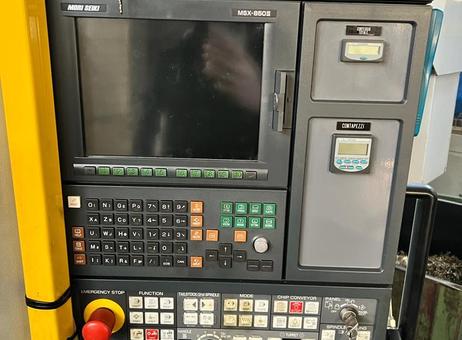

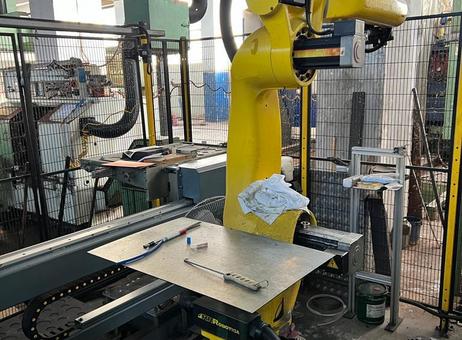

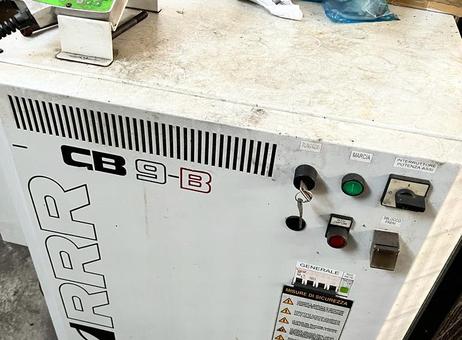

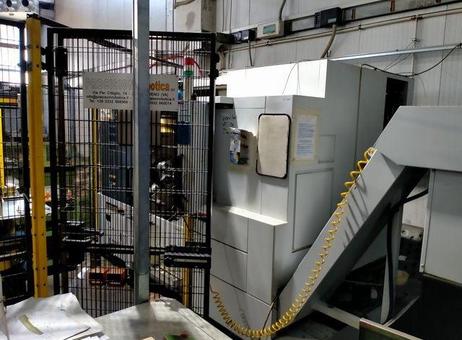

The lathe is complete with an ARR ROBOTICA loading robot and a chip evacuator, enhancing automation and efficiency. The exterior of the machine shows minor signs of wear and use but no visible damage, indicating it has been maintained in a typical industrial environment. The control panel labeled 'MORI SEIKI MSX-850III' is intact and functional, featuring multiple buttons, display screens, and emergency stop controls for safe operation. Safety features include yellow safety bars on the machine openings and warning labels in Italian. Two small orange foot pedals are also present near the machine for operational control.
Overall, this MORI SEIKI NL2500SY/700 CNC lathe offers robust capabilities for complex turning operations with advanced tooling and automation accessories included.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC LATHE WITH Y-AXIS AND COUNTERSPINDLE MOTORIZED TOOLS
Manufacturer: MORI SEIKI
Model: NL2500SY/700
Year of manufacture: 2007
Technical condition: as-is, where-is
CAPACITY:
Rotating diameter above the bed: 923.8 mm
Rotating diameter above cross slide: 755 mm
Max turning diameter: 356 mm
Max turning length: 705 mm
Bar passage: 80 mm
ROOMS:
X axis: 260 mm
Y axis: ± 50 mm
Z axis: 795 mm
Tailstock stroke (B axis): 734 mm
C axis: 0.001°
MAIN SPINDLE:
Max spindle speed: 4000 rpm
Spindle nose: ASA 8
Spindle bore: 91 mm
Spindle power: 18.5/15 kW
COUNTERSPINDLE:
Max counterspinle speed: 6000 rpm
Counter spindle nose: ASA 5
Spindle bore: 43 mm
Counter spindle power: 11/7.5 kW
TURRET:
Number of motorized tool stations: 12
POWER REQUIRED:
39.2 kVA
APPROX. MACHINE WEIGHT:
Machine weight: 6200 kg
COMPLETE WITH:
- ARR ROBOTICA loading robot
- Chip evacuator
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
