| Manufacturer | EMCO |
|---|---|
| Model | E45 |
| Year | 2019 |
| Location | Austria
|
| Category | Lathes - CNC lathes |
| Type of CNC | SINUMERIK 828D OPERATE |
| Spindle taper | |
| Number of tools on turret | 12 |
| Number of rotating tools | 6 |
| Turning speed | 6300 rpm |
| Spindle motor power | 13 kW |
| Tailstock | no |
| Bar feeder | yes |
| Length x width x height | 1700.0 × 1250.0 × 1380.0 |
| Weight | 500 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | Emco E45 |
| Last availability date | 29/10/2026 |
| Product id | P260128349 |
| Language |
cnc струг EMCO E45
Soustruh cnc EMCO E45
EMCO E45 cnc drejebænk
EMCO E45 Drehmaschine CNC
cnc τόρνος EMCO E45
EMCO E45 cnc lathe
Torno cnc EMCO E45
Tour cnc EMCO E45
cnc tokarski stroj EMCO E45
EMCO E45 cnc eszterga
Tornio cnc EMCO E45
cnc tekinimo staklės EMCO E45
EMCO E45 cnc-draaibank
Tokarka CNC EMCO E45
Torno CNC EMCO E45
strung cnc EMCO E45
EMCO E45 Токарный станок с ЧПУ
cnc strug EMCO E45
EMCO E45 cnc svarv
Cnc torna EMCO E45
|
The EMCO E45 is a versatile CNC turn-mill center manufactured in 2019, designed for precision machining with a robust set of features. It is equipped with a KK5 spindle capable of handling bar stock up to 45 mm in diameter, operating at speeds up to 6300 rpm. The spindle motor delivers a powerful 13 kW output, ensuring efficient machining performance. This model features a 12-position VDI30 tool turret that supports up to 6 driven tools, allowing for a wide range of machining operations with enhanced flexibility.
Control is managed via the SINUMERIK 828D OPERATE system, which includes SHOPTURN dialog programming, a 10.4" TFT color monitor, USB interface, network/Ethernet connectivity, and 3D simulation capabilities for precise and user-friendly operation. The machine includes a programmable, hydraulically actuated tailstock with a maximum clamping force of 6000 N, suitable for supporting workpieces during turning operations.
Additional features include a chip conveyor interface, high-pressure coolant system (14 bar), hydraulic and pneumatic connections, and a 3-jaw chuck KK5 with soft and hard jaws. The EMCO E45 also supports tool measurement directly on the turret, which helps reduce setup times and improve machining accuracy.

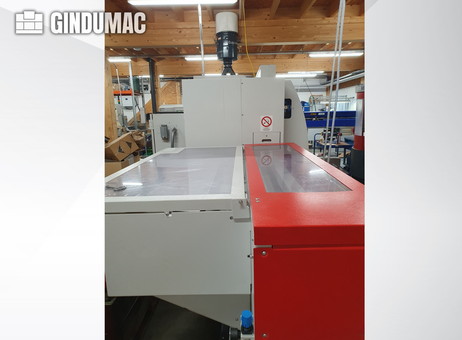

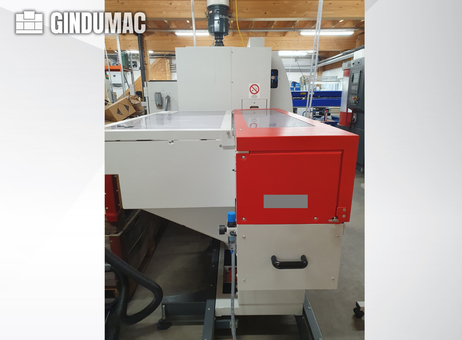

This unit comes with an attached EMCO SL 1200 bar feeder, capable of handling bar lengths from 850 to 1200 mm and diameters ranging from 8 to 95 mm, with a maximum feed rate of 60 m/min. The machine measures approximately 1700 mm in length, 1250 mm in width, and 1380 mm in height, with a weight of around 500 kg.

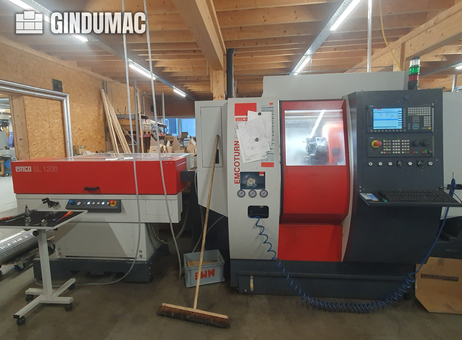

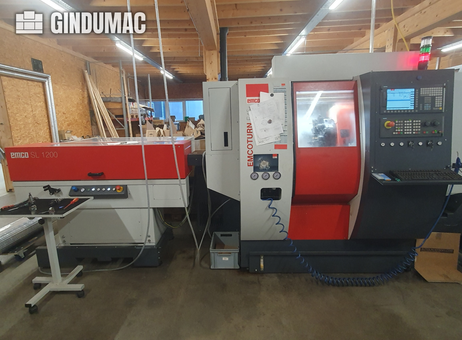

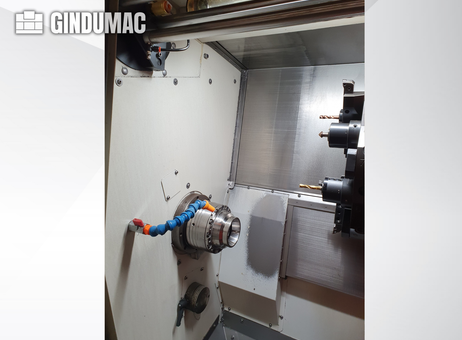

The lathe is presented in a clean and well-maintained workshop environment and features a control panel with a screen and multiple buttons located on the right side for easy access. The bar feeder is mounted on the left side of the machine, facilitating efficient material handling. This EMCO E45 turn-mill center is suitable for high-precision, automated turning and milling tasks in various industrial applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This EMCO E45 turn-mill centre was manufactured in 2019. It features a KK5 spindle with a bar capacity of 45 mm and a speed range up to 6300 rpm. The 12-position VDI30 tool turret supports 6 driven tools, enhancing versatility. Equipped with SINUMERIK 828D OPERATE control for precise operations and a robust design with a chip conveyor and high-pressure coolant system. Reach out for more information about this machine.Connection: KK5 (DIN 55026)
Bar capacity: 45 mm
Drive power: 13 kW
Speed range: 0–6300 rpm
C-axis on main spindle

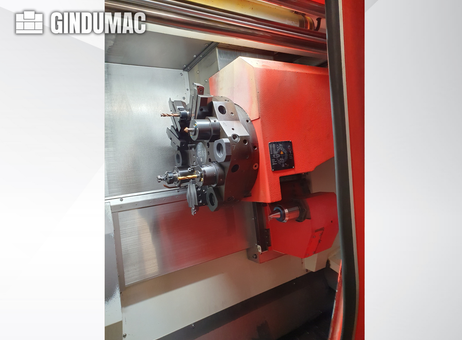

Tool turret
12-position VDI30 axial
Directional logic for up to 6 driven tools
Driven tools: max. 4 kW / max. 16 Nm
Driven tools speed: 0–5000 rpm
Tailstock
Programmable, hydraulically actuated
Max. clamping force: 6000 N
Morse taper: MK4
Hollow clamping cylinder incl. draw tube
Control & software
SINUMERIK 828D OPERATE
SHOPTURN dialog programming
USB interface
Network / Ethernet
10.4" TFT color monitor
3D simulation
Media & machine features
Machine light
Coolant system incl. pump (3.5 bar)
Hydraulic unit
Chip conveyor interface
CE certificate
Documentation
Tool measurement (E45)
Measuring arm fixed in the work area
Tool measurement on the turret
Short setup times / precise measurement / cost-efficient
Workpiece clamping
3-jaw chuck KK5
Max. speed: 6300 rpm
Diameter: 20 mm
Soft + hard jaws
Other (machine-related)
Water gun
Air to spindle
Oil/coolant separator
Automatic coolant monitoring
Electronic handwheel
Tool change guard
Hydraulic connections
Pneumatic connections
Machine packaging: pallet + roll-up cover
Additional equipment
Bar feeder / magazine (SL1200 – as referenced)
Bar length: 850–1200 mm
Bar diameter: Ø 8–95 mm
Max. feed rate: 60 m/min
Bar change: approx. 3 s
Magazine change: approx. 15 s
Material support area: 550 × 1210 mm
Material capacity: 10 × Ø 55 mm
Operating side: right
Power supply: 240 V DC/DC
Air supply: 6 bar
Dimensions: 1700 × 1250 × 1090–1380 mm
Weight: approx. 500 kg
Safety device: CE
High-speed function
Documentation
Spindle extension (for bar feeder use)
E45 / MT45 / HT45 → DM45
For 45 mm spindle
Short bars up to 1100 mm
With reducing sleeves (3 pieces)
Required for use with SL1200

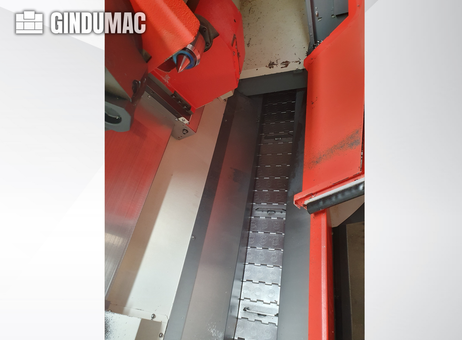

Chip conveyor
Hinged belt conveyor
Discharge height: 1200 mm
High-pressure coolant unit
14 bar / 50 Hz
Additional high-pressure pump
For tools with internal coolant
Interface & software
Robot interface
PROFI-NET interface
24 V signals
Safety release
Automatic/manual operation switching
Additional components
PC keyboard USB (QWERTY)
Machine status LED: Green (Automatic), Red (Alarm), White (Material handling)
Installation & mounting hardware
4× vibration absorbers
4× mounting brackets
4× heavy-duty anchors
Parts collection device
Pneumatically operated
Max. part length: 120 mm
Max. diameter: 45 mm (51 mm)
Max. weight: 2 kg
Collection box / conveyor belt
Number of Axes: 2
Spindle Power: 13 kW
Spindle Speed: 6300 RPM
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
