| Manufacturer | DN Solutions |
|---|---|
| Model | PUMA 4005 XLM |
| Year | 2024 |
| Location | Slovenia
|
The DN Solutions PUMA 4005 XLM is a CNC lathe machine manufactured in 2024, designed for precision turning applications. It features a maximum turning diameter of 560 mm and a turning length of up to 3068 mm, suitable for machining large workpieces. The machine supports a bar working diameter of 116.5 mm, enhancing its versatility for various component sizes.
Powered by a spindle with a diameter of 380 mm and a through bore of 132 mm, the lathe achieves spindle speeds up to 2000 rpm and delivers a maximum spindle torque of 1611 Nm, enabling efficient and robust material removal. The spindle nose is ASA A2-11.
Travel capabilities include 352 mm on the X-axis and 3180 mm on the Z-axis, with rapid traverse speeds of 16 m/min (X-axis) and 20 m/min (Z-axis), facilitating swift and precise machining operations. The lathe is equipped with a 12-station turret that accommodates various tooling options, including rotary tools with speeds up to 4000 rpm and a turret indexing time of 0.15 seconds, which minimizes downtime between tool changes.

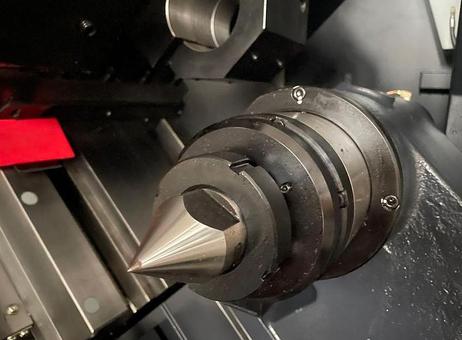

A tailstock with a 120 mm tip diameter and an MT#6 live center is included, offering additional support for long workpieces. The control system is a Fanuc i Series, known for user-friendly operation and reliable performance.

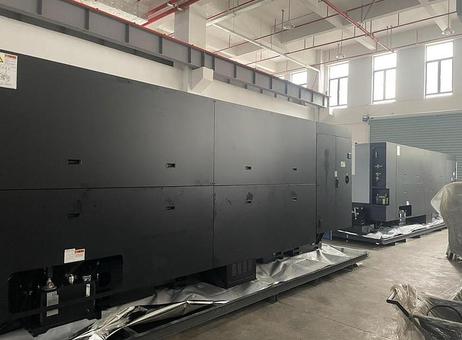

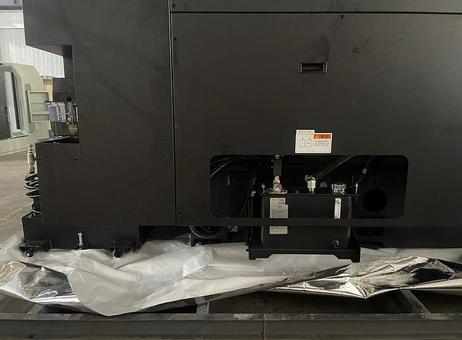

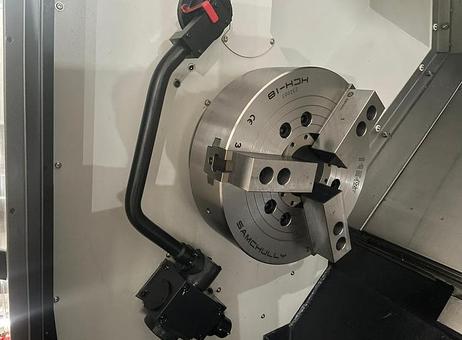

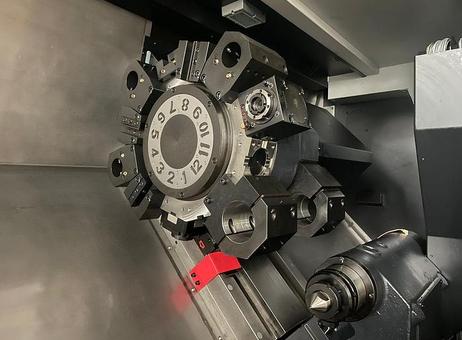

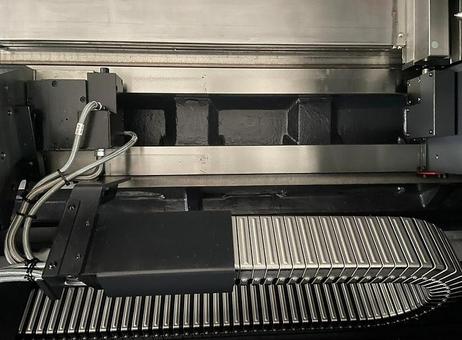

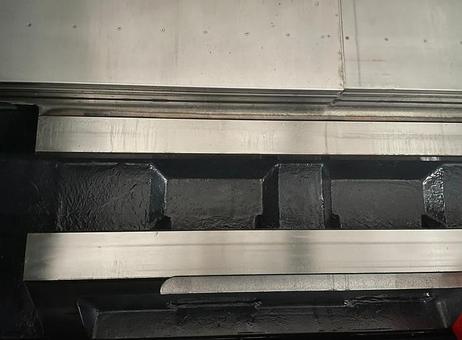

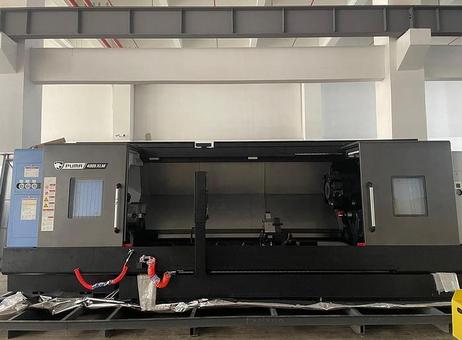

The machine measures 7024 mm in length, 2276 mm in width, and 2335 mm in height, weighing approximately 12,500 kg. Visual inspection confirms the lathe is in good condition, with a clean and well-maintained exterior and interior. The lathe features a large enclosure with sliding doors for easy access to the workspace, which includes a SAMCHULLY HCH-18 3-jaw chuck mounted securely in the headstock. The tool turret inside the workspace is visible with multiple numbered tool stations and cutting tools mounted. The lathe bed and linear guideways appear clean and smooth, equipped with protective cable carriers for wiring management. Overall, this machine combines robust construction with precise engineering, making it suitable for demanding machining environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Make: DN Solutions
Model: PUMA 4005 XLM
Year: 2024, brand new machine
Max. turning diameter: 560 mm
Max. turning length: 3068 mm
Bar working diameter: 116.5 mm
Spindle
Max. spindle speed 2.000 rpm
Spindle nose ASA A2-11
Diameter: 380 mm
Spindle through Bore: 132 mm
Max. spindle torque: 1611 Nm
Travel
Travel (X-axis): 352 (77+275) mm
Travel (Z-axis): 3180 mm
Rapid traverse (X-axis): 16 m/min
Rapid traverse (Z-axis): 20 m/min
Turret
No. of tool stations: 12 st
OD tool size: 25×25 mm
Boring bar size: 60 mm
Max speed of rotary tool: 4.000 rpm
Turret Index time: 0,15 s
Tailstock
Tip diameter: 120 mm
Center taper MT#6 live center
Top trips: 120 mm
Maximum top thrust: 14,3 N
Control
Fanuc i Series
Machine dimensions
LxWxH: 7024x2276x2335 mm
Machine weight: 12.500 kg
this extra information is standard for this model. Please always double-check the details during a visit
The DN Solutions PUMA 4005 XLM CNC lathe, released in 2024, introduces cutting-edge capabilities to the metal machining industry. With a robust build and precise engineering, this model offers unmatched performance for various turning applications.
Featuring a generous turning diameter of 560 mm and a maximum turning length of 3068 mm, the PUMA 4005 XLM provides ample space for accommodating large workpieces. Its substantial bar working diameter of 116.5 mm further
enhances its versatility, allowing for the machining of a wide range of components.
At the heart of the machine lies its powerful spindle, capable of reaching speeds of up to 2,000 rpm. The spindle, with a diameter of 380 mm and a through bore of 132 mm, ensures efficient material removal and precise machining. With a maximum spindle torque of 1611 Nm, it delivers the force required for heavy-duty operations.
The PUMA 4005 XLM boasts impressive travel capabilities, with a travel of 352 mm on the X-axis and 3180 mm on the Z-axis. Rapid traverse speeds of 16 m/min (X-axis) and 20 m/min (Z-axis) ensure swift movement between machining operations, enhancing productivity.
Equipped with a turret featuring 12 tool stations, including rotary tools, this CNC lathe offers versatility in tooling options. The turret's quick indexing time of 0.15 seconds ensures minimal downtime between tool changes, optimizing efficiency.
Additionally, the inclusion of a tailstock with a tip diameter of 120 mm and a Fanuc i Series control system further enhances the machine's precision and user-friendliness.
With dimensions of 7024x2276x2335 mm and a weight of 12,500 kg, the PUMA 4005 XLM combines a compact footprint with robust construction, making it an ideal choice for demanding machining environments.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
