| Manufacturer | DMG MORI |
|---|---|
| Model | ecoTURN 450M V3 |
| Year | 2015 |
| Location | Italy
|
This listing is for a DMG MORI ecoTURN 450M V3 CNC lathe, manufactured in 2015. The machine features a robust design with overall dimensions of 2975 mm in length, 1958 mm in width, and 1932 mm in height, and it weighs approximately 5600 kg. It is equipped with a spindle motor delivering 12 kW of power, capable of reaching speeds up to 4000 rpm. The spindle bore diameter is 80 mm, allowing for substantial bar stock to be processed.
The lathe offers a turning length of 568 mm and a maximum turning diameter of 400 mm, with a turning diameter above the bed of 680 mm. The X-axis has a travel of 267.5 mm, while the Z-axis travel is 600 mm, providing good machining range. The turret holds 12 motorized tool stations, enabling versatile tooling options for complex machining tasks.
The machine includes a tailstock with a Morse taper MT5 and a stroke of 500 mm, facilitating support for longer workpieces. The feed rate can reach up to 5 m/min, and the spindle is of type A2-8.

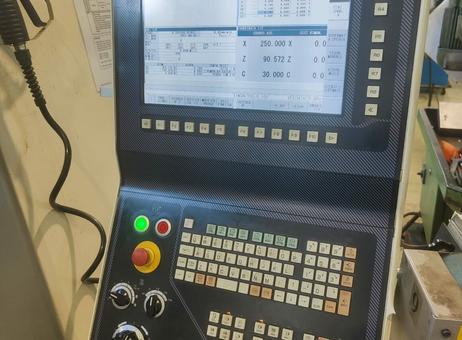

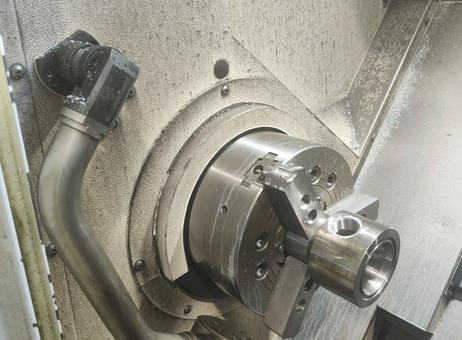

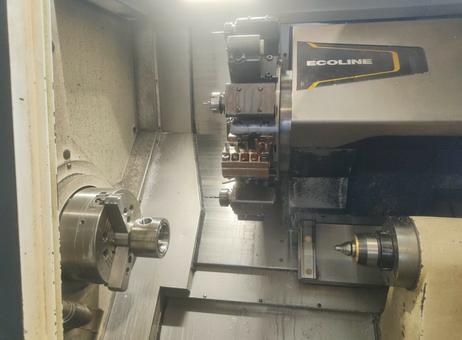

The CNC lathe is fitted with a control panel mounted on the right side, featuring a display screen and buttons for operation. The interior shows typical signs of use, including coolant residue and metal chips. The chuck is visible inside the machine and is shown holding a metal workpiece in some images. A coolant nozzle and sensors are present near the chuck area to assist in machining operations.

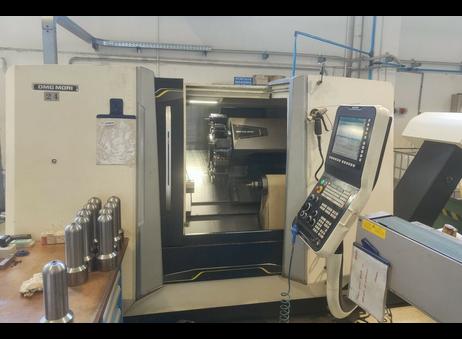

Externally, the machine appears clean and well-maintained, with all control panel elements intact and functional. This lathe is suitable for precision turning applications requiring a reliable CNC platform with a variety of tooling capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
MITSUBISHI CNC
Turning diameter on the bench: 680 mm
Turning diameter: 400 mm
Turning length: 568 mm
Bar passage: Ø 80 mm
Strokes:
X axis 267.5 mm
Z axis 600 mm
Feeds: 5 m/min
Spindle: A2-8
Speed 4000 rpm
Power: 12 Kw
Turret: No.12 motorized tool stations
Speed 6000 rpm
Power 3.7 Kw
Tailstock: MT5
Stroke 500 mm
Overall dimensions: 2975 x 1958 x 1932 mm
Weight: 5600 Kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 126 |
| Last activity | Oct. 27, 2026 |
MITSUBISHI CNC
Turning diameter on the bench: 680 mm
Turning diameter: 400 mm
Turning length: 568 mm
Bar passage: Ø 80 mm
Strokes:
X axis 267.5 mm
Z axis 600 mm
Feeds: 5 m/min
Spindle: A2-8
Speed 4000 rpm
Power: 12 Kw
Turret: No.12 motorized tool stations
Speed 6000 rpm
Power 3.7 Kw
Tailstock: MT5
Stroke 500 mm
Overall dimensions: 2975 x 1958 x 1932 mm
Weight: 5600 Kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing is for a DMG MORI ecoTURN 450M V3 CNC lathe, manufactured in 2015. The machine features a robust design with overall dimensions of 2975 mm in length, 1958 mm in width, and 1932 mm in height, and it weighs approximately 5600 kg. It is equipped with a spindle motor delivering 12 kW of power, capable of reaching speeds up to 4000 rpm. The spindle bore diameter is 80 mm, allowing for substantial bar stock to be processed.
The lathe offers a turning length of 568 mm and a maximum turning diameter of 400 mm, with a turning diameter above the bed of 680 mm. The X-axis has a travel of 267.5 mm, while the Z-axis travel is 600 mm, providing good machining range. The turret holds 12 motorized tool stations, enabling versatile tooling options for complex machining tasks.
The machine includes a tailstock with a Morse taper MT5 and a stroke of 500 mm, facilitating support for longer workpieces. The feed rate can reach up to 5 m/min, and the spindle is of type A2-8.
The CNC lathe is fitted with a control panel mounted on the right side, featuring a display screen and buttons for operation. The interior shows typical signs of use, including coolant residue and metal chips. The chuck is visible inside the machine and is shown holding a metal workpiece in some images. A coolant nozzle and sensors are present near the chuck area to assist in machining operations.
Externally, the machine appears clean and well-maintained, with all control panel elements intact and functional. This lathe is suitable for precision turning applications requiring a reliable CNC platform with a variety of tooling capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
