Contact us to receive an offer.
| Manufacturer | BIGLIA |
|---|---|
| Model | B 301 SM |
| Year | 1999 |
| Location | Italy
|
| Category | Lathes - CNC lathes |
| Turning length | 380 mm |
| Turning Ø | 400 mm |
| Ø above the bed | mm |
| Ø above transversing slide | mm |
| Length between centers | mm |
| Type of CNC | |
| X-axis | 160 mm |
| Z-axis | 380 mm |
| Max workpiece weight | kg |
| Spindle taper | |
| Spindle bore | mm |
| Number of turrets | |
| Number of tools on turret | |
| Number of rotating tools | |
| Turning speed | 5000 rpm |
| Spindle motor power | 15 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 3500.0 × 1754.0 × 1680.0 |
| Weight | 3300 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | Biglia B301 SM |
| Last availability date | 19/10/2026 |
| Product id | P260902574 |
| Language |
CNC струг BIGLIA B 301 SM
CNC soustruh BIGLIA B 301 SM
BIGLIA B 301 SM CNC-drejebænk
BIGLIA B 301 SM CNC-Drehmaschine
Τόρνος CNC BIGLIA B 301 SM
BIGLIA B 301 SM CNC lathe
Torno CNC BIGLIA B 301 SM
Tour CNC BIGLIA B 301 SM
CNC tokarski stroj BIGLIA B 301 SM
BIGLIA B 301 SM CNC esztergagép
Tornio CNC BIGLIA B 301 SM
BIGLIA B 301 SM CNC tekinimo staklės
BIGLIA B 301 SM CNC-draaibank
Tokarka CNC BIGLIA B 301 SM
Torno CNC BIGLIA B 301 SM
Strung CNC BIGLIA B 301 SM
BIGLIA B 301 SM Токарный станок с ЧПУ
CNC strug BIGLIA B 301 SM
BIGLIA B 301 SM CNC-svarv
CNC torna BIGLIA B 301 SM
|

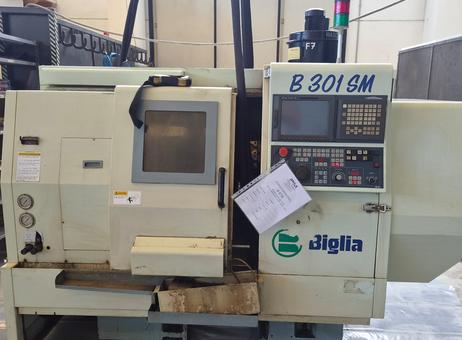

Manufacturer/model/year: BIGLIA B 301 SM, manufactured 1999. Control: GE Fanuc Series 18i-T CNC. General capacities and ranges: maximum bar diameter 42 mm; maximum diameter in turning 220 mm; maximum rotating diameter 400 mm; maximum machinable/turning length 380 mm. Spindle and axes: spindle speed range 100–5000 rpm; spindle motor power listed as 15.0 kW (also referenced in documentation as 11–15 kW); X-axis travel 160 mm; Z-axis travel 380 mm. Turret and tooling: turret with 12 tool positions; powered tool speed up to 3000 rpm with motor power listed as 3.5 kW. Additional spindle/counterspindle data reported: counter spindle speed range 100–5000 rpm with useful through-hole diameter 27 mm; spindle bore and related nose/bearing details are included in the specification documentation. Feed/rapid and coolant: X-axis rapid 20 m/min, Z-axis rapid 24 m/min; coolant tank capacity 180 liters with pump flow rate 150 l/min and pump motor 0.75 kW. Dimensions and weight: overall footprint with chip conveyor 3500 x 1754 x 1680 mm; weight with chip conveyor 3300 kg. Maintenance notes provided with the unit: main spindle line overhaul, internal turret motor overhaul, and external turret motor overhaul are listed as works to be performed. Visible components and condition notes: the package includes the GE Fanuc Series 18i-T control module with integrated display and alphanumeric keypad and an indicator light stack; an operator/control console is mounted at the right side of the enclosure. The machine is equipped with a chuck/spindle assembly, a protective door/window frame, and a bed/ways; metal chips and some debris are present around the bed and base. Some internal areas (spindle/turret configuration and other internal components) are not fully identifiable from the available views; verification by direct inspection is recommended to confirm condition and detailed configuration.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC lathes
fixed-head lathes

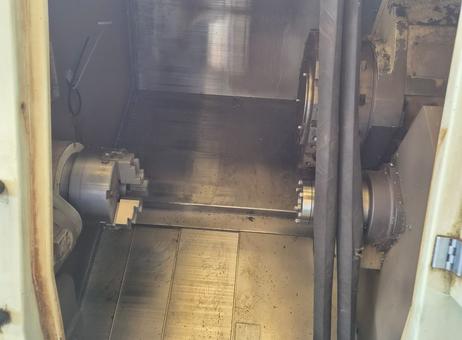

The 1999 Biglia B 301 SM CNC lathe, equipped with a GE Fanuc Seriesc 18i-T numerical control, offers excellent machining capabilities. It can work on bar stock with a maximum diameter of 42 mm and up to 220 mm in turning. The maximum machinable length is 380 mm, with a maximum rotating diameter of 400 mm. The main spindle speed ranges from 100 to 5000 rpm, supported by a motor with power between 11 and 15 kW. The counter spindle, with a similar rotation range, has a useful through-hole capacity of 27 mm, powered by a motor of 3.7 to 7.5 kW. The turret holds 12 tool positions, and powered tools reach up to 3000 rpm with a power of 3.5 kW. The C axis provides precise control, while the X and Z axis travels are 160 mm and 380 mm respectively, with rapid movements at 20 m/min and 24 m/min. The cooling system has a tank capacity of 180 liters with a pump flow rate of 150 l/min. The machine's overall dimensions are 3500 x 1754 x 1680 mm, weighing 3300 kg with the chip conveyor. Direct inspection of the equipment and verification of specifications are recommended to obtain a complete and accurate understanding.

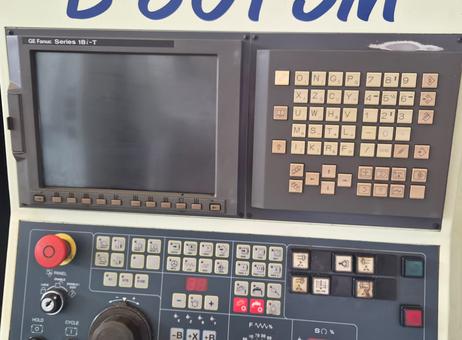

CNC: GE Fanuc Seriesc 18i-T
Capacity: None
Max Bar Diameter: 42 mm
Max Diameter in Turning: 220 mm
Max Machinable Length: 380 mm
Max Rotating Diameter: 400 mm
Main Spindle: None
Main Spindle Speed Range: 100 - 5000 rpm
Spindle Nose: ['ASA 5"', 'ASA 4"']
Spindle Bore: ['55 mm', '42 mm']
Main Spindle Front Bearing Inner Diameter: 90 mm
Self-centering Diameter: ['165/210 mm', '130 mm']
Collet Unit: DIN 6343
Main Spindle Motor Power: 11-15 kW (50%)
Counter Spindle: None
Counter Spindle Speed Range: 100 - 5000 rpm
Useful Through-hole Diameter: 27 mm
Counter Spindle Front Bearing Inner Diameter: 65 mm
Counter Spindle Motor Power: 3.7-7.5 kW (50%)
Turret: None
Number of Positions: 12
Type: ['bidirectional', 'CS (direct)']
External Tool Shank: 20x20 mm
Boring Tool Shank: ⌀25 - ⌀32 mm
Rotation Time per Position: 0.15 sec
Powered Tools: None
Number of Positions: 12
Maximum Speed Range: 3000 rpm
Motor Power: 3.5 kW (25%)
Axes: None
X-axis Travel: 160 mm (145+15)
Z-axis Travel: 380 mm (360+20)
X-axis Rapid Traverse: 20 m/min
Z-axis Rapid Traverse: 24 m/min
Controlled C Axis: None
Minimum Programmable Value: 0.005°
Rapid Speed: 88 rpm
Coolant: None
Tank Capacity: 180 l
Pump Flow Rate: 150 l/min
Pump Motor Power: 0.75 kW
Dimensions with Chip Conveyor: 3500 x 1754 x 1680h mm
Main Spindle Center Height: 1000 mm
Weight with Chip Conveyor: 3300 kg
Works to be Performed: MAIN SPINDLE LINE OVERHAUL - INTERNAL TURRET MOTOR OVERHAUL - EXTERNAL TURRET MOTOR OVERHAUL
