Contact us to receive an offer.
| Manufacturer | Yang |
|---|---|
| Model | ML-300 |
| Year | 2008 |
| Location | United Kingdom
|
| Category | Lathes - CNC lathes |
| Turning length | 600 mm |
| Turning Ø | 300 mm |
| Ø above the bed | 380 mm |
| Type of CNC | FANUC |
| X-axis | 240 mm |
| Z-axis | 600 mm |
| Spindle taper | |
| Spindle bore | 77 mm |
| Number of tools on turret | 10 |
| Turning speed | 4500 rpm |
| Spindle motor power | 2.8 kW |
| Tailstock | yes |
| Bar feeder | no |
| Length x width x height | 4080.0 × 1675.0 × 1842.0 |
| Weight | 5200 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 20/10/2026 |
| Product id | P240216078 |
| Language |
cnc струг Yang ML-300
Soustruh cnc Yang ML-300
cnc drejebænk Yang ML-300
Yang ML-300 Drehmaschine CNC
cnc τόρνος Yang ML-300
Yang ML-300 cnc lathe
Torno cnc Yang ML-300
Tour cnc Yang ML-300
cnc tokarski stroj Yang ML-300
Yang ML-300 cnc eszterga
Tornio cnc Yang ML-300
cnc tekinimo staklės Yang ML-300
Yang ML-300 cnc-draaibank
Tokarka CNC Yang ML-300
Torno CNC Yang ML-300
strung cnc Yang ML-300
Yang ML-300 Токарный станок с ЧПУ
cnc strug Yang ML-300
Yang ML-300 cnc svarv
Cnc torna Yang ML-300
|
The Yang ML-300 CNC Lathe is a robust and versatile machine designed for precision metal turning tasks. It features a swing over bed of 600 mm (23.62 inches) and a maximum turning diameter of 380 mm (14.96 inches), providing ample capacity for a variety of workpieces. The maximum turning length is 600 mm (23.62 inches), with X and Z axis travels of 240 mm and 600 mm respectively, allowing for detailed machining operations.
Powered by a FANUC spindle motor delivering 2.8 kW (4 HP) at 3000 rpm on both the X and Z axes, the ML-300 ensures efficient and precise cutting performance. The spindle bore diameter is 77 mm, compatible with standard chucks of 8 inches (3500 rpm) and optional 10 inches (3500 rpm), with an optional spindle speed reaching up to 4500 rpm with the 8-inch chuck. The lathe is equipped with a 10-position turret for tool changes, providing flexibility in machining operations.
Additional features include a hydraulic tailstock with a travel of 465 mm (18.3 inches) and MT No. 4 taper, which supports longer workpieces during machining. The machine also includes a coolant system and chip conveyor, enhancing operational efficiency and cleanliness.
The machine measures 4080 mm in length, 1675 mm in width, and 1842 mm in height, with a gross weight of approximately 5200 kg (11440 lbs), making it suitable for both compact workshops and larger industrial settings.

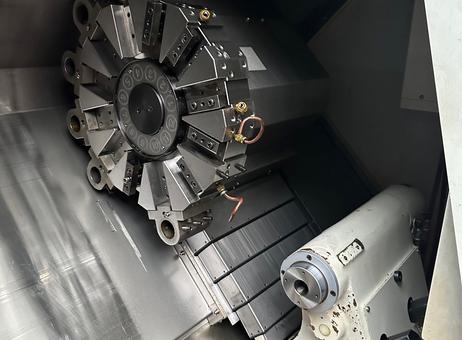

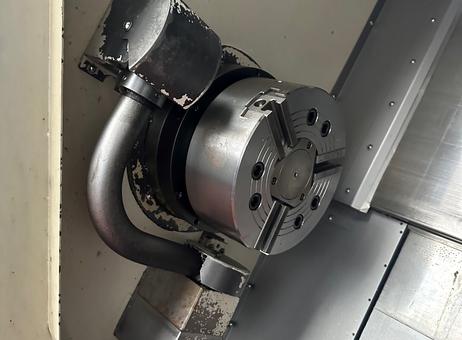

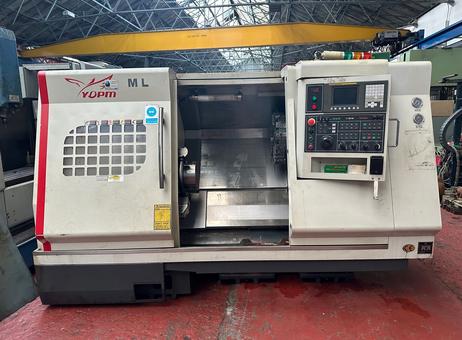

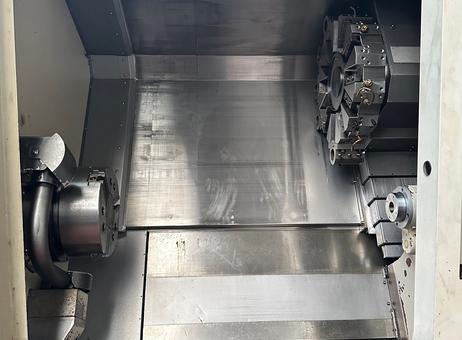

The CNC lathe is equipped with a control panel located on the right side, featuring a screen and multiple buttons and knobs for operation. The left side door includes ventilation holes and safety and warning stickers. Inside, the lathe shows signs of use such as minor paint chipping on the tailstock quill and wear marks on metal surfaces, but overall appears well maintained. Two pressure gauges labeled 'TAILSTOCK QUILL' and 'MAIN PRESSURE' are present and readable. The chuck and surrounding parts display some wear and paint peeling consistent with regular use.
This Yang ML-300 CNC Lathe combines precision, versatility, and durability, making it a suitable choice for a wide range of metal turning applications. Prospective buyers are advised to verify all details during an inspection visit.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Swing over bed – 600 (Ø 23.62)
Diameter × length – Ø 300 × 600 (Ø 11.81 × 23.62)
Max. diameter – Ø 380 (Ø 14.96)
Max. travel range of Z/X axis – 600 / 240 (23.62 / 9.44);
Z-axis: FANUC 2.8 kW (4 HP) /3000 rpm;
X-axis: FANUC 2.8 kW (4 HP) /3000 rpm
Diameter of spindle bore/Draw bar bore –
STD: Ø 77 / Ø 52 (Ø 3.03 / Ø 2.04); OPT: Ø 86 / Ø 77 (Ø 3.38 / Ø 3.03)
Spindle speed –
STD: 8” chuck 3500 rpm; OPT: 8” chuck 4500 rpm, 10” chuck 3500 rpm
Chuck diameter – STD: Ø 8” ; OPT: Ø 10”

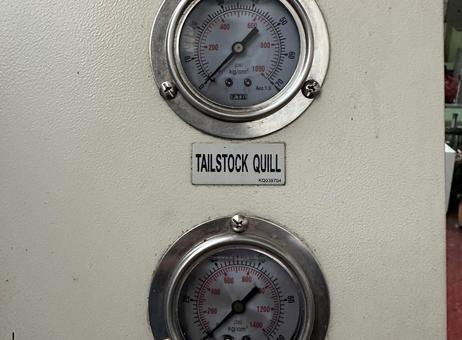

Hydraulic Tailstock – travel 465 (18.3) MT. No.4
VDI Tool stations – OPT: 8 STD: 10
Coolant
Chip conveyor
Power requirement – 208-220 volts / 100 Amps / 3 Phases / 60 Cycles
Floor area (L × W × H) – 4080 ×1675 × 1842 (160.62 × 65.94 × 72.51)
Gross weight (approx.) – 5200 kg (11440 Ibs)
this extra information is standard for this model. Please always double-check the details during a visit
The Yang ML-300 CNC Lathe is a versatile and high-performance machine designed to meet the demands of precision metal turning operations. With a swing over bed of 600mm (23.62 inches) and a maximum turning diameter of 380mm (14.96 inches), this lathe offers ample capacity for machining a wide range of workpieces.
Equipped with a powerful FANUC spindle motor delivering 2.8 kW (4 HP) at 3000 rpm for both the Z and X axes, the ML-300 ensures efficient cutting and precise control over machining operations. Its hydraulic tailstock, with a travel of 465mm (18.3 inches) and MT No. 4 taper, provides additional support for long workpieces.
Featuring options for spindle bore diameter and chuck size, including Ø 8" and Ø 10", the ML-300 offers flexibility to accommodate different machining requirements. With VDI tool stations, coolant system, and chip conveyor included as standard features, this lathe is equipped for efficient and reliable operation.
With a compact footprint of 4080 x 1675 x 1842 mm (160.62 x 65.94 x 72.51 inches) and a gross weight of 5200 kg (11440 lbs), the Yang ML-300 CNC Lathe is suitable for both small-scale workshops and industrial manufacturing environments, offering precision, versatility, and durability for a wide range of metal turning applications.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
When was this Yang ML-300 CNC lathe manufactured?
This Yang ML-300 CNC lathe was manufactured in 2008.
What is the condition of the machine?
This Yang ML-300 CNC lathe is in excellent condition.
Is this equipment ready for use?
This equipment is ready to go.
Is this Yang ML-300 CNC lathe available for inspection?
This Yang ML-300 CNC lathe is available prior to sale.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 23 |
| Last activity | Oct. 30, 2026 |
Swing over bed – 600 (Ø 23.62)
Diameter × length – Ø 300 × 600 (Ø 11.81 × 23.62)
Max. diameter – Ø 380 (Ø 14.96)
Max. travel range of Z/X axis – 600 / 240 (23.62 / 9.44);
Z-axis: FANUC 2.8 kW (4 HP) /3000 rpm;
X-axis: FANUC 2.8 kW (4 HP) /3000 rpm
Diameter of spindle bore/Draw bar bore –
STD: Ø 77 / Ø 52 (Ø 3.03 / Ø 2.04); OPT: Ø 86 / Ø 77 (Ø 3.38 / Ø 3.03)
Spindle speed –
STD: 8” chuck 3500 rpm; OPT: 8” chuck 4500 rpm, 10” chuck 3500 rpm
Chuck diameter – STD: Ø 8” ; OPT: Ø 10”
Hydraulic Tailstock – travel 465 (18.3) MT. No.4
VDI Tool stations – OPT: 8 STD: 10
Coolant
Chip conveyor
Power requirement – 208-220 volts / 100 Amps / 3 Phases / 60 Cycles
Floor area (L × W × H) – 4080 ×1675 × 1842 (160.62 × 65.94 × 72.51)
Gross weight (approx.) – 5200 kg (11440 Ibs)
this extra information is standard for this model. Please always double-check the details during a visit
The Yang ML-300 CNC Lathe is a versatile and high-performance machine designed to meet the demands of precision metal turning operations. With a swing over bed of 600mm (23.62 inches) and a maximum turning diameter of 380mm (14.96 inches), this lathe offers ample capacity for machining a wide range of workpieces.
Equipped with a powerful FANUC spindle motor delivering 2.8 kW (4 HP) at 3000 rpm for both the Z and X axes, the ML-300 ensures efficient cutting and precise control over machining operations. Its hydraulic tailstock, with a travel of 465mm (18.3 inches) and MT No. 4 taper, provides additional support for long workpieces.
Featuring options for spindle bore diameter and chuck size, including Ø 8" and Ø 10", the ML-300 offers flexibility to accommodate different machining requirements. With VDI tool stations, coolant system, and chip conveyor included as standard features, this lathe is equipped for efficient and reliable operation.
With a compact footprint of 4080 x 1675 x 1842 mm (160.62 x 65.94 x 72.51 inches) and a gross weight of 5200 kg (11440 lbs), the Yang ML-300 CNC Lathe is suitable for both small-scale workshops and industrial manufacturing environments, offering precision, versatility, and durability for a wide range of metal turning applications.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
When was this Yang ML-300 CNC lathe manufactured?
This Yang ML-300 CNC lathe was manufactured in 2008.
What is the condition of the machine?
This Yang ML-300 CNC lathe is in excellent condition.
Is this equipment ready for use?
This equipment is ready to go.
Is this Yang ML-300 CNC lathe available for inspection?
This Yang ML-300 CNC lathe is available prior to sale.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Category | Lathes - CNC lathes |
| Turning length | 600 mm |
| Turning Ø | 300 mm |
| Ø above the bed | 380 mm |
| Type of CNC | FANUC |
| X-axis | 240 mm |
| Z-axis | 600 mm |
| Spindle taper | |
| Spindle bore | 77 mm |
| Number of tools on turret | 10 |
| Turning speed | 4500 rpm |
| Spindle motor power | 2.8 kW |
| Tailstock | yes |
| Bar feeder | no |
| Length x width x height | 4080.0 × 1675.0 × 1842.0 |
| Weight | 5200 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 20/10/2026 |
| Product id | P240216078 |
| Language |
cnc струг Yang ML-300
Soustruh cnc Yang ML-300
cnc drejebænk Yang ML-300
Yang ML-300 Drehmaschine CNC
cnc τόρνος Yang ML-300
Yang ML-300 cnc lathe
Torno cnc Yang ML-300
Tour cnc Yang ML-300
cnc tokarski stroj Yang ML-300
Yang ML-300 cnc eszterga
Tornio cnc Yang ML-300
cnc tekinimo staklės Yang ML-300
Yang ML-300 cnc-draaibank
Tokarka CNC Yang ML-300
Torno CNC Yang ML-300
strung cnc Yang ML-300
Yang ML-300 Токарный станок с ЧПУ
cnc strug Yang ML-300
Yang ML-300 cnc svarv
Cnc torna Yang ML-300
|
The Yang ML-300 CNC Lathe is a robust and versatile machine designed for precision metal turning tasks. It features a swing over bed of 600 mm (23.62 inches) and a maximum turning diameter of 380 mm (14.96 inches), providing ample capacity for a variety of workpieces. The maximum turning length is 600 mm (23.62 inches), with X and Z axis travels of 240 mm and 600 mm respectively, allowing for detailed machining operations.
Powered by a FANUC spindle motor delivering 2.8 kW (4 HP) at 3000 rpm on both the X and Z axes, the ML-300 ensures efficient and precise cutting performance. The spindle bore diameter is 77 mm, compatible with standard chucks of 8 inches (3500 rpm) and optional 10 inches (3500 rpm), with an optional spindle speed reaching up to 4500 rpm with the 8-inch chuck. The lathe is equipped with a 10-position turret for tool changes, providing flexibility in machining operations.
Additional features include a hydraulic tailstock with a travel of 465 mm (18.3 inches) and MT No. 4 taper, which supports longer workpieces during machining. The machine also includes a coolant system and chip conveyor, enhancing operational efficiency and cleanliness.
The machine measures 4080 mm in length, 1675 mm in width, and 1842 mm in height, with a gross weight of approximately 5200 kg (11440 lbs), making it suitable for both compact workshops and larger industrial settings.
The CNC lathe is equipped with a control panel located on the right side, featuring a screen and multiple buttons and knobs for operation. The left side door includes ventilation holes and safety and warning stickers. Inside, the lathe shows signs of use such as minor paint chipping on the tailstock quill and wear marks on metal surfaces, but overall appears well maintained. Two pressure gauges labeled 'TAILSTOCK QUILL' and 'MAIN PRESSURE' are present and readable. The chuck and surrounding parts display some wear and paint peeling consistent with regular use.
This Yang ML-300 CNC Lathe combines precision, versatility, and durability, making it a suitable choice for a wide range of metal turning applications. Prospective buyers are advised to verify all details during an inspection visit.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 23 |
| Last activity | Oct. 30, 2026 |
