| Manufacturer | Vebim NV |
|---|---|
| Model | AES EXTREME 2132 |
| Year | 2016 |
| Location | Belgium
|

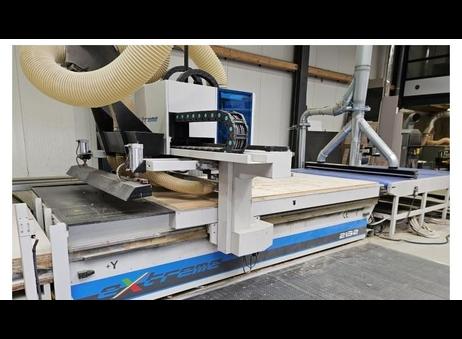

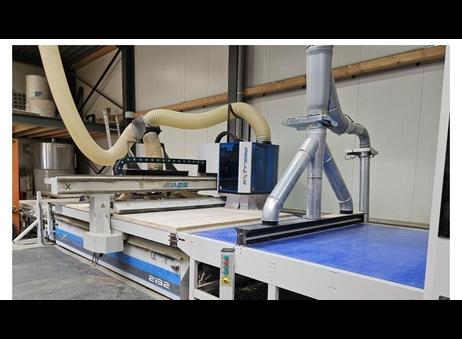

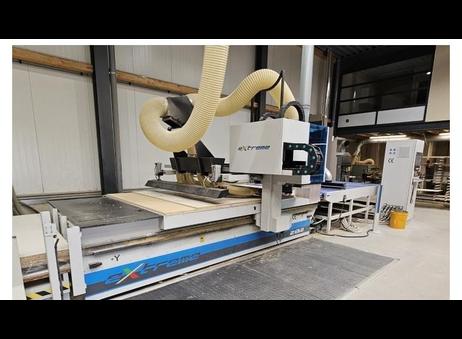

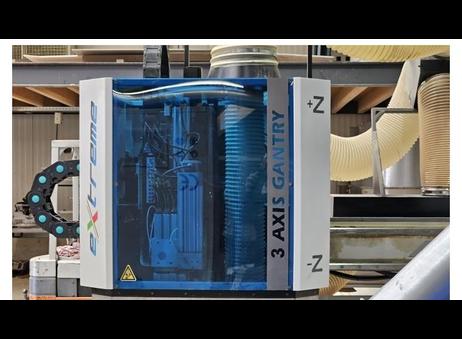

The Vebim NV AES EXTREME 2132 is a gantry-type, 3-axis CNC machining center designed for woodworking applications. It features a large working area measuring approximately 3300 x 2100 mm, providing ample space for processing sizable workpieces. The machine is equipped with a vacuum table that includes multiple switchable zones, enhancing material hold-down during machining operations.

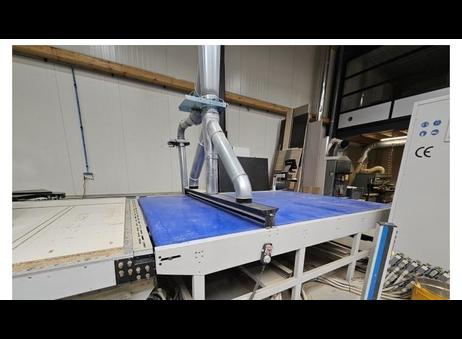

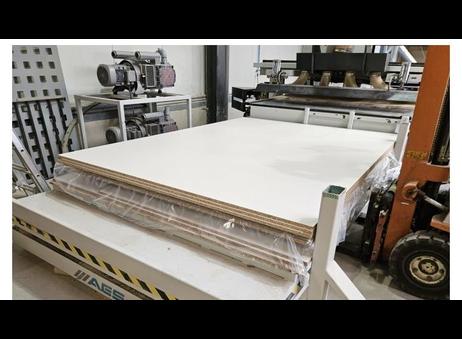

For material handling, the system includes an AES lifting table for automatic sheet loading, facilitating efficient workflow. On the output side, there is a conveyor belt integrated with a label printer, which prints and applies labels manually.

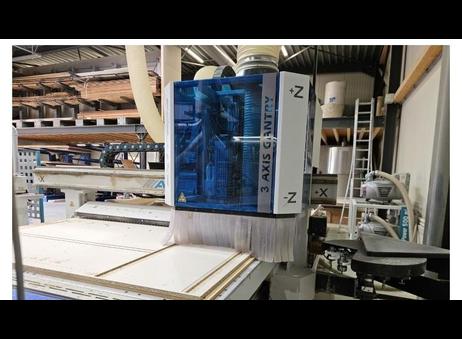

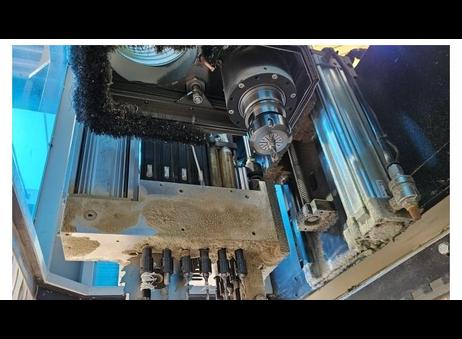

The main spindle is an HSD ES929 model with an HSK-F63 mount, delivering 7.5 kW (9 kW peak) power and capable of speeds up to 24,000 rpm at 800 Hz frequency and 380 V supply. This spindle was overhauled in 2023, with approximately 1,360 operating hours at that time. Additionally, the machine features a drilling unit with 16 spindles arranged as follows: 6 vertical spindles in the X direction, 4 vertical spindles in the Y direction, 2 double horizontal spindles in X, and 1 double horizontal spindle in Y. A slotting saw is also included for specialized cutting tasks.

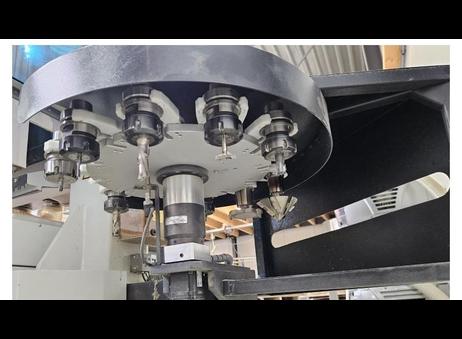

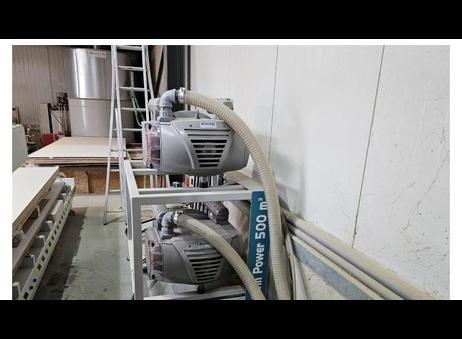

Tool changing is managed by a 12-position tool changer, allowing for efficient tool swaps during operation. Vacuum supply is provided by Becker vacuum pumps with a system capacity of approximately 500 m³/h.

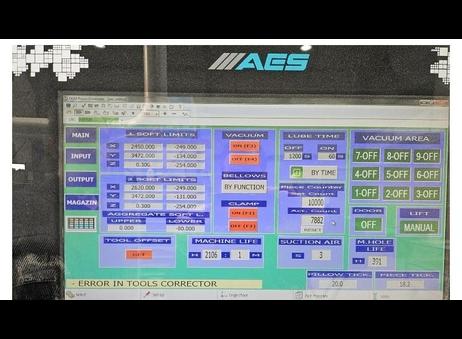

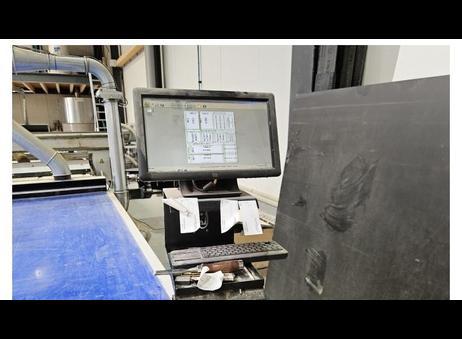

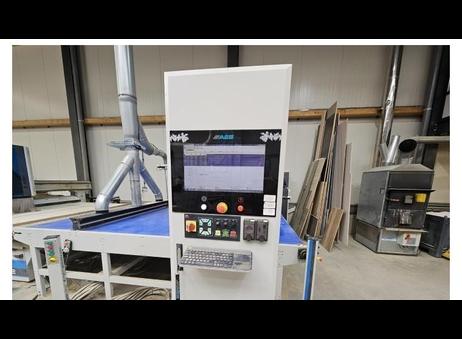

Control of the machine is handled by an OSAI control system with AES ProcessController, operated via a console featuring a touchscreen and keyboard. The machine has accumulated around 2,100 operating hours since new.

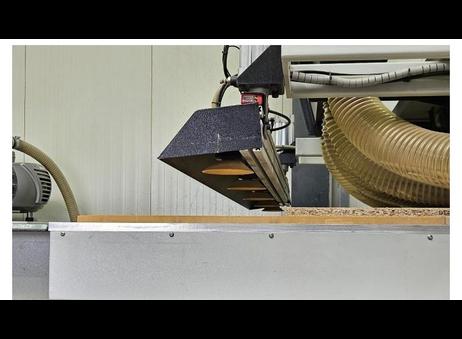

Visual inspection confirms the presence of a blue working surface and dust extraction hoses connected to the machine, which is labeled with 'Extreme' and 'ACS' branding. The control panel is mounted on the machine frame and includes an emergency stop button and other operational controls, ensuring safety and ease of use.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
AES EXTREME 2132
Gantry-type, 3-axis CNC machining centre
Working area (type 2132): approx. 3300 x 2100 mm
Vacuum table with multiple switchable zones
Input: AES lifting table for automatic sheet loading
Output: conveyor belt with label printer (labels are printed and applied manually)
Main spindle: HSD ES929, HSK-F63 mount, 7.5 kW (9 kW), speed up to 24,000 rpm, 800 Hz, 380 V
Main spindle overhauled in 2023
Drilling unit with 16 spindles: 6 vertical spindles in X, 4 vertical spindles in Y, 2 double horizontal spindles in X, 1 double horizontal spindle in Y
Slotting saw
Tool changer with 12 positions
Vacuum: Becker vacuum pumps, system approx. 500 m³/h
Control: OSAI control system with AES ProcessController, operation via console with touchscreen and keyboard
Operating hours: approx. 2,100 h (machine life); main spindle overhauled at approx. 1,360 h
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
