Contact us to receive an offer.
| Manufacturer | Type: W 90Manufacturer: WAHLIGroup: Hobbing machineSubgroup: Hobbing machineStock: 023802 |
|---|---|
| Model | W 90 |
| Year | |
| Location | Switzerland
|

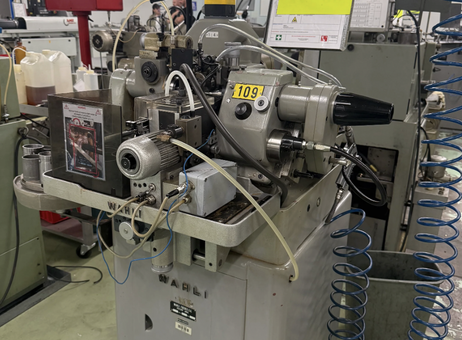

WAHLI W 90 gear hobbing machine offered in as-is, where-is condition. The machine is listed as a gear hobbing machine, with a maximum workpiece diameter of 36 mm and a maximum module of 1.00. It accommodates workpieces up to 80 mm in length. The stated pitch range is 6–200, and the maximum distance between the workpiece and tool is 30 mm.
The maximum gear hob diameter is 36 mm, with maximum milling cutter displacement of 50 mm. The cutter has 8 speed settings, covering a stated range of 660–5,300 rpm. Electrical supply is specified as 3 × 380 V at 50 Hz. The motor power is listed as 0.60 CV, and total power required is 2 CV.
The machine weighs approximately 450 kg. Its stated overall dimensions are 780 mm long, 730 mm wide and 1,380 mm high. These specifications provide the key capacity, speed, electrical and space requirements for assessing whether the machine is suitable for a particular workshop or gear-cutting setup.
Listed accessories include an automatic loader, model W31, a lamp and a coolant system. The machine and accessories are offered in as-is, where-is condition; no additional condition or operational claims are provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Machine type: Gear hobbing machine
Manufacturer: WAHLI
Model: W 90
Technical condition: As-is, where-is
Maximum workpiece diameter: 36 mm
Maximum module: 1.00
Maximum workpiece length: 80 mm
Pitch range: 6–200
Maximum distance between workpiece and tool: 30 mm
Maximum gear hob diameter: 36 mm
Maximum milling cutter displacement: 50 mm
Milling cutter speed settings: 8
Milling cutter speed range: 660–5,300 rpm
Electrical supply: 3 × 380 V, 50 Hz
Motor power: 0.60 CV
Total power required: 2 CV
Weight: Approximately 450 kg
Dimensions (L × W × H): 780 × 730 × 1,380 mm
Accessories: Automatic loader W31, lamp, coolant system
