Contact us to receive an offer.
| Manufacturer | Type: W 90Manufacturer: WAHLIGroup: Hobbing machineSubgroup: Hobbing machineStock: 023801 |
|---|---|
| Model | W 90 |
| Year | |
| Location | Switzerland
|

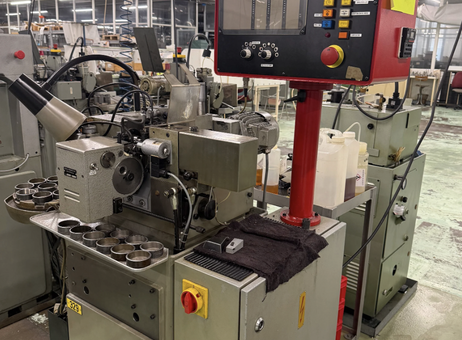

WAHLI W 90 gear hobbing machine offered in as-is, where-is condition. The machine is described for gear-cutting work and has a maximum workpiece diameter of 36 mm and a maximum module of 1.00. Maximum workpiece length is 80 mm, with a pitch range from 6 to 200. The maximum distance between the workpiece and tool axes is 30 mm. The maximum gear hob diameter is 36 mm, and maximum milling cutter displacement is 50 mm.
The milling cutter has 8 speed steps, ranging from 660 to 5,300 rpm. Electrical specifications are 3 × 380 V at 50 Hz. The listed machine power is 0.60 CV, and total power required is 2 CV.
Approximate machine weight is 450 kg. Overall dimensions are 780 mm long, 730 mm wide, and 1,380 mm high. Listed accessories include an automatic W20 loader, a lamp, and a coolant system.
This listing identifies the machine as a WAHLI model W 90 gear hobbing machine. The technical details and included accessories are stated as provided; no additional operating condition or performance information is specified. The machine is offered as-is, where-is.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: WAHLI
Model: W 90
Machine type: Gear hobbing machine
Technical condition: As-is, where-is
Maximum workpiece diameter: 36 mm
Maximum module: 1.00
Maximum workpiece length: 80 mm
Pitch range: 6–200
Maximum distance between workpiece and tool axes: 30 mm
Maximum gear hob diameter: 36 mm
Maximum milling cutter displacement: 50 mm
Milling cutter speeds: 8 steps, from 660 to 5,300 rpm
Voltage: 3 × 380 V, 50 Hz
Machine power: 0.60 CV
Total power required: 2 CV
Weight: Approximately 450 kg
Dimensions (L × W × H): 780 × 730 × 1,380 mm
Accessories: Automatic W20 loader, lamp, coolant system
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2014 |
| Offers online | 256 |
| Last activity | Oct. 26, 2026 |
Manufacturer: WAHLI
Model: W 90
Machine type: Gear hobbing machine
Technical condition: As-is, where-is
Maximum workpiece diameter: 36 mm
Maximum module: 1.00
Maximum workpiece length: 80 mm
Pitch range: 6–200
Maximum distance between workpiece and tool axes: 30 mm
Maximum gear hob diameter: 36 mm
Maximum milling cutter displacement: 50 mm
Milling cutter speeds: 8 steps, from 660 to 5,300 rpm
Voltage: 3 × 380 V, 50 Hz
Machine power: 0.60 CV
Total power required: 2 CV
Weight: Approximately 450 kg
Dimensions (L × W × H): 780 × 730 × 1,380 mm
Accessories: Automatic W20 loader, lamp, coolant system
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
WAHLI W 90 gear hobbing machine offered in as-is, where-is condition. The machine is described for gear-cutting work and has a maximum workpiece diameter of 36 mm and a maximum module of 1.00. Maximum workpiece length is 80 mm, with a pitch range from 6 to 200. The maximum distance between the workpiece and tool axes is 30 mm. The maximum gear hob diameter is 36 mm, and maximum milling cutter displacement is 50 mm.
The milling cutter has 8 speed steps, ranging from 660 to 5,300 rpm. Electrical specifications are 3 × 380 V at 50 Hz. The listed machine power is 0.60 CV, and total power required is 2 CV.
Approximate machine weight is 450 kg. Overall dimensions are 780 mm long, 730 mm wide, and 1,380 mm high. Listed accessories include an automatic W20 loader, a lamp, and a coolant system.
This listing identifies the machine as a WAHLI model W 90 gear hobbing machine. The technical details and included accessories are stated as provided; no additional operating condition or performance information is specified. The machine is offered as-is, where-is.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2014 |
| Offers online | 256 |
| Last activity | Oct. 26, 2026 |
