Contact us to receive an offer.
| Manufacturer | Tsugami |
|---|---|
| Model | HS207 |
| Year | 2011 |
| Location | Poland
|

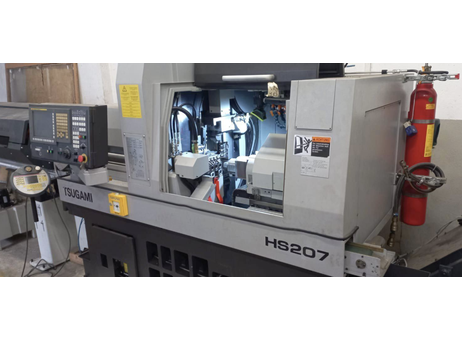

The TSUGAMI HS207 is a Swiss-type CNC automatic lathe manufactured in 2011 in Japan by TSUGAMI CORPORATION. It is designed for serial production of small components with complex geometries, performing turning, drilling and threading operations on bar stock with a maximum diameter of 20 mm.
The machine has a main spindle and a counter spindle and operates across 9 numerically controlled axes: X1, X2, Y1, Y2, B, C1, C2, Z1 and Z2. The counter spindle allows machining to continue on the opposite side of a workpiece after transfer from the main spindle, without re-clamping. Control is via a FANUC Series 31i-MODEL A CNC system.
Automatic material feeding is provided by an FMB turbo 3-36 bar feeder. Listed equipment and accessories include a workpiece conveyor, chip conveyor, fire suppression system, high-pressure oil pump, work-area lighting and a mist extraction outlet. An operating manual in Polish is also included.
Technical data:

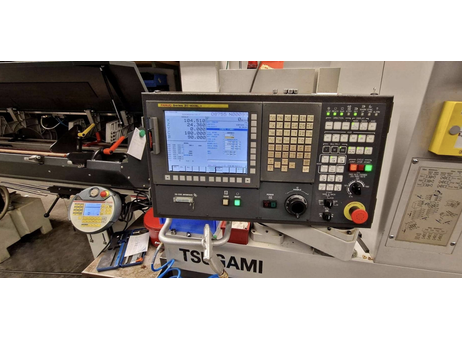

- CNC controller: FANUC Series 31i-MODEL A
- Number of axes: 9 (X1, X2, Y1, Y2, B, C1, C2, Z1, Z2)
- Maximum bar diameter: 20 mm
- Operating hours: 9,337 h
- Machine runtime: 26,046 h
- Bar feeder: FMB turbo 3-36
- Rated power: 14.3 kVA
- Power supply: 3 × 200 V, 50 Hz
- Machine weight: 3,300 kg
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The TSUGAMI HS207 longitudinal automatic lathe was manufactured in 2011 in Japan by TSUGAMI CORPORATION. The machine is designed for serial production of small components with complex geometry, used in various industries. It allows precise turning, drilling, and threading of material from a bar with a maximum diameter of 20 mm.
Machining is performed using the main spindle and the counter spindle, across 9 numerically controlled axes. This configuration enables operations to be carried out on both sides of the workpiece without the need for re-clamping. After machining on one side is complete, the workpiece is transferred to the other spindle, allowing work to continue from the opposite side. This results in efficient execution of subsequent operations and high repeatability of the produced parts.
The TSUGAMI HS207 is operated via the intuitive FANUC Series 31i-MODEL A CNC controller, which offers access to many advanced features. Automatic material feed is provided by the FMB turbo 3-36 bar feeder. The equipment also includes, among others, a chip conveyor and a fire suppression system. The TSUGAMI HS207 CNC automatic lathe weighs 3300 kg.
Technical data of the TSUGAMI HS207 CNC lathe:
- CNC controller: FANUC Series 31i-MODEL A
- Number of axes: 9 (X1, X2, Y1, Y2, B, C1, C2, Z1, Z2)
- Maximum bar diameter: Ø 20 mm
- Operating hours: 9337 h
- Machine runtime: 26046 h
- Counter spindle
- Bar feeder: FMB turbo 3-36
- Workpiece conveyor
- Chip conveyor
- Fire suppression system
- High-pressure oil pump
- Work area lighting
- Mist extraction outlet
- Operating manual in Polish
- Rated power: 14.3 kVA
- Power supply: 3x 200 V; 50 Hz
- Machine weight TSUGAMI: 3300 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 425 |
| Last activity | Oct. 26, 2026 |
The TSUGAMI HS207 longitudinal automatic lathe was manufactured in 2011 in Japan by TSUGAMI CORPORATION. The machine is designed for serial production of small components with complex geometry, used in various industries. It allows precise turning, drilling, and threading of material from a bar with a maximum diameter of 20 mm.
Machining is performed using the main spindle and the counter spindle, across 9 numerically controlled axes. This configuration enables operations to be carried out on both sides of the workpiece without the need for re-clamping. After machining on one side is complete, the workpiece is transferred to the other spindle, allowing work to continue from the opposite side. This results in efficient execution of subsequent operations and high repeatability of the produced parts.
The TSUGAMI HS207 is operated via the intuitive FANUC Series 31i-MODEL A CNC controller, which offers access to many advanced features. Automatic material feed is provided by the FMB turbo 3-36 bar feeder. The equipment also includes, among others, a chip conveyor and a fire suppression system. The TSUGAMI HS207 CNC automatic lathe weighs 3300 kg.
Technical data of the TSUGAMI HS207 CNC lathe:
- CNC controller: FANUC Series 31i-MODEL A
- Number of axes: 9 (X1, X2, Y1, Y2, B, C1, C2, Z1, Z2)
- Maximum bar diameter: Ø 20 mm
- Operating hours: 9337 h
- Machine runtime: 26046 h
- Counter spindle
- Bar feeder: FMB turbo 3-36
- Workpiece conveyor
- Chip conveyor
- Fire suppression system
- High-pressure oil pump
- Work area lighting
- Mist extraction outlet
- Operating manual in Polish
- Rated power: 14.3 kVA
- Power supply: 3x 200 V; 50 Hz
- Machine weight TSUGAMI: 3300 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The TSUGAMI HS207 is a Swiss-type CNC automatic lathe manufactured in 2011 in Japan by TSUGAMI CORPORATION. It is designed for serial production of small components with complex geometries, performing turning, drilling and threading operations on bar stock with a maximum diameter of 20 mm.
The machine has a main spindle and a counter spindle and operates across 9 numerically controlled axes: X1, X2, Y1, Y2, B, C1, C2, Z1 and Z2. The counter spindle allows machining to continue on the opposite side of a workpiece after transfer from the main spindle, without re-clamping. Control is via a FANUC Series 31i-MODEL A CNC system.
Automatic material feeding is provided by an FMB turbo 3-36 bar feeder. Listed equipment and accessories include a workpiece conveyor, chip conveyor, fire suppression system, high-pressure oil pump, work-area lighting and a mist extraction outlet. An operating manual in Polish is also included.
Technical data:
- CNC controller: FANUC Series 31i-MODEL A
- Number of axes: 9 (X1, X2, Y1, Y2, B, C1, C2, Z1, Z2)
- Maximum bar diameter: 20 mm
- Operating hours: 9,337 h
- Machine runtime: 26,046 h
- Bar feeder: FMB turbo 3-36
- Rated power: 14.3 kVA
- Power supply: 3 × 200 V, 50 Hz
- Machine weight: 3,300 kg
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 425 |
| Last activity | Oct. 26, 2026 |
