Contact us to receive an offer.
| Manufacturer | SPINNER |
|---|---|
| Model | TC 600 85MC |
| Year | 2024 |
| Location | Germany
|

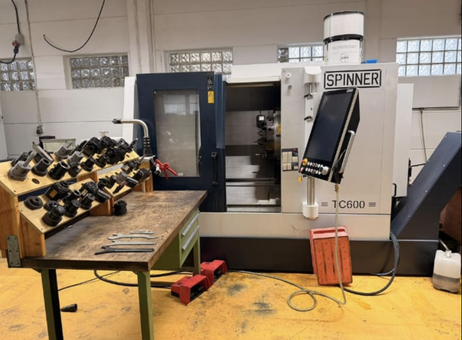

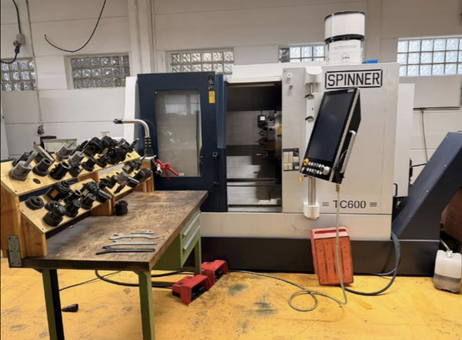

SPINNER TC600 SMCY-85MM
Work Area
Swing diameter: 23.62 in (600 mm)
Maximum turning diameter: 15.74 in (400 mm)
Maximum turning length: 25.5 (650 mm)
Travels
X: 10.82 in (275 mm)
Y: + 1.968 in (50mm) / -1.575 in (40 mm)
Z: 27.5 in (700 mm)
Feedrate
Rapid Traverse X: 590 ipm (15 m/min)
Rapid Traverse Y: 590 ipm (15 m/min)
Rapid Traverse Z: 944 ipm (24 m/min)
Spindle 1
*Liquid cooled motorized spindle with C-axis servo drive and encoder for synchronous machining.
Spindle Bore Capacity: 3.34 in (85 mm)
Speed: 3,400 rpm
Performance (Max): 52.5 hp (39.2 kW)
Torque (Max): 281.7 ft-lb (382 Nm)
Spindle Nose: DIN / A8
Spindle 2
*Liquid cooled motorized spindle with C-axis servo drive and encoder for synchronous machining.
Spindle Bore Capacity: 1.65 in (42 mm)
Speed: 6,000 rpm
Performance (Max): 24.1 hp (18 kW)
Torque (Max): 81.1 ft-lb (115 Nm)
Spindle Nose: D = 4.33 in (110 mm)
Turret
Driven tool stations: 16
Tool holder type: BMT45
Maximum live tool speed: 6,000 rpm
Horsepower (max): 14.75 hp (11 kW)
Torque (max): 16.2 ft-lb (22 Nm)
Size & Electrical
Technical design according to CE standards.
Machine Dimensions: 102.4 in (2600 mm) x 75.6 in (1920 mm) x 83.9 in (2130 mm)
Machine Weight: 12,786 lbs. (5,800 kg)
Operating Voltage: 3 x 400V (+/- 10%)
Main Frequency: 60 Hz (+/- 2%)
Connection: TN network (5-wire)
CNC Control System
FANUC 32i-TB
Contouring control with FANUC standard user interface
15" LCD flat panel with full keyboard
256 Kbyte user memory
64 program numbers
Work offsets G54-59
64 tool offset pairs + 64 additional
USB interface for loading/saving CNC programs
Ethernet interface
GE FANUC "turning" cycles for threading, deep drilling, machining, grooving.
Contour train programming, cutting radius comp, chamfering and corner rounding
Rigid tapping on all live turret tools
C-axis polar coordinates and cylinder interpolation
Parallel programming in the background
Simple menu-driven conversational programming screens guide the operator through a series of frequently used machining operations.
Inch-Metric switching
Electronic handwheel integrated in control panel
Primary language English with trilingual Spanish/German/French dialogue
Manual Guide-i Conversational programming
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Is this SPINNER TC 600 85MC CNC lathe complete with tools?
This SPINNER TC 600 85MC CNC lathe includes all the tools.
What year was this SPINNER TC 600 85MC CNC lathe produced?
This SPINNER TC 600 85MC CNC lathe has a production year of 2024.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
