Contact us to receive an offer.
| Manufacturer | SMEC |
|---|---|
| Model | PL45MC/2200 |
| Year | 2010 |
| Location | Italy
|
| Category | Lathes - CNC lathes |
| Type of CNC | |
| Spindle taper | |
| Tailstock | no |
| Bar feeder | no |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | SMEC PL45MC/2200 |
| Last availability date | 30/10/2026 |
| Product id | P260902575 |
| Language |
CNC струг SMEC PL45MC/2200
CNC soustruh SMEC PL45MC/2200
SMEC PL45MC/2200 CNC-drejebænk
SMEC PL45MC/2200 CNC-Drehmaschine
Τόρνος CNC SMEC PL45MC/2200
SMEC PL45MC/2200 CNC lathe
Torno CNC SMEC PL45MC/2200
Tour CNC SMEC PL45MC/2200
CNC tokarski stroj SMEC PL45MC/2200
SMEC PL45MC/2200 CNC esztergagép
Tornio CNC SMEC PL45MC/2200
SMEC PL45MC/2200 CNC tekinimo staklės
SMEC PL45MC/2200 CNC-draaibank
Tokarka CNC SMEC PL45MC/2200
Torno CNC SMEC PL45MC/2200
Strung CNC SMEC PL45MC/2200
SMEC PL45MC/2200 Токарный станок с ЧПУ
CNC strug SMEC PL45MC/2200
SMEC PL45MC/2200 CNC-svarv
CNC torna SMEC PL45MC/2200
|

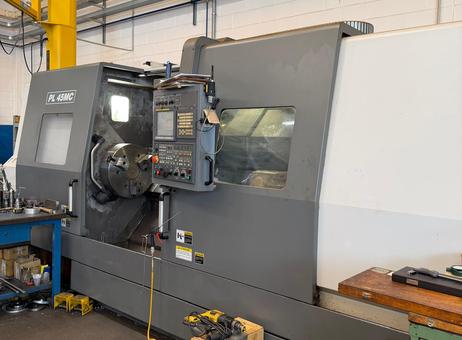

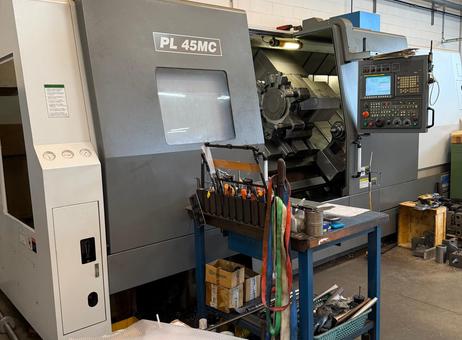

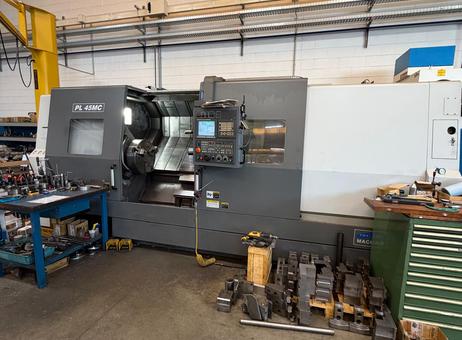

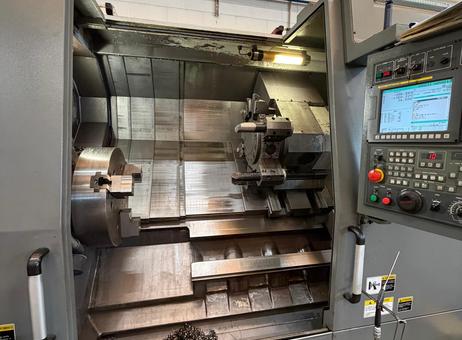

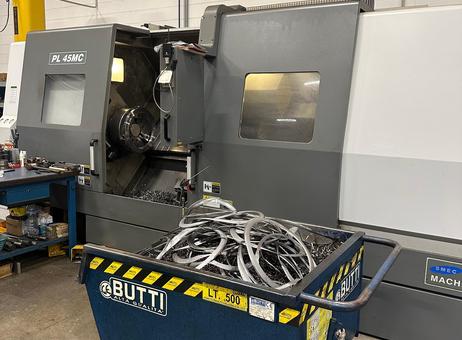

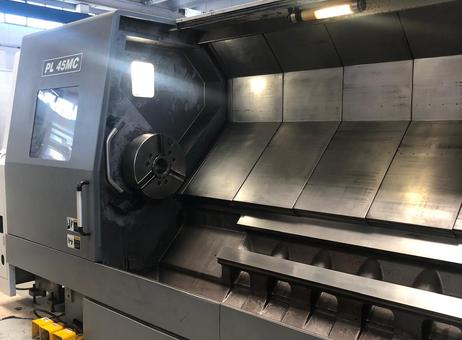

CNC fixed-head lathe equipped with a Fanuc 0iTD control. The listing includes detailed mechanical and capacity specifications suitable for evaluation by prospective buyers and integrators.
Key specifications:
- Control: Fanuc 0iTD

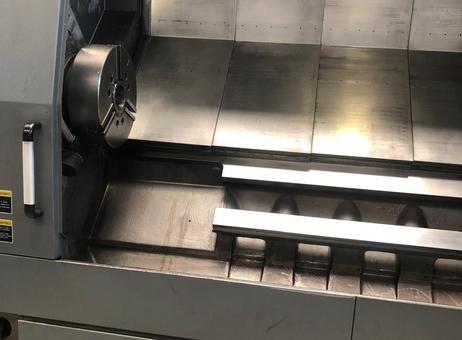

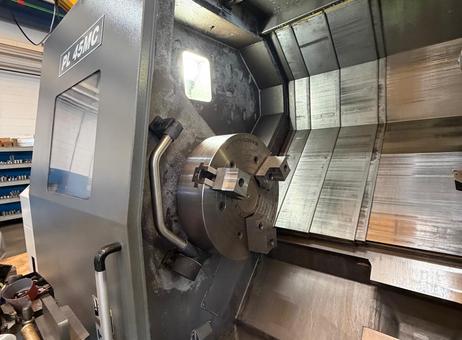

- Self-centering chuck: Ø 450 mm (ASA 11)
- Spindle mount: A2-11 (ASA)
- Spindle bore diameter: 132 mm
- Internal drawbar diameter: 117 mm
- Bar capacity: 117 mm
- Spindle speed range: 10–2000 rpm
- Main spindle motor power: 30/37 kW
- Number of mechanical speed ranges: 2
- Max. spindle motor torque (cont./30 min): 1980/2450 Nm
- C-axis: Yes
Turret and tooling:

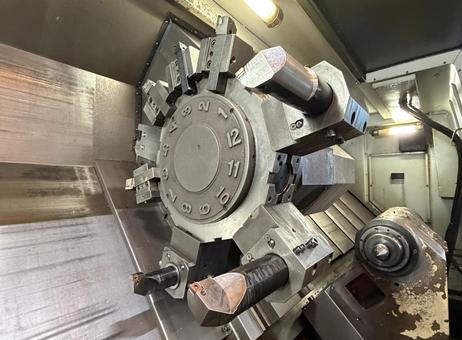

- Motorized turret with 12 positions
- “Nr. 2 radial and 2 axial motorized” (as listed)
Capacity and travel:
- Turning length: 2255 mm
- Maximum swing diameter over bed: 775 mm
- Maximum turning diameter over carriage: 630 mm
- Maximum turning diameter over bed: 690 mm
Carriage and axes:
- X-axis travel: 350 mm
- Z-axis travel: 2330 mm
- Axes motor power (X/Z): 7/7 kW
- Carriage guide inclination: 45 degrees

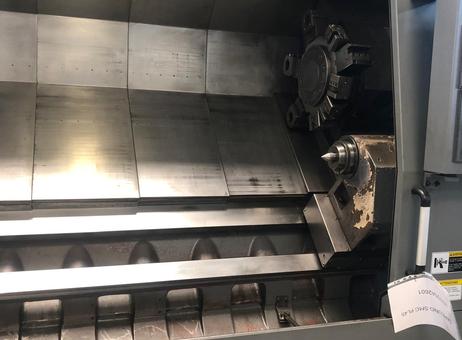

Tailstock:
- Tailstock cone: 5 CM
- Tailstock travel with carriage mounting: 2255 mm
- Tailstock barrel diameter: 160 mm
- Barrel travel: 150 mm
- Maximum barrel thrust: 2851 kg
Additional dimensions:
- Machine footprint/overall dimensions: 6521 x 2154 x 2374 mm
Notes:
All items and numeric values above are taken from the provided specifications. No statements are made about operational condition, testing, refurbishment, or warranty. Buyers should verify functional condition and suitability for their intended use prior to purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
cnc lathes
fixed head lathes
C.N.C
Fanuc 0iTD
Specifications
Self-centering chuck diameter 450 mm ASA 11.
Nr. 2 radial and 2 axial motorized.
Capacity
Turning length: 2255 mm
1st Spindle
Spindle mount: A2-11 ASA
Bar capacity: 117 mm
Rotation speed: 10-2000 rpm
Motor power: 30/37 Kw
C axis: Yes degrees
Tailstock
Cone: 5 CM
1st Turret
Motorized turret: 12
Specific properties
Maximum swing diameter over bed mm 775
Maximum turning diameter over carriage mm 630
Maximum turning diameter over bed mm 690
SPINDLE
Spindle bore diameter mm 132
Internal drawbar diameter mm 117
Main spindle motor power kw 30/37
Number of mechanical speed ranges nr 2
Max. spindle motor torque (cont./30 min) Nm 1980/2450
CARRIAGE
X axis travel mm 350
Z axis travel mm 2330
Axes motor power X/Z kw 7/7
Carriage guide inclination degrees 45
TAILSTOCK
Tailstock travel with carriage mounting mm 2255
Barrel diameter mm 160
Barrel travel mm 150
Maximum barrel thrust kg 2851
Machine dimensions: 6521x2154x2374 mm
