| Manufacturer | SAMAG |
|---|---|
| Model | TFZ 2L-1000 |
| Year | 2019 |
| Location | Germany
|

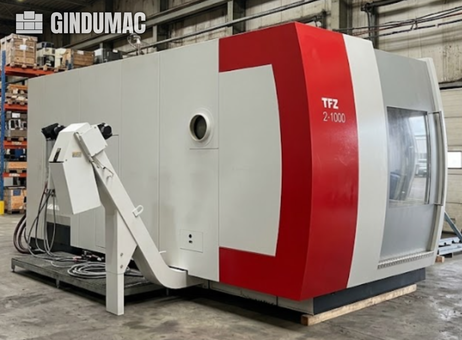

SAMAG TFZ 2L-1000 universal machining centre, manufactured in 2019. The machine is described as a six-axis model with linear X, Y, Z and W axes, an A swivel axis with a range of ±30°, and a B rotary table axis with 360° rotation. Listed travels are 1,600 mm in X, 1,250 mm in Y and 1,100 mm in Z.
The machine has a reinforced main spindle drive rated at 15/23 kW and a stated standard spindle speed of 6,000 rpm. The spindle taper is HSK 63. The tool changer has 24 positions and is specified for an HSK-A 63 spindle with cover. The stated drilling diameter range is Ø4–36 mm. The machine is configured for emulsion cooling and is described with an enclosed roof and extraction unit.
For measurement and setup, the listed equipment includes a direct measuring system in all main axes, a Heidenhain TS 460 touch probe, a Heidenhain TT 460 3D infrared touch system and a Ø25 mm calibration ball. Monitoring and kinematics features include a safety query for the chip cartridge, collision monitoring with a 3D acceleration sensor, Dynamic Collision Monitoring (DCM) and Quick Check Kinematics (QCK). The control brand is HEIDENHAIN.
The machine is presented for deep-hole drilling and milling applications. No further condition information is provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 6-axis SAMAG TFZ 2L-1000 was manufactured in 2019. It features a travel extension of 1,600 mm in the X-axis, 1,250 mm in the Y-axis, and 1,100 mm in the Z-axis. The machine is equipped with a reinforced main spindle drive of 15/23 kW and a tool changer with 24 positions. If you are looking to get high-quality deep hole drilling and milling capabilities, consider the SAMAG TFZ 2L-1000 universal machining centre we have for sale. Contact us for further details.- Number of Axes: 6 Axes (Linear X, Y, Z, W axes; A-swivel axis +/- 30°; B-rotary table axis 360°)
- Travel Extension Y-axis: 1,250 mm
- Main Spindle Drive: Reinforced 15/23 kW (for standard spindle 6,000 rpm)
- Drilling Diameter Range: Ø 4 - 36 mm
- Tool Changer: 24 positions for HSK-A 63 spindle with cover
- Cooling Medium: Emulsion execution with enclosed roof and extraction unit
- Measuring System: Direct measuring system in all main axes
- Probing Systems: Heidenhain TS 460 touch probe, Heidenhain TT 460 3D infrared touch system, and Ø 25 mm calibration ball
- Monitoring & Kinematics: Safety query chip cartridge, collision monitoring with 3D acceleration sensor, DCM (Dynamic Collision Monitoring), and QCK (Quick Check Kinematics)
Control Brand: HEIDENHAIN
Number of Axes: 6
Tool Stations: 24
Spindle Speed: 6000 RPM
Taper Size: HSK 63
X-axis Travel: 1600 mm
Y-axis Travel: 1250 mm
Z-axis Travel: 1100 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
