| Manufacturer | Quick-Tech |
|---|---|
| Model | XTS-42 |
| Year | 2013 |
| Location | Hungary
|
Quick-Tech XTS-42 CNC horizontal lathe, manufactured in 2013. This machine has a twin-spindle configuration, four axes and a Mitsubishi M70 control. The listed maximum spindle speed is 4,000 rpm, with main spindle power of 7.5 kW. The maximum machining length is 350 mm, and the maximum turning diameter is 100 mm. Driven tools are listed, and the machine is described as having a counter spindle.

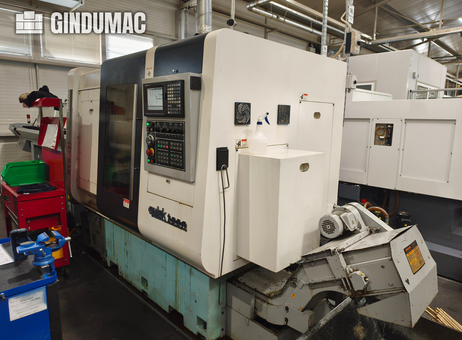

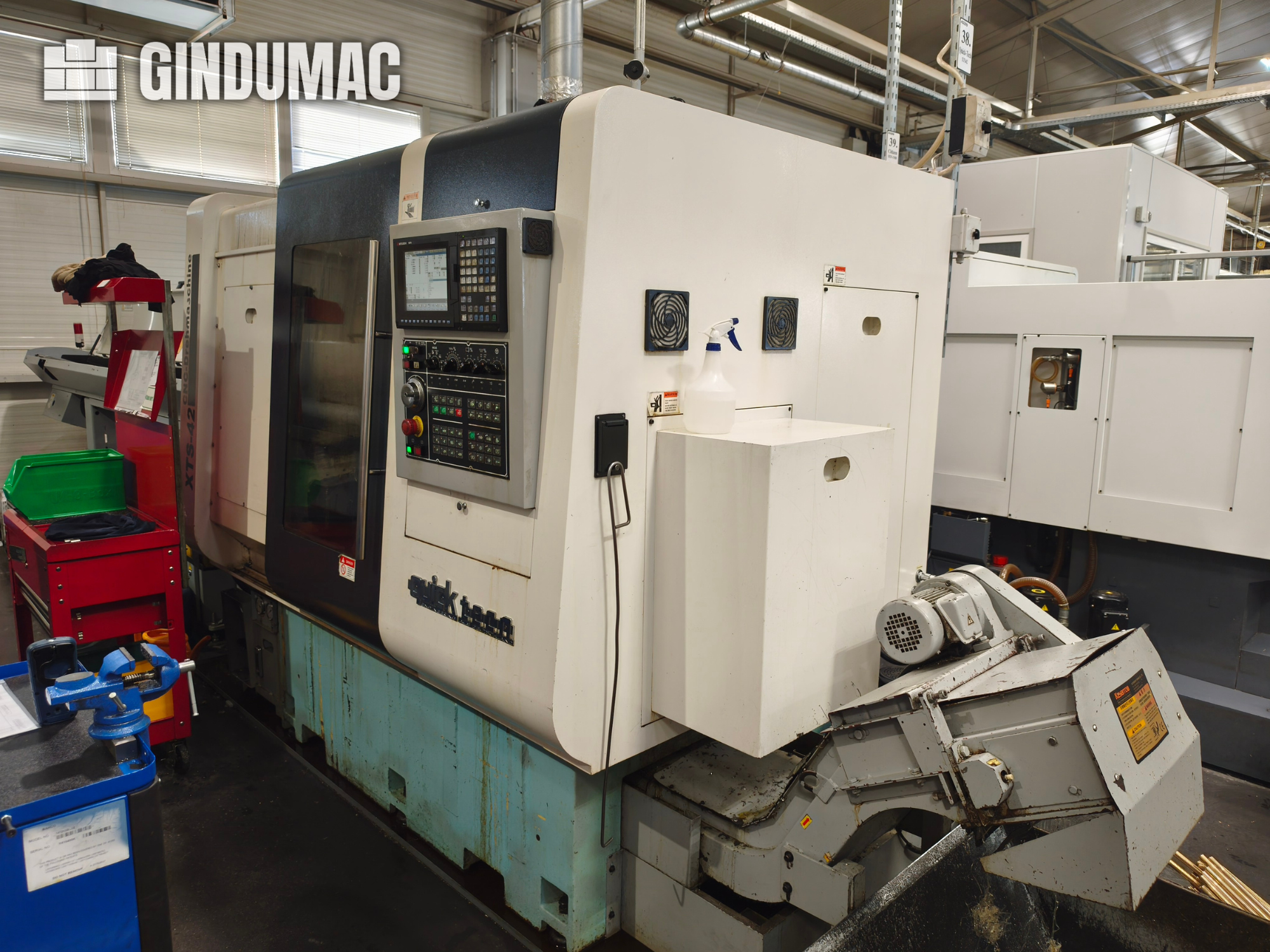

The lathe has an enclosed cream and dark blue housing, a front-mounted control panel and a turquoise base. A chip conveyor or discharge unit is visible at the lower right. A separate bar-feeder assembly is positioned alongside the machine; its inclusion in the sale is not confirmed. The control panel has a screen, soft keys and an alphanumeric keypad.

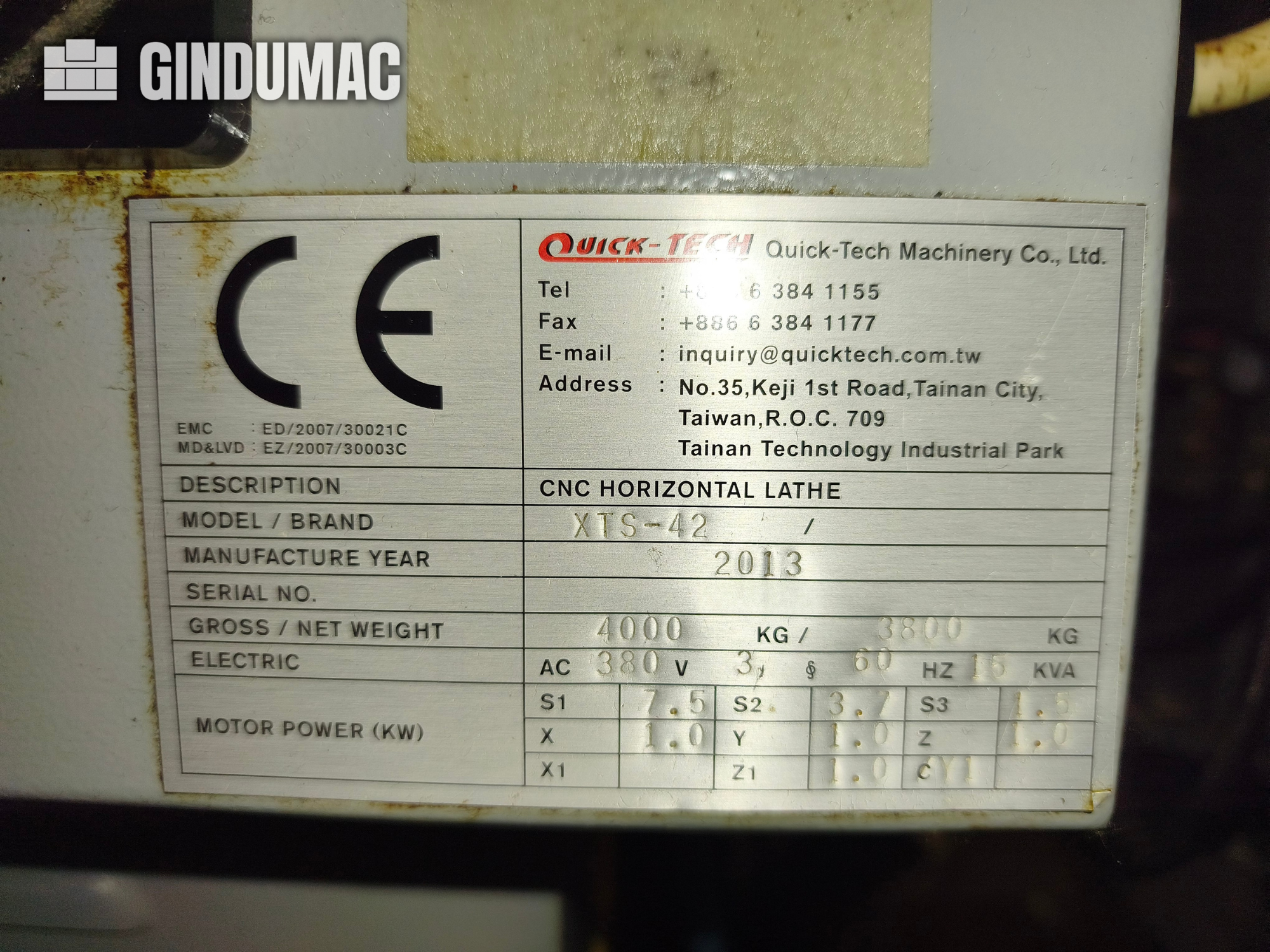

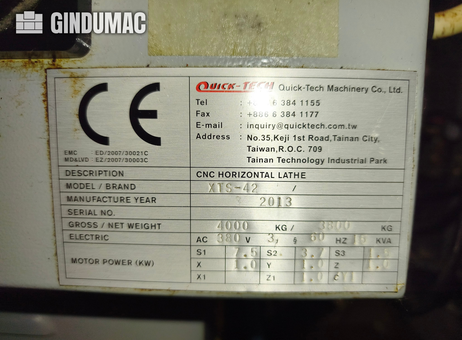

Visible condition includes grime, staining and surface wear on parts of the lower base and chip conveyor, with additional staining around the machine plate and adjacent enclosure. These observations are limited to the visible exterior and do not establish the machine’s operating condition. A green READY indicator is illuminated on the control panel, but this alone does not confirm that the machine is fully operational.
The listed specifications identify the XTS-42 as a four-axis, twin-spindle CNC lathe with driven tooling. Operating hours, maintenance history, any known technical issues, and whether the machine can be demonstrated are not specified.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 4-axis Quick-Tech XTS-42 CNC Lathe was manufactured in 2013. It features a twin-spindle configuration with a maximum machining length of 350 mm on the main spindle and a turning diameter of 100 mm on the sub-spindle. The machine is equipped with a Mitsubishi M70 control and has a bar capacity of 42 mm. If you are looking to get high-quality turning capabilities, consider the Quick-Tech XTS-42 machine we have for sale. Contact us for further details.Number of spindles: 2
Spindle motor power: Main spindle: 7.5 kW; Sub-spindle: 3.7 kW
Spindle bore: Main spindle: 44 mm; Sub-spindle: 30 mm
Movement
B-Axis: Present, according to seller description
Others: Z1-axis: 470 mm
Extra Information
Bar capacity: 42 mm
Main spindle max. machining length: 350 mm
Main spindle chuck: Patron KK5-173E/42B
Main spindle nose: ISO A2-5
Sub-spindle bar capacity: 42 mm
Sub-spindle max. machining length: 155 mm
Sub-spindle max. turning diameter: 100 mm
Sub-spindle chuck: Patron KK5-173E/42B
Sub-spindle nose: ISO A2-5
X / Y / Z / Z1 servo motors: Mitsubishi, 1 kW
Technical specification available as attachment
Preliminary evaluation requested
Still missing / useful to request before publication: Serial number
Still missing / useful to request before publication: Exact machine location
Still missing / useful to request before publication: Operating hours / spindle hours
Still missing / useful to request before publication: Confirmation machine is fully operational
Still missing / useful to request before publication: Whether machine is under power and can be demonstrated
Still missing / useful to request before publication: Number of axes / exact B-axis configuration
Still missing / useful to request before publication: Driven tools / live tooling
Still missing / useful to request before publication: Tooling configuration / number of tool stations
Still missing / useful to request before publication: Bar feeder included or not
Still missing / useful to request before publication: Chip conveyor
Still missing / useful to request before publication: Additional accessories
Still missing / useful to request before publication: Recent photos
Still missing / useful to request before publication: Nameplate photo
Still missing / useful to request before publication: Video under power
Still missing / useful to request before publication: Maintenance / repair history
Still missing / useful to request before publication: Any active alarms or known technical issues
Counter Spindle: yes
Driven Tools: yes
Number of Axes: 4
Spindle Power: 7.5 kW
Spindle Speed: 4000 RPM
X-axis Travel: 250 mm
Y-axis Travel: 380 mm
Z-axis Travel: 350 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
